Code	C302
Capacity	300mm x 150mm
Weight (kg)	19
Weight (m³)	0.003
Weight (Freight)	19
Dimensions (cm)	27 x 15.5 x 7

TOOLMASTER

1 Year Warranty

Product Brochure

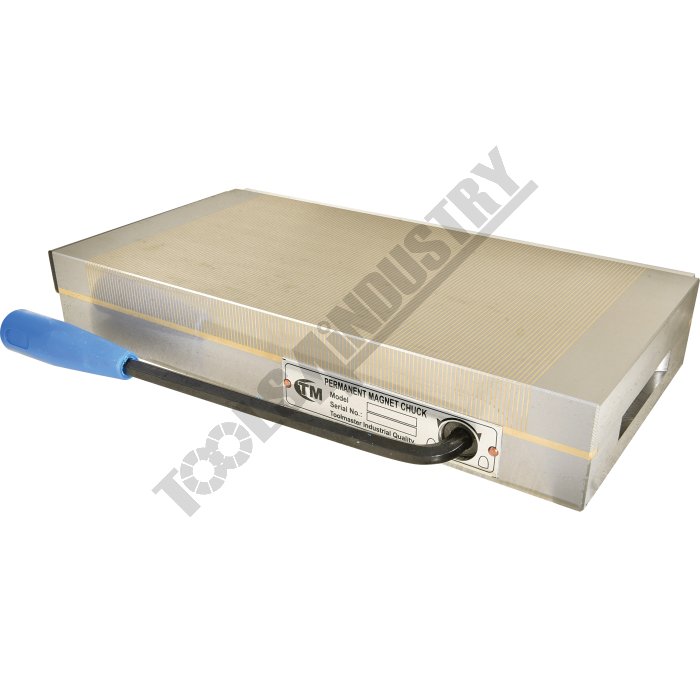

Magnetic Chuck 300mm x 150mm

Features

Cam-operated On/Off handle to hold and release the work-piece
Powerful permanent magnets
Thick top and base plate for maximum rigidity

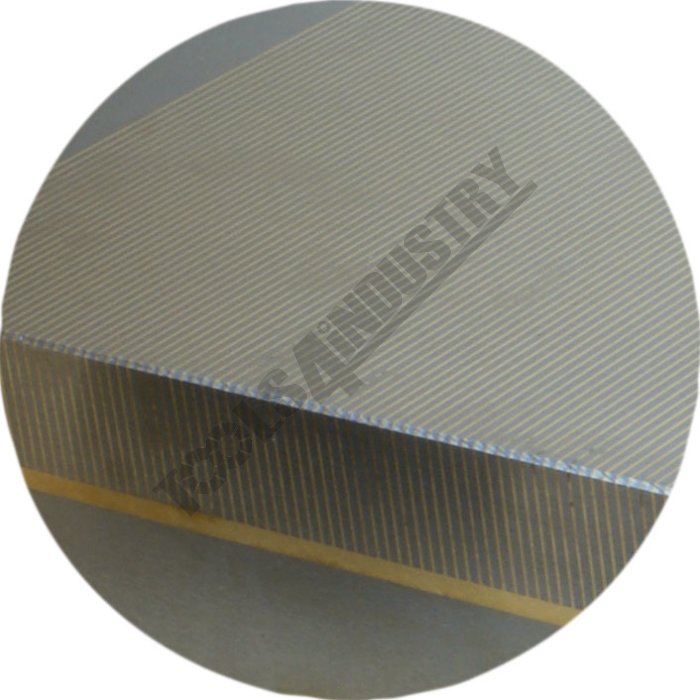

The fine pitched magnetic poles make it suitable for small and thin pieces

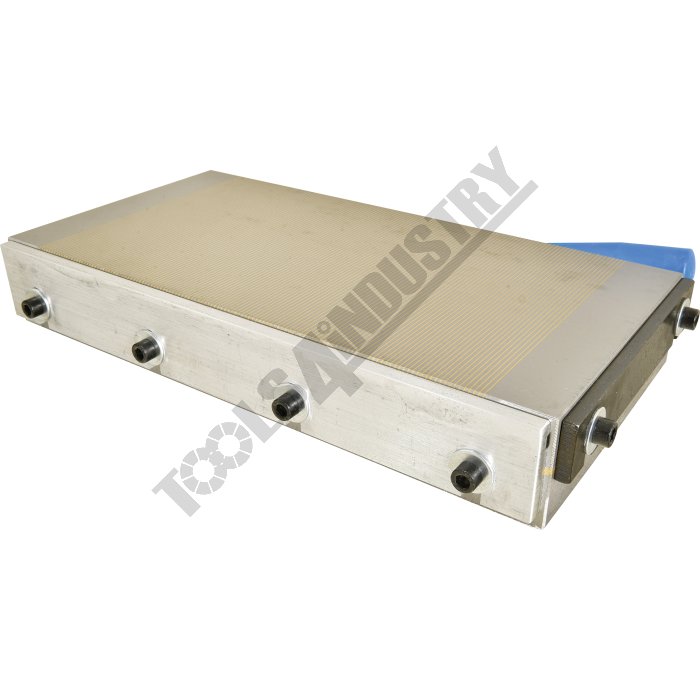

Includes rear keeper plate

Specifications

Compare 4 Products
ORDER CODE
Dimensions (L x W x H)mm
Magnetic ForceN/cm2
Pmm
Lmm
Bmm
Hmm
Tmm
Nett Weightkg

C302
300 x 150 x 48
120
1 + 3
300
150
48
20
19

C306
450 x 150 x 53
120
1 + 3
450
150
53
20
26

C308
450 x 200 x 53
80
0.5 + 1
450
200
53
23
35

C300
250 x 125 x 48
120
1 + 3
250
125
48
20
14

ORDER CODE	300 x 150 x 48
Dimensions (L x W x H)mm	120
Magnetic ForceN/cm2	1 + 3
Pmm	300
Lmm	150
Bmm	48
Hmm	20
Tmm	19
Nett Weightkg
