Code	C308
Capacity	450mm x 200mm
Weight (kg)	35
Weight (m³)	0.014
Weight (Freight)	35
Dimensions (cm)	53.5 x 23 x 11

TOOLMASTER

1 Year Warranty

Product Brochure

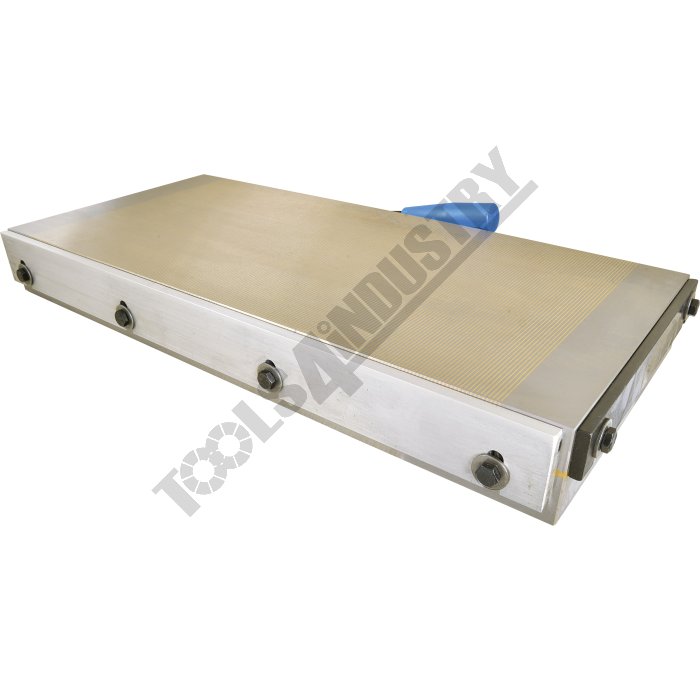

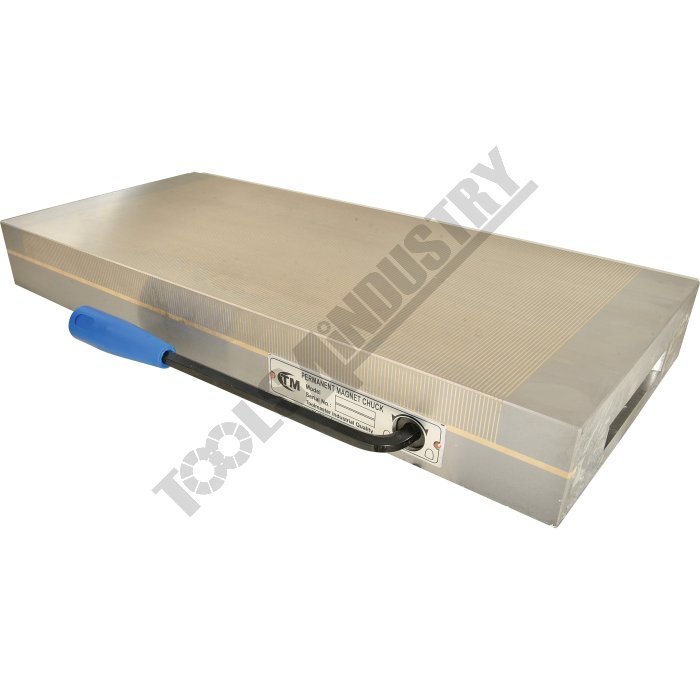

Magnetic Chuck 450mm x 200mm

Features

Cam-operated On/Off handle to hold and release the work-piece
Powerful permanent magnets
Thick top and base plate for maximum rigidity

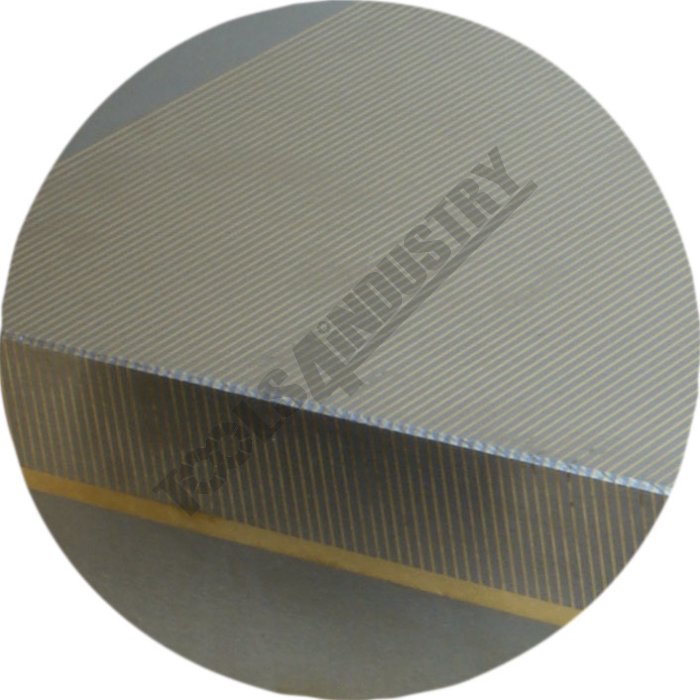

The fine pitched magnetic poles make it suitable for small and thin pieces
Includes rear keeper plate

Specifications

Compare 4 Products
ORDER CODE
Dimensions (L x W x H)mm
Magnetic ForceN/cm2
Pmm
Lmm
Bmm
Hmm
Tmm
Nett Weightkg

C308
450 x 200 x 53
80
0.5 + 1
450
200
53
23
35

C300
250 x 125 x 48
120
1 + 3
250
125
48
20
14

C302
300 x 150 x 48
120
1 + 3
300
150
48
20
19

C306
450 x 150 x 53
120
1 + 3
450
150
53
20
26

ORDER CODE	450 x 200 x 53
Dimensions (L x W x H)mm	80
Magnetic ForceN/cm2	0.5 + 1
Pmm	450
Lmm	200
Bmm	53
Hmm	23
Tmm	35
Nett Weightkg
