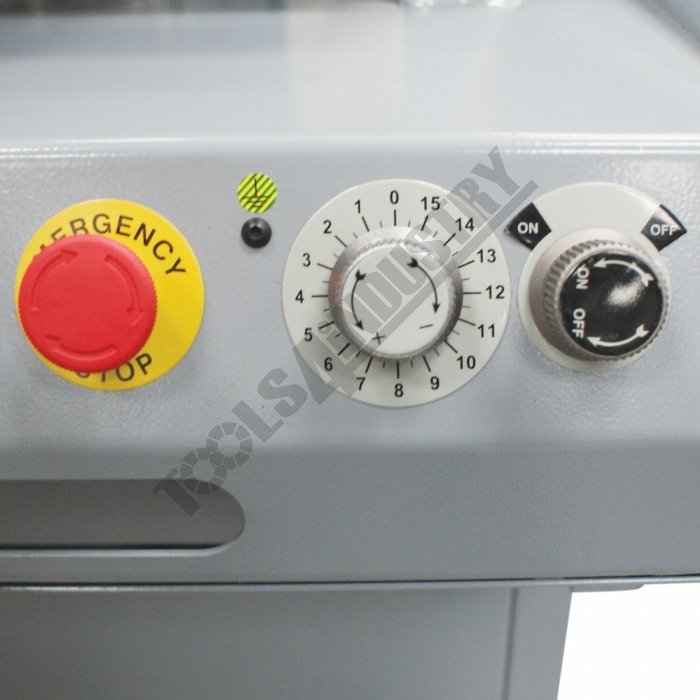

Adjustable Automatic Feed

Adjustable Automatic Feed

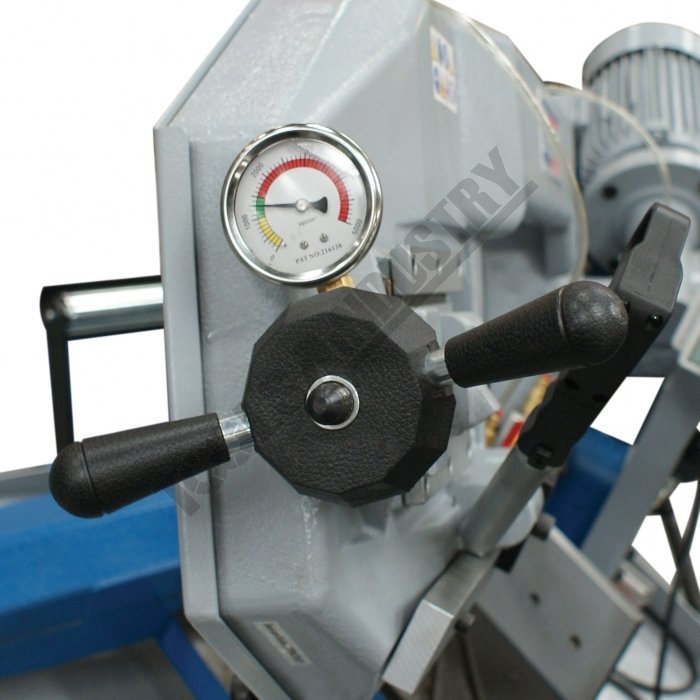

Blade Tension Gauge

Blade Tension Gauge

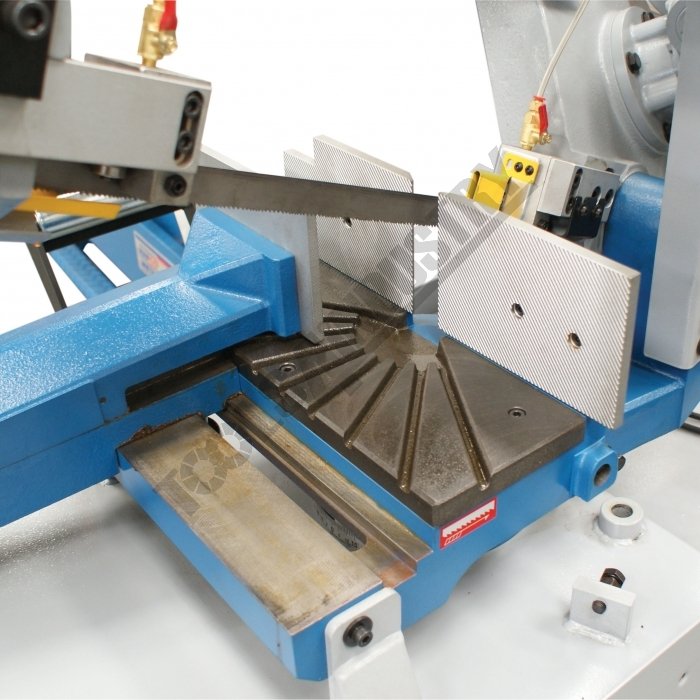

Dual Mitre Swivel Head

Dual Mitre Swivel Head

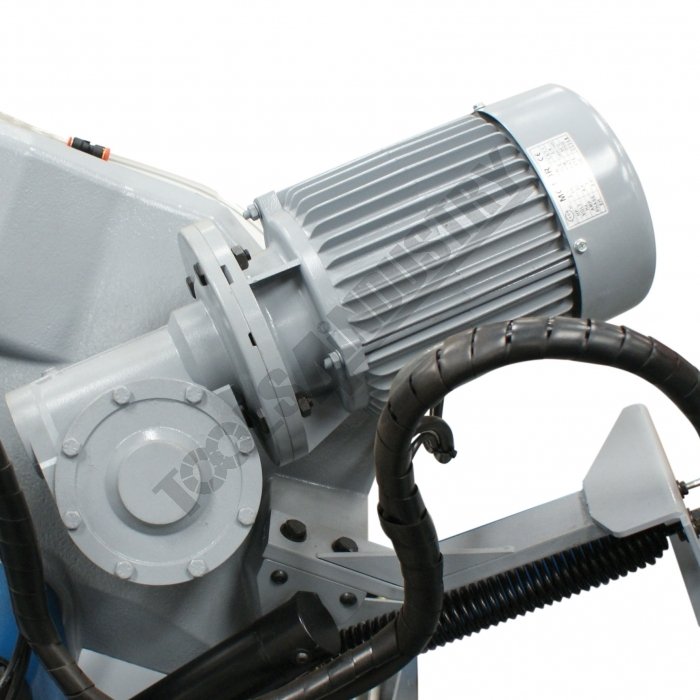

Motor and Gearbox Drive

Motor and Gearbox Drive

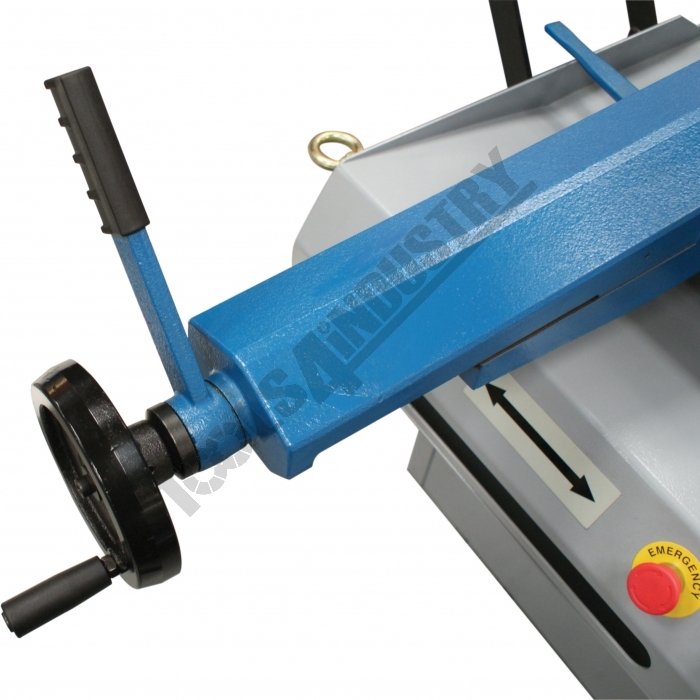

Quick Action Clamp Lever

Quick Action Clamp Lever

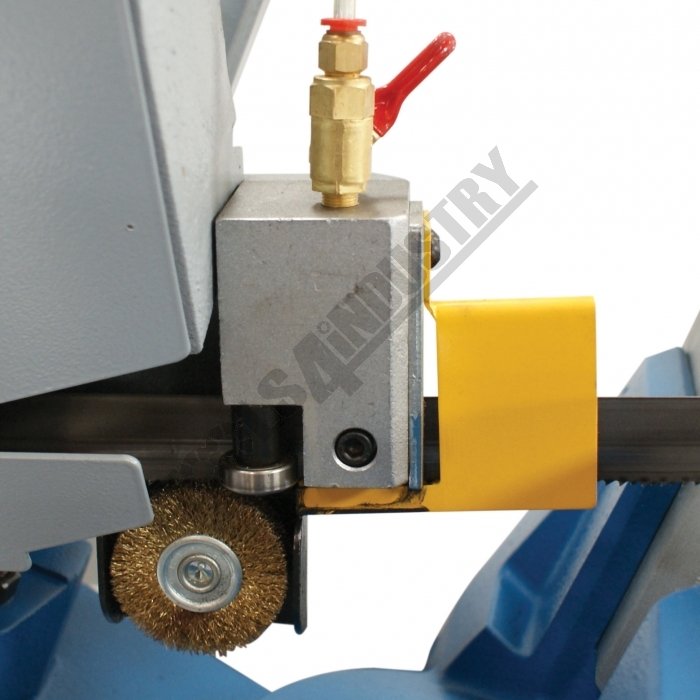

Wire Wheel and Roller Bearing Blade Guides

Wire Wheel and Roller Bearing Blade Guides

Code	B067
Model	EB-320DS
Capacity	Dual Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control
Weight (kg)	371
Weight (m³)	1.427
Weight (Freight)	475.191
Dimensions (cm)	173 x 73 x 113

HAFCO-METALMASTER

415V / (NO PLUG)

1 Year Warranty

Taiwan

Product Brochure Instruction Manual [7 MB] Parts List [2 MB] Blade Selection Chart [382 KB] Trouble Shooting Guide [330 KB]Bandsaw - Metal Risk Assessment

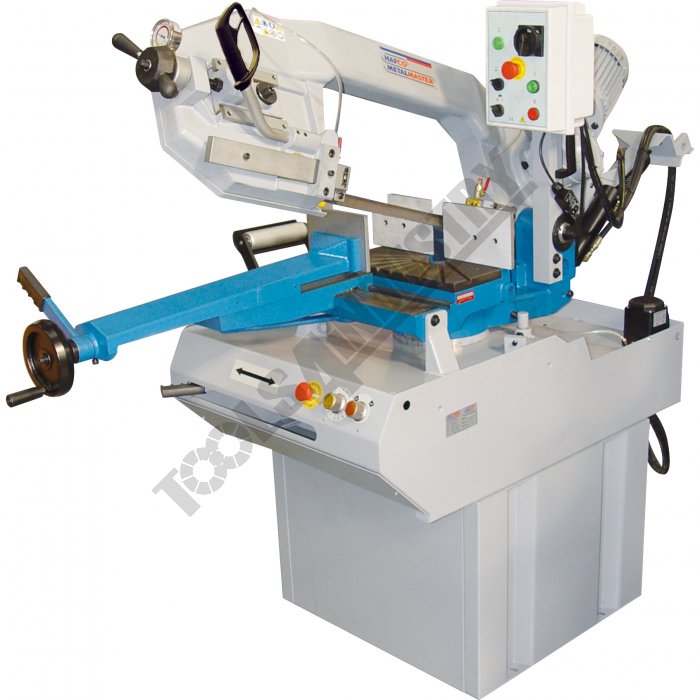

Swivel Head-Dual Mitre Metal Cutting Band Saw EB-320DS Dual Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control

Description

Manufactured in Taiwan

Features

310 x 205mm rectangular capacity
Larger cutting capacity than conventional cold saws
Heavy-duty gear drive system
Ball bearing & carbide blade guides ensures minimal blade clearance wear and increases blade life due to less friction
Blade cleaning brush incorporated into blade guide system
Swivel head dual mitre cut to 45º right & left, 60º right
Quick action lock/release lever for swivel head

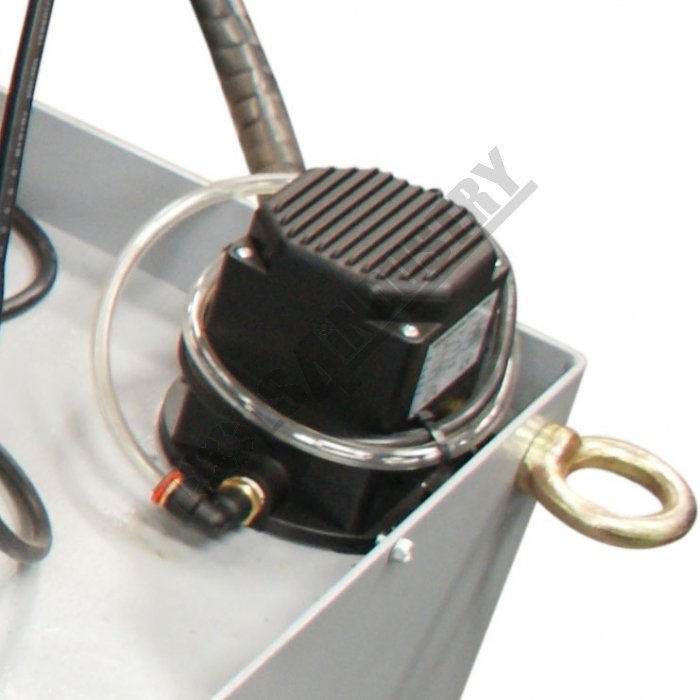

Coolant system for cutting efficiency and blade life
Material support roller for long stock
Adjustable length stop for repetition cutting
User friendly blade tension system with gauge
Adjustable hydraulic cylinder for auto feed
2-speed motor enabling blade speeds of 35 & 70mpm
Vibration free, low noise operation ensures clean & high precision cuts
Machine stand with integrated cooling fitted as standard
Quick-action lock/release vice
Unique sliding vice design for dual mitre operation

Specifications

Compare 18 Products
ORDER CODE
MODEL
Operation Type
Round @ 90ºmm
Round @ 45ºmm
Round @ 60ºmm
Square @ 90ºmm
Square @ 45ºmm
Square @ 60ºmm
Rectangle (W x H) @ 90ºmm
Rectangle (W x H) @ 45ºmm
Rectangle (W x H) @ 60ºmm
Coolant System
Table Working Heightmm
Cutting Head Beam Type
Cutting Head Beam Return
Cutting Head Down Feed Control
Vice Clamping Fixture
Bundle Cutting Fixture
Blade Steps / SpeedsM/Min
Blade Size (L x W x T)mm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

B067
EB-320DS
Swivel Head - Dual Mitre
255
220
125
205
200
125
310 x 205
205 x 200
125 x 125
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
35-70
2750 x 27 x 0.9
1.5 / 2
415
371

B075
EB-330DSC
Swivel Head - Dual Mitre
260
240
160
230
210
130
295 x 230
225 x 210
160 x 130
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
36, 72
2965 x 27 x 0.9
1.2 / 1.6
415
404

B072
EB-351DSA
Swivel Head - Dual Mitre
Semi - Automatic
270
230
135
260
210
150
345 x 205
230 x 150
135 x 135
Yes
950
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
36-72
2925 x 27 x 0.9
1.87 / 2.5
415
650

B029
BS-10AS
Swivel Head
Semi - Automatic
250
250
~
230
175
~
400 x 230
205 x 155
~
Yes
650
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Manual
~
24-38-53-81
3352 x 27 x 0.9
1.5 / 2
415
610

B030
BS-13DS
Swivel Head - Dual Mitre
Semi - Automatic
330
330
204
330
280
160
458 x 235
310 x 170
204 x 80
Yes
840
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 19-102
3810 x 27 x 0.9
1.5 / 2
415
600

B138
BMSY 440DGH
Swivel Head - Dual Mitre
Semi - Automatic
440
410
320
440
410
250
600 x 440
400 x 440
250 x 440
Yes
860
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 20-100
5200 x 34 x 1.1
3.0 / 4.0
415
1540

B136
BMSY-320DGH
Swivel Head - Dual Mitre
Semi - Automatic
320
320
240
320
320
220
450 x 320
330 x 320
230 x 220
Yes
860
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 20-100
4160 x 34 x 1.1
2.2 / 3
415
1040

B080
EB-330FAS
Swivel Head
Automatic Hitch Feed
260
240
130
230 x 230
215 x 215
130 x 130
345 x 230
225 x 215
150 x 130
Yes
930
Fully Automatic
Auto Hydraulic Return
Adjustable Hydraulic
Adjustable Hydraulic
~
Variable 25-85
2965 x 27 x 0.9
1.5 / 2
415
760

B002
BS-4A
Fixed Head
100
75
~
100
75
~
150 x 100
75 x 100
~
~
620
Manual
Manual Return
Adjustable Spring Type
Manual
~
20-29-50
1645 x 12.7 x 0.65
0.375 / 0.5
240 / 10
65

B004
BS-5V
Swivel Head
125
80
50
125
80
50
130 x 125
80 x 80
50 x 50
~
110
Manual Return
Spring Assist Return
Manual
Manual
~
Variable 30-80
1440 x 12.7 x 0.65
1 / 1.3
240 / 10
23

B005
BS-6V
Swivel Head
170
125
75
170
125
70
170 x 170
125 x 125
75 x 70
~
137
Manual Return
Spring Assist Return
Manual
Manual
~
Variable 30-80
2035 x 19 x 0.8
1.65 / 2.2
240 / 10
38

B003
BS-5S
Swivel Head
110
80
~
110
75
~
180 x 110
110 x 72
~
~
680
Manual
Manual Return
Fixed Spring Type
Manual
~
20-29-50
1727 x 12.7 x 0.65
0.375 / 0.5
240 / 10
70

B007
BS-7
Fixed Head
180
110
~
180
110
~
300 x 180
110 x 180
~
Yes
550
Manual
Manual Return
Adjustable Hydraulic
Manual
~
34, 41, 59, 98
2362 x 19 x 0.8
0.75 / 1
240 / 10
166

B008
BS-8DS
Swivel Head
205
143
~
205
~
~
215 x 205
143 x 115
~
Yes
~
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
24-41-61-82
2360 x 19 x 0.9
1.1 / 1.5
240
190

B014
BS-912
Fixed Head
230
150
~
230
127
~
305 x 178
150 x 127
~
Yes
640
Manual
Manual Return
Adjustable Hydraulic
Manual
~
26-50-73-96
2654 x 27 x 0.9
0.75 / 1
240 / 10
185

B015
BS-916A
Fixed Head
228
180
~
228
150
~
350 x 228
240 x 180
~
Yes
675
Manual
Manual Return
Adjustable Hydraulic
Manual
~
29-50-73-96
2908 x 27 x 0.9
1.1 / 1.5
240 / 15
290

B021
BS-10LS
Swivel Head
250
235
~
250
235
~
468 x 250
250 x 240
~
Yes
570
Manual
Manual Return
Adjustable Hydraulic
Manual
~
Variable 18-102
3090 x 27 x 0.9
1.5 / 2
415
380

B062V
EB-260V
Swivel Head
225
150
100
180
140
100
225 x 180
140 x 140
100 x 100
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
Variable 20-90
2480 x 27 x 0.9
1.5 / 2
240 / 10
200

ORDER CODE	EB-320DS
MODEL	Swivel Head - Dual Mitre
Operation Type	255
Round @ 90ºmm	220
Round @ 45ºmm	125
Round @ 60ºmm	205
Square @ 90ºmm	200
Square @ 45ºmm	125
Square @ 60ºmm	310 x 205
Rectangle (W x H) @ 90ºmm	205 x 200
Rectangle (W x H) @ 45ºmm	125 x 125
Rectangle (W x H) @ 60ºmm	Yes
Coolant System	950
Table Working Heightmm	Manual
Cutting Head Beam Type	Manual Return
Cutting Head Beam Return	Adjustable Hydraulic
Cutting Head Down Feed Control	Manual - Quick Action
Vice Clamping Fixture	~
Bundle Cutting Fixture	35-70
Blade Steps / SpeedsM/Min	2750 x 27 x 0.9
Blade Size (L x W x T)mm	1.5 / 2
Motor PowerkW / hp	415
Voltage / AmperageV / amp	371
Nett Weightkg
