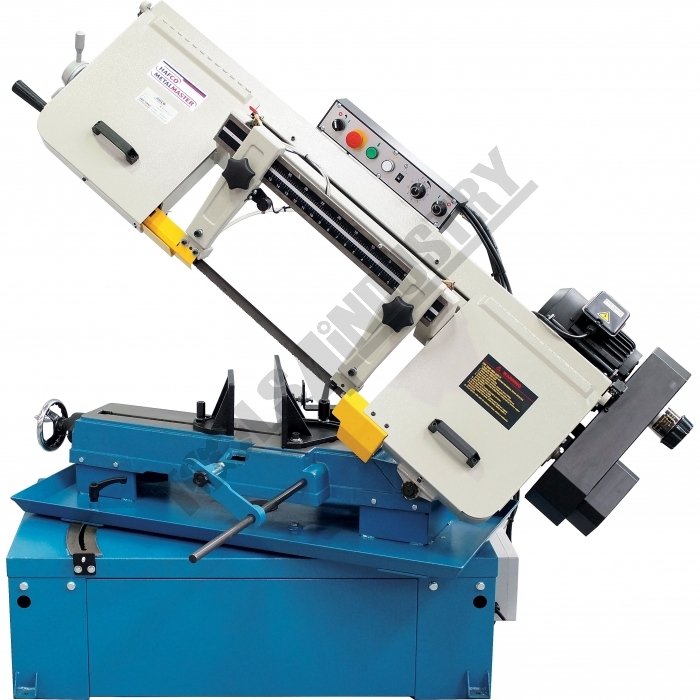

Swivel Head Metal Cutting Band Saw BS-10LS Mitre Cuts Up To 45º, Quick Action Material Clamp, Includes Laser Line Guide & Hydraulic Downfeed Control

Description

Manufactured in Taiwan

The BS-10LS heavy duty metal cutting band saw has many features on offer with a swivel base to cut mitres up to 45 degrees, variable speed control, hydraulic feed control a cutting capacity of up to 250mm diameter or 468 x 250mm in steel at 90º and two ball bearings per side on the blade guides for optimal control and accuracy. There is a choice of blade speeds via an adjustable dial system so that the cutting speed can be changed to suit a wide range of materials, whilst the built-in coolant system ensures maximum cutting efficiency and longer blade life. Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible. This means reliably and accurate cuts!

The cutting operation works automatically with the weight of the head providing the cutting force and a limit switch shutting the machine down when the cut is complete. The weight of the head is counterbalanced by an adjustable hydraulic damper to control the feed rate, an excellent machine choice for maintenance shops, steel fabrications, and engineering workshops. . If you're looking for this size range of machine, you'll have a tough time finding a better metal-cutting band saw with these features and at this price, It represents excellent value.

Features

• 468 x 250mm (W x H) rectangular capacity

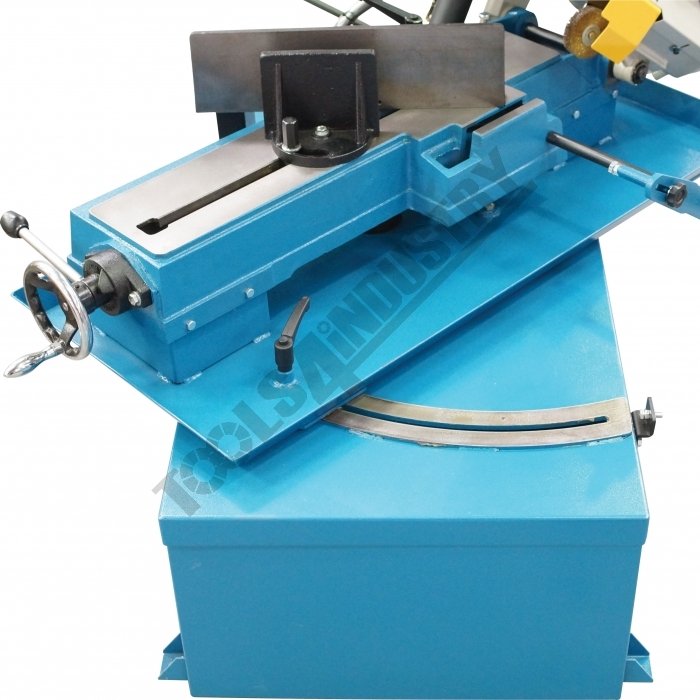

• Swivel head for easy angle cutting without moving material

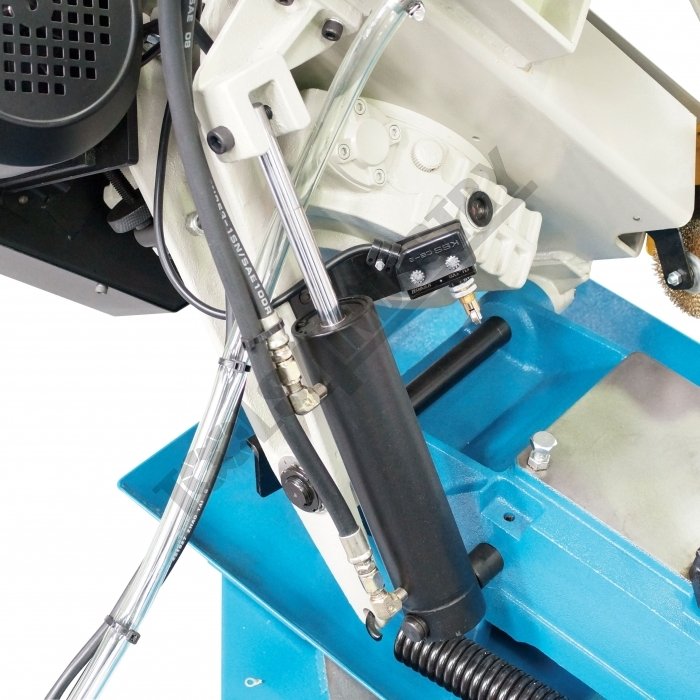

• Adjustable hydraulic feed cutting rate for multiple applications

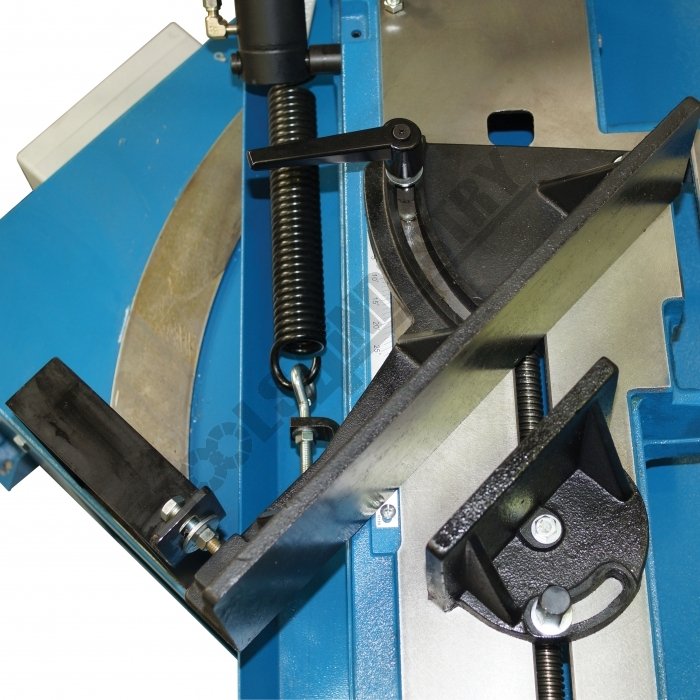

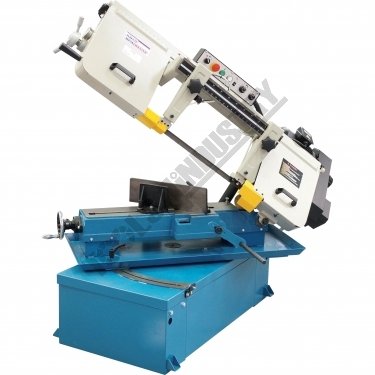

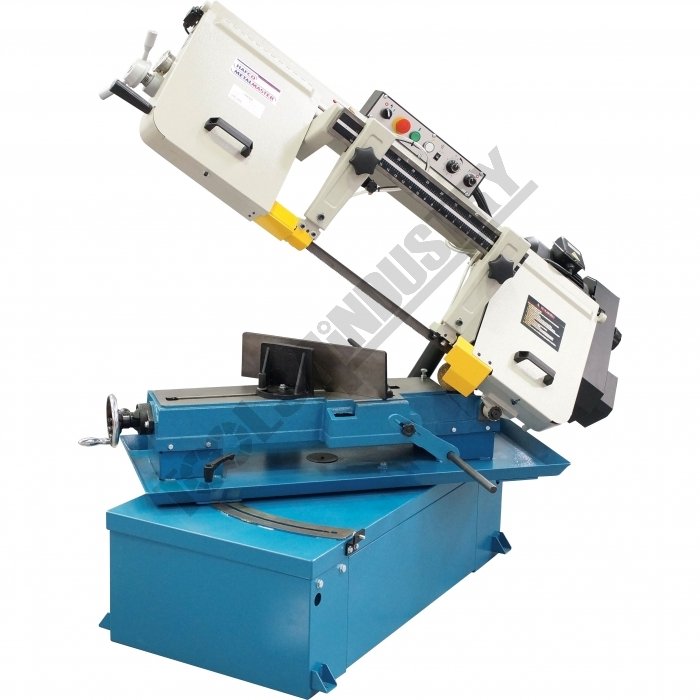

• Mitre cuts to 45º using swivel head
• Built-in coolant system for maximum cutting efficiency

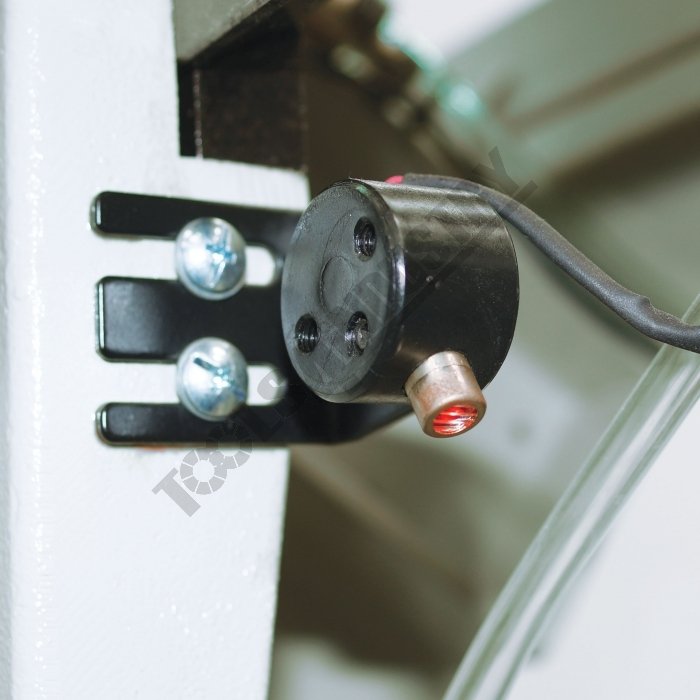

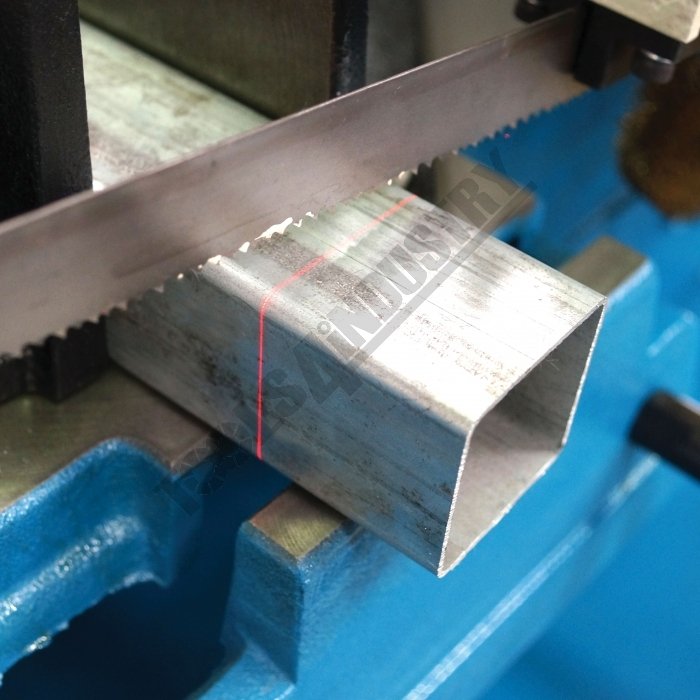

• Laser line guide assist in lining up material positioning
• Limit switch stops machine when cut is complete

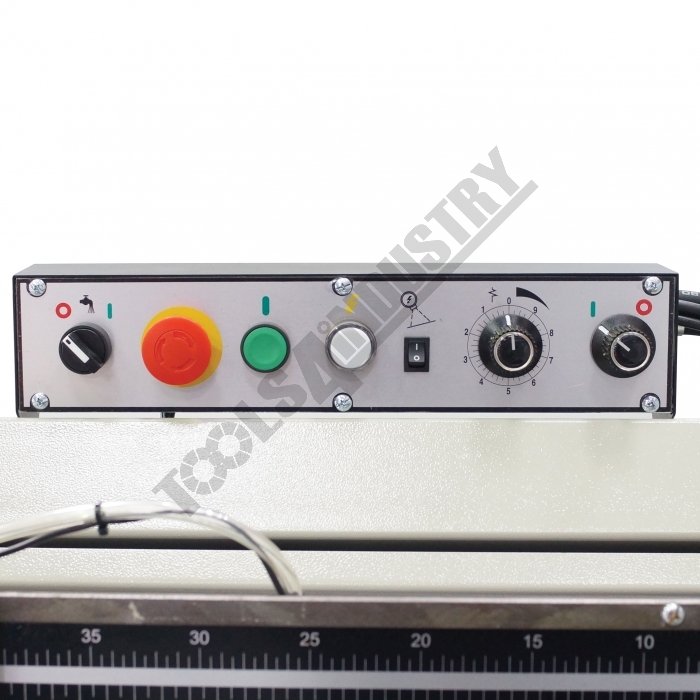

• Control panel located on top of arm for easy use

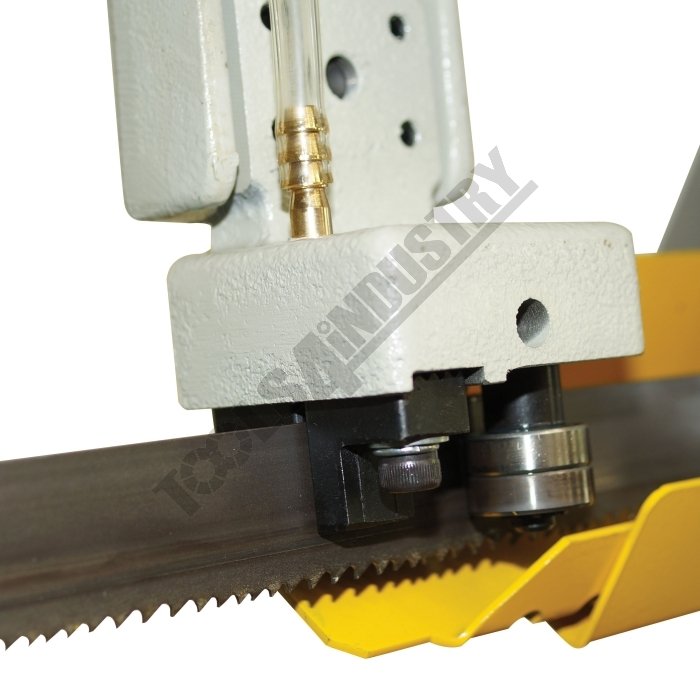

• Combination roller bearing & Carbide blade guides

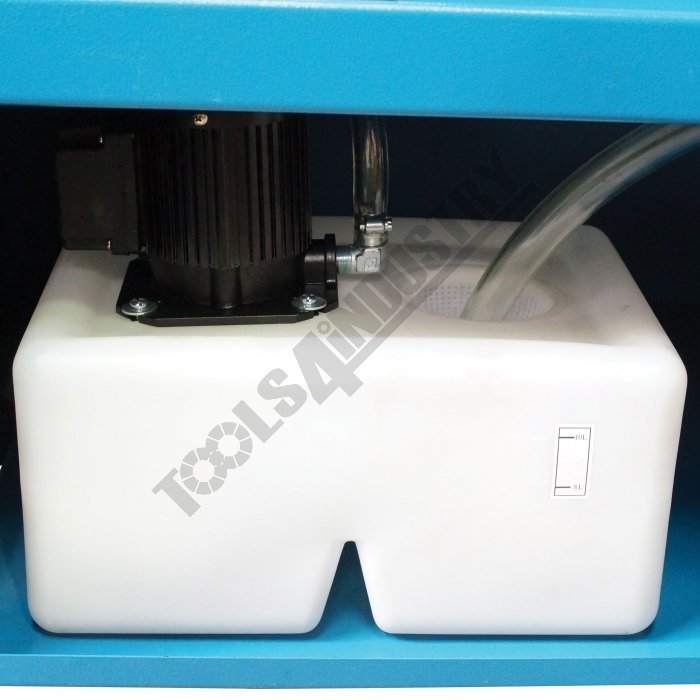

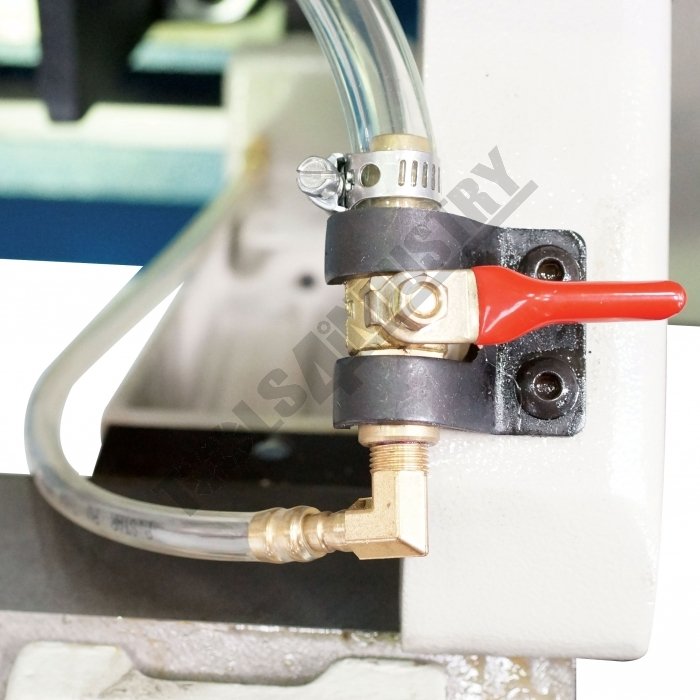

• Coolant system with flow control valve
• Large mitre scale - easy to read
• Cast iron frame with heavy duty fabricated base

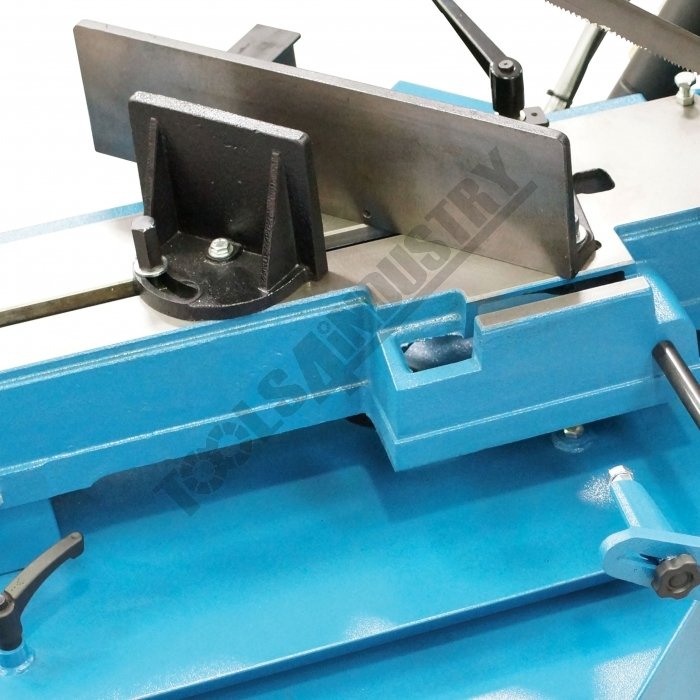

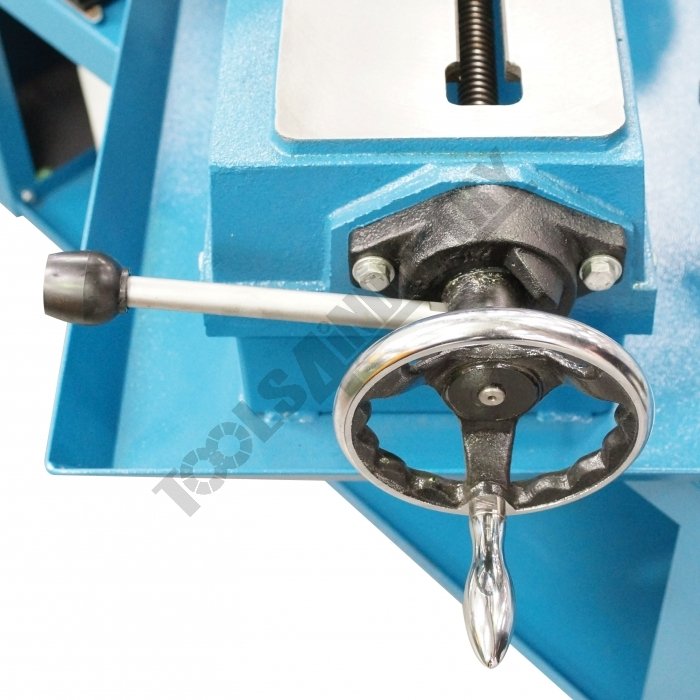

• Quick action material clamping system
• Adjustable blade roller guides provides accurate cutting

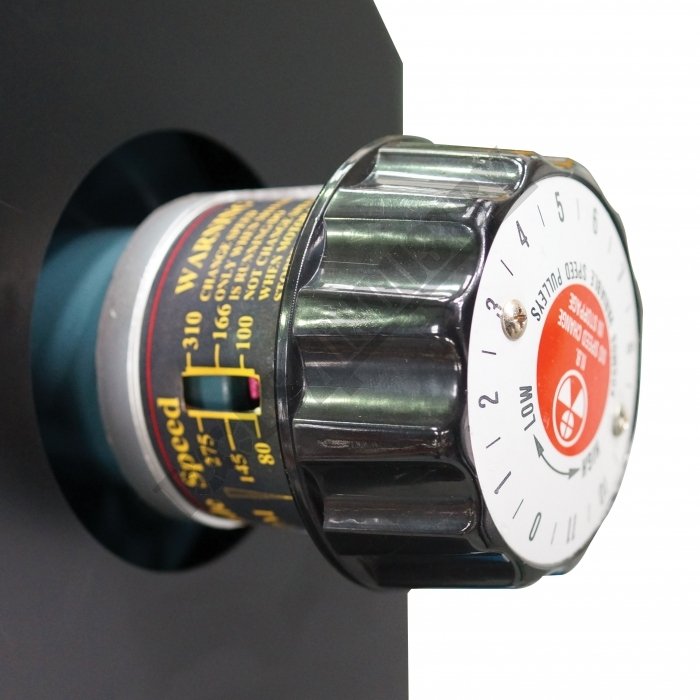

• Variable speed drive system changes blade speed from 18-102mpm

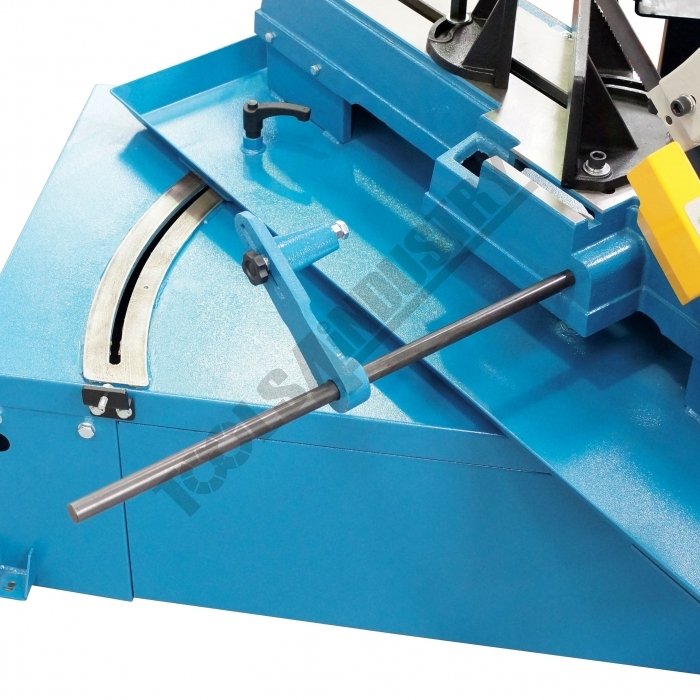

• Adjustable length stop for repetition cutting

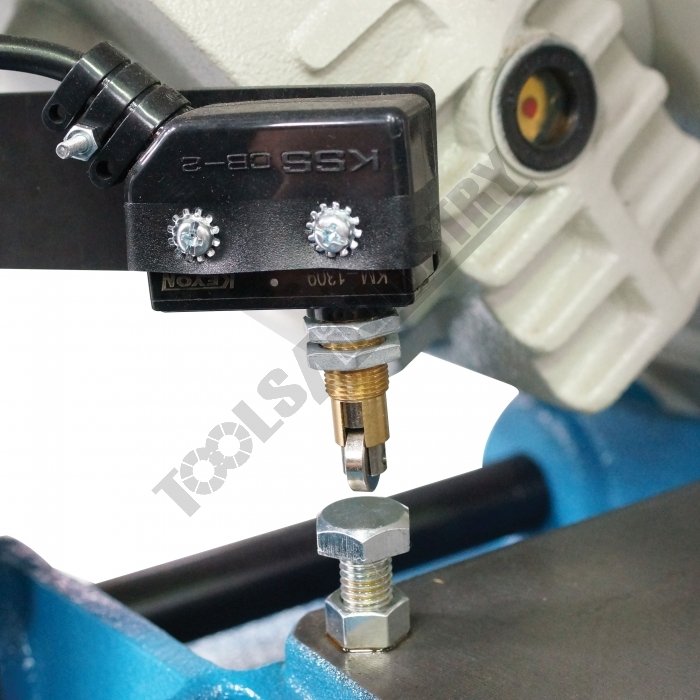

• Automatic electric cut-out switch

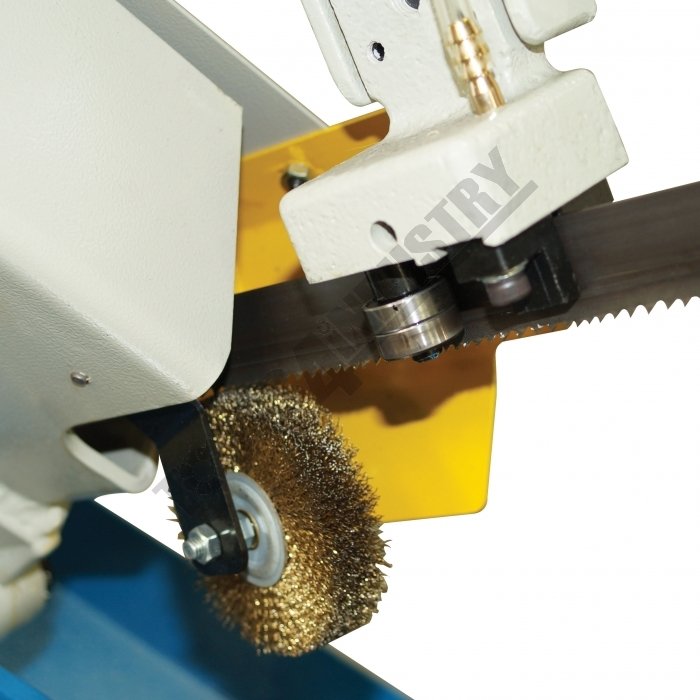

• Wire wheel brush to clean swarf from blade
• Heavy-duty gearbox drive
• Heavy-duty 1.5kW 415V fully enclosed fan-cooled motor
