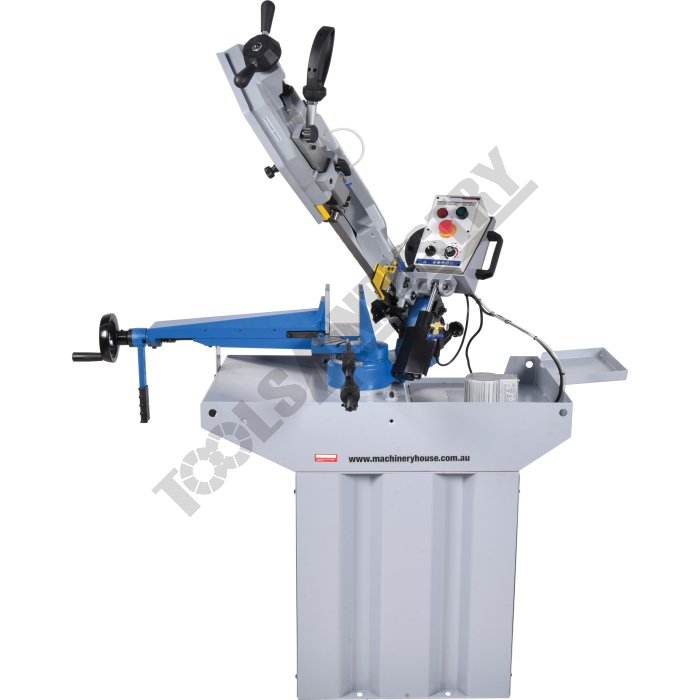

Swivel Head at 60 Degrees

Swivel Head at 60 Degrees

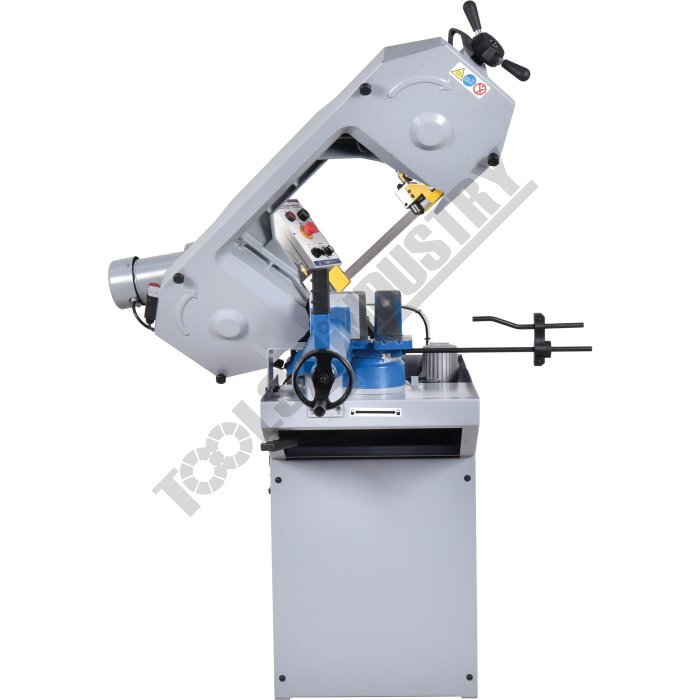

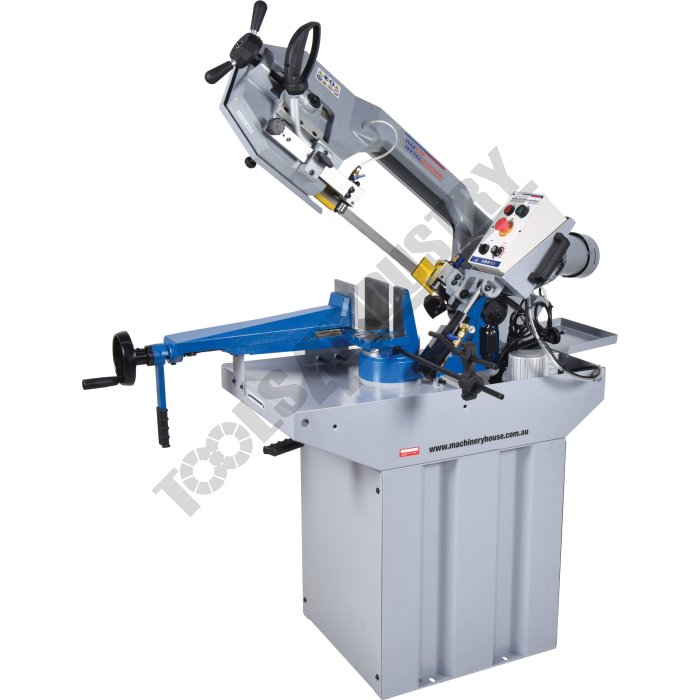

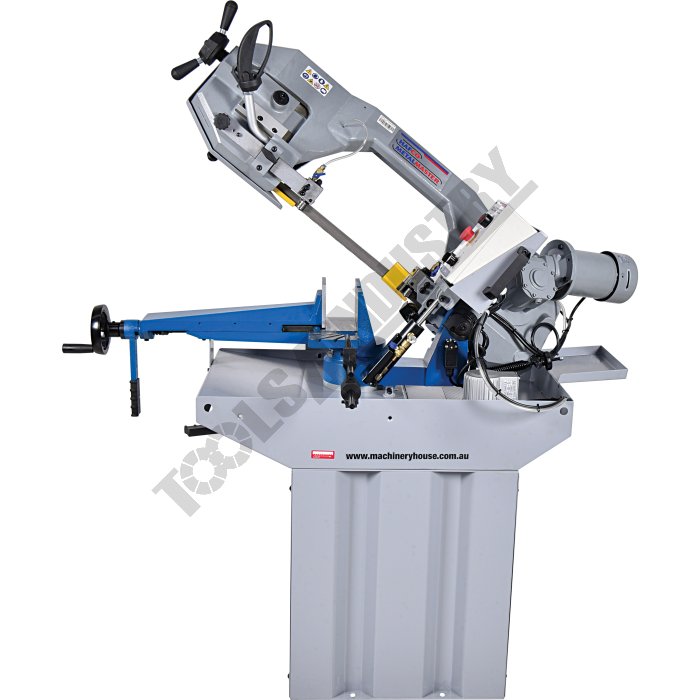

Swivel Head Full View

Swivel Head Full View

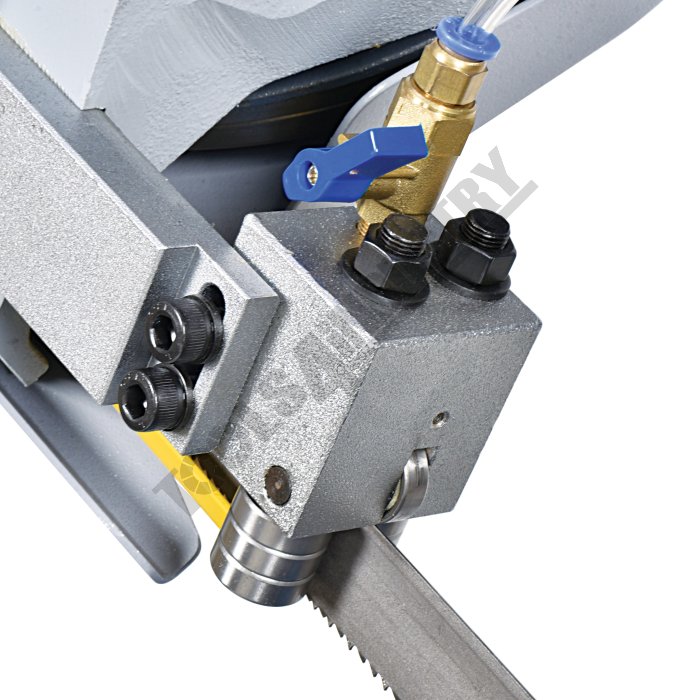

Ball Bearing Blade Guides Front

Ball Bearing Blade Guides Front

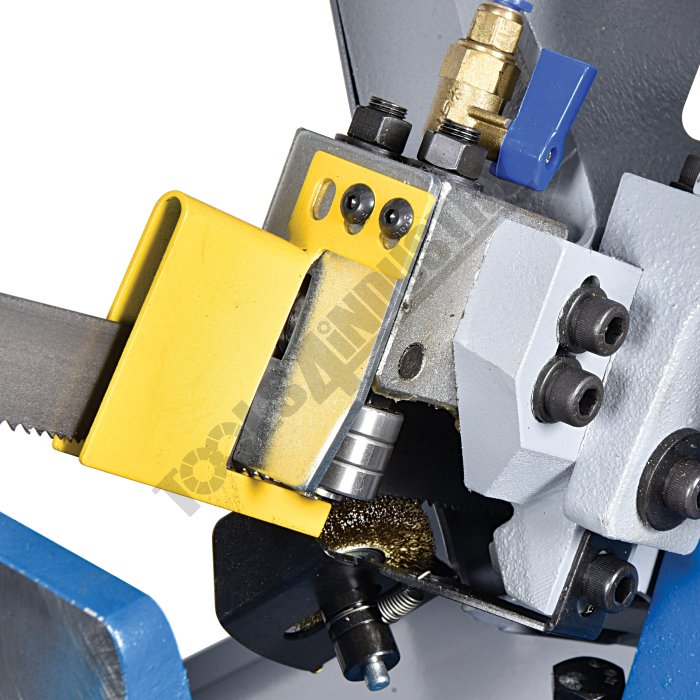

Ball Bearing Blade Guides Back

Ball Bearing Blade Guides Back

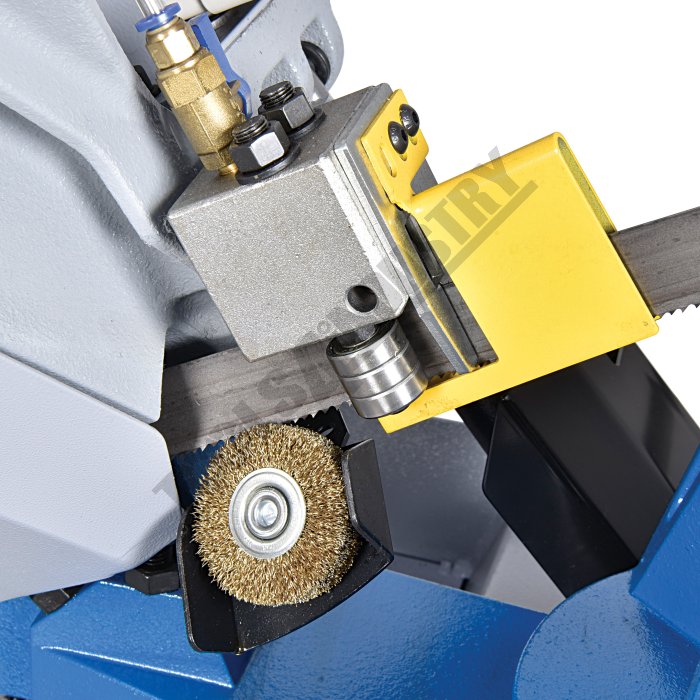

Blade Cleaning Brush

Blade Cleaning Brush

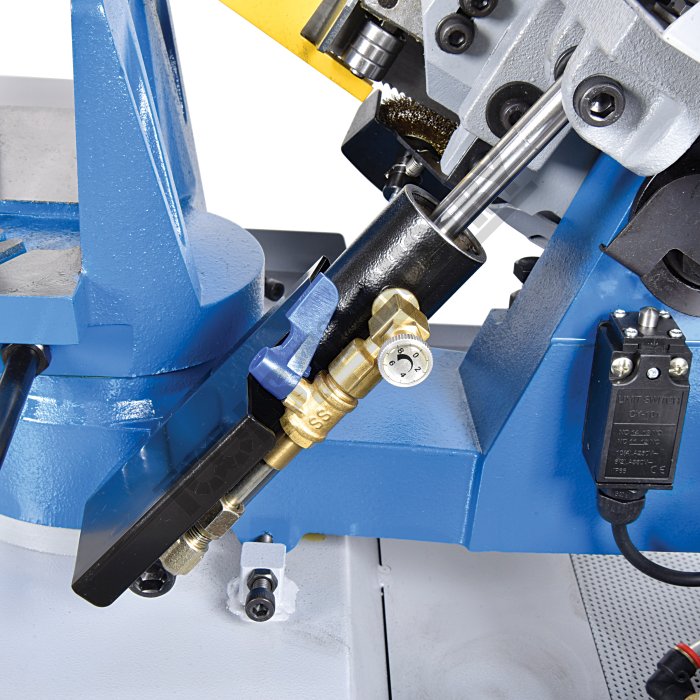

Hydraulic Down Feed Control

Hydraulic Down Feed Control

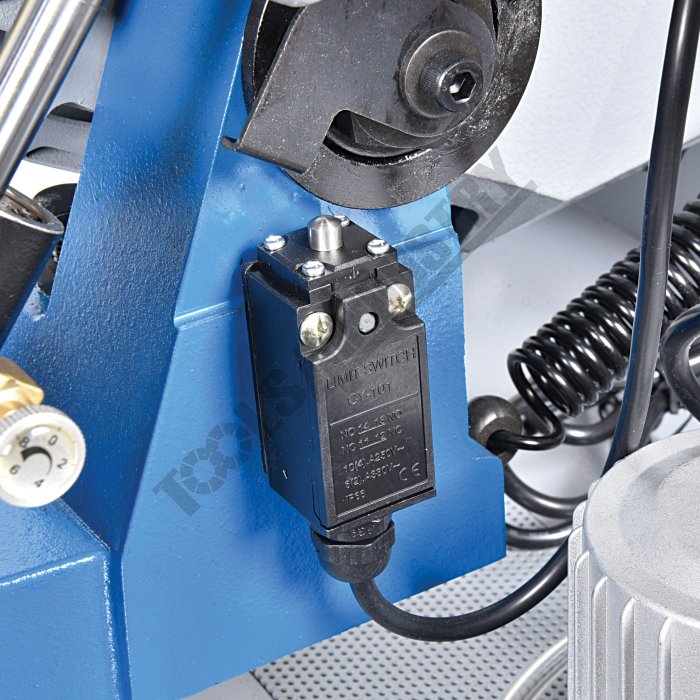

Micro Cut Out Switch

Micro Cut Out Switch

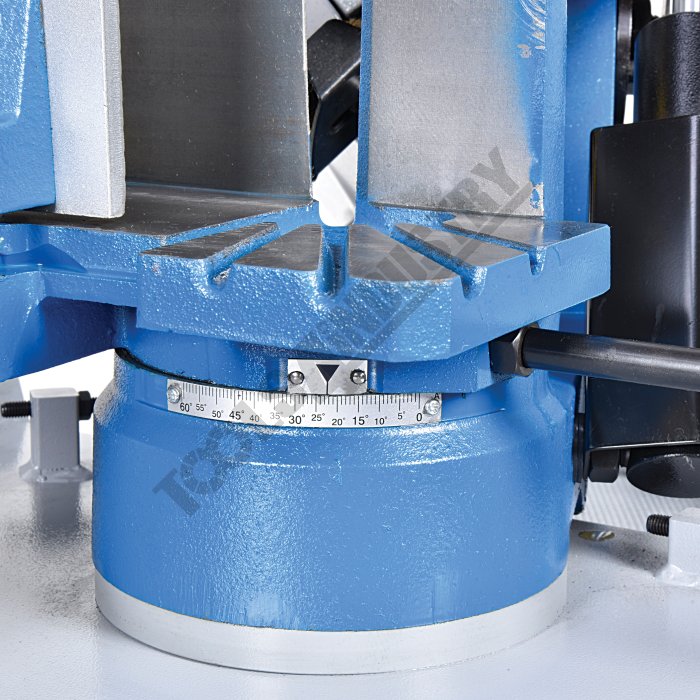

Swivel Head with Scale up to 60 Degree

Swivel Head with Scale up to 60 Degree

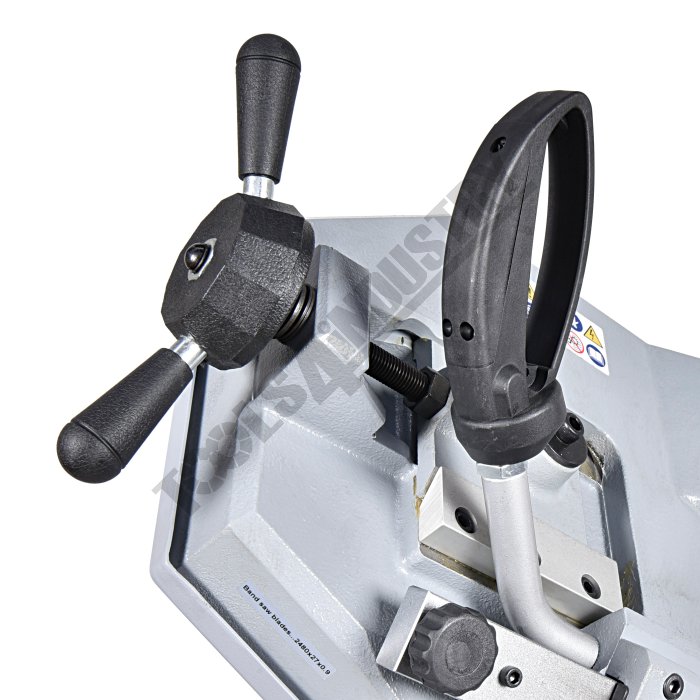

Blade Tension Device

Blade Tension Device

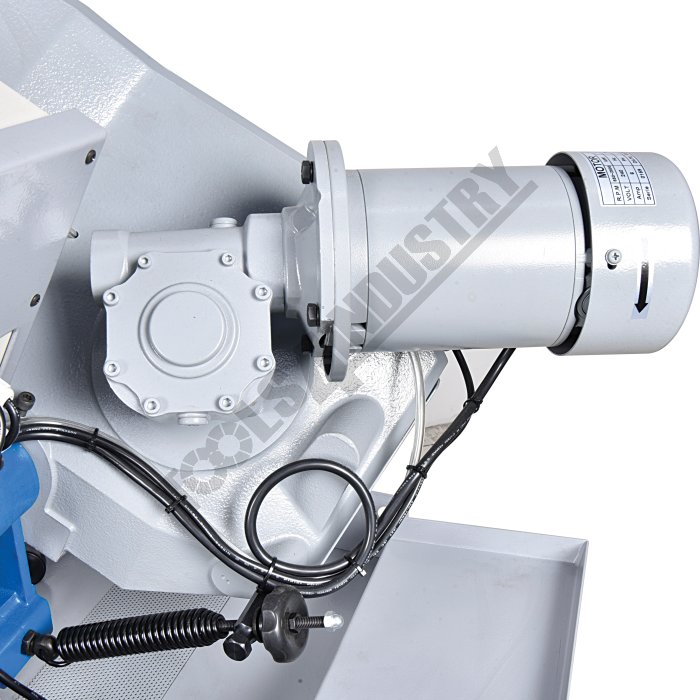

Variable Speed Motor and Gearbox

Variable Speed Motor and Gearbox

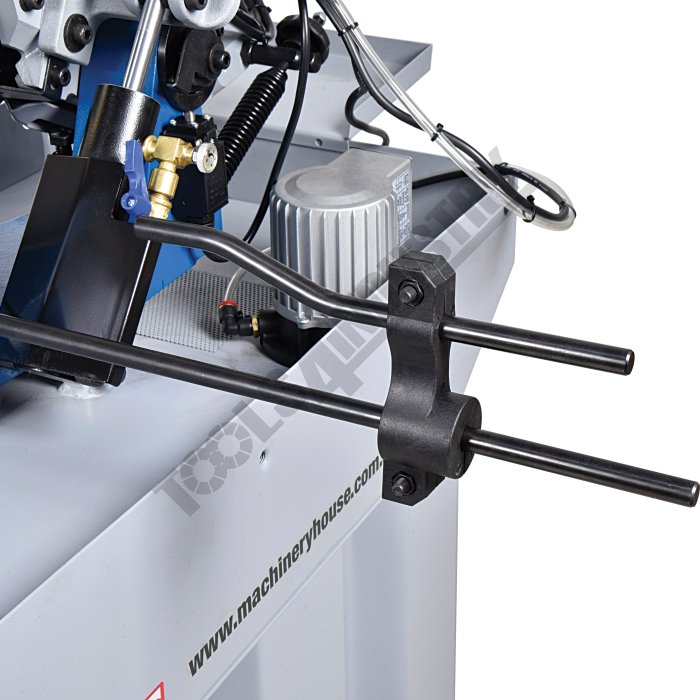

Material Length Stop

Material Length Stop

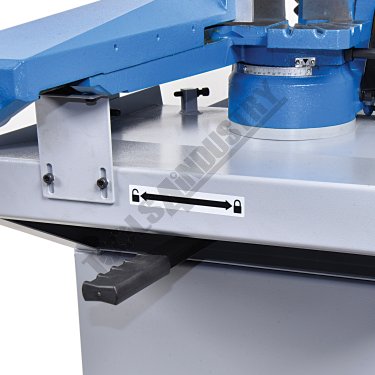

Swivel Head Lock

Swivel Head Lock

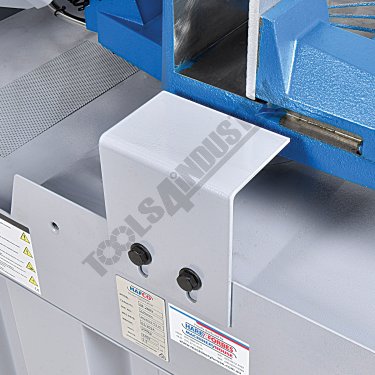

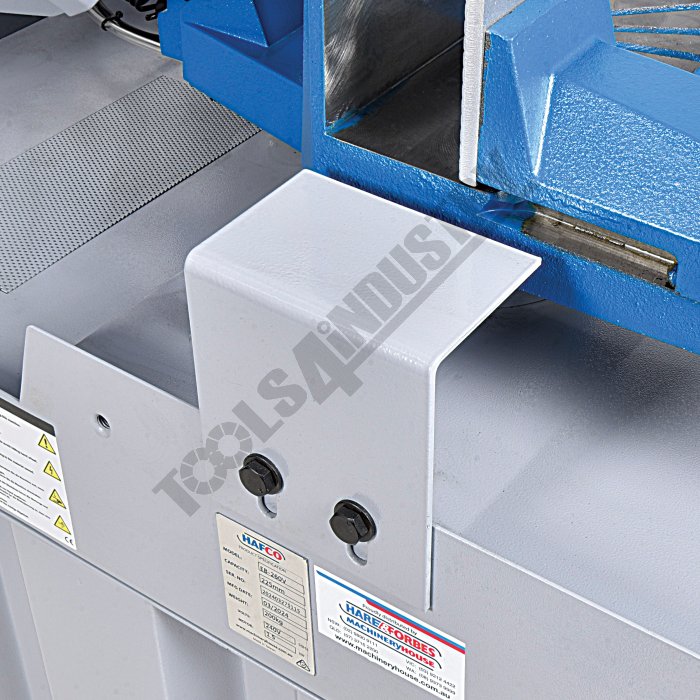

Material Support

Material Support

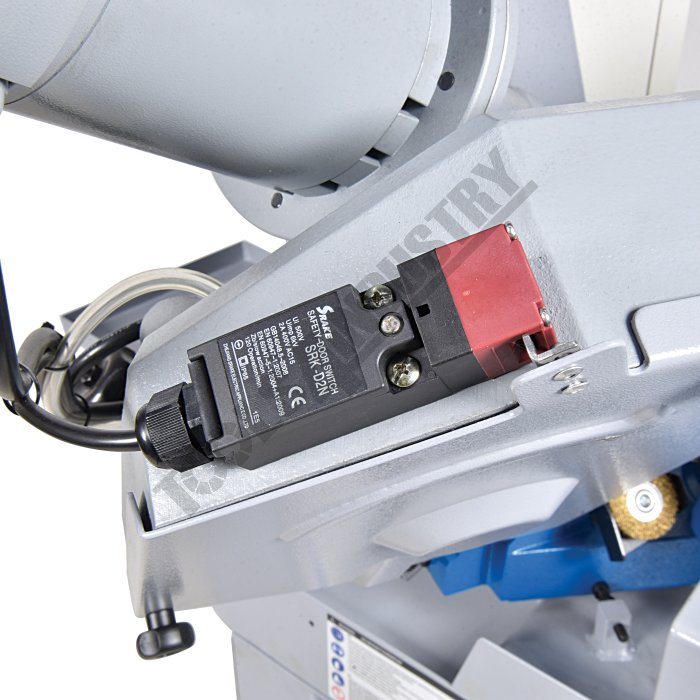

Safety Blade Guard Micro Switch

Safety Blade Guard Micro Switch

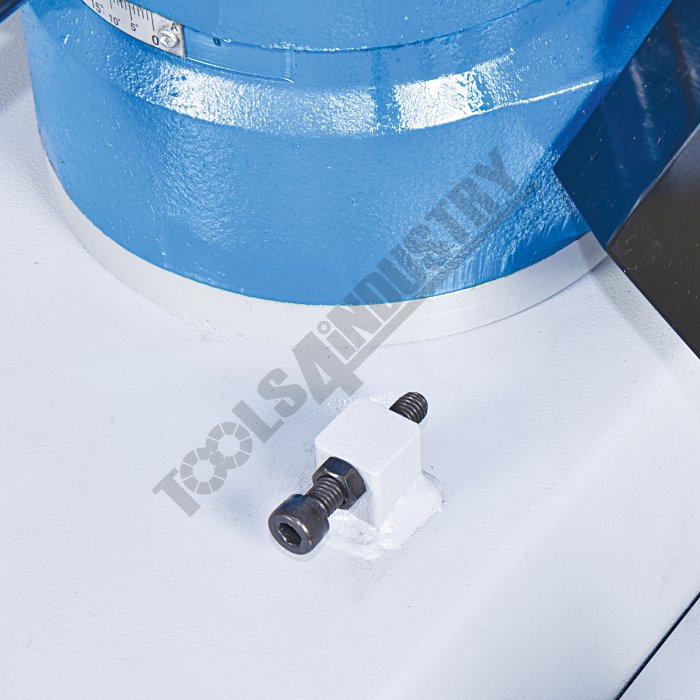

Swivel Head Stop

Swivel Head Stop

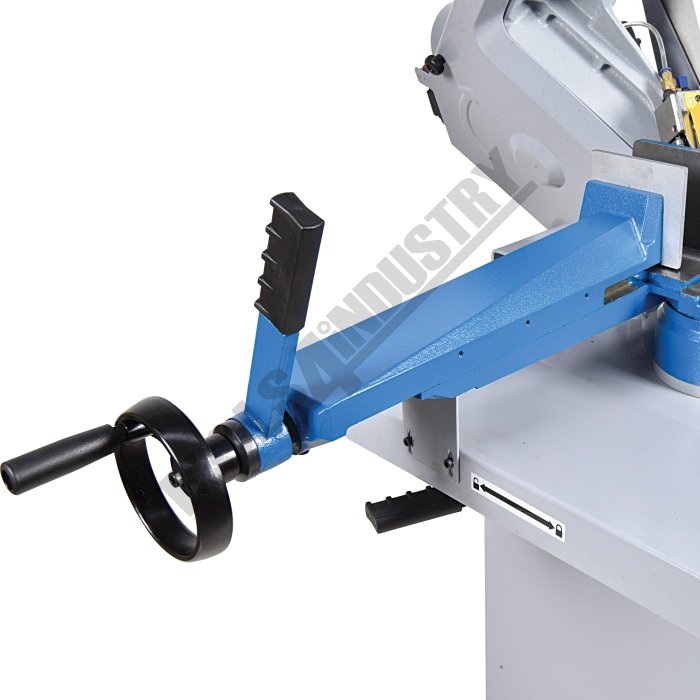

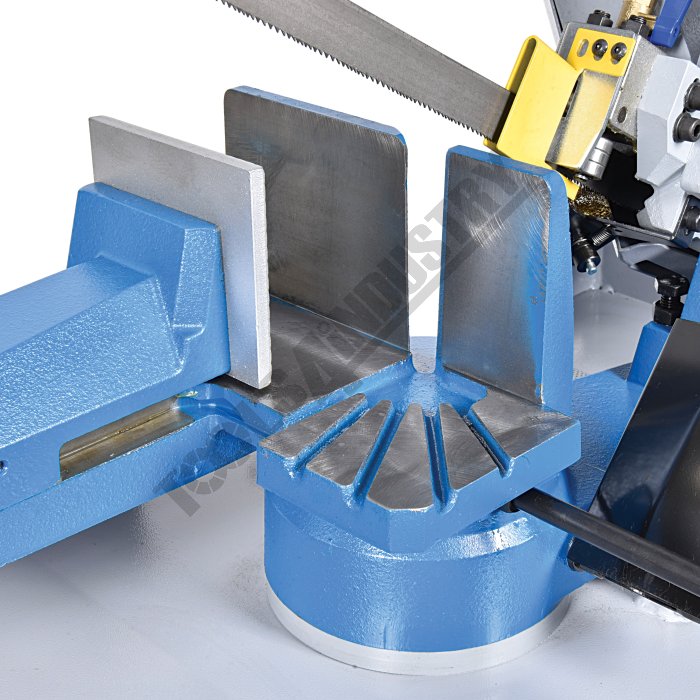

Vice Handle Lock

Vice Handle Lock

Code	B062V
Model	EB-260V
Capacity	Electronic Variable Blade Speed 20-90mpm, Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control
Weight (kg)	200
Weight (m³)	0.720
Weight (Freight)	239.760
Dimensions (cm)	138 x 58 x 90

HAFCO-METALMASTER

240V / 10A

1 Year Warranty

Taiwan

Product Brochure Instruction Manual [8 MB] Blade Selection Chart [382 KB] Trouble Shooting Guide [330 KB]Bandsaw - Metal Risk Assessment

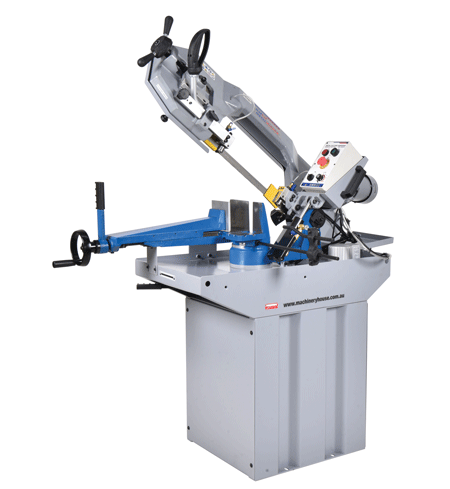

Swivel Head Metal Cutting Band Saw EB-260V Electronic Variable Blade Speed 20-90mpm, Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control

Description

Manufactured in Taiwan

Features

225 x 180mm rectangular capacity
Electronic variable blade speed, 240V motor
Larger cutting capacity than conventional cold saws
Heavy-duty gear drive system
Quick-action lock/release vice
Swivel head mitre cut to 60º right
Quick action lock/release lever for swivel head

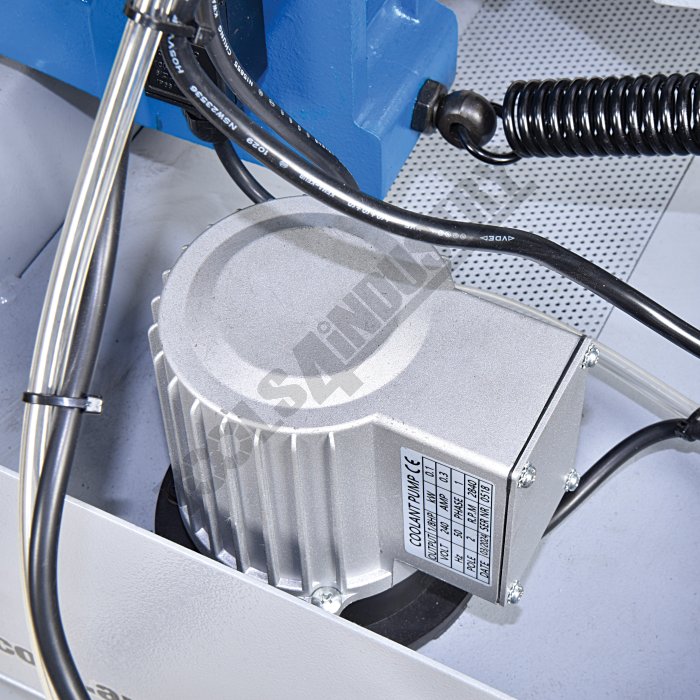

Coolant system for cutting efficiency and blade life
User friendly blade tension system

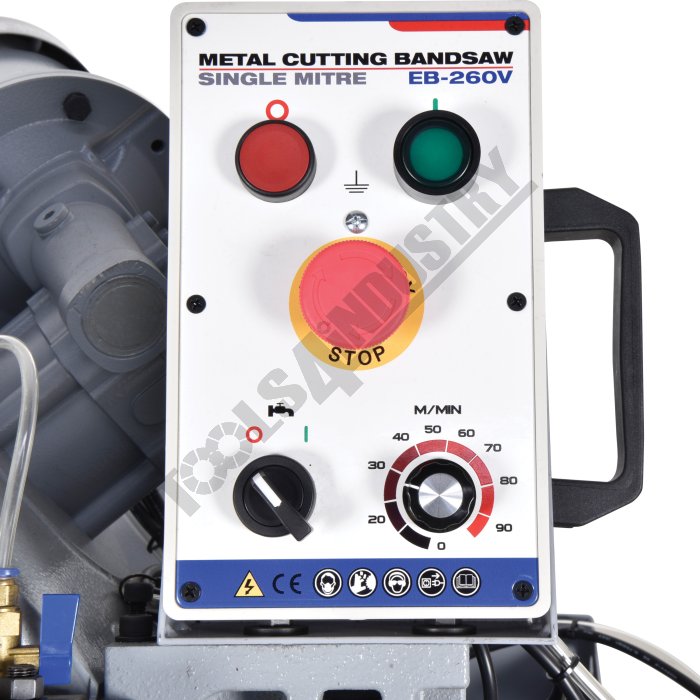

Control panel mounted for easy access
Adjustable length stop for repetition cutting
Ball bearing blade guides ensures minimal blade clearance wear & increases blade life due to less friction
Blade cleaning brush incorporated into blade guide system
Adjustable hydraulic cylinder for auto feed
Vibration free, low noise operation ensures clean & high precision cuts
Machine stand with integrated cooling fitted as standard

Specifications

Compare 18 Products
ORDER CODE
MODEL
Operation Type
Round @ 90ºmm
Round @ 45ºmm
Round @ 60ºmm
Square @ 90ºmm
Square @ 45ºmm
Square @ 60ºmm
Rectangle (W x H) @ 90ºmm
Rectangle (W x H) @ 45ºmm
Rectangle (W x H) @ 60ºmm
Coolant System
Table Working Heightmm
Cutting Head Beam Type
Cutting Head Beam Return
Cutting Head Down Feed Control
Vice Clamping Fixture
Bundle Cutting Fixture
Blade Steps / SpeedsM/Min
Blade Size (L x W x T)mm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

B062V
EB-260V
Swivel Head
225
150
100
180
140
100
225 x 180
140 x 140
100 x 100
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
Variable 20-90
2480 x 27 x 0.9
1.5 / 2
240 / 10
200

B067
EB-320DS
Swivel Head - Dual Mitre
255
220
125
205
200
125
310 x 205
205 x 200
125 x 125
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
35-70
2750 x 27 x 0.9
1.5 / 2
415
371

B075
EB-330DSC
Swivel Head - Dual Mitre
260
240
160
230
210
130
295 x 230
225 x 210
160 x 130
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
36, 72
2965 x 27 x 0.9
1.2 / 1.6
415
404

B072
EB-351DSA
Swivel Head - Dual Mitre
Semi - Automatic
270
230
135
260
210
150
345 x 205
230 x 150
135 x 135
Yes
950
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
36-72
2925 x 27 x 0.9
1.87 / 2.5
415
650

B029
BS-10AS
Swivel Head
Semi - Automatic
250
250
~
230
175
~
400 x 230
205 x 155
~
Yes
650
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Manual
~
24-38-53-81
3352 x 27 x 0.9
1.5 / 2
415
610

B030
BS-13DS
Swivel Head - Dual Mitre
Semi - Automatic
330
330
204
330
280
160
458 x 235
310 x 170
204 x 80
Yes
840
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 19-102
3810 x 27 x 0.9
1.5 / 2
415
600

B138
BMSY 440DGH
Swivel Head - Dual Mitre
Semi - Automatic
440
410
320
440
410
250
600 x 440
400 x 440
250 x 440
Yes
860
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 20-100
5200 x 34 x 1.1
3.0 / 4.0
415
1540

B136
BMSY-320DGH
Swivel Head - Dual Mitre
Semi - Automatic
320
320
240
320
320
220
450 x 320
330 x 320
230 x 220
Yes
860
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 20-100
4160 x 34 x 1.1
2.2 / 3
415
1040

B080
EB-330FAS
Swivel Head
Automatic Hitch Feed
260
240
130
230 x 230
215 x 215
130 x 130
345 x 230
225 x 215
150 x 130
Yes
930
Fully Automatic
Auto Hydraulic Return
Adjustable Hydraulic
Adjustable Hydraulic
~
Variable 25-85
2965 x 27 x 0.9
1.5 / 2
415
760

B002
BS-4A
Fixed Head
100
75
~
100
75
~
150 x 100
75 x 100
~
~
620
Manual
Manual Return
Adjustable Spring Type
Manual
~
20-29-50
1645 x 12.7 x 0.65
0.375 / 0.5
240 / 10
65

B004
BS-5V
Swivel Head
125
80
50
125
80
50
130 x 125
80 x 80
50 x 50
~
110
Manual Return
Spring Assist Return
Manual
Manual
~
Variable 30-80
1440 x 12.7 x 0.65
1 / 1.3
240 / 10
23

B005
BS-6V
Swivel Head
170
125
75
170
125
70
170 x 170
125 x 125
75 x 70
~
137
Manual Return
Spring Assist Return
Manual
Manual
~
Variable 30-80
2035 x 19 x 0.8
1.65 / 2.2
240 / 10
38

B003
BS-5S
Swivel Head
110
80
~
110
75
~
180 x 110
110 x 72
~
~
680
Manual
Manual Return
Fixed Spring Type
Manual
~
20-29-50
1727 x 12.7 x 0.65
0.375 / 0.5
240 / 10
70

B007
BS-7
Fixed Head
180
110
~
180
110
~
300 x 180
110 x 180
~
Yes
550
Manual
Manual Return
Adjustable Hydraulic
Manual
~
34, 41, 59, 98
2362 x 19 x 0.8
0.75 / 1
240 / 10
166

B008
BS-8DS
Swivel Head
205
143
~
205
~
~
215 x 205
143 x 115
~
Yes
~
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
24-41-61-82
2360 x 19 x 0.9
1.1 / 1.5
240
190

B014
BS-912
Fixed Head
230
150
~
230
127
~
305 x 178
150 x 127
~
Yes
640
Manual
Manual Return
Adjustable Hydraulic
Manual
~
26-50-73-96
2654 x 27 x 0.9
0.75 / 1
240 / 10
185

B015
BS-916A
Fixed Head
228
180
~
228
150
~
350 x 228
240 x 180
~
Yes
675
Manual
Manual Return
Adjustable Hydraulic
Manual
~
29-50-73-96
2908 x 27 x 0.9
1.1 / 1.5
240 / 15
290

B021
BS-10LS
Swivel Head
250
235
~
250
235
~
468 x 250
250 x 240
~
Yes
570
Manual
Manual Return
Adjustable Hydraulic
Manual
~
Variable 18-102
3090 x 27 x 0.9
1.5 / 2
415
380

ORDER CODE	EB-260V
MODEL	Swivel Head
Operation Type	225
Round @ 90ºmm	150
Round @ 45ºmm	100
Round @ 60ºmm	180
Square @ 90ºmm	140
Square @ 45ºmm	100
Square @ 60ºmm	225 x 180
Rectangle (W x H) @ 90ºmm	140 x 140
Rectangle (W x H) @ 45ºmm	100 x 100
Rectangle (W x H) @ 60ºmm	Yes
Coolant System	950
Table Working Heightmm	Manual
Cutting Head Beam Type	Manual Return
Cutting Head Beam Return	Adjustable Hydraulic
Cutting Head Down Feed Control	Manual - Quick Action
Vice Clamping Fixture	~
Bundle Cutting Fixture	Variable 20-90
Blade Steps / SpeedsM/Min	2480 x 27 x 0.9
Blade Size (L x W x T)mm	1.5 / 2
Motor PowerkW / hp	240 / 10
Voltage / AmperageV / amp	200
Nett Weightkg
