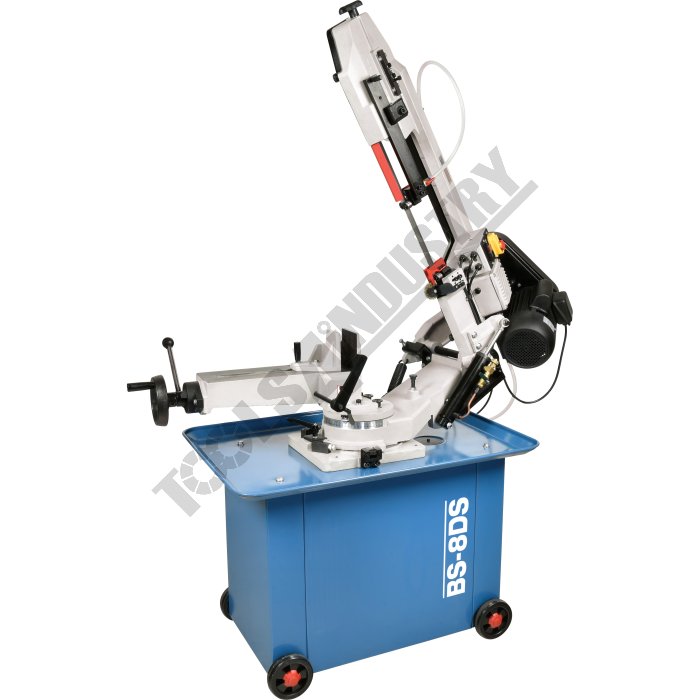

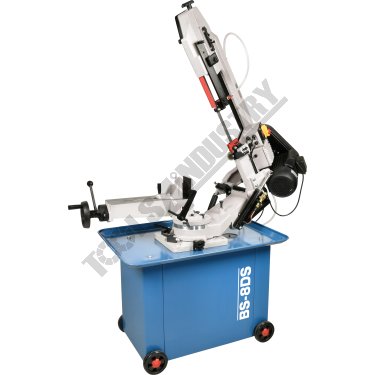

Head Fully Raised

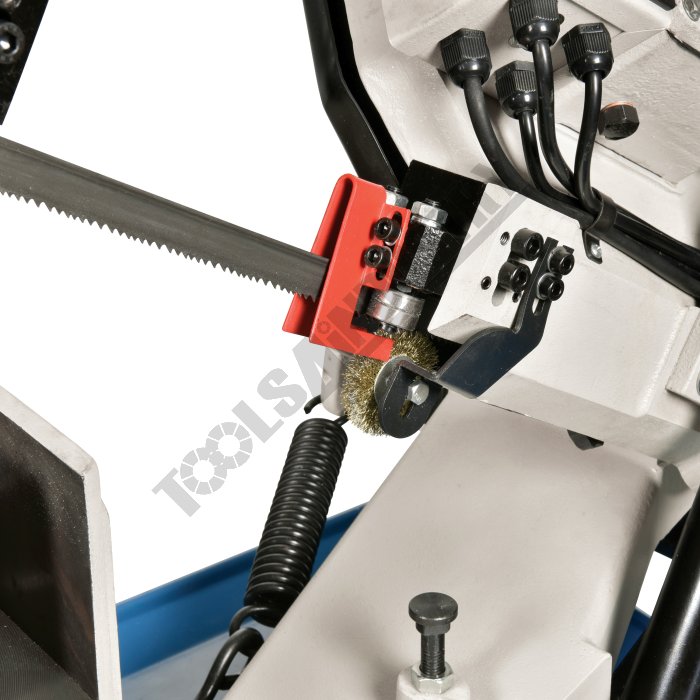

Blade Guide

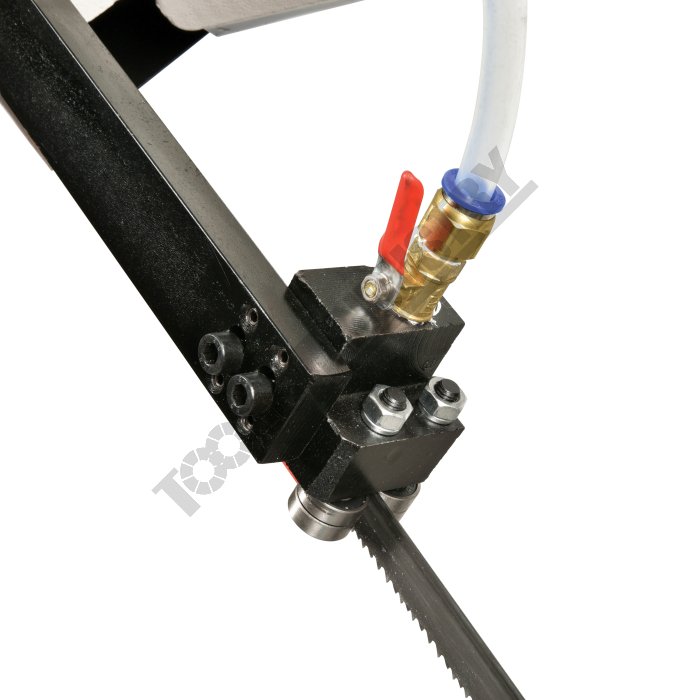

Coolant to Blade

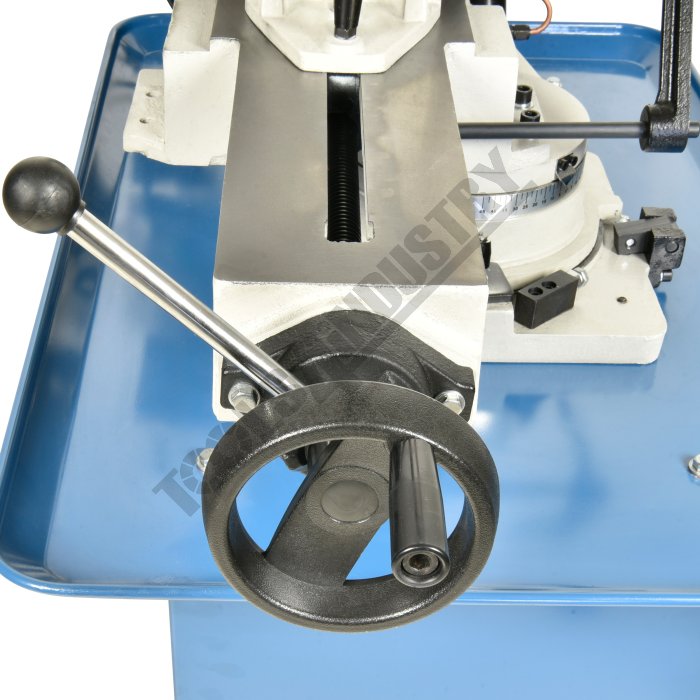

Quick Action Vice Handle Lever

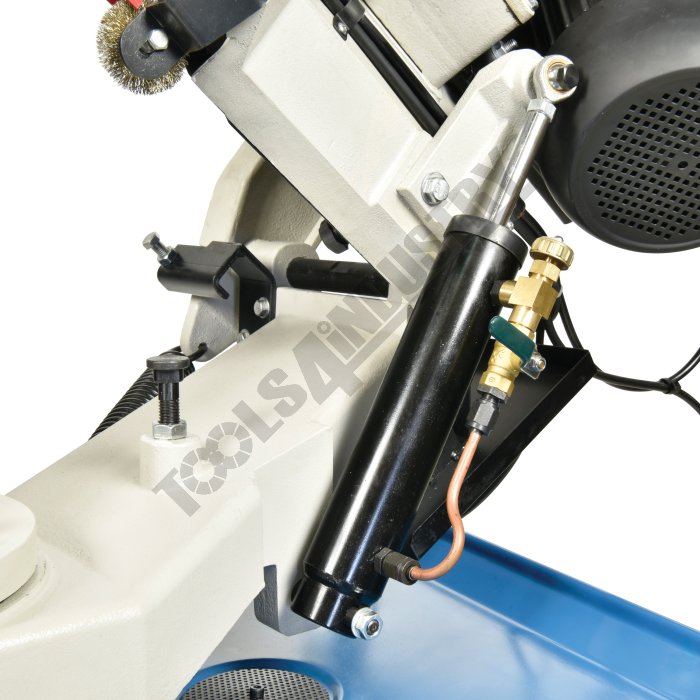

Hydraulic Ram Down Feed Control

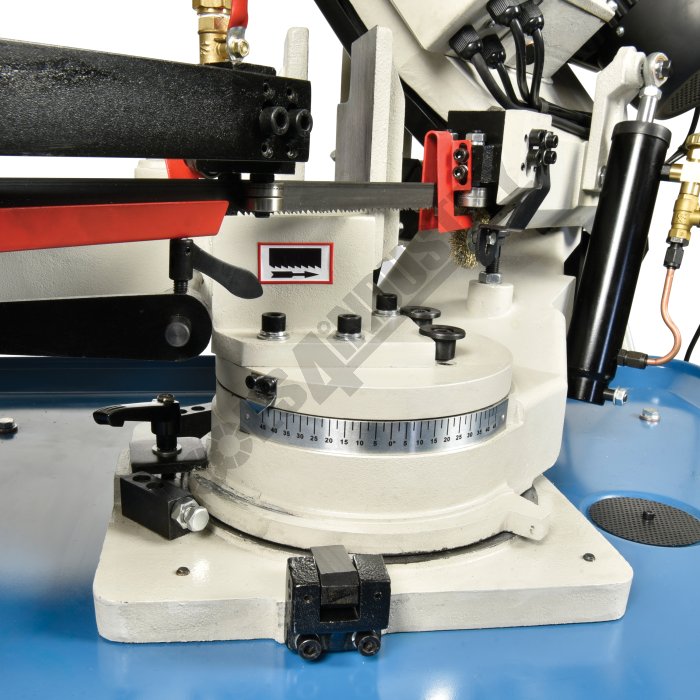

Swivel Head

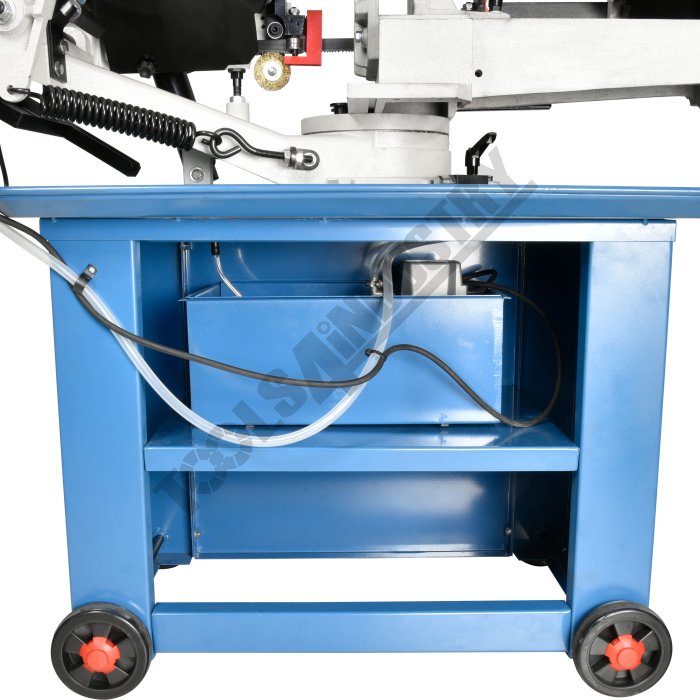

Coolant System

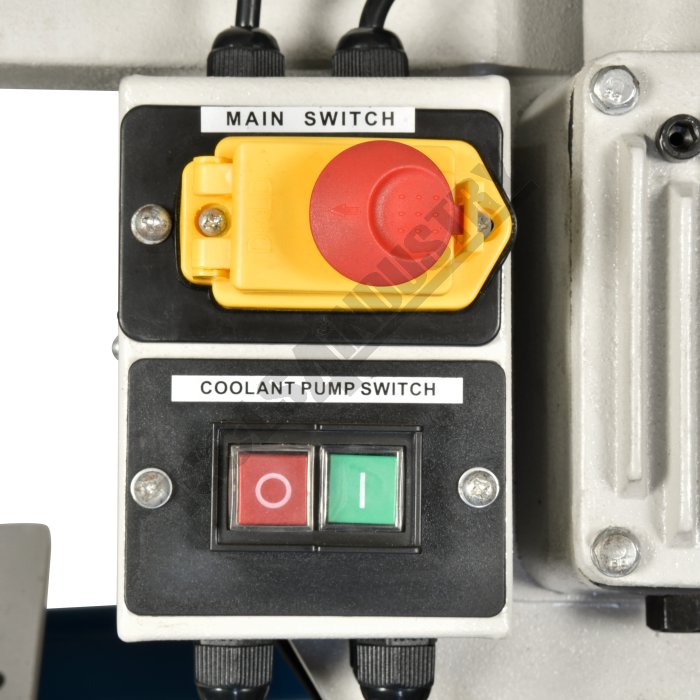

Switch

Code	B008
Model	BS-8DS
Capacity	Dual Mitre Cuts Up To 45º
Weight (kg)	227
Weight (m³)	0.898
Weight (Freight)	299.034
Dimensions (cm)	166 x 66 x 82

Product Brochure Instruction Manual [11 MB]Bandsaw - Metal Risk Assessment

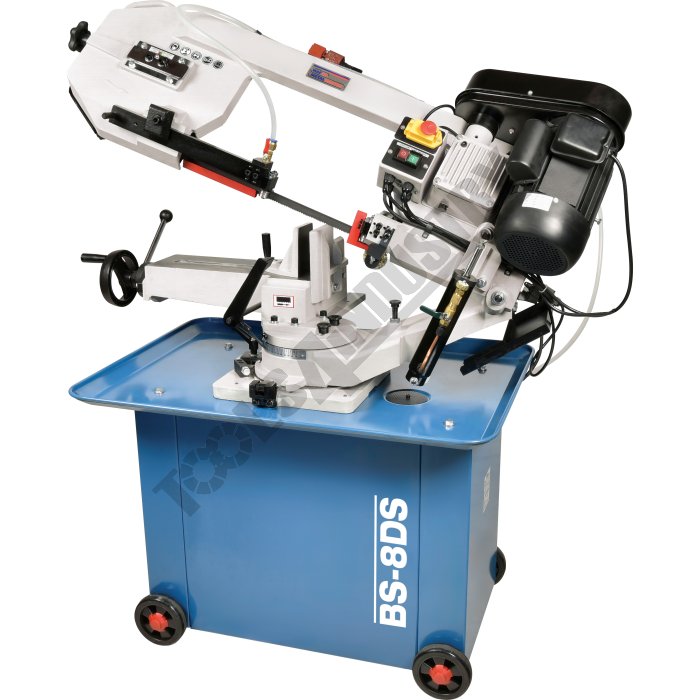

Swivel Head Metal Cutting Band Saw BS-8DS Dual Mitre Cuts Up To 45º

Description

The BS-8DS medium-duty dual swivel head metal cutting band saw offers great value for money. The major points of this machine are the swivel head, four-blade speeds, adjustable feed rate, and built-in coolant system.
This is an excellent machine choice for maintenance shops, medium steel fabricators, and engineering workshops.

Features

205mm round, 215mm x 200mm (W x H) rectangular capacity at 90 degrees
143mm round, 143mm x 115mm (W x H) rectangular capacity at 45 degrees
±45º swivel head for easy angle cutting without moving material
Adjustable hydraulic feed cutting rate for multiple applications
Built-in coolant system with flow control valve for maximum cutting efficiency
Limit switch stops machine when cut is complete
Blade roller guides provides accurate cutting
4-speed pulley drive system enabling 24-41-61-82mpm cutting speeds
Adjustable length stop for repetition cutting
Wire wheel brush to clean swarf from blade
Heavy-duty 750W/240V fully enclosed fan-cooled motor

Specifications

Compare 18 Products
ORDER CODE
MODEL
Operation Type
Round @ 90ºmm
Round @ 45ºmm
Round @ 60ºmm
Square @ 90ºmm
Square @ 45ºmm
Square @ 60ºmm
Rectangle (W x H) @ 90ºmm
Rectangle (W x H) @ 45ºmm
Rectangle (W x H) @ 60ºmm
Coolant System
Table Working Heightmm
Cutting Head Beam Type
Cutting Head Beam Return
Cutting Head Down Feed Control
Vice Clamping Fixture
Bundle Cutting Fixture
Blade Steps / SpeedsM/Min
Blade Size (L x W x T)mm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

B008
BS-8DS
Swivel Head
205
143
~
205
~
~
215 x 205
143 x 115
~
Yes
~
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
24-41-61-82
2360 x 19 x 0.9
1.1 / 1.5
240
190

B014
BS-912
Fixed Head
230
150
~
230
127
~
305 x 178
150 x 127
~
Yes
640
Manual
Manual Return
Adjustable Hydraulic
Manual
~
26-50-73-96
2654 x 27 x 0.9
0.75 / 1
240 / 10
185

B015
BS-916A
Fixed Head
228
180
~
228
150
~
350 x 228
240 x 180
~
Yes
675
Manual
Manual Return
Adjustable Hydraulic
Manual
~
29-50-73-96
2908 x 27 x 0.9
1.1 / 1.5
240 / 15
290

B021
BS-10LS
Swivel Head
250
235
~
250
235
~
468 x 250
250 x 240
~
Yes
570
Manual
Manual Return
Adjustable Hydraulic
Manual
~
Variable 18-102
3090 x 27 x 0.9
1.5 / 2
415
380

B062V
EB-260V
Swivel Head
225
150
100
180
140
100
225 x 180
140 x 140
100 x 100
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
Variable 20-90
2480 x 27 x 0.9
1.5 / 2
240 / 10
200

B067
EB-320DS
Swivel Head - Dual Mitre
255
220
125
205
200
125
310 x 205
205 x 200
125 x 125
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
35-70
2750 x 27 x 0.9
1.5 / 2
415
371

B075
EB-330DSC
Swivel Head - Dual Mitre
260
240
160
230
210
130
295 x 230
225 x 210
160 x 130
Yes
950
Manual
Manual Return
Adjustable Hydraulic
Manual - Quick Action
~
36, 72
2965 x 27 x 0.9
1.2 / 1.6
415
404

B072
EB-351DSA
Swivel Head - Dual Mitre
Semi - Automatic
270
230
135
260
210
150
345 x 205
230 x 150
135 x 135
Yes
950
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
36-72
2925 x 27 x 0.9
1.87 / 2.5
415
650

B029
BS-10AS
Swivel Head
Semi - Automatic
250
250
~
230
175
~
400 x 230
205 x 155
~
Yes
650
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Manual
~
24-38-53-81
3352 x 27 x 0.9
1.5 / 2
415
610

B030
BS-13DS
Swivel Head - Dual Mitre
Semi - Automatic
330
330
204
330
280
160
458 x 235
310 x 170
204 x 80
Yes
840
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 19-102
3810 x 27 x 0.9
1.5 / 2
415
600

B138
BMSY 440DGH
Swivel Head - Dual Mitre
Semi - Automatic
440
410
320
440
410
250
600 x 440
400 x 440
250 x 440
Yes
860
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 20-100
5200 x 34 x 1.1
3.0 / 4.0
415
1540

B136
BMSY-320DGH
Swivel Head - Dual Mitre
Semi - Automatic
320
320
240
320
320
220
450 x 320
330 x 320
230 x 220
Yes
860
Semi-Automatic
Auto-Hydraulic Return
Adjustable Hydraulic
Automatic-Hydraulic
~
Variable 20-100
4160 x 34 x 1.1
2.2 / 3
415
1040

B080
EB-330FAS
Swivel Head
Automatic Hitch Feed
260
240
130
230 x 230
215 x 215
130 x 130
345 x 230
225 x 215
150 x 130
Yes
930
Fully Automatic
Auto Hydraulic Return
Adjustable Hydraulic
Adjustable Hydraulic
~
Variable 25-85
2965 x 27 x 0.9
1.5 / 2
415
760

B002
BS-4A
Fixed Head
100
75
~
100
75
~
150 x 100
75 x 100
~
~
620
Manual
Manual Return
Adjustable Spring Type
Manual
~
20-29-50
1645 x 12.7 x 0.65
0.375 / 0.5
240 / 10
65

B004
BS-5V
Swivel Head
125
80
50
125
80
50
130 x 125
80 x 80
50 x 50
~
110
Manual Return
Spring Assist Return
Manual
Manual
~
Variable 30-80
1440 x 12.7 x 0.65
1 / 1.3
240 / 10
23

B005
BS-6V
Swivel Head
170
125
75
170
125
70
170 x 170
125 x 125
75 x 70
~
137
Manual Return
Spring Assist Return
Manual
Manual
~
Variable 30-80
2035 x 19 x 0.8
1.65 / 2.2
240 / 10
38

B003
BS-5S
Swivel Head
110
80
~
110
75
~
180 x 110
110 x 72
~
~
680
Manual
Manual Return
Fixed Spring Type
Manual
~
20-29-50
1727 x 12.7 x 0.65
0.375 / 0.5
240 / 10
70

B007
BS-7
Fixed Head
180
110
~
180
110
~
300 x 180
110 x 180
~
Yes
550
Manual
Manual Return
Adjustable Hydraulic
Manual
~
34, 41, 59, 98
2362 x 19 x 0.8
0.75 / 1
240 / 10
166

ORDER CODE	BS-8DS
MODEL	Swivel Head
Operation Type	205
Round @ 90ºmm	143
Round @ 45ºmm	~
Round @ 60ºmm	205
Square @ 90ºmm	~
Square @ 45ºmm	~
Square @ 60ºmm	215 x 205
Rectangle (W x H) @ 90ºmm	143 x 115
Rectangle (W x H) @ 45ºmm	~
Rectangle (W x H) @ 60ºmm	Yes
Coolant System	~
Table Working Heightmm	Manual
Cutting Head Beam Type	Manual Return
Cutting Head Beam Return	Adjustable Hydraulic
Cutting Head Down Feed Control	Manual - Quick Action
Vice Clamping Fixture	~
Bundle Cutting Fixture	24-41-61-82
Blade Steps / SpeedsM/Min	2360 x 19 x 0.9
Blade Size (L x W x T)mm	1.1 / 1.5
Motor PowerkW / hp	240
Voltage / AmperageV / amp	190
Nett Weightkg
