| Code | L812 |
|---|---|
| Model | RC-290 |
| Capacity | 290 x 3000mm |
| Weight (kg) | 27 |
| Weight (m3) | 0.153 |
| Weight (Freight) | 50.949 |
| Dimensions (cm) | 300 x 31 x 16.5 |
Roller Conveyor RC-290 290 x 3000mm
Features
- Roller capacity of 60kg each
- 20 x Zinc plated steel rollers at 150mm pitch
- Rollers are Ø50mm with commercial bearings
- Frames are powder coated
- Conveyor is pre-assembled with 7 cross-members
- Frames are pre-drilled at 75mm pitch to accept "Optional 19 rollers" totalling to 39 rollers
- Please Note:
- Roller load capacity is calculated on even weight distribution over entire roller
- Total load capacity is calculated on even weight distribution over entire roller conveyor system
Includes
- 20 steel rollers @ 150mm pitch

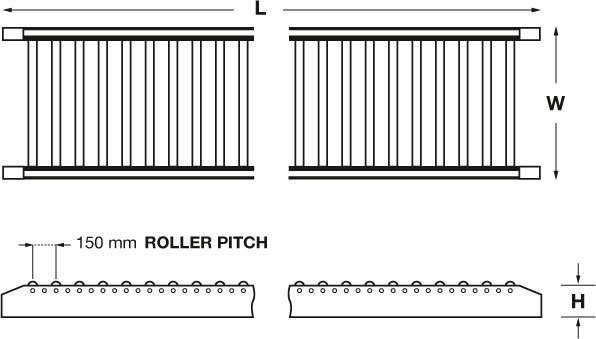

Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Roller Widthmm
- Roller Pitchmm
- No. RollersNo.
- Roller Diametermm
- Frame Length (L)mm
- Frame Width (W)mm
- Frame Height (H)mm
- Height Adjustmentmm
- Load Capacity with 2 x Support Legskg
- Load Capacity with 3 x Support Legskg
- L812
- RC-290
- 215
- 150
- 20
- Ø50
- 3000
- 290
- 80
- ~
- 400
- 1000
- L818
- RC-450
- 380
- 150
- 20
- Ø50
- 3000
- 450
- 80
- ~
- 400
- 800
- L824
- RC-600
- 530
- 150
- 20
- Ø50
- 3000
- 600
- 80
- ~
- 400
- 600
- L830
- RC-450HD
- 450
- 300
- 10
- Ø60
- 3000
- 540
- 80
- 600 - 950
- ~
- 1200
- L835
- RC-450XHD
- 450
- 560
- 6
- Ø73
- 3000
- 540
- 80
- 650-970
- 2000
- ~
- L805
- BTT-450
- ~
- ~
- 25
- Ø50
- 1500
- 450
- ~
- ~
- 300
- ~
- L805
- BTT-450
- ~
- ~
- 25
- Ø50
- 1500
- 450
- ~
- ~
- ~
- ~
- L8125
- RC-290S
- 215
- 150
- 10
- Ø50
- 1500
- 290
- 80
- ~
- 400
- ~
| ORDER CODE | RC-290 |
|---|---|
| MODEL | 215 |
| Roller Widthmm | 150 |
| Roller Pitchmm | 20 |
| No. RollersNo. | Ø50 |
| Roller Diametermm | 3000 |
| Frame Length (L)mm | 290 |
| Frame Width (W)mm | 80 |
| Frame Height (H)mm | ~ |
| Height Adjustmentmm | 400 |
| Load Capacity with 2 x Support Legskg | 1000 |
| Load Capacity with 3 x Support Legskg |
