| Code | L805 |
|---|---|
| Model | BTT-450 |
| Capacity | 450 x 1500mm |
| Weight (kg) | 17.7 |
| Weight (m3) | 0.114 |
| Weight (Freight) | 37.962 |
| Dimensions (cm) | 150 x 46 x 16.5 |

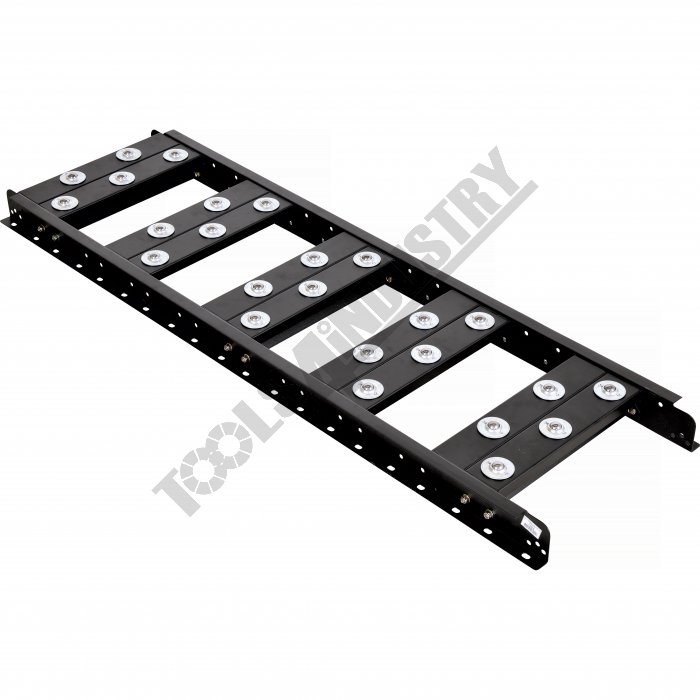

Ball Transfer Conveyor BTT-450 450 x 1500mm
Description

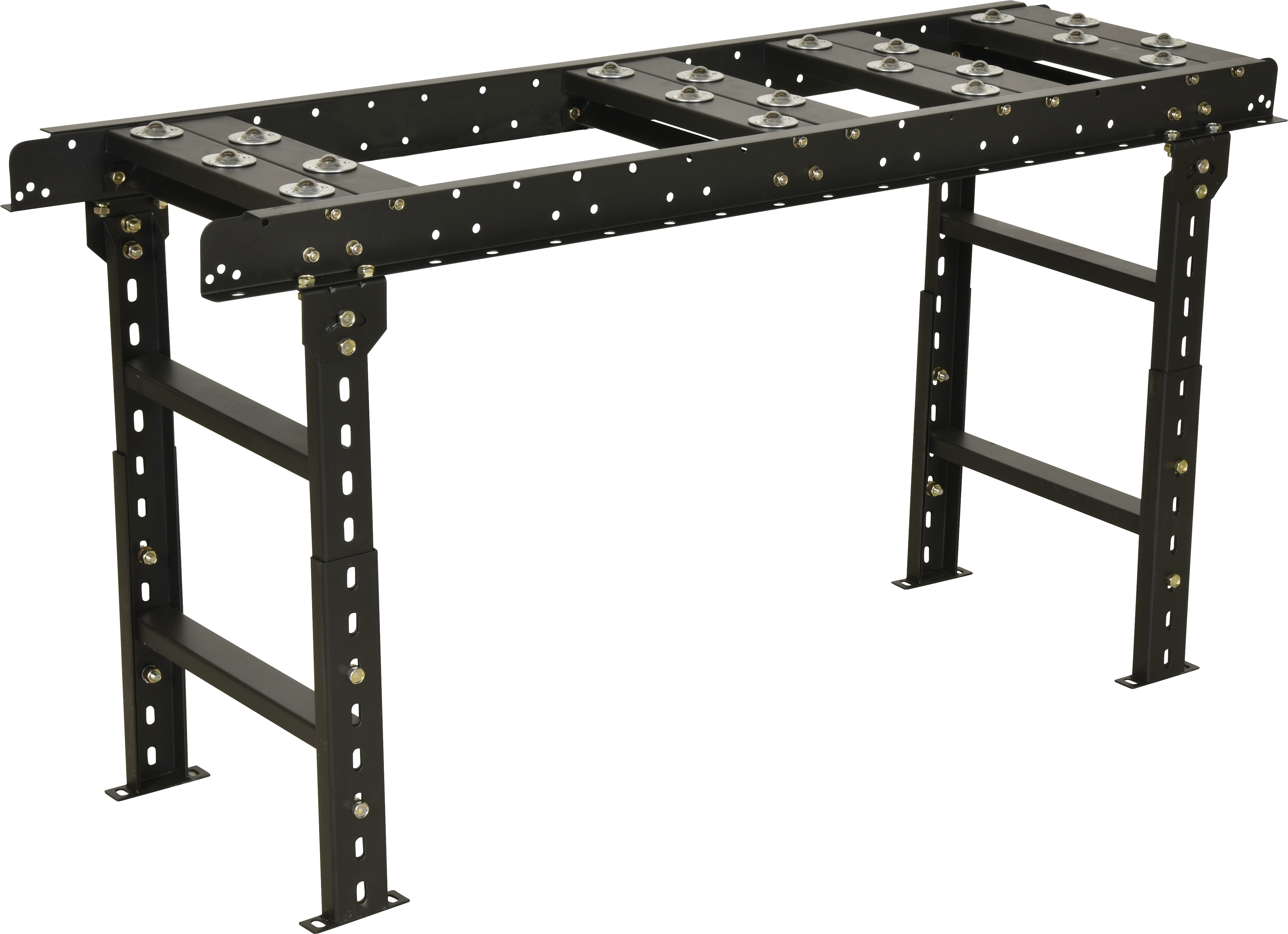

The BTT-450 ball transfer table is commonly used in the sheet metal & fabrication industries on Pressbrakes, Panbrakes, Guillotines, Plate Rolling Machines, Punch & Shearing Machines along with anywhere addition material support is needed. The roller panel inserts are modular & can be mounted at different areas of the frame depending on the support needed, with the addition of optional panels you can modify the set-up of this conveyor to suit your needs. Add on the optional adjustable legs to allow it be positioned at the correct height needed to suit just about any application.Features
- Modular designed transfer panels
- Powder coated steel frame & inserts

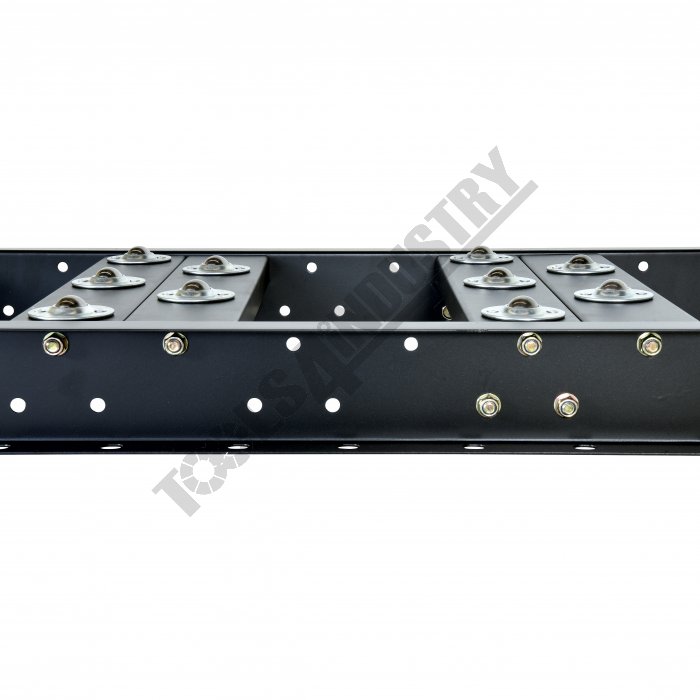

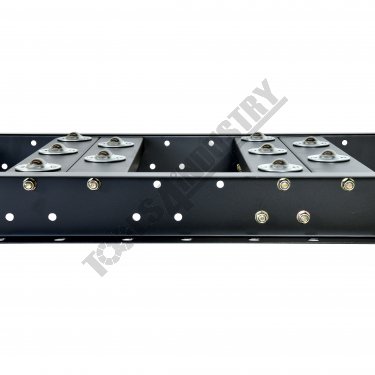

- Frame is pre-drilled @ 75mm hole centres for easy movement of the transfer panels
- Optional transfer panels available
Includes

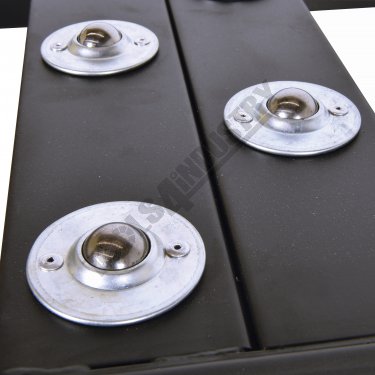

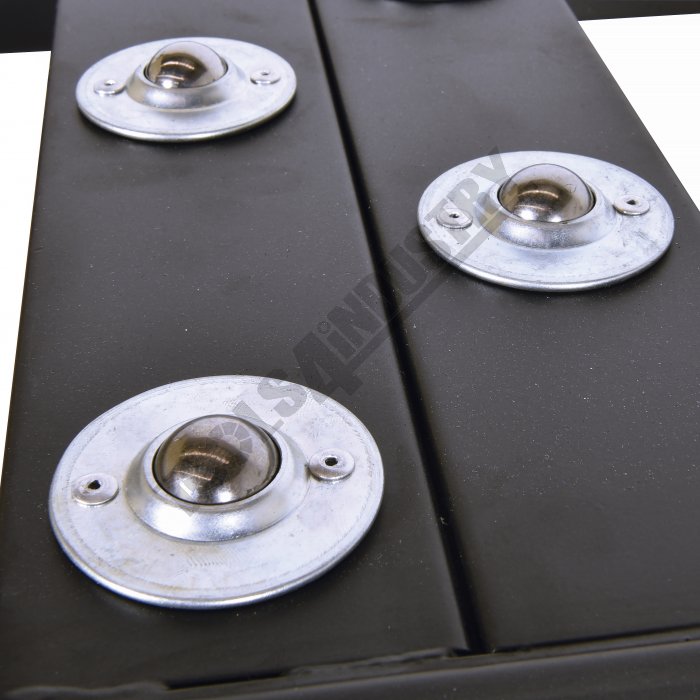

- 5 sets of 390 x 150mm transfer panels with 5 balls in each
- Powder coated steel frame
- Includes connecting hooks & bolts to be able to join sections
Optional Accessories

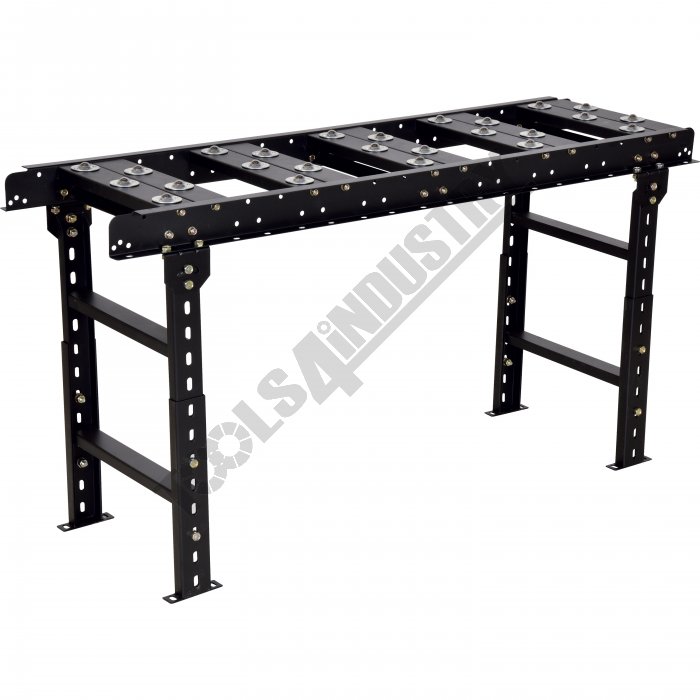

- RS-450H - Roller Conveyor Stand (L820)
- RS-450L - Roller Conveyor Stand (L822)
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Roller Widthmm
- Roller Pitchmm
- No. RollersNo.
- Roller Diametermm
- Frame Length (L)mm
- Frame Width (W)mm
- Frame Height (H)mm
- Height Adjustmentmm
- Load Capacity with 2 x Support Legskg
- Load Capacity with 3 x Support Legskg
- L805
- BTT-450
- ~
- ~
- 25
- Ø50
- 1500
- 450
- ~
- ~
- 300
- ~
- L805
- BTT-450
- ~
- ~
- 25
- Ø50
- 1500
- 450
- ~
- ~
- ~
- ~
- L8125
- RC-290S
- 215
- 150
- 10
- Ø50
- 1500
- 290
- 80
- ~
- 400
- ~
- L812
- RC-290
- 215
- 150
- 20
- Ø50
- 3000
- 290
- 80
- ~
- 400
- 1000
- L818
- RC-450
- 380
- 150
- 20
- Ø50
- 3000
- 450
- 80
- ~
- 400
- 800
- L824
- RC-600
- 530
- 150
- 20
- Ø50
- 3000
- 600
- 80
- ~
- 400
- 600
- L830
- RC-450HD
- 450
- 300
- 10
- Ø60
- 3000
- 540
- 80
- 600 - 950
- ~
- 1200
- L835
- RC-450XHD
- 450
- 560
- 6
- Ø73
- 3000
- 540
- 80
- 650-970
- 2000
- ~
| ORDER CODE | BTT-450 |
|---|---|
| MODEL | ~ |
| Roller Widthmm | ~ |
| Roller Pitchmm | 25 |
| No. RollersNo. | Ø50 |
| Roller Diametermm | 1500 |
| Frame Length (L)mm | 450 |
| Frame Width (W)mm | ~ |
| Frame Height (H)mm | ~ |
| Height Adjustmentmm | 300 |
| Load Capacity with 2 x Support Legskg | ~ |
| Load Capacity with 3 x Support Legskg |
