| Code | L830 |
|---|---|
| Model | RC-450HD |
| Capacity | 540 x 3000mm |
| Weight (kg) | 26 |
| Weight (m3) | 0.014 |
| Weight (Freight) | 26 |
| Dimensions (cm) | 300 x 9 x 5 |

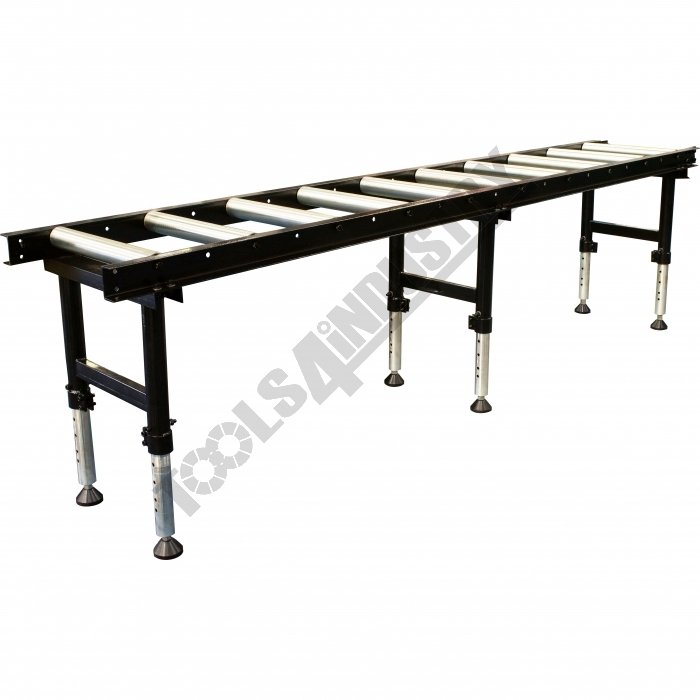

Roller Conveyor with Adjustable Stands - Heavy Duty RC-450HD 540 x 3000mm
Features
- Roller capacity of 200kg each
- 10 x Zinc plated steel rollers at 300mm pitch

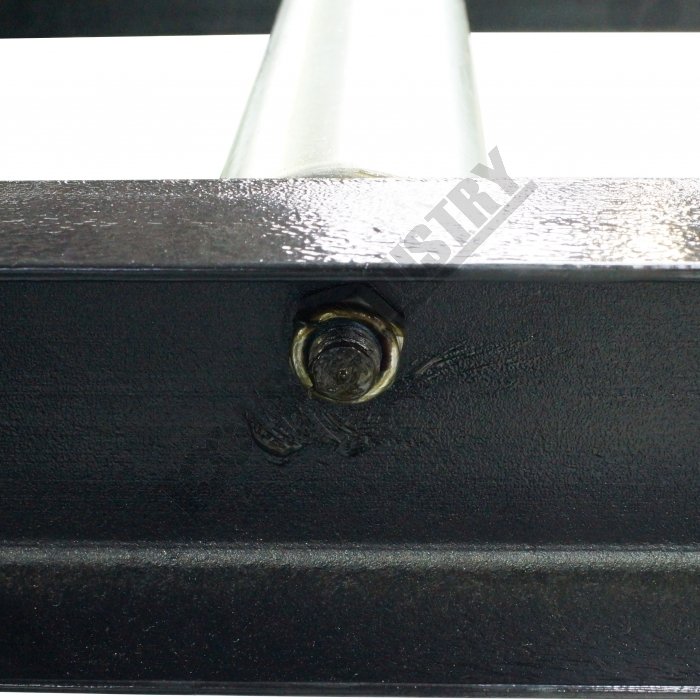

- Rollers are 450mm wide x Ø60mm with commercial bearings

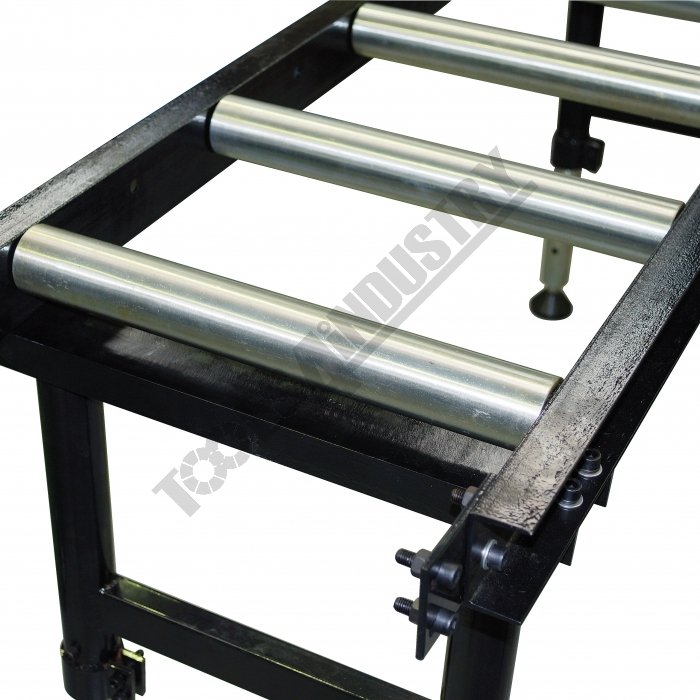

- Frame is constructed from steel channel for addition strength

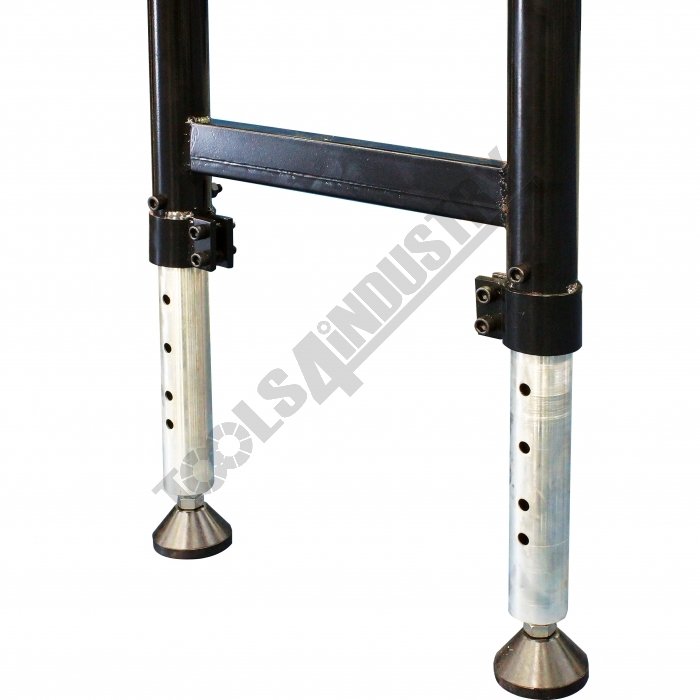

- Adjustable roller table height 600-950mm

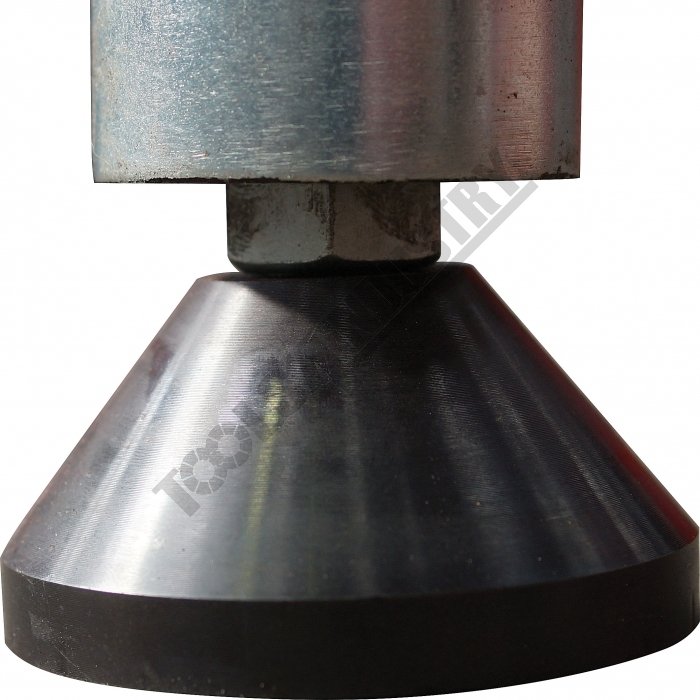

- 3 x stands with adjustable levelling pads
- Frames are pre-drilled at 150mm pitch to accept "Optional 9 rollers" totalling to 19 rollers
- Please Note:
- Roller load capacity is calculated on even weight distribution over entire roller
- Total load capacity is calculated on even weight distribution over entire roller conveyor system
Includes
- 10 steel rollers @ 300mm pitch
- 3 x heavy duty adjustable stands
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Roller Widthmm
- Roller Pitchmm
- No. RollersNo.
- Roller Diametermm

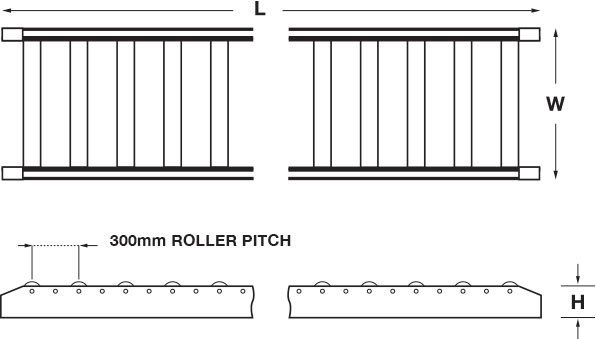

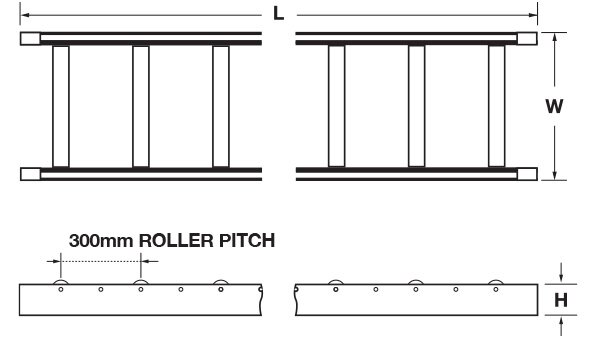

- Frame Length (L)mm
- Frame Width (W)mm
- Frame Height (H)mm
- Height Adjustmentmm
- Load Capacity with 2 x Support Legskg
- Load Capacity with 3 x Support Legskg
- L830
- RC-450HD
- 450
- 300
- 10
- Ø60
- 3000
- 540
- 80
- 600 - 950
- ~
- 1200
- L835
- RC-450XHD
- 450
- 560
- 6
- Ø73
- 3000
- 540
- 80
- 650-970
- 2000
- ~
- L805
- BTT-450
- ~
- ~
- 25
- Ø50
- 1500
- 450
- ~
- ~
- 300
- ~
- L805
- BTT-450
- ~
- ~
- 25
- Ø50
- 1500
- 450
- ~
- ~
- ~
- ~
- L8125
- RC-290S
- 215
- 150
- 10
- Ø50
- 1500
- 290
- 80
- ~
- 400
- ~
- L812
- RC-290
- 215
- 150
- 20
- Ø50
- 3000
- 290
- 80
- ~
- 400
- 1000
- L818
- RC-450
- 380
- 150
- 20
- Ø50
- 3000
- 450
- 80
- ~
- 400
- 800
- L824
- RC-600
- 530
- 150
- 20
- Ø50
- 3000
- 600
- 80
- ~
- 400
- 600
| ORDER CODE | RC-450HD |
|---|---|
| MODEL | 450 |
| Roller Widthmm | 300 |
| Roller Pitchmm | 10 |
| No. RollersNo. | Ø60 |
| Roller Diametermm | 3000 |
| Frame Length (L)mm | 540 |
| Frame Width (W)mm | 80 |
| Frame Height (H)mm | 600 - 950 |
| Height Adjustmentmm | ~ |
| Load Capacity with 2 x Support Legskg | 1200 |
| Load Capacity with 3 x Support Legskg |
