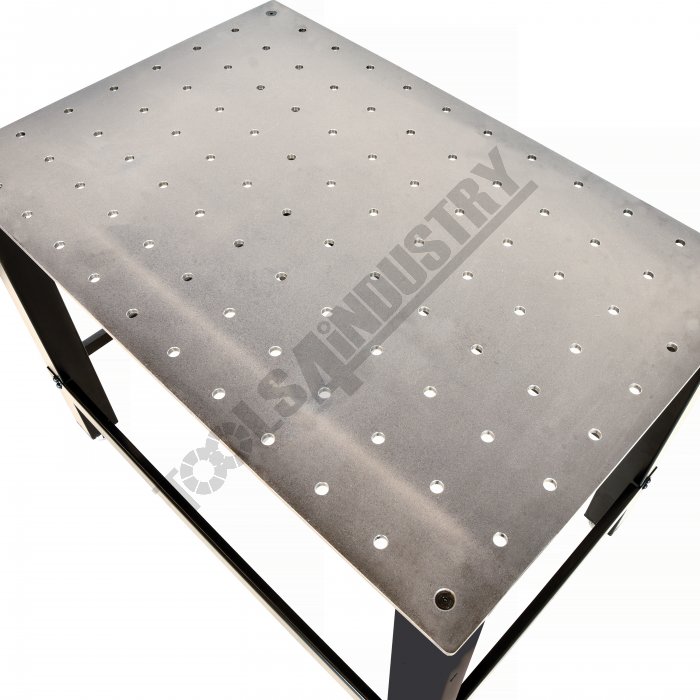

10mm Steel Top

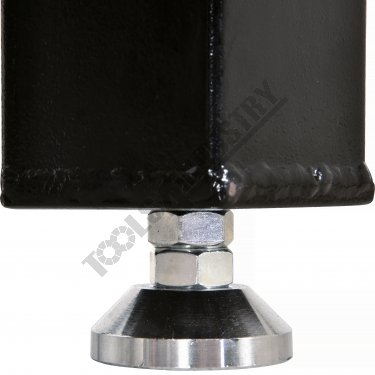

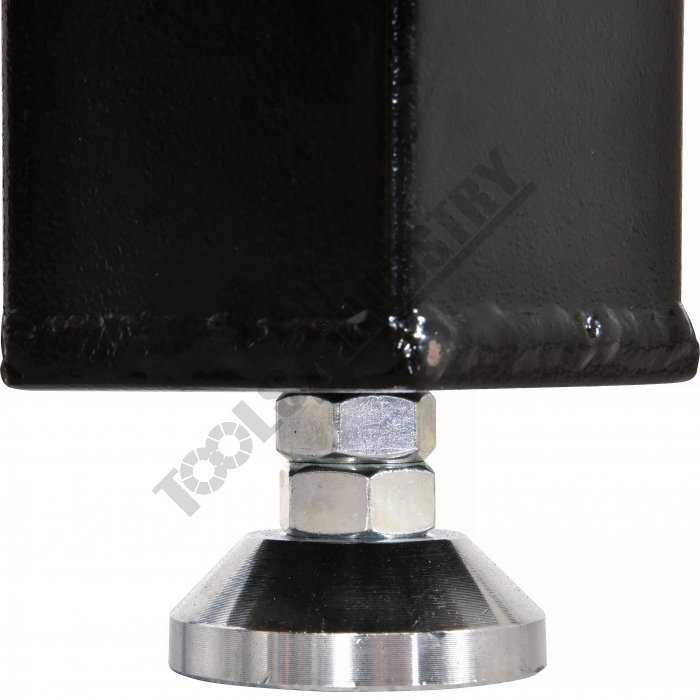

Adjustable Feet

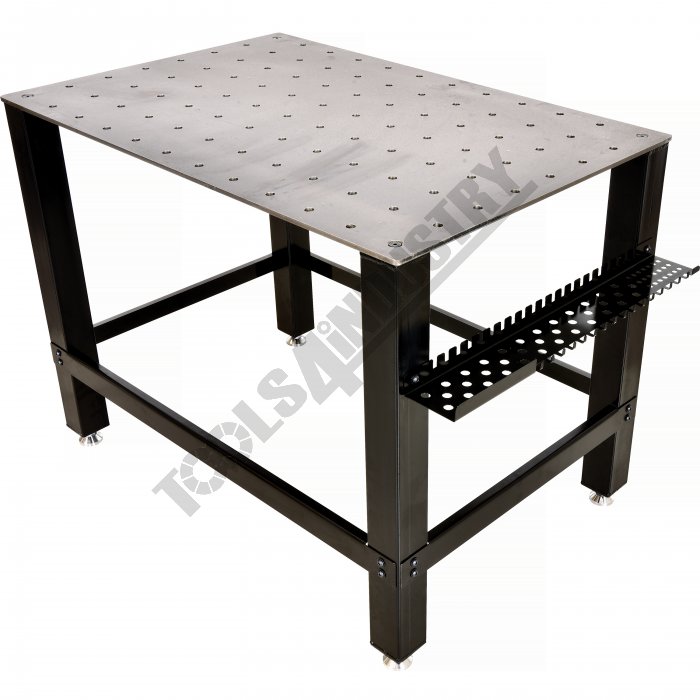

Shown With Optional Tool Holder

Code	W08455
Model	WT1D-128
Capacity	10mm Steel Top Plate
Weight (kg)	100
Weight (m³)	0.144
Weight (Freight)	100
Dimensions (cm)	120 x 80 x 15

Product Brochure 128 Assembly Instructions W08455 1 [807 KB]

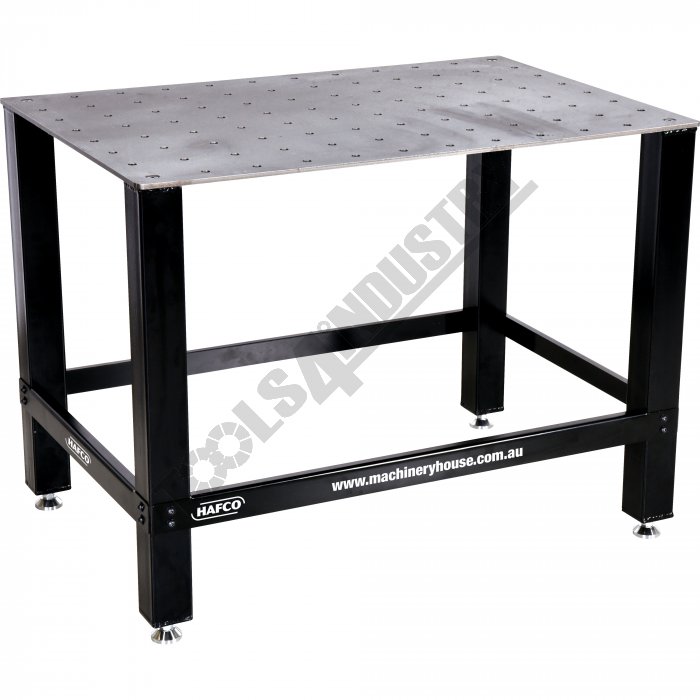

Welding Table WT1D-128 10mm Steel Top Plate

Description

This welding table has been made to last, with a super thick 10mm steel plate top complete with 16mm laser cut holes at 100mm centres making it the perfect solution for both welding and clamping applications.
Featuring a solid all metal frame with its heavy duty 80 x 80mm steel legs & 2mm support bracing making this is one sturdy welding table along with and adjustable leveling feet ensuring that this is no lightweight table, weighing in at 95kg this steel welding table is perfect for any sort of application.

Features

1190 x 790mm Table Top
Heavy duty 10mm steel plate surface
16mm laser cut fixing holes at 100mm centres
100 x 100mm hole grid pattern
Heavy 80mm square legs with adjustable feet

Specifications

Compare 8 Products
ORDER CODE
MODEL
Type
Table Hole DiameterØ
Table Top Sizemm
Table Height with Standmm
Table Side Heightmm
Top Plate Thicknessmm
Grid Patternmm
Table Slotsmm
Table Load Capacitykg
Nett Weightkg

W08455
WT1D-128
1D
16mm
1190 x 790
900
~
10
100 x 100
~
~
95

W08458
WT3D-6090E
3D
16mm
600 x 900
~
100
5
50 x 50
~
~
65

K4040
WT1D-107PLUS
1D
16mm
750 x 1000
~
~
~
~
~
~
57

W07806K
WT16-1208T
3D
16mm ??
800 x 1200
~
50 ??
5 ??
50 x 50 ??
~
~
300

W08600
PCA-4675
Plasma Cutting Attachment
Flat
460 x 740
~
~
~
~
~
~
9.2

W08602
PCT-7510
Plasma Cutting Table
~
~
900
~
3
~
~
~
42

W08450
FXT-915
1D
16mm
915 x 460
930
~
3
63.5 x 63.5
2 x 127 / 2 x 189
500
25.5

W08453
WT1D-107
1D
16mm
750 x 1000
~
~
5
50 x 50
~
~
57

ORDER CODE	WT1D-128
MODEL	1D
Type	16mm
Table Hole DiameterØ	1190 x 790
Table Top Sizemm	900
Table Height with Standmm	~
Table Side Heightmm	10
Top Plate Thicknessmm	100 x 100
Grid Patternmm	~
Table Slotsmm	~
Table Load Capacitykg	95
Nett Weightkg
