2550 x 1250mm BuildPro Max Modular Welding Table - Nitrided - Package Deal TMQD626125F Reversible Table Plates

Description

BuildPro® Models

NEW REVERSIBLE SELF-LOCATING TABLE PLATES!
Get longer wear from your BuildPro® Table.
When the surface of your BuildPro® Table plates show signs of wear, turn them over to provide a new work surface.
New, Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!

The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.

In this economy, we know you need to be flexible and responsive to new business opportunities by reducing set-up time, improving consistency and work quality and remaining competitive in both pricing and delivery in a wide variety of jobs; short runs, volume production, prototypes, and multiple jobs in fabrication, repairs, and maintenance.

Accuracy:
Table flatness : 0.30mm / 914.4mm
Hole diameter : 16mm + 0.05mm
Hole spacing : 50mm ± 0.038mm
Plate thickness : 16mm ± 0.10mm

All BuildPro® Max Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern.

The New BuildPro MAX has a continuous plate tabletop surface with 33% more machined holes than the standard, slotted BuildPro Tables, for a maximized work surface.

Use the BuildPro MAX to: Set-up heavy duty, large, or complex fixtures, or set-up more than one fixture at a time. Utilize the additional holes for clamping at multiple points for greater fixturing accuracy.

Features

• The nitriding (heat-treating) process is a mechanical polish and post salt bath oxidative treatment. The benefits of this process included: Anti-Spatter, Corrosion Protection, and Resistance to wear, lubricity and fatigue strength
• Ø16mm holes
• 16mm thick plate
• 50 x 50mm grid pattern
• 900mm table height
• Includes legs

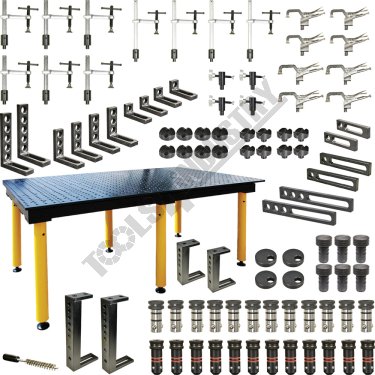

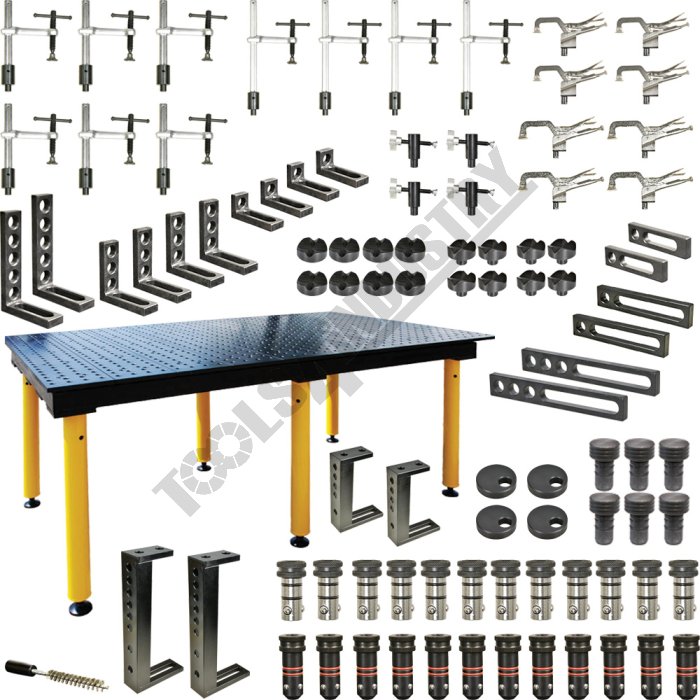

Includes

• 1 x TMQD626125F - 2550 x 1250mm BuildPro Max Modular Welding Table - Nitrided Finish (W07725A)
• 6 x WT16-C1020 - Welding Table Clamp (W07831)
• 4 x WT16-C1030 - Welding Table Clamp (W07832)
• 4 x WT16-RC6 - Welding Table Rapid Clamp (W07836)
• 4 x WT16-RC9 - Welding Table Rapid Clamp (W07837)
• 4 x WT16-AB943 - Right Angle Bracket / Stop (W07841)
• 4 x WT16-AB993 - Right Angle Bracket / Stop (W07844)
• 2 x WT16-AB1405x1 - Right Angle Bracket / Stop (W07845)
• 2 x WT16-CSQ200 - Clamping Square (W07847)
• 2 x WT16-CSQ300 - Clamping Square (W07848)
• 2 x WT16-SB115 - Straight Bar Stop (W07862)
• 2 x WT16-SB150 - Straight Bar Stop (W07863)
• 2 x WT16-SB200 - Straight Bar Stop (W07864)
• 4 x WT16-EC50 - 50mm Eccentric Pad (W07887)
• 12 x WT16-BLP24 - Ball Lock Pin 16 x 24mm (W07891)
• 12 x WT16-BLP28 - Ball Lock Pin 16 x 28mm (W07892)
• 1 x WT16-CB16 - Steel Cleaning Brush (W07900)
• 1 x SCLP-16 - Locating Pin 16 x 40mm (W08504)
• 2 x SCVM-90135 - Magnetic Cross Type 90 / 135º V-Pad (4pc Pack) (W08506)
• 2 x SCV-90135 - Cross Type 90 / 135º V-Pad (4 Piece Pack) (W08507)
• 2 x SDC-50 - 50mm Side Clamp (2 Piece Pack) (W08508)
