| Code | W07748 |
|---|---|
| Model | TMLC600 |
| Weight (kg) | 1.95 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 1.95 |
| Dimensions (cm) | 18 x 13 x 9 |

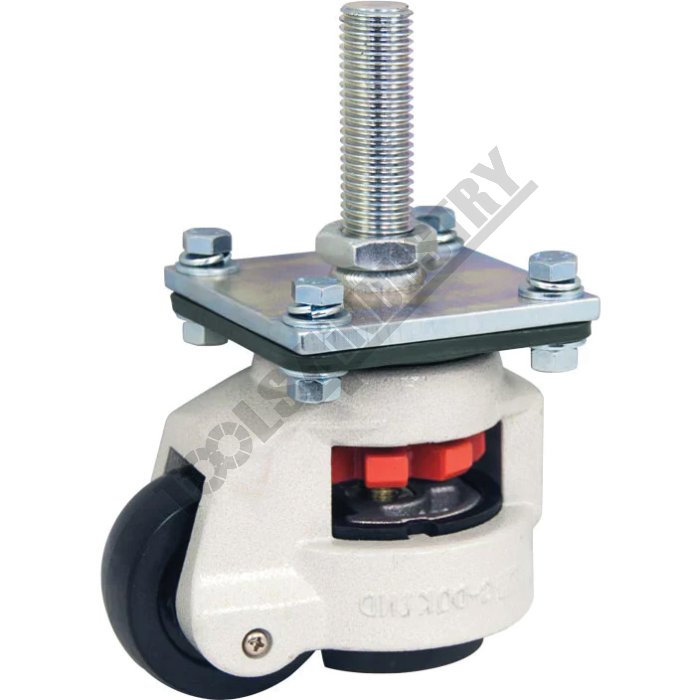

BuildPro Levelling Caster - 1 Piece TMLC600
Description

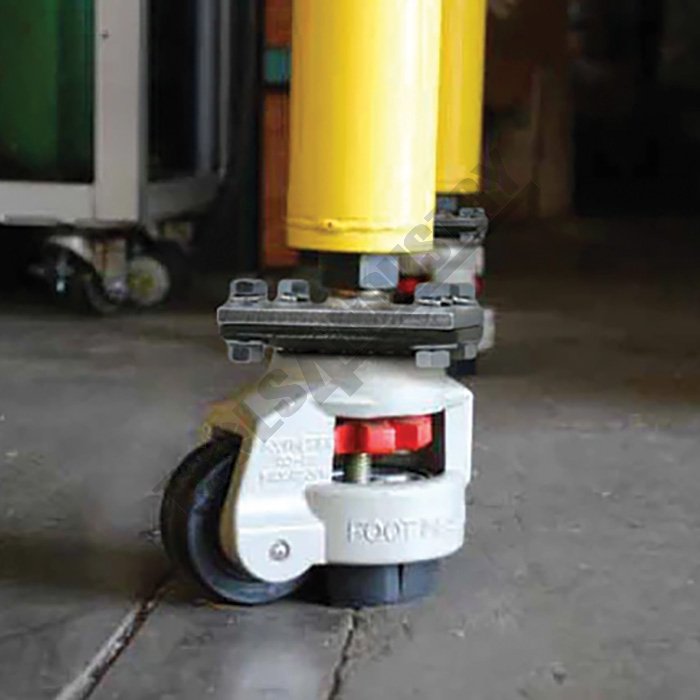

Your BuildPro™ table can be both mobile and fully stationary. These compact, heavy duty levelling casters are the simple way to move and level your BuildPro™ Welding Table. Turn the thumbwheel to lower the wheels and move the table. (Sold individually)Mobility Caster: Durable caster rolls smoothly on precision ball bearings, with non-marking, non-marring nylon polymer wheels. Dual toe-step braking system can be set for “no-swivel + no-roll”. This caster will add 146mm to your total tabletop surface height.
Features

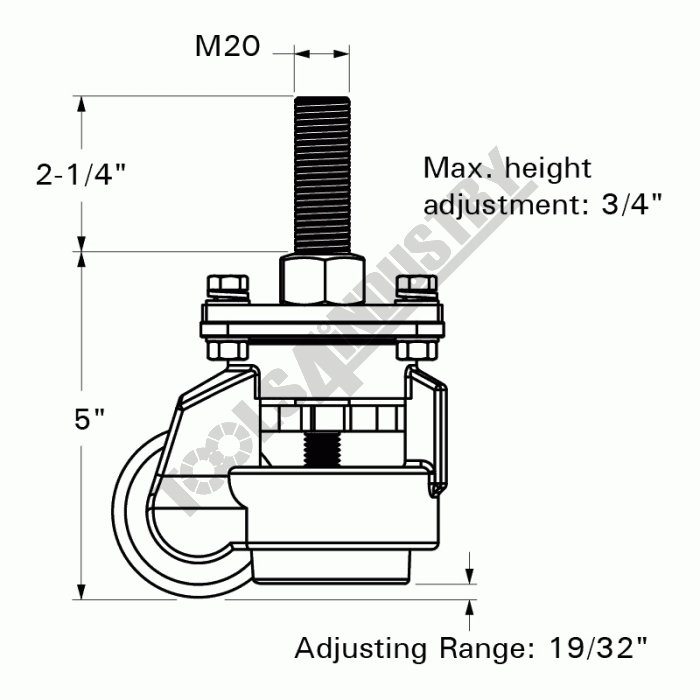

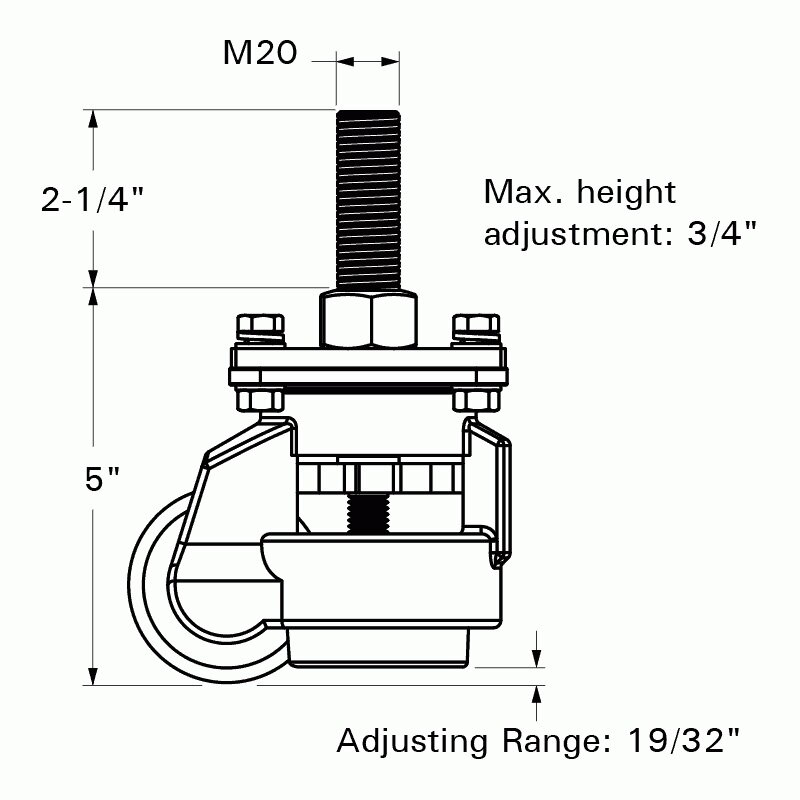

- M20 Thread
- 500kg Load Capacity
- 19mm Maximum height adjustment
Includes
- 1 x TMLC600 Levelling Caster
Videos
Specifications
- Compare 9 Products
- ORDER CODE
- MODEL
- Quantity of Wheels in PackNo.
- Wheel Type
- Wheel Diametermm
- Wheel Widthmm
- Total Height to Top of Platemm
- Load Capacity per Wheelkg
- Load Capacity per Set kg
- Nett Weightkg
- W07748
- TMLC600
- 1
- ~
- ~
- ~
- ~
- ~
- ~
- 1.95
- W935
- CW-63
- 4
- Foot Lock & Lift Release
- Ø63
- 25
- ~
- 63
- 252
- 3.5
- C410
- CW-100
- 4
- 2 Fixed, 2 Swivel/Brake
- Ø100
- 35
- 127
- 70
- 280
- 4
- C411
- CW-125
- 4
- 2 Fixed, 2 Swivel/Brake
- Ø125
- 50
- 165
- 410
- 1640
- 16
- C412
- CW-125S
- 2
- 2 Swivel/Brake
- Ø125
- 50
- 165
- 410
- 820
- 8
- C413
- CW-150
- 4
- 2 Fixed, 2 Swivel/Brake
- Ø150
- 50
- ~
- 450
- 1800
- 16
- C414
- CW-150S
- 2
- 2 Swivel/Brake
- Ø150
- 50
- ~
- 450
- 900
- 9
- C4064
- GD-80F
- 1
- Foot Swivel Caster Wheel - Adjustable Stop
- 63
- 28
- 103
- 500
- ~
- 1.04
- C4068
- GD-120F
- 1
- Foot Caster Wheel - Adjustable Stop
- 75
- 30
- 120
- 1000
- ~
- 1.6
| ORDER CODE | TMLC600 |
|---|---|
| MODEL | 1 |
| Quantity of Wheels in PackNo. | ~ |
| Wheel Type | ~ |
| Wheel Diametermm | ~ |
| Wheel Widthmm | ~ |
| Total Height to Top of Platemm | ~ |
| Load Capacity per Wheelkg | ~ |
| Load Capacity per Set kg | 1.95 |
| Nett Weightkg |
