| Code | W07772 |
|---|---|
| Model | TMK610 |
| Capacity | 38 - PIECE KIT |
| Weight (kg) | 7.6 |
| Weight (m3) | 0.005 |
| Weight (Freight) | 7.6 |
| Dimensions (cm) | 27 x 24 x 7 |
BuildPro Modular Fixturing Kit TMK610 38 - PIECE KIT
Description
The very practical, modular design of the BuildPro® Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro® clamps and accessories.All BuildPro® Tables have 16mm thick steel plate with Ø16mm holes in a 50mm grid pattern. All tables, except BuildPro® MAX, have 40mm slots between plates.
Features
- 38 PIECE KIT

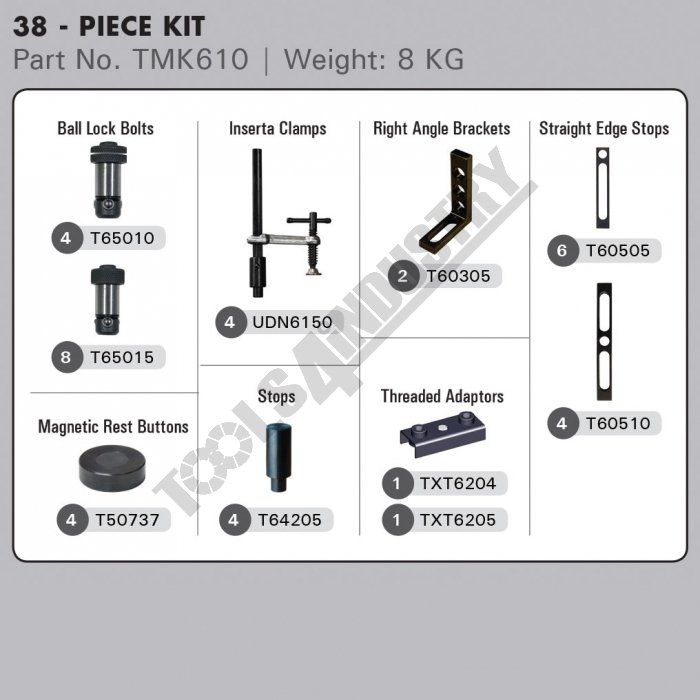

Includes
- 12 x Ball Lock Bolts ( 4 x T65010, 8 x T65015 )
- 4 x Magnetic Rest Buttons ( T50737 )
- 4 x Inserta Clamps ( UDN6150 )
- 4 x Stops ( T64205 )
- 2 x Right Angle Brackets ( T60305 )
- 2 x Threaded Adaptors ( TXT6204, TXT6205 )
- 10 x Straight Edge Stops ( 6 x T60505, 4 x T60510 )
Videos
Specifications
- Compare 6 Products
- ORDER CODE
- MODEL
- Suits Table Hole SizeØ
- Suit Table Thickness
- Quantity Per PackNo.
- Nett Weightkg
| ORDER CODE | TMK610 |
|---|---|
| MODEL | 16mm |
| Suits Table Hole SizeØ | ~ |
| Suit Table Thickness | 38 |
| Quantity Per PackNo. | 8.0 |
| Nett Weightkg |
