| Code | W08520 |
|---|---|
| Model | SC-140A |
| Capacity | 140mm Throat Depth |
| Weight (kg) | 1.8 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.8 |
| Dimensions (cm) | 26 x 17 x 3 |

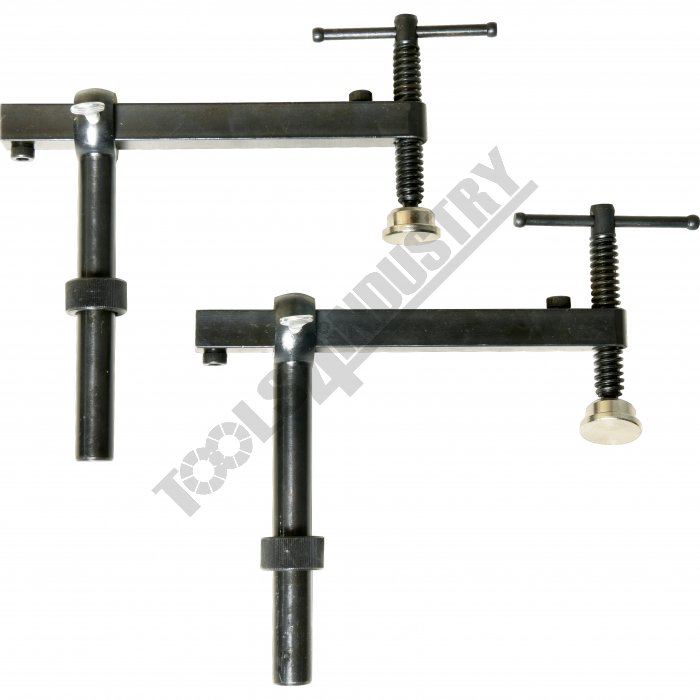

Adjustable Welding Table Clamp (2 Piece Pack) SC-140A 140mm Throat Depth
Description

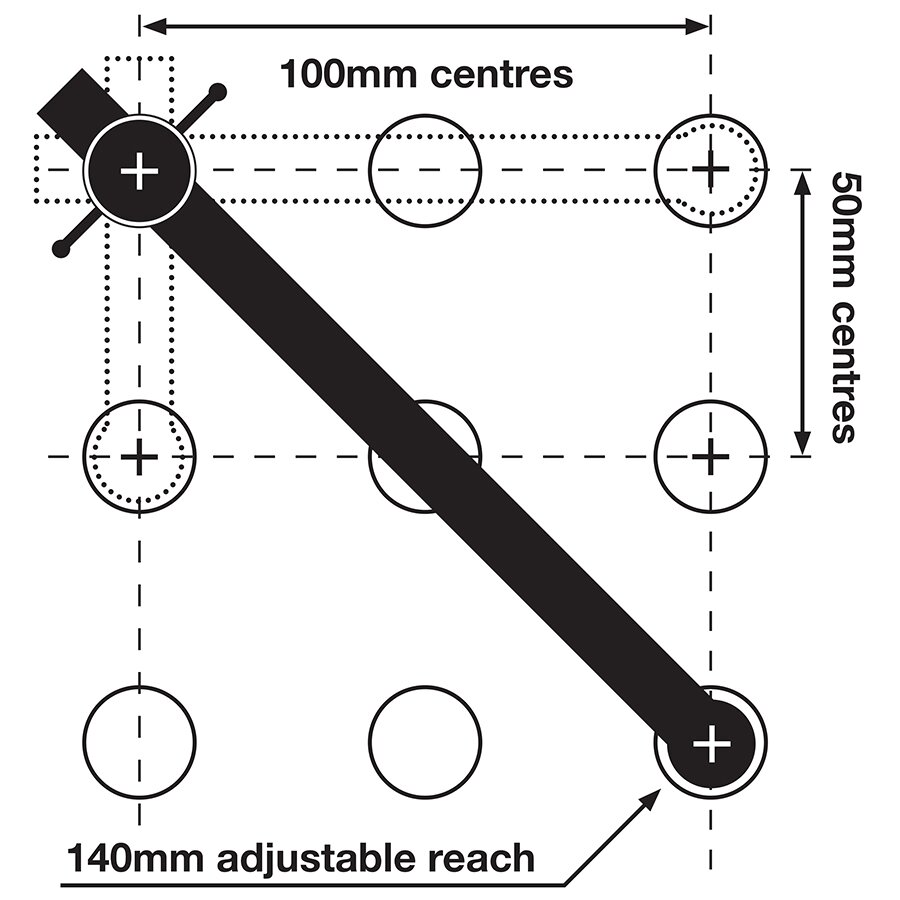

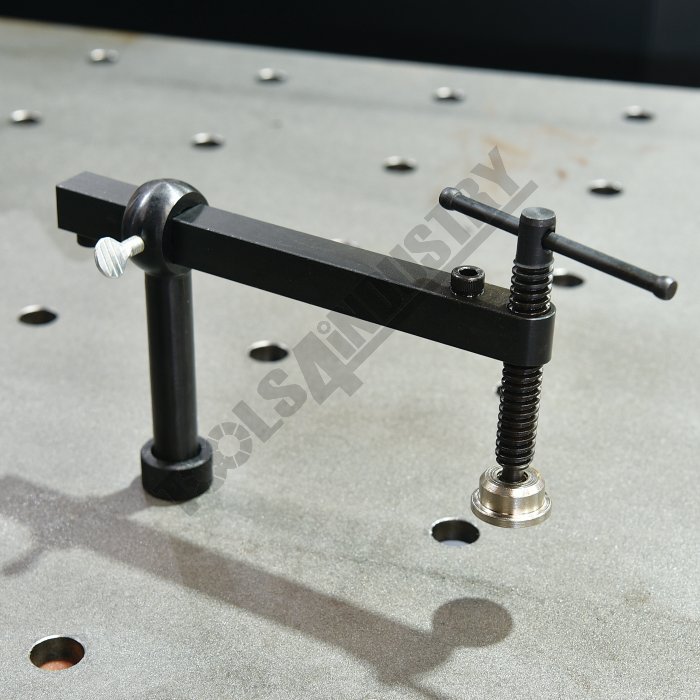

Increase work quality and productivity with an affordable & easy-to-use adjustable welding table clamp.Simply insert into any hole on the tabletop, adjust to the required height, adjust to the required length for fast hold-down clamping at any position on the tabletop. Designed to not only be adjustable in length, up to 140mm, but also in height. The SC-140A Adjustable Welding Clamp set gives you the capacity to suit welding tables with hole diameter of 16mm & hole centres of up to 100 x 100mm. Suitable for any of our welding tables with 16mm holes, particularly our WT1D-128 Welding Table.
Features
- Solid steel construction
- 25 - 140mm Adjustable Throat Depth
- 100mm clamp height opening
- Suits welding tables with Ø16mm holes
- Suitable for tables with 50x50mm or 100x100mm hole centres
- Swivel clamp pad
- 2 Pack
Specifications
- Compare 21 Products
- ORDER CODE
- MODEL
- Mount Type
- Suits Table Hole SizeØ
- Throat Depthmm
- Clamp Height Openingmm
- Clamping Forcekg
- Quantity Per PackNo.
- Nett Weightkg

- W08520
- SC-140A
- Ø16mm Shank
- 16mm
- 25~140
- 100
- ~
- 2
- 1.8

- W07826
- WT16-UNIV
- Ø16mm Shank
- 16mm
- 130
- 100
- ~
- 1
- 0.60

- W07834
- WT16-C1220R
- Ø16mm Spigot
- 16mm
- 120
- 200
- ~
- 1
- 1.2

- W07835
- WT16-C1230R
- Ø16mm Spigot
- 16mm
- 120
- 300
- ~
- 1
- 1.4

- W07829
- WT16-C815
- Ø16mm Spigot
- 16mm
- 80
- 150
- ~
- 1
- 0.60

- W07831
- WT16-C1020
- Ø16mm Spigot
- 16mm
- 100
- 200
- ~
- 1
- 0.90

- W07830
- WT16-C825
- Ø16mm Spigot
- 16mm
- 80
- 250
- ~
- 1
- 0.70

- W07832
- WT16-C1030
- Ø16mm Spigot
- 16mm
- 100
- 300
- ~
- 1
- 1.0

- W07833
- WT16-C1050
- Ø16mm Spigot
- 16mm
- 100
- 500
- ~
- 1
- 1.37

- W08304
- WT28-C90T
90 Degree - Ø28mm Shank
- 28mm
- ~
- ~
- ~
- 1
- 1.47

- W08301
- WT28-C180T
180 Degree - Ø28mm Shank
- 28mm
- ~
- ~
- ~
- 1
- 2.14

- W08307
- WT28-C45T
45 Degree - Ø28mm Shank
- 28mm
- ~
- ~
- ~
- 1
- 2.12

- W07950
- XDSM
Clamp Model UDN6150 - Sidekick
- ~
- ~
- ~
- ~
- 1
- 0.3

- W07836
- WT16-RC6
- Ø16mm Spigot
- 16mm
- 65
- 60
- ~
- 1
- ~

- W07837
- WT16-RC9
- Ø16mm Spigot
- 16mm
- 93
- 100
- ~
- 1
- ~

- W07839
- WT16-RC14
- Ø16mm Spigot
- 16mm
- 159
- 120
- ~
- 1
- ~

- W08508
- SDC-50
50mm - Ø16mm Spigot
- 16mm
- ~
- ~
- ~
- 2
- 1.0

- W08509
- SC-50
- Thread & Nut
- 16mm
- 50
- 130
- ~
- 2
- 0.7

- W08510
- SC-60
- Thread & Nut
- 16mm
- 60
- 125
- ~
- 2
- 5.30

- W08511
- SC-80
- Thread & Nut
- 16mm
- 80
- 200
- ~
- 2
- 1.5

- W08512
- SC-100
Weld Clamps with Locking Nuts (2 Piece Pack) - ~
- 16mm
- 100
- 200
- ~
- ~
- 2.3
| ORDER CODE | SC-140A |
|---|---|
| MODEL | Ø16mm Shank |
| Mount Type | 16mm |
| Suits Table Hole SizeØ | 25~140 |
| Throat Depthmm | 100 |
| Clamp Height Openingmm | ~ |
| Clamping Forcekg | 2 |
| Quantity Per PackNo. | 1.8 |
| Nett Weightkg |
