| Code | W08514 |
|---|---|
| Model | SCA-253M |
| Capacity | Suits tables from 3mm to 10mm in thickness |
| Weight (kg) | 0.46 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.46 |
| Dimensions (cm) | 15 x 9 x 3 |

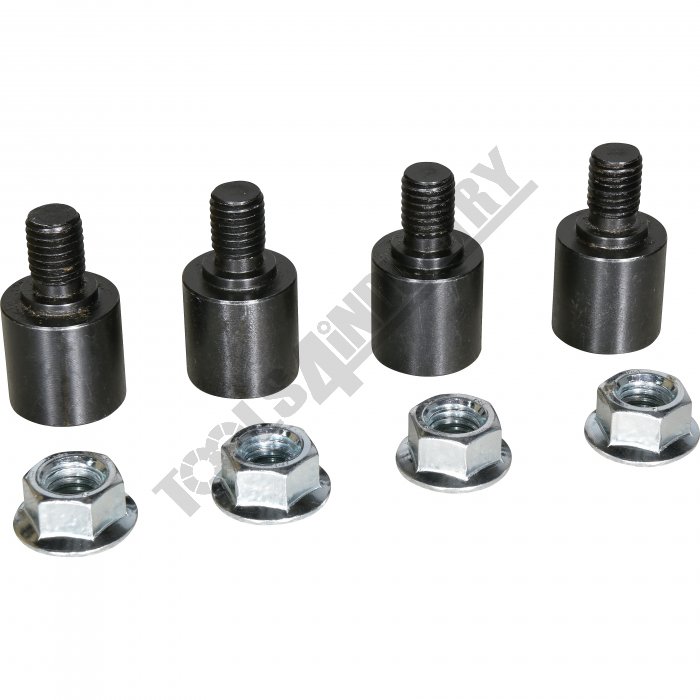

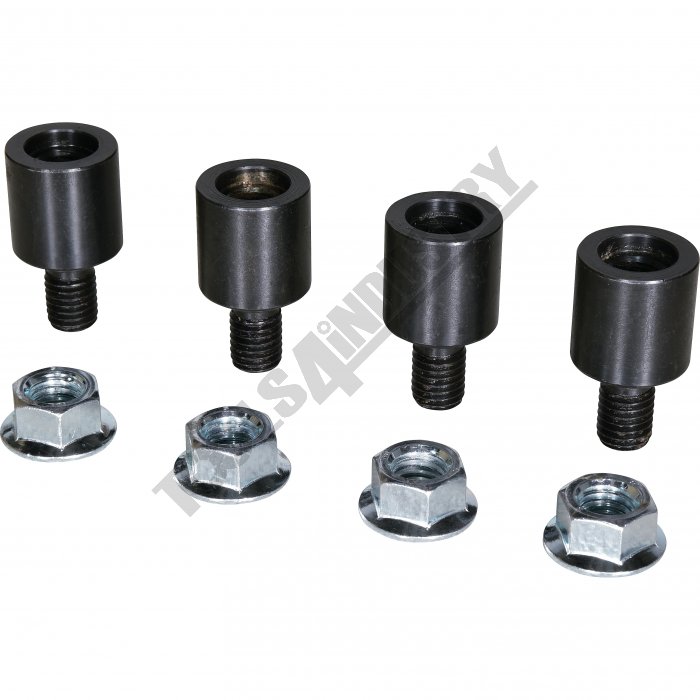

25mm x M12 Multi-Purpose Riser/Stops (Threaded) - 4pc Pack SCA-253M Suits tables from 3mm to 10mm in thickness
Description

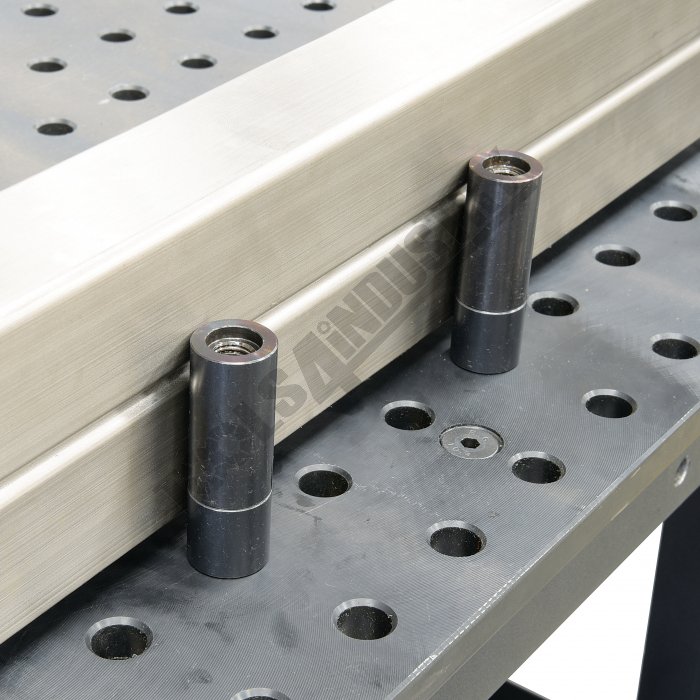

These stops can be inserted into welding tables with Ø16mm holes, the multi-purpose design allows them to be used as a material rest, as a stop to positive locate of your workpiece or as an extension for a threaded clamp. The threaded base gives you the ability to firmly secure in place to ensure accuracy & consistency of your welding tasks.Features
- Threaded spigot suits welding tables with Ø16mm holes
- Compatible for tables from 3mm to 10mm in thickness

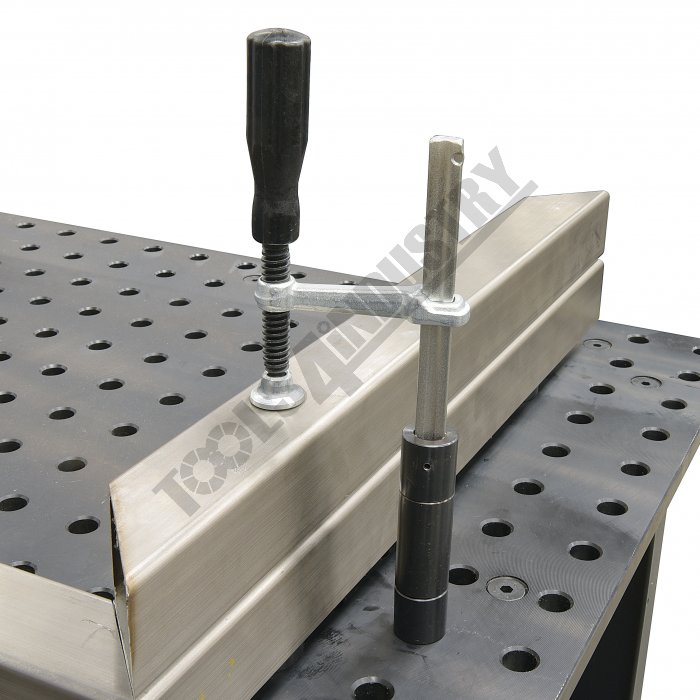

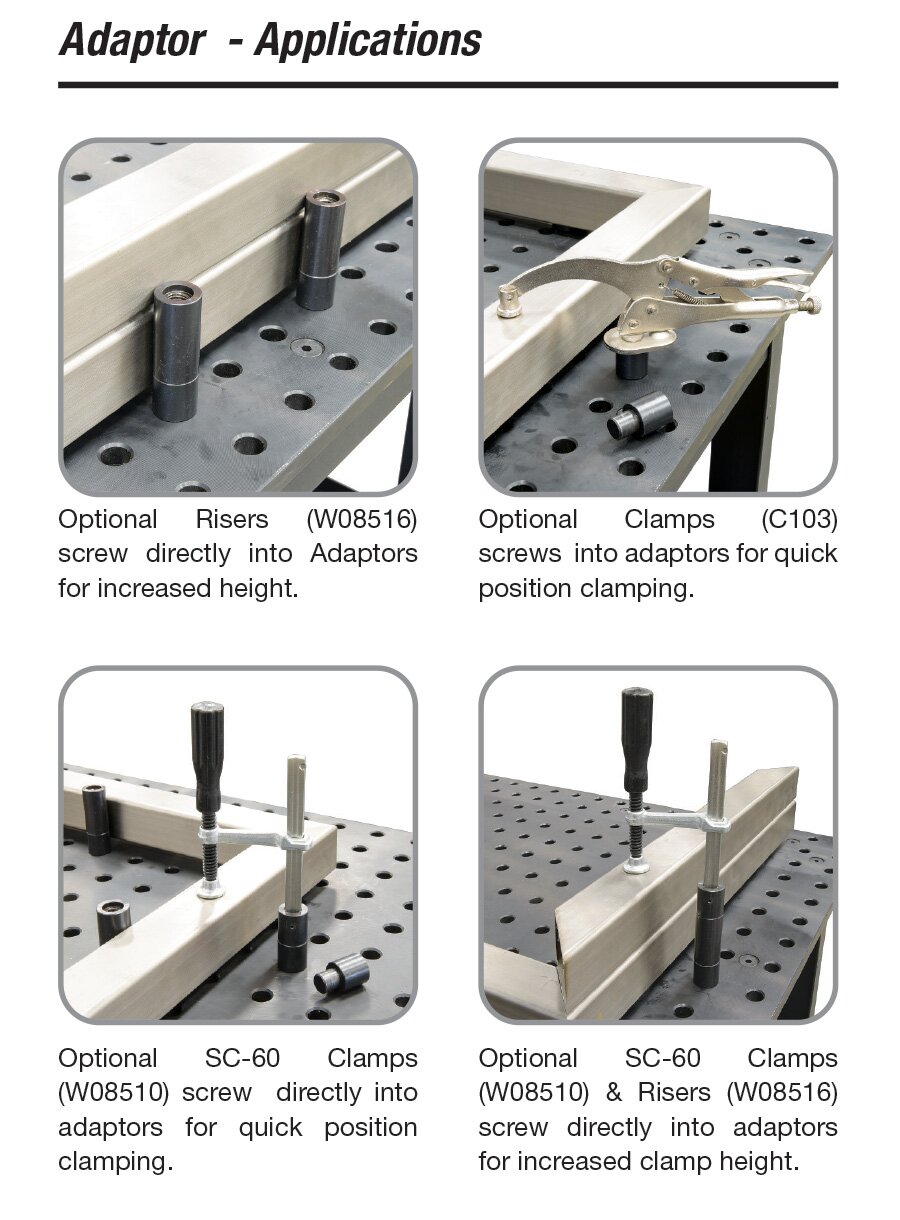

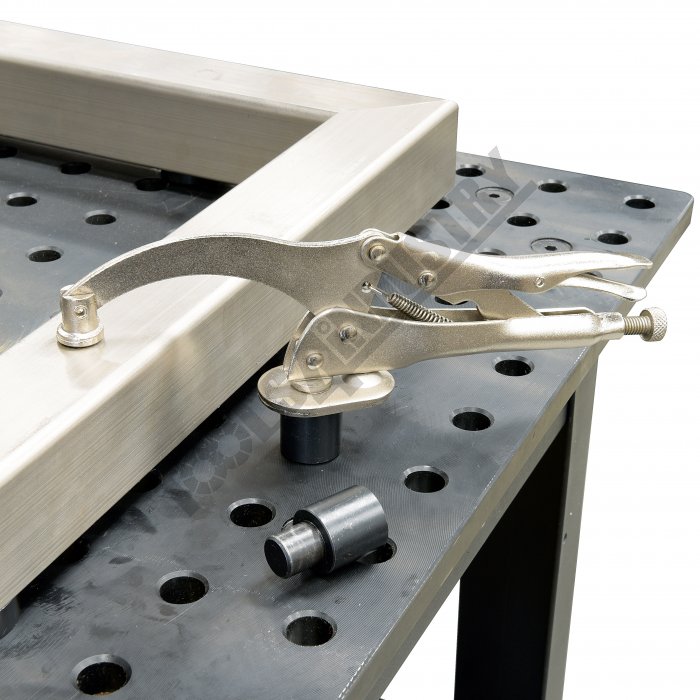

- Use as an extension for welding clamps to increase clamp height by 25mm
- 25mm in height from table surface & 25mm in diameter
- M12 Internal & external thread

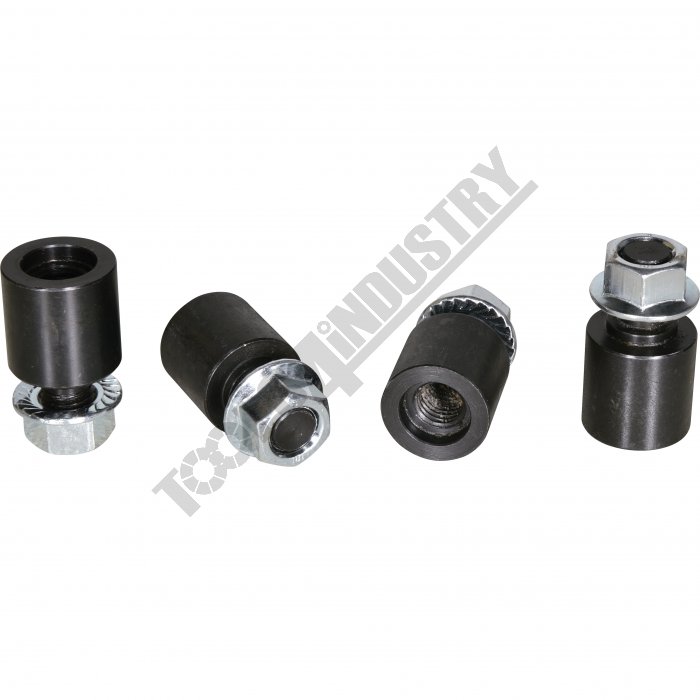

- Includes 4 x M12 nuts.
Specifications
- Compare 13 Products
- ORDER CODE
- MODEL
- Suits Table Hole SizeØ
- Type
- Suits Table Thicknessmm
- DiameterØ
- Quantity Per PackNo.
- Thread
- Over all Height
- Attachment Type
- Nett Weightkg
- W08514
- SCA-253M
- 16mm
- Multi-Purpose
- 3-10mm
- 25mm
- 4
- M12 Internal & external
- 25mm
- Thread & Nut
- 0.5
- W08367
- WT28-AHP75
- 28mm
- Adjustable Height Pad
- ~
- 77mm OD
- 1
- ~
- 80-110mm Height Adjustment
- ~
- 2.5
- W08513
- ~
- 16mm
- Multi-Purpose
- 6.35 Minimum
- 25mm
- 4
- M12 Internal
- 25mm
- ~
- 2.3
- W08515
- SCA-3816P
- 16mm
- Material Stop
- 6.35 Minimum
- 25mm
- 4
- M12 Internal
- 38mm
- Spigot
- 1.2
- W08516
- ~
- 16mm
- Multi-Purpose
- ~
- 25mm
- 4
- M12 Internal & External
- 50mm
- Thread & Nut
- .8
- W08517
- ~
- 16mm
- Material Stop
- 6.35 Minimum
- 25mm
- 4
- ~
- 50mm
- Spigot
- 1
- W08012
- T64211
- 16mm
- V-Block Spacer
- ~
- Ø38
- 1
- ~
- 27.5mm
- ~
- ~
- W08503
- SCAP-40
- 16mm
- Adjustable Rest
- ~
- 40mm
- 2
- ~
- 35-45mm
- ~
- W07887
- WT16-EC50
- 16mm
- Eccentric Pad
- ~
- 50mm
- ~
- ~
- 0.10
- W07888
- WT16-EC75
- 16mm
- Eccentric Pad
- ~
- 75mm
- 1
- ~
- ~
- ~
- 0.10
- W08365
- WT28-EC75
- 28mm
- Eccentric Pad
- ~
- 75mm
- 1
- ~
- ~
- ~
- 0.50
- W08366
- WT28-EC100
- 28mm
- Eccentric Pad
- ~
- 100mm
- 1
- ~
- ~
- ~
- 0.50
- W08505
- SCMP-12
- All
- Rest Pad
- ~
- 38mm
- 4
- ~
- 12mm
- Magnetic
- 0.5
| ORDER CODE | SCA-253M |
|---|---|
| MODEL | 16mm |
| Suits Table Hole SizeØ | Multi-Purpose |
| Type | 3-10mm |
| Suits Table Thicknessmm | 25mm |
| DiameterØ | 4 |
| Quantity Per PackNo. | M12 Internal & external |
| Thread | 25mm |
| Over all Height | Thread & Nut |
| Attachment Type | 0.5 |
| Nett Weightkg |
