| Code | W08602 |
|---|---|
| Model | PCT-7510 |
| Capacity | Includes dust chute |
| Weight (kg) | 38 |
| Weight (m3) | 0.021 |
| Weight (Freight) | 38 |
| Dimensions (cm) | 105 x 20 x 10 |

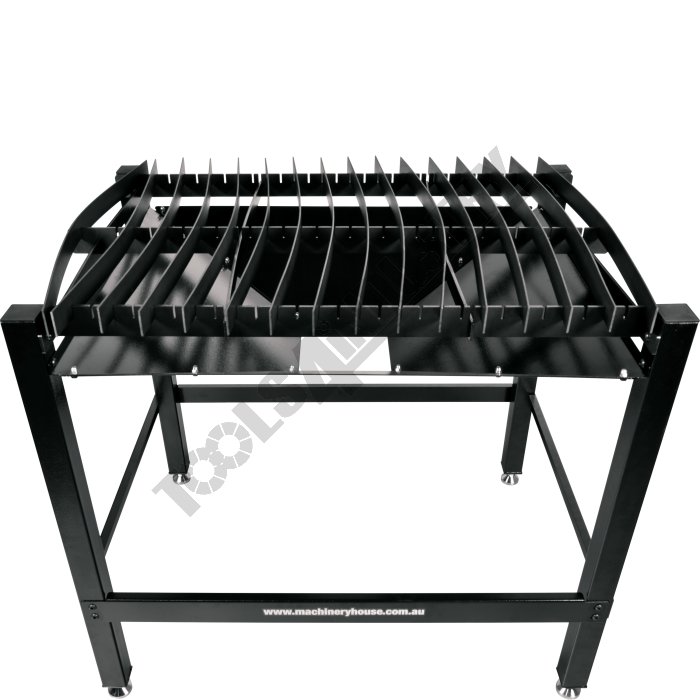

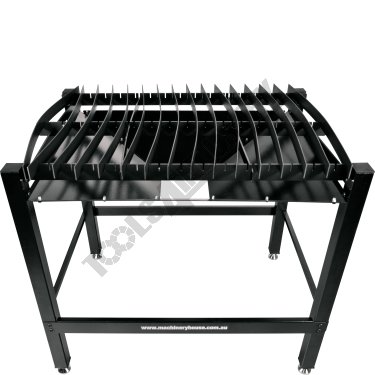

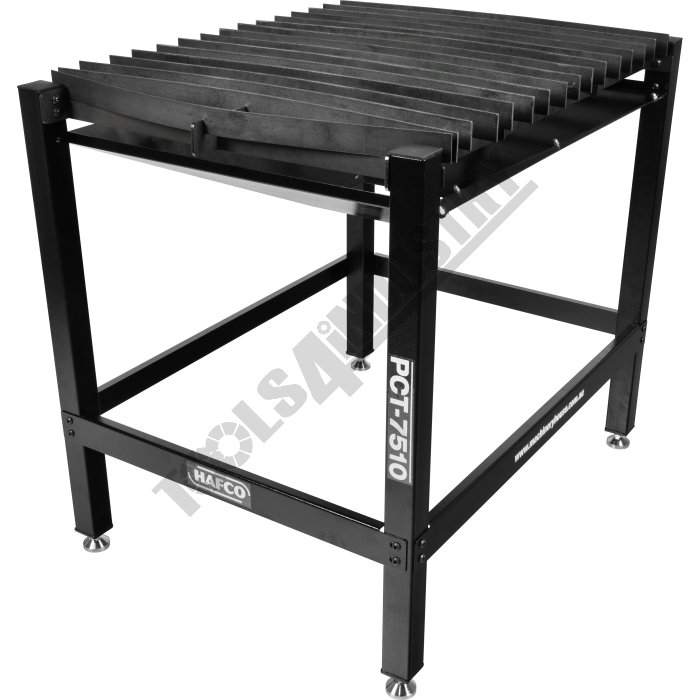

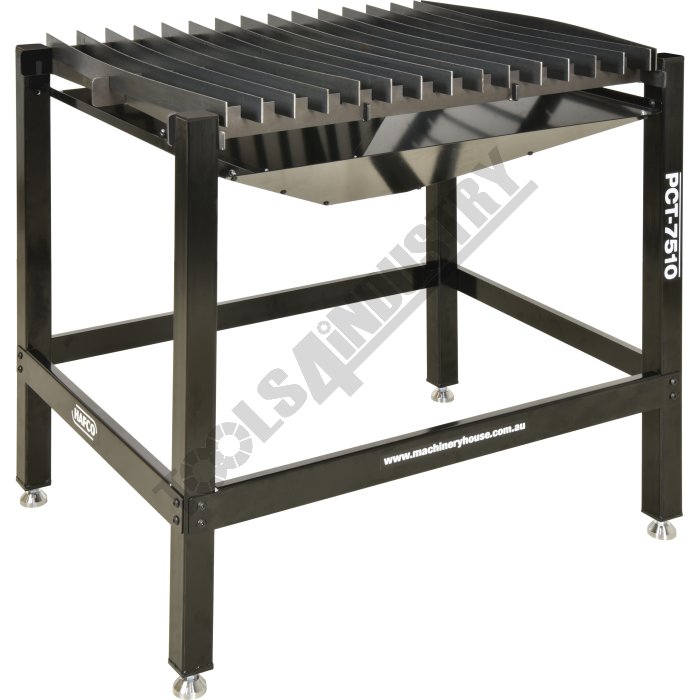

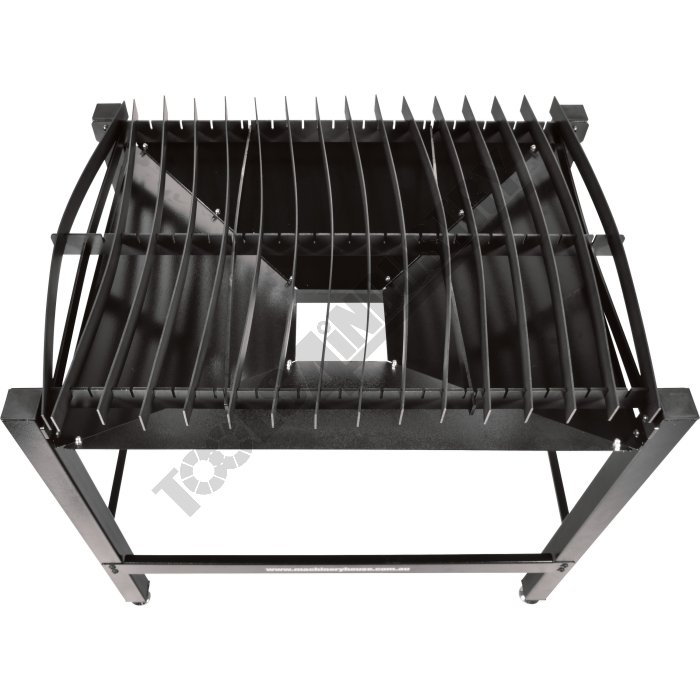

Plasma Cutting Table PCT-7510 Includes dust chute
Description

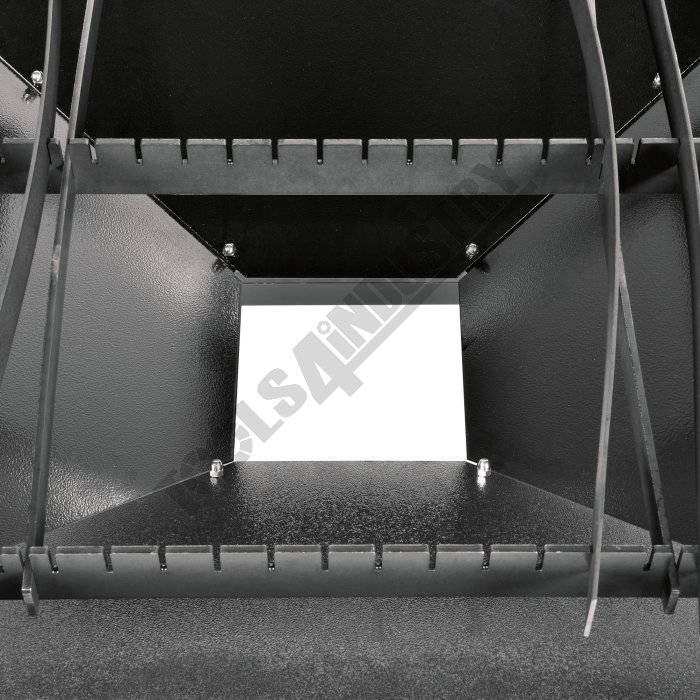

Design was developed in Australia as an economical free-standing plasma cutting table, the design is based around tubular steel legs along with a frame that is precision laser from 5mm steel with inter-locking steel ribs & steel sacrificial cutting slats giving you a generous 750 x 1000mm overall working size.The construction consists of powder-coated 50mm square tube steel legs that come complete with adjustable levelling feet to ensure a stable working surface plus the sacrificial steel slats are easily replaceable with 40 x 3mm flat bar, readily available at most hardware or local steel suppliers. Under the table surface we have included a sheet metal dust chute, simply place a steel bucket under the table to be able to easily dispose any waste or offcuts that fall through the cutting slats.
NOTE - THIS ITEM COMES FLAT PACKED & REQUIRES ASSEMBLY, please review our construction guide via our downloads.
Features
- Convenient bolt together design for easy assembly
- Designed & developed in Australia

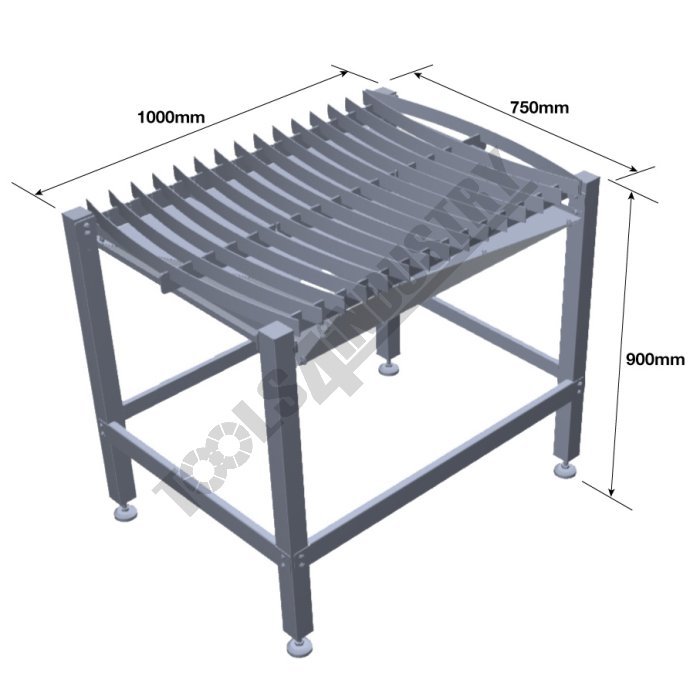

- Generous 750 x 1000mm overall size
- Precision laser cut components

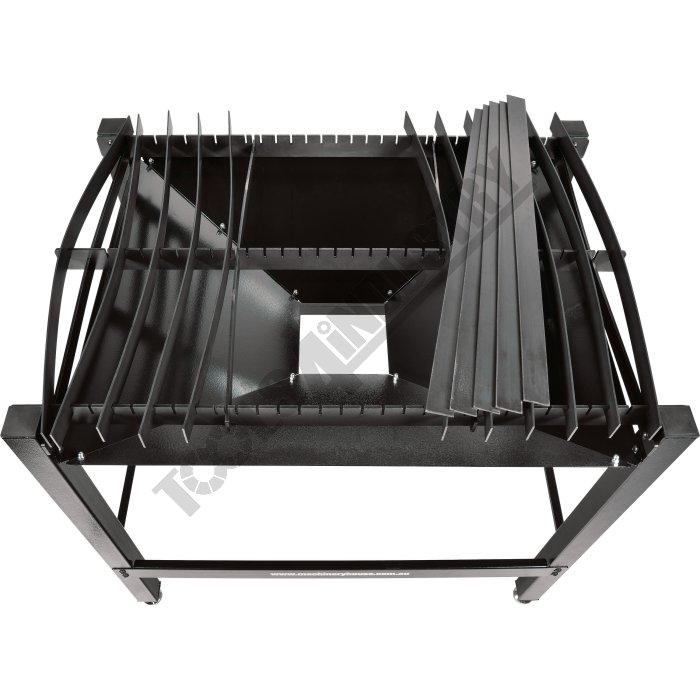

- Replaceable sacrificial 40 x 3mm steel cutting slats
- Dust/waste chute
Includes
- 5mm laser cut steel frame
- 50 x 50mm powder coated steel tube legs c/w adjustable feet
- 16pcs of 40 x 3mm sacrificial cutting slats
- Sheetmetal dust chute

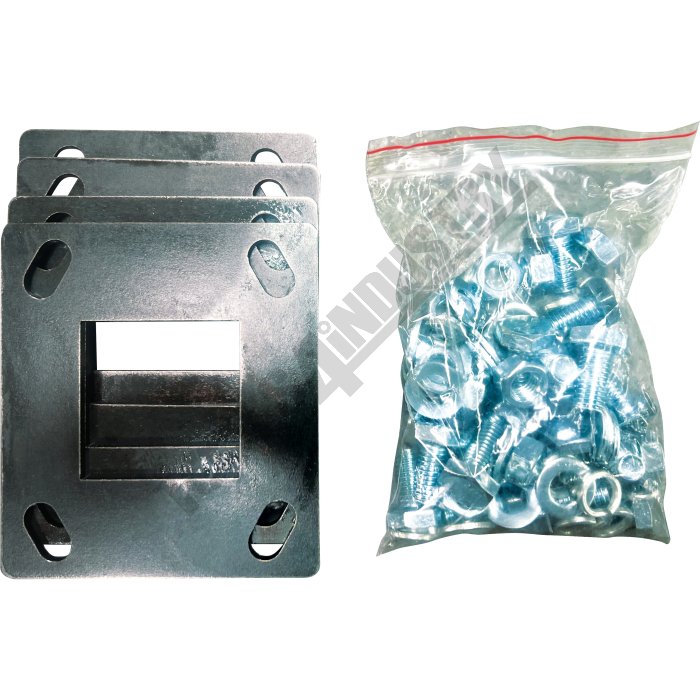

- Weld-on Base Plate Kit for Optional Castor Wheels
Specifications
- Compare 8 Products
- ORDER CODE
- MODEL
- Type
- Table Hole DiameterØ
- Table Top Sizemm
- Table Height with Standmm
- Table Side Heightmm
- Top Plate Thicknessmm
- Grid Patternmm
- Table Slotsmm
- Table Load Capacitykg
- Nett Weightkg
- W08602
- PCT-7510
- Plasma Cutting Table
- ~
- ~
- 900
- ~
- 3
- ~
- ~
- ~
- 42
- W08450
- FXT-915
- 1D
- 16mm
- 915 x 460
- 930
- ~
- 3
- 63.5 x 63.5
- 2 x 127 / 2 x 189
- 500
- 25.5
- W08453
- WT1D-107
- 1D
- 16mm
- 750 x 1000
- ~
- ~
- 5
- 50 x 50
- ~
- ~
- 57
- W08455
- WT1D-128
- 1D
- 16mm
- 1190 x 790
- 900
- ~
- 10
- 100 x 100
- ~
- ~
- 95
- W08458
- WT3D-6090E
- 3D
- 16mm
- 600 x 900
- ~
- 100
- 5
- 50 x 50
- ~
- ~
- 65
- K4040
- WT1D-107PLUS
- 1D
- 16mm
- 750 x 1000
- ~
- ~
- ~
- ~
- ~
- ~
- 57
- W07806K
- WT16-1208T
- 3D
- 16mm ??
- 800 x 1200
- ~
- 50 ??
- 5 ??
- 50 x 50 ??
- ~
- ~
- 300
- W08600
- PCA-4675
- Plasma Cutting Attachment
- Flat
- 460 x 740
- ~
- ~
- ~
- ~
- ~
- ~
- 9.2
| ORDER CODE | PCT-7510 |
|---|---|
| MODEL | Plasma Cutting Table |
| Type | ~ |
| Table Hole DiameterØ | ~ |
| Table Top Sizemm | 900 |
| Table Height with Standmm | ~ |
| Table Side Heightmm | 3 |
| Top Plate Thicknessmm | ~ |
| Grid Patternmm | ~ |
| Table Slotsmm | ~ |
| Table Load Capacitykg | 42 |
| Nett Weightkg |
