| Code | T607 |
|---|---|
| Model | TB-70 |
| Capacity | Ø1/2" - Ø2" NB Pipe Capacity, Ø25.4 - Ø51mm Round Tube Capacity |
| Weight (kg) | 274 |
| Weight (m3) | 0.620 |
| Weight (Freight) | 274 |
| Dimensions (cm) | 87 x 62 x 115 |

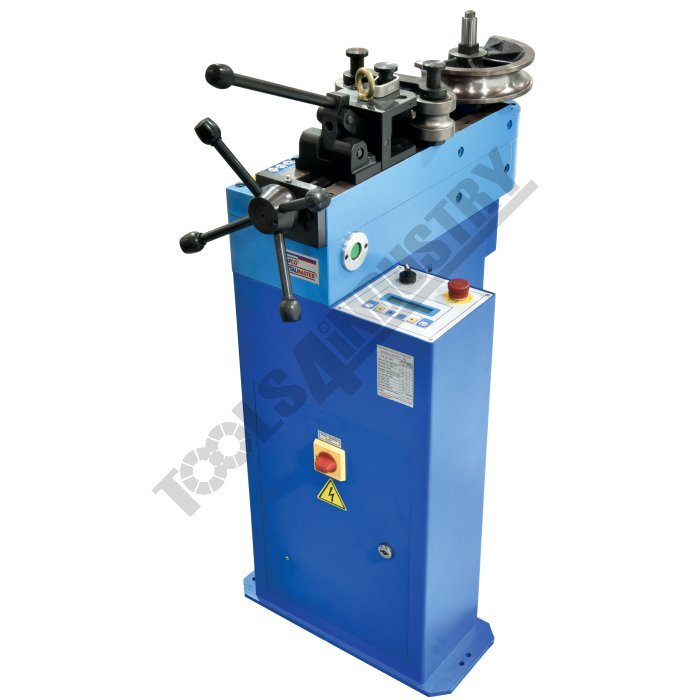

Electric Pipe & Tube Bender - Digital Control, Includes Stand TB-70 Ø1/2" - Ø2" NB Pipe Capacity, Ø25.4 - Ø51mm Round Tube Capacity
Description
Manufactured in TaiwanTB-70 is the bigger brother to the TB-60 and is still an accurate and powerful electric bending machine able to bend larger diameter pipes & tubes in medium to thin wall with optimum and constant bending radii. This compact & versatile pipe & tube bender incorporates a digital control key pad to accurately bend to your requirements.
This compact & versatile pipe and tube bending unit represents great value for a minimal investment
Features
- Cast iron body tube bender
- 2.2kW 415V motor

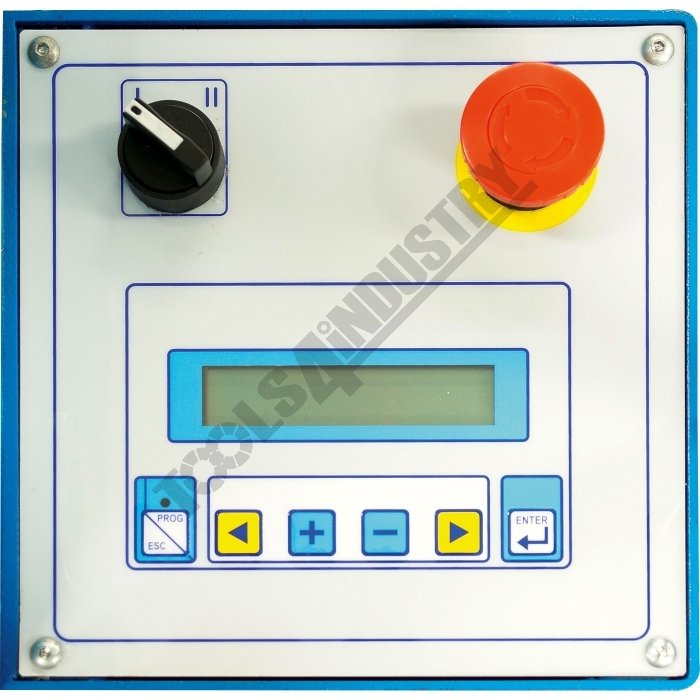

- User friendly digital control panel with microprocessor, allowing users to set the required bending angles.
- Capable of storing 50 programs with 9 bends per program

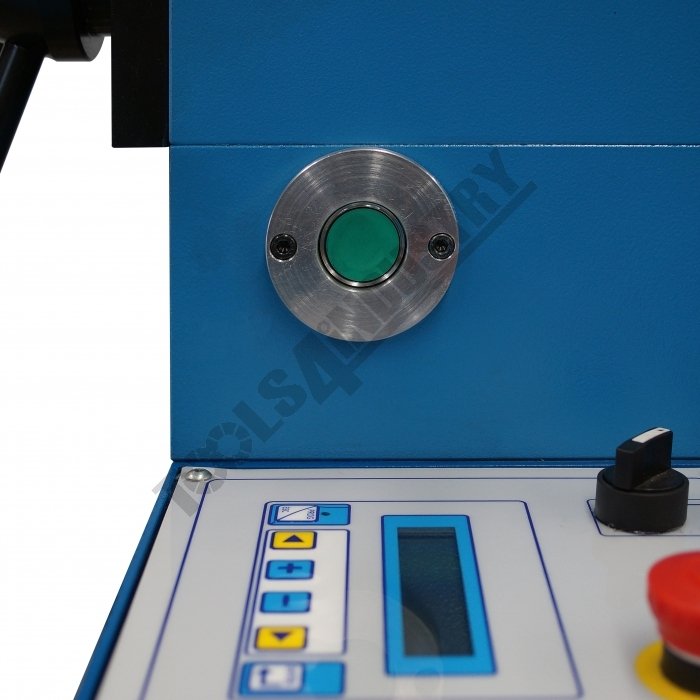

- Electric brake and automatic return to stop
- Designed to bend tube and pipe with constant bending radius without deformation

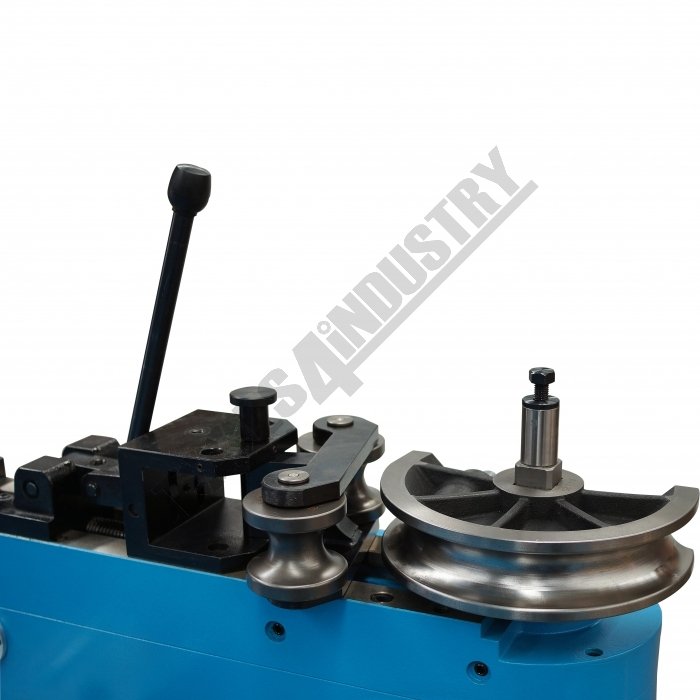

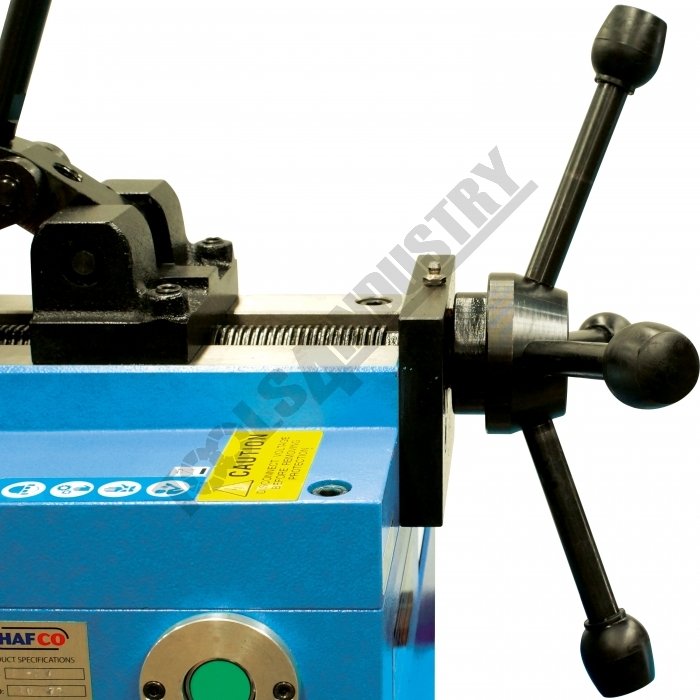

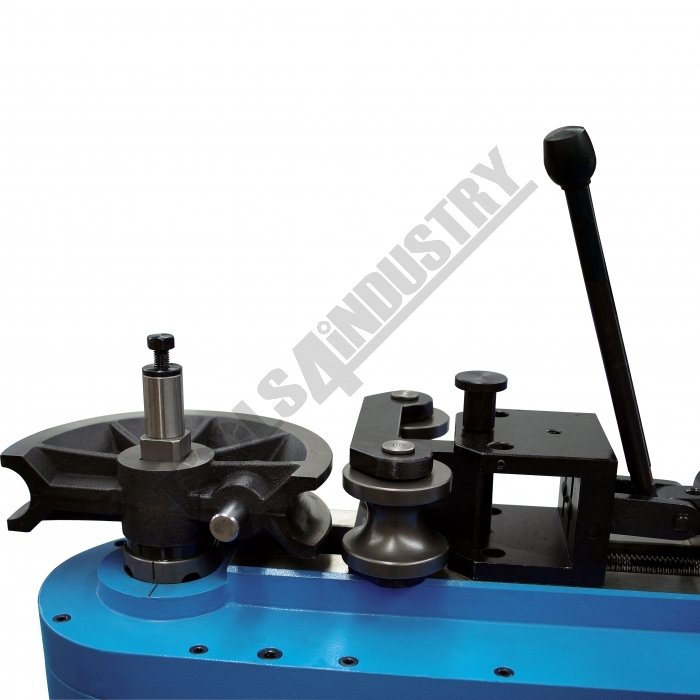

- Each pipe former consists of a die former and a follow rollers to suit each size
- 210º maximum bending angle
Includes

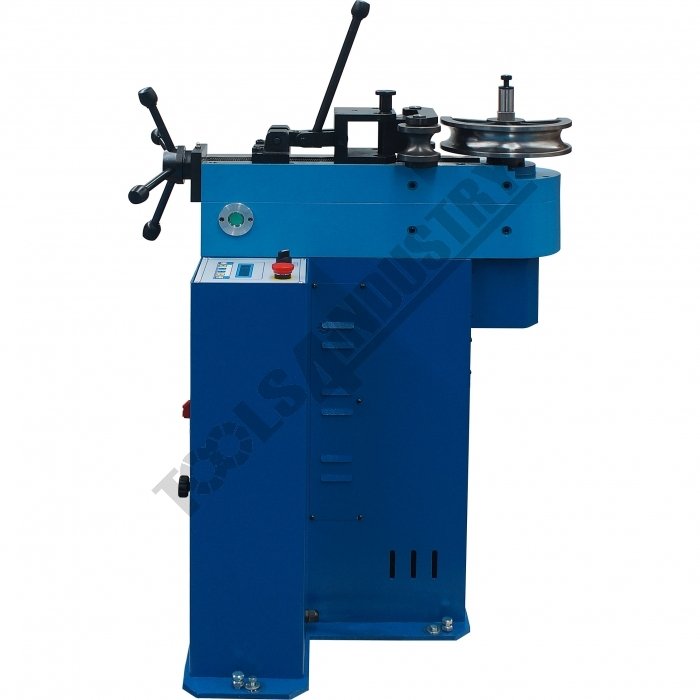

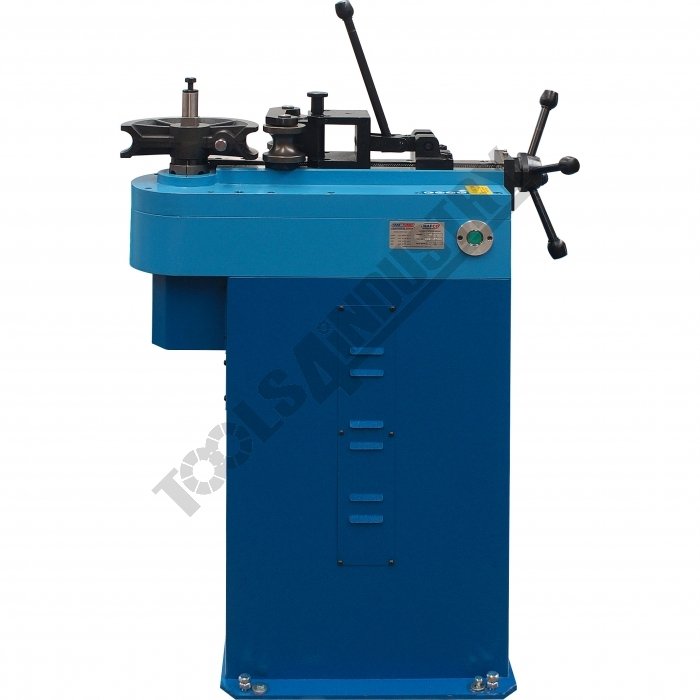

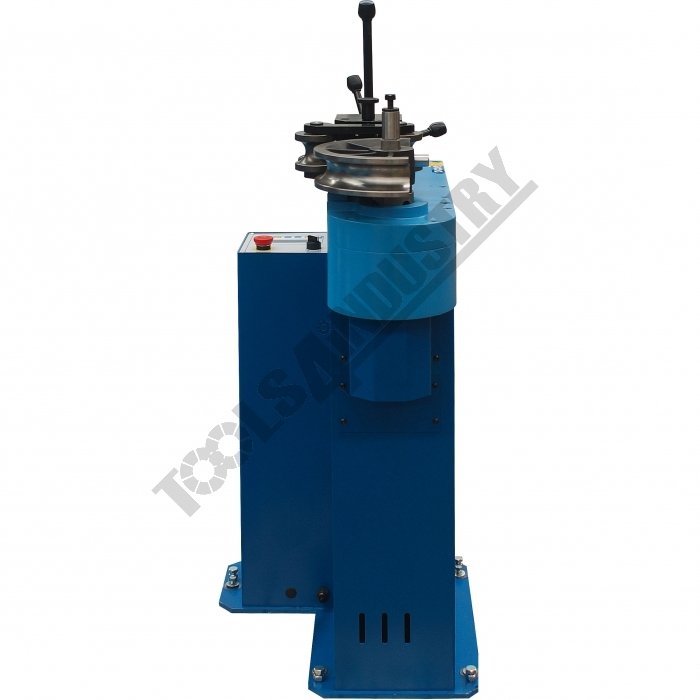

- Floor stand

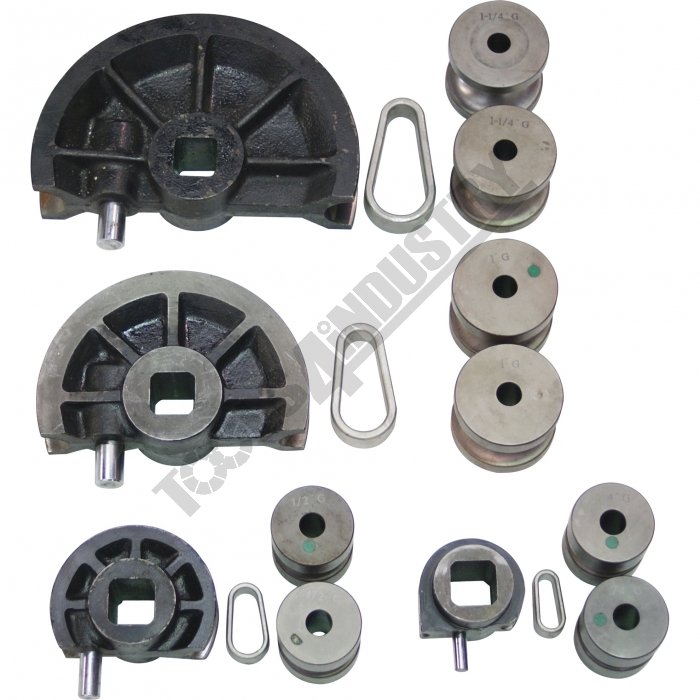

- Pipe Formers:
- Ø1/2" NB x 59.2mm Centreline radius
- Ø3/4" NB x 80mm Centreline radius
- Ø1" NB x 100.1mm Centreline radius
- Ø1-1/4" NB x 127.4mm Centreline radius

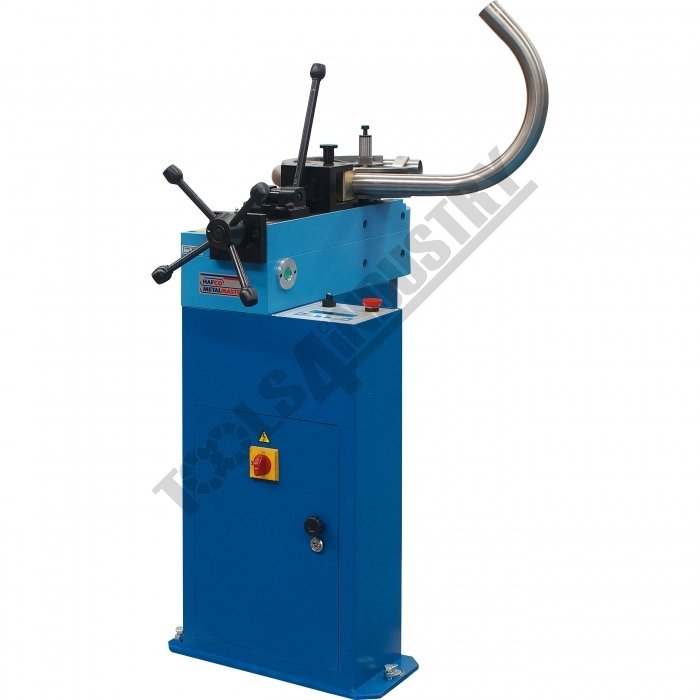

Optional Accessories

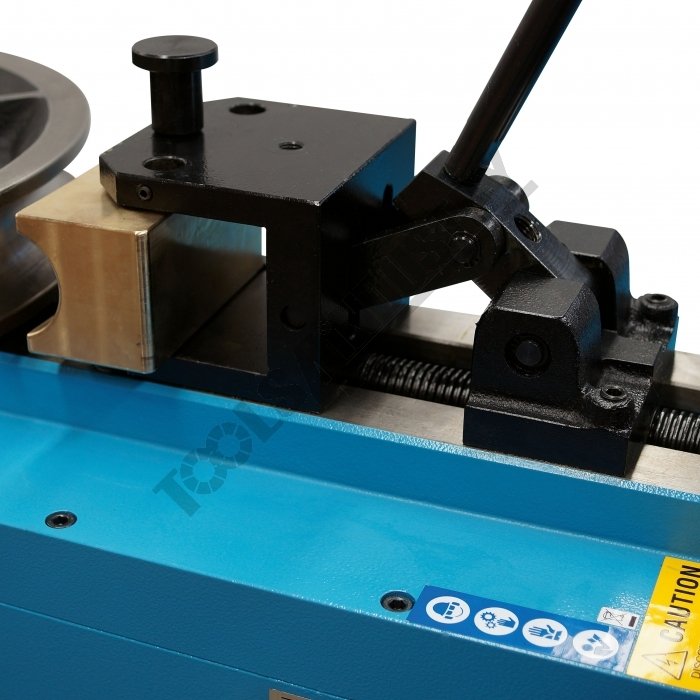

- Ø25.4, Ø31.8 & Ø38.1mm OD round tube former set (T610)
- Ø51mm OD round tube former (T620)
- Ø2" NB pipe former (T615)
- Ø1-1/2" NB pipe former (T614)
Videos
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- MaterialType
- Material SectionType
- MachineType
- Hydraulic Jack SizeTonne
- Round Pipe Range (NB) - Mild Steelinch / mm
- Round Tube Range (OD) - Mild Steelinch / mm
- Square Tube Rangeinch / mm
- Tube Wall Thickness - Mild Steelinch / mm
- Round Pipe (NB) x Wall Capacity - Mild Steelinch
- Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm
- Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm
- Round Tube (OD) x Wall Capacity - Mild Steelinch / mm
- Round Tube (OD) x Wall Capacity - Aluminiuminch / mm
- Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm
- Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm
- Round Tube (OD) x Wall Capacity - Chromolyinch / mm
- Solid Rod - Mild Steelinch / mm
- Square Tube x Wall Capacity - Mild Steelinch / mm
- Rectangle Tube x Wall Capacity - Mild Steelinch / mm
- Bend Speed - MaximumDeg / Sec
- Bend Direction
- Centre Line Radius - Maximum (CLR)inch / mm
- Centre Line Radius - Minimum (CLR)inch / mm
- Tube Formers Includedinch / mm
- Pipe Formers Includedinch / mm
- Spigot Size on Raminch / mm
- Angle Capacitydeg
- Hydraulic Pressure - Maximumpsi
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Nett Weightkg
- T607
- TB-70
- Pipe & Tube
- Round
- Electric
- ~
- Ø1/2" - Ø2"
- Ø25.4 - Ø51
- ~
- ~
- Ø2" x 1/8"
- ~
- ~
- Ø51 x 3
- Ø51 x 5
- Ø51 x 4
- Ø51 x 2
- ~
- ~
- ~
- ~
- ~
- ~
- 4 x Former Diameter
- 3 x Former Diameter
- ~
- 1/2", 3/4", 1" &
1-1/4" NB Pipe - ~
- 0 - 210º
- ~
- 2.2 / 3
- 415
- 240
- T055
- TBRS-25
- Tube
- Round & Square
- Manual
- ~
- ~
- Ø9.52 - Ø22.22
- 19.05 & 25.4
- 1.2
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 9.52, 12.7, 14.29 Round
15.87, 19.05, 22.22 Round
19.05 & 25.4 Square - ~
- ~
- 0 - 180º
- ~
- ~
- ~
- 28
- T070
- DB-32
- Tube
- Round
- Electric
- ~
- ~
- Ø15.87 - Ø31.75
- ~
- 2.0*
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 15.87, 19.05, 22.22,
25.4 & 31.75 OD Round
- ~
- ~
- 0 - 180º
- ~
- 1.7 / 2.3
- 240
- 32.6
- P064
- MPB-2SH
- Pipe
- Round
- Manual Hydraulic
- 12 - 2 Stage Pump
- Ø1/2" - Ø2"
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 1/2", 3/4", 1", 1-1/4",
1-1/2", 2" - 31.8
- ~
- ~
- ~
- ~
- 50
- T606
- TB-60
- Pipe & Tube
- Round
- Electric
- ~
- Ø1/2" - Ø1-1/4"
- Ø25.4 - Ø51
- ~
- ~
- Ø1-1/4" x 1/8"
- ~
- ~
- Ø51 x 2
- Ø51 x 3
- Ø51 x 2
- Ø38 x 1.6
- ~
- ~
- ~
- ~
- ~
- ~
- 4 x Former Diameter
- 3 x Former Diameter
- ~
- 1/2", 3/4", 1" &
1-1/4" NB Pipe - ~
- 0 - 210º
- ~
- 1.1 / 1.5
- 240 / 10
- 140
| ORDER CODE | TB-70 |
|---|---|
| MODEL | Pipe & Tube |
| MaterialType | Round |
| Material SectionType | Electric |
| MachineType | ~ |
| Hydraulic Jack SizeTonne | Ø1/2" - Ø2" |
| Round Pipe Range (NB) - Mild Steelinch / mm | Ø25.4 - Ø51 |
| Round Tube Range (OD) - Mild Steelinch / mm | ~ |
| Square Tube Rangeinch / mm | ~ |
| Tube Wall Thickness - Mild Steelinch / mm | Ø2" x 1/8" |
| Round Pipe (NB) x Wall Capacity - Mild Steelinch | ~ |
| Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm | ~ |
| Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm | Ø51 x 3 |
| Round Tube (OD) x Wall Capacity - Mild Steelinch / mm | Ø51 x 5 |
| Round Tube (OD) x Wall Capacity - Aluminiuminch / mm | Ø51 x 4 |
| Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm | Ø51 x 2 |
| Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm | ~ |
| Round Tube (OD) x Wall Capacity - Chromolyinch / mm | ~ |
| Solid Rod - Mild Steelinch / mm | ~ |
| Square Tube x Wall Capacity - Mild Steelinch / mm | ~ |
| Rectangle Tube x Wall Capacity - Mild Steelinch / mm | ~ |
| Bend Speed - MaximumDeg / Sec | ~ |
| Bend Direction | 4 x Former Diameter |
| Centre Line Radius - Maximum (CLR)inch / mm | 3 x Former Diameter |
| Centre Line Radius - Minimum (CLR)inch / mm | ~ |
| Tube Formers Includedinch / mm | 1/2", 3/4", 1" & 1-1/4" NB Pipe |
| Pipe Formers Includedinch / mm | ~ |
| Spigot Size on Raminch / mm | 0 - 210º |
| Angle Capacitydeg | ~ |
| Hydraulic Pressure - Maximumpsi | 2.2 / 3 |
| Motor PowerkW / hp | 415 |
| Voltage / AmperageV / amp | 240 |
| Nett Weightkg |
