| Code | T055 |
|---|---|
| Model | TBRS-25 |
| Capacity | Ø9.52 - Ø22.22mm Round Tube Capacity, 19.05 & 25.4mm Square Tube Capacity |
| Weight (kg) | 28 |
| Weight (m3) | 0.018 |
| Weight (Freight) | 28 |
| Dimensions (cm) | 53 x 21 x 16 |

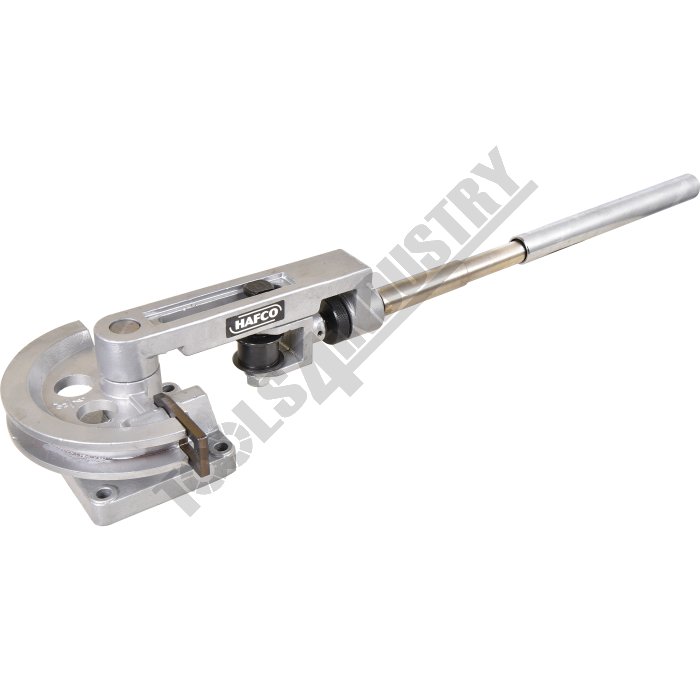

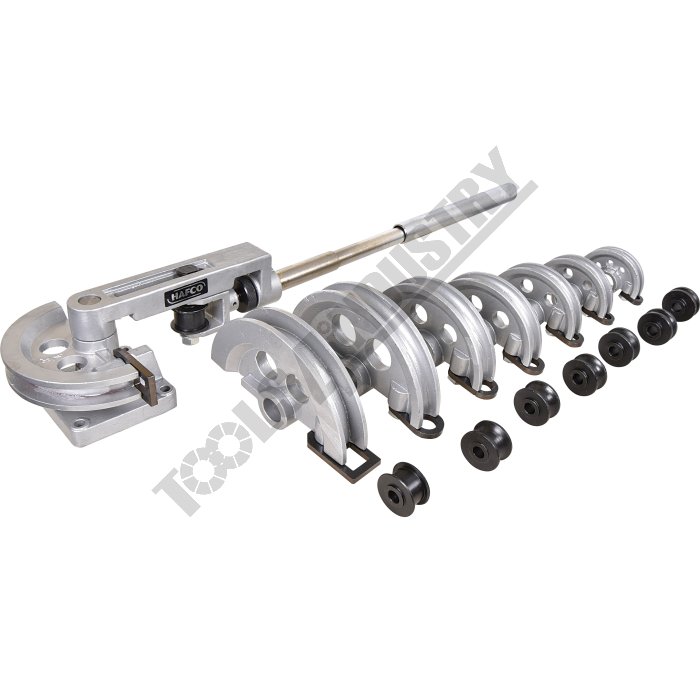

Manual Tube Bender - Round & Square TBRS-25 Ø9.52 - Ø22.22mm Round Tube Capacity, 19.05 & 25.4mm Square Tube Capacity
Description

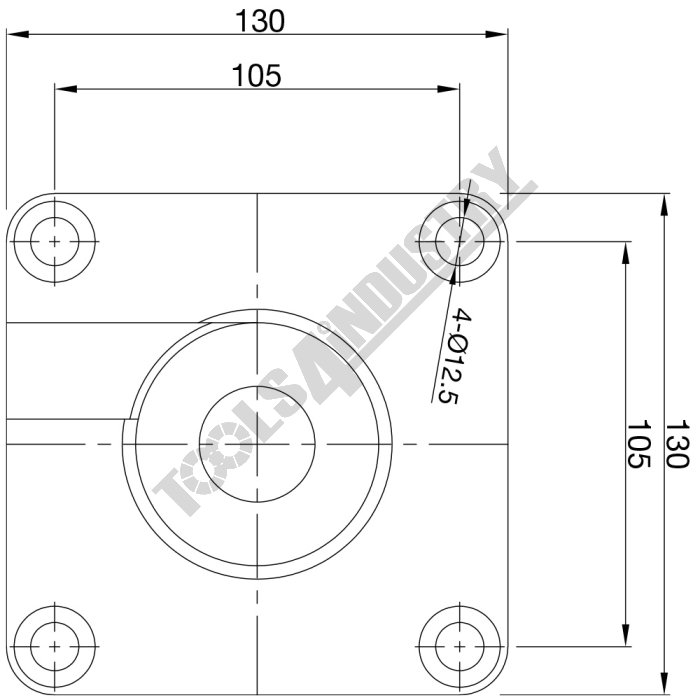

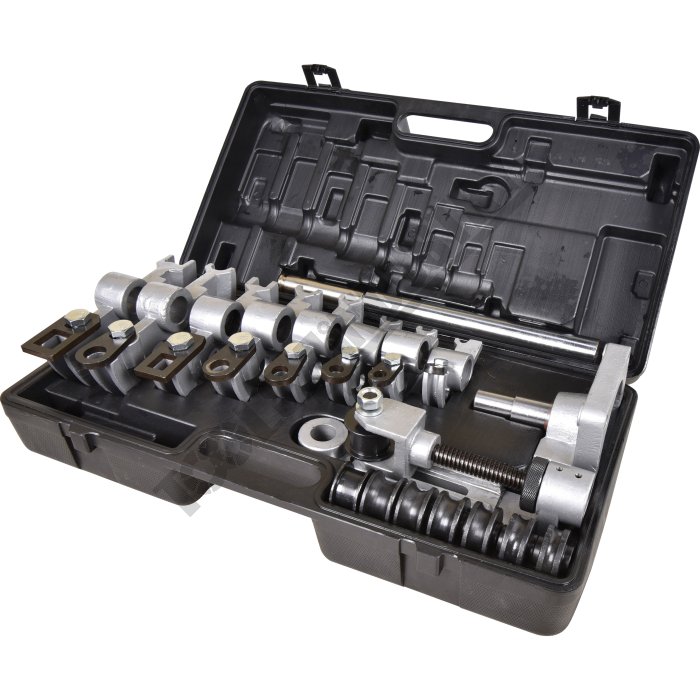

This Hafco TBRS-25 tube bending kit has everything that you need to make smooth bends in round & Square tubes up to 1.2mm maximum wall thickness. Firstly, mount the cast iron base securely onto your work bench top or clamp it into a bench vice, then you are ready to begin your bend.This great package is capable of bending round tubes from Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05 & Ø22.22mm, and square tube from 19.05 & 25.4mm. Everything is all neatly packed into a handy storage carry case for your convenience,
Features
- Suitable for 1.2mm wall thickness in mild steel
- Cast Steel Round formers included: Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05, Ø22.22mm
- Cast Steel Square formers included: 19.05 & 25.4mm
Includes

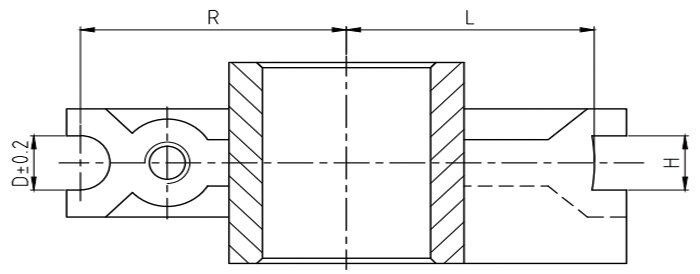

- Cast Steel Round Tube Formers:
- D = Ø9.52mm OD - R = 47.5mm Centreline radius
- D = Ø12.7mm OD - R = 57.5mm Centreline radius
- D = Ø14.29mm OD - R = 67.5mm Centreline radius
- D = Ø15.87mm OD - R = 77.25mm Centreline radius
- D = Ø19.05mm OD - R = 88.25mm Centreline radius
- D = Ø22.22mm OD - R = 107.25mm Centreline radius
- Cast Steel Square Tube Formers:
- H = Ø19.05mm OD - L = 85mm Internal radius
- H = Ø25.4mm OD - L = 92.5mm Internal radius
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- MaterialType
- Material SectionType
- MachineType
- Hydraulic Jack SizeTonne
- Round Pipe Range (NB) - Mild Steelinch / mm
- Round Tube Range (OD) - Mild Steelinch / mm
- Square Tube Rangeinch / mm
- Tube Wall Thickness - Mild Steelinch / mm
- Round Pipe (NB) x Wall Capacity - Mild Steelinch
- Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm
- Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm
- Round Tube (OD) x Wall Capacity - Mild Steelinch / mm
- Round Tube (OD) x Wall Capacity - Aluminiuminch / mm
- Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm
- Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm
- Round Tube (OD) x Wall Capacity - Chromolyinch / mm
- Solid Rod - Mild Steelinch / mm
- Square Tube x Wall Capacity - Mild Steelinch / mm
- Rectangle Tube x Wall Capacity - Mild Steelinch / mm
- Bend Speed - MaximumDeg / Sec
- Bend Direction
- Centre Line Radius - Maximum (CLR)inch / mm
- Centre Line Radius - Minimum (CLR)inch / mm
- Tube Formers Includedinch / mm
- Pipe Formers Includedinch / mm
- Spigot Size on Raminch / mm
- Angle Capacitydeg
- Hydraulic Pressure - Maximumpsi
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Nett Weightkg
- T055
- TBRS-25
- Tube
- Round & Square
- Manual
- ~
- ~
- Ø9.52 - Ø22.22
- 19.05 & 25.4
- 1.2
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 9.52, 12.7, 14.29 Round
15.87, 19.05, 22.22 Round
19.05 & 25.4 Square - ~
- ~
- 0 - 180º
- ~
- ~
- ~
- 28
- T070
- DB-32
- Tube
- Round
- Electric
- ~
- ~
- Ø15.87 - Ø31.75
- ~
- 2.0*
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 15.87, 19.05, 22.22,
25.4 & 31.75 OD Round
- ~
- ~
- 0 - 180º
- ~
- 1.7 / 2.3
- 240
- 32.6
- P064
- MPB-2SH
- Pipe
- Round
- Manual Hydraulic
- 12 - 2 Stage Pump
- Ø1/2" - Ø2"
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 1/2", 3/4", 1", 1-1/4",
1-1/2", 2" - 31.8
- ~
- ~
- ~
- ~
- 50
- T606
- TB-60
- Pipe & Tube
- Round
- Electric
- ~
- Ø1/2" - Ø1-1/4"
- Ø25.4 - Ø51
- ~
- ~
- Ø1-1/4" x 1/8"
- ~
- ~
- Ø51 x 2
- Ø51 x 3
- Ø51 x 2
- Ø38 x 1.6
- ~
- ~
- ~
- ~
- ~
- ~
- 4 x Former Diameter
- 3 x Former Diameter
- ~
- 1/2", 3/4", 1" &
1-1/4" NB Pipe - ~
- 0 - 210º
- ~
- 1.1 / 1.5
- 240 / 10
- 140
- T607
- TB-70
- Pipe & Tube
- Round
- Electric
- ~
- Ø1/2" - Ø2"
- Ø25.4 - Ø51
- ~
- ~
- Ø2" x 1/8"
- ~
- ~
- Ø51 x 3
- Ø51 x 5
- Ø51 x 4
- Ø51 x 2
- ~
- ~
- ~
- ~
- ~
- ~
- 4 x Former Diameter
- 3 x Former Diameter
- ~
- 1/2", 3/4", 1" &
1-1/4" NB Pipe - ~
- 0 - 210º
- ~
- 2.2 / 3
- 415
- 240
| ORDER CODE | TBRS-25 |
|---|---|
| MODEL | Tube |
| MaterialType | Round & Square |
| Material SectionType | Manual |
| MachineType | ~ |
| Hydraulic Jack SizeTonne | ~ |
| Round Pipe Range (NB) - Mild Steelinch / mm | Ø9.52 - Ø22.22 |
| Round Tube Range (OD) - Mild Steelinch / mm | 19.05 & 25.4 |
| Square Tube Rangeinch / mm | 1.2 |
| Tube Wall Thickness - Mild Steelinch / mm | ~ |
| Round Pipe (NB) x Wall Capacity - Mild Steelinch | ~ |
| Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm | ~ |
| Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm | ~ |
| Round Tube (OD) x Wall Capacity - Mild Steelinch / mm | ~ |
| Round Tube (OD) x Wall Capacity - Aluminiuminch / mm | ~ |
| Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm | ~ |
| Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm | ~ |
| Round Tube (OD) x Wall Capacity - Chromolyinch / mm | ~ |
| Solid Rod - Mild Steelinch / mm | ~ |
| Square Tube x Wall Capacity - Mild Steelinch / mm | ~ |
| Rectangle Tube x Wall Capacity - Mild Steelinch / mm | ~ |
| Bend Speed - MaximumDeg / Sec | ~ |
| Bend Direction | ~ |
| Centre Line Radius - Maximum (CLR)inch / mm | ~ |
| Centre Line Radius - Minimum (CLR)inch / mm | 9.52, 12.7, 14.29 Round 15.87, 19.05, 22.22 Round 19.05 & 25.4 Square |
| Tube Formers Includedinch / mm | ~ |
| Pipe Formers Includedinch / mm | ~ |
| Spigot Size on Raminch / mm | 0 - 180º |
| Angle Capacitydeg | ~ |
| Hydraulic Pressure - Maximumpsi | ~ |
| Motor PowerkW / hp | ~ |
| Voltage / AmperageV / amp | 28 |
| Nett Weightkg |
