Code T070
Model DB-32
Capacity Ø15.87 - Ø31.75mm Round Tube Capacity
Weight (kg) 33.5
Weight (m3) 0.103
Weight (Freight) 34.299
Dimensions (cm) 78 x 24 x 55
HAFCO
240V / 10A
1 Year Warranty
Taiwan
Product Brochure Instruction ManualPipe Tube Bender - Electric Risk Assessment

Tube Bender - Electric DB-32 Ø15.87 - Ø31.75mm Round Tube Capacity

Description

Manufactured in Taiwan

A versatile, powerful and portable tube-bending system for site use or pre-fabrication of pre-set angle

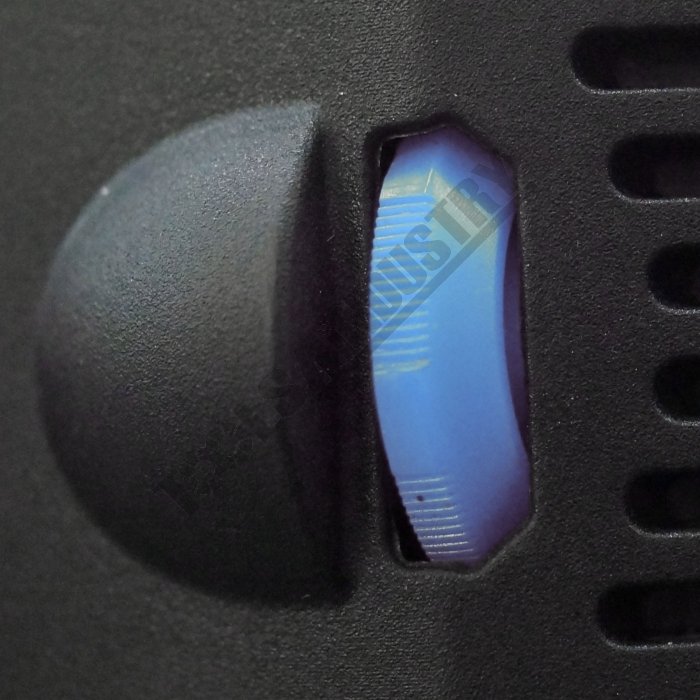

The DB-32 includes a digital display readout for dialling in the bend angle required and is use on the following material tube types; Steel, copper, plastic-coated copper, coated soft steel, aluminium. Universal applications for plumbing, heating, refrigeration, air conditioning and general industry.

Features

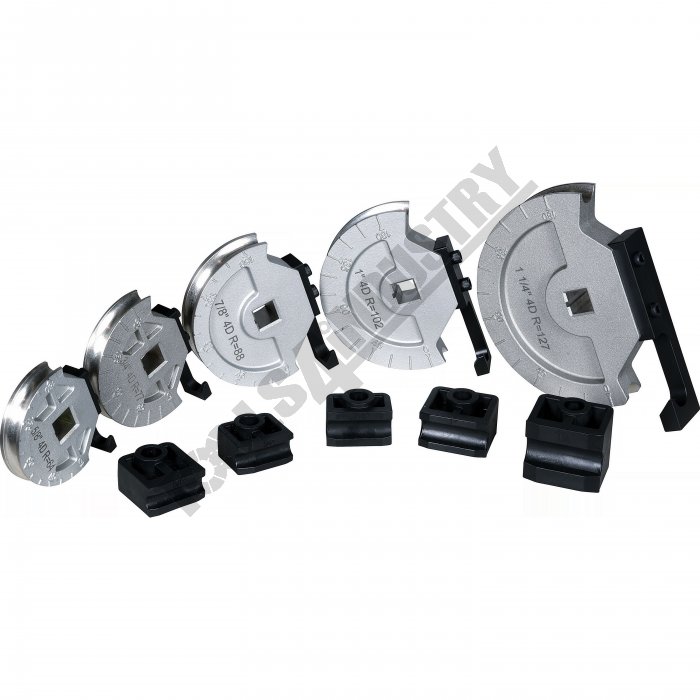

  • Complete with 5 Aluminium round tube formers (Ø15.87, Ø19.05, Ø22.22, Ø25.4 & Ø31.75mm OD)

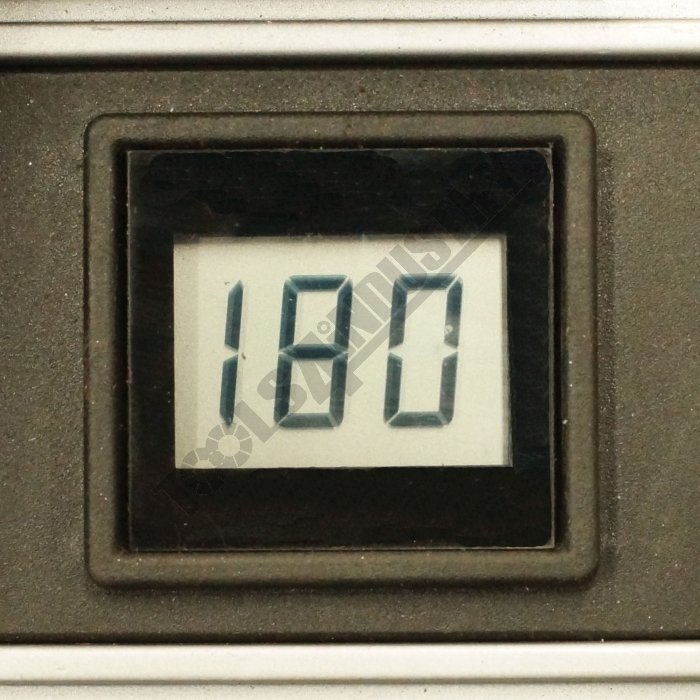

  • Digital readout display 0-180º for repetitive bends
  • Automatic stop at pre-selected angle
  • High reduction transmission for increased torque
  • Patented low-friction guide shoe

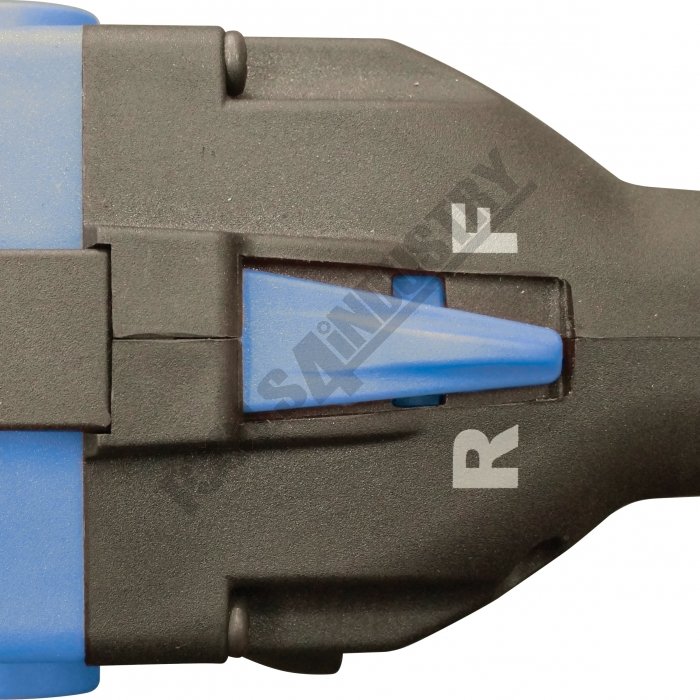

  • Forward & reverse switch
  • 1.7kW 240V motor

  • Aluminium Round Tube Formers Capacities:
  • Ø15.87, Ø19.05, Ø22.22, Ø25.4mm OD - 2.0mm mild steel wall & 1.6mm stainless steel wall thickness
  • * Ø31.75mm OD - 1.6mm mild steel wall & 1.2mm stainless steel wall thickness

Includes

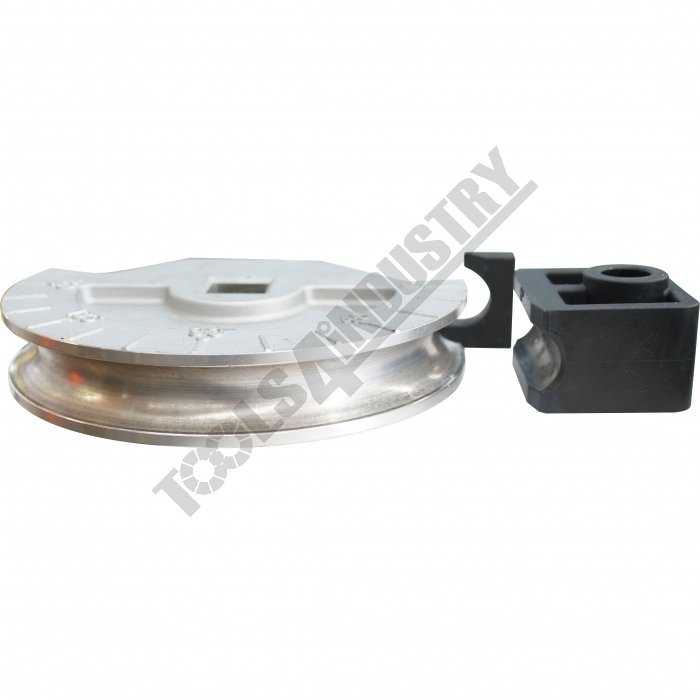

  • Aluminium Round Tube Formers:
  • Ø15.87mm OD x 68mm Centreline radius
  • Ø19.05mm OD x 80mm Centreline radius
  • Ø22.22mm OD x 92mm Centreline radius

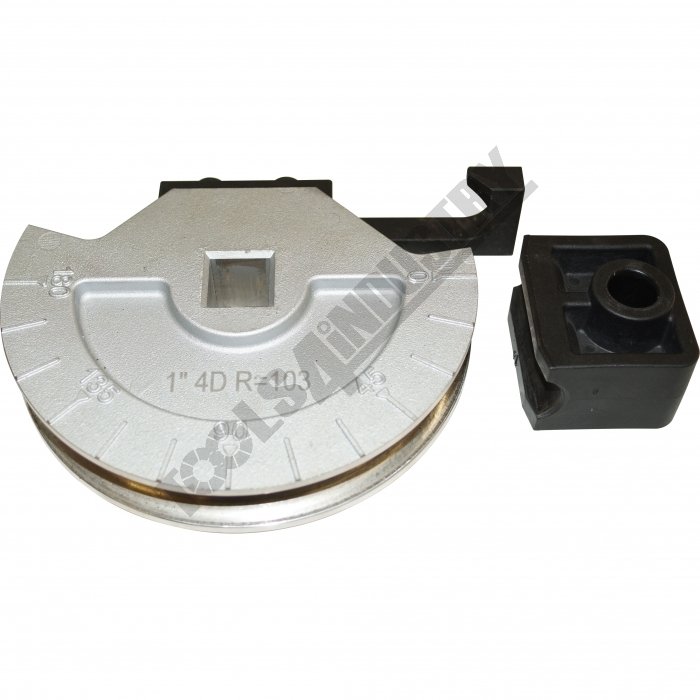

  • Ø25.4mm OD x 103mm Centreline radius
  • Ø31.75mm OD x 130mm Centreline radius

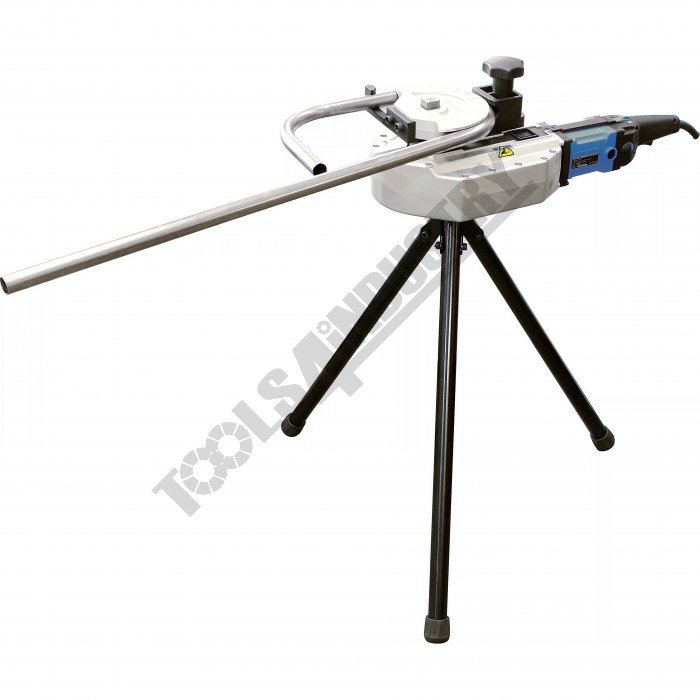

  • Three leg stand

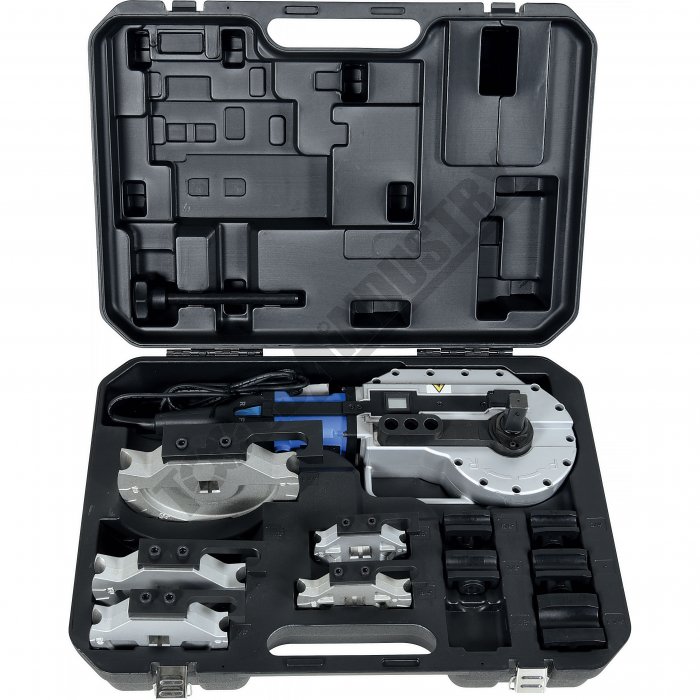

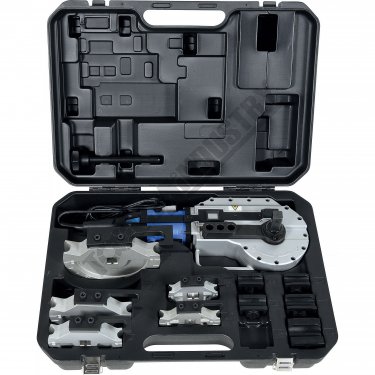

  • Plastic carry case

Videos

Specifications

ORDER CODEDB-32
MODELTube
MaterialTypeRound
Material SectionTypeElectric
MachineType~
Hydraulic Jack SizeTonne~
Round Pipe Range (NB) - Mild Steelinch / mmØ15.87 - Ø31.75
Round Tube Range (OD) - Mild Steelinch / mm~
Square Tube Rangeinch / mm2.0*
Tube Wall Thickness - Mild Steelinch / mm~
Round Pipe (NB) x Wall Capacity - Mild Steelinch~
Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm~
Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm~
Round Tube (OD) x Wall Capacity - Mild Steelinch / mm~
Round Tube (OD) x Wall Capacity - Aluminiuminch / mm~
Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm~
Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm~
Round Tube (OD) x Wall Capacity - Chromolyinch / mm~
Solid Rod - Mild Steelinch / mm~
Square Tube x Wall Capacity - Mild Steelinch / mm~
Rectangle Tube x Wall Capacity - Mild Steelinch / mm~
Bend Speed - MaximumDeg / Sec~
Bend Direction~
Centre Line Radius - Maximum (CLR)inch / mm~
Centre Line Radius - Minimum (CLR)inch / mm15.87, 19.05, 22.22,
25.4 & 31.75 OD Round

Tube Formers Includedinch / mm~

Pipe Formers Includedinch / mm~
Spigot Size on Raminch / mm0 - 180º
Angle Capacitydeg~
Hydraulic Pressure - Maximumpsi1.7 / 2.3
Motor PowerkW / hp240
Voltage / AmperageV / amp32.6
Nett Weightkg
