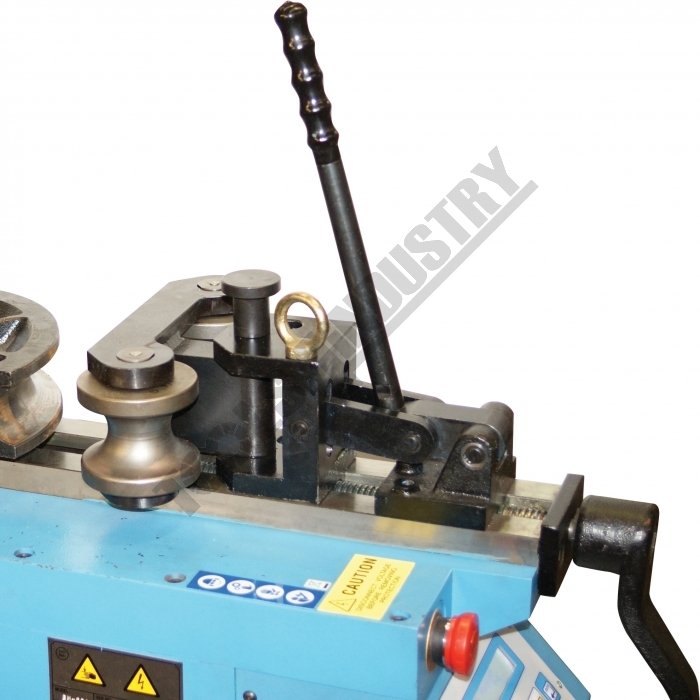

Quick Action Clamp

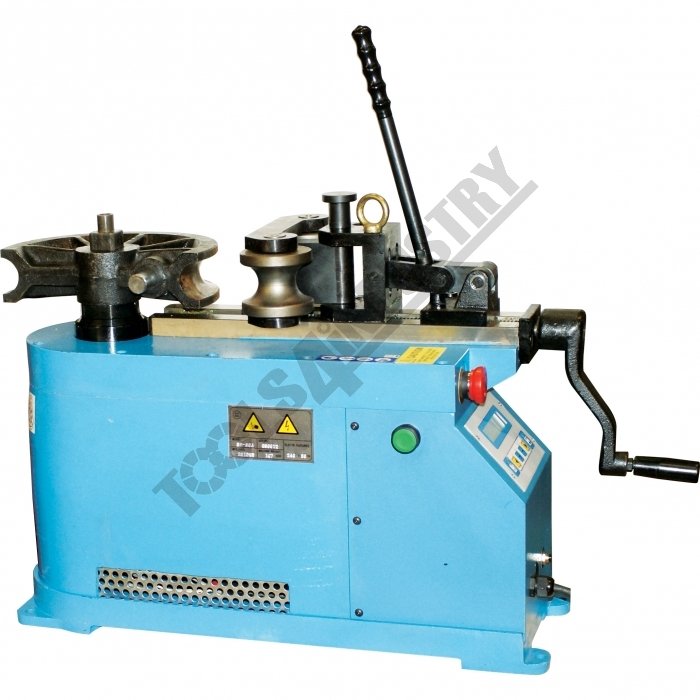

Side View

Left Side View

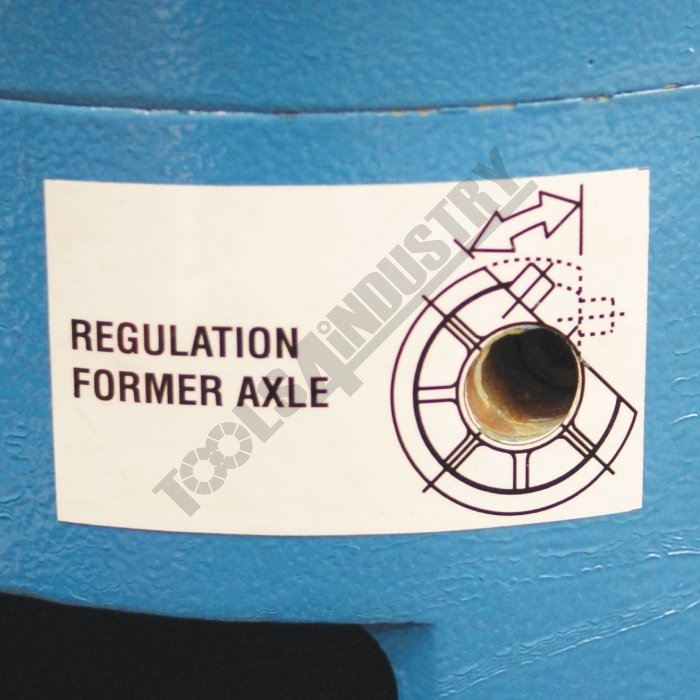

Regulation Former Axle

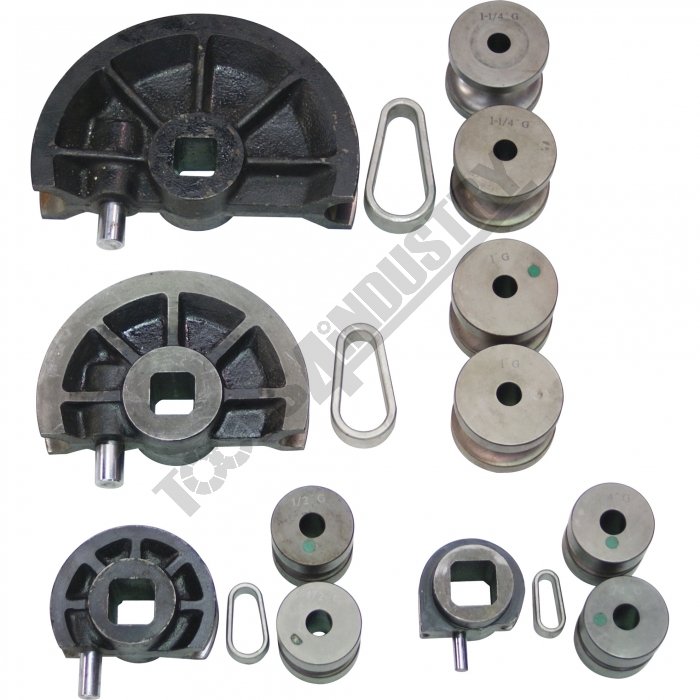

Formers

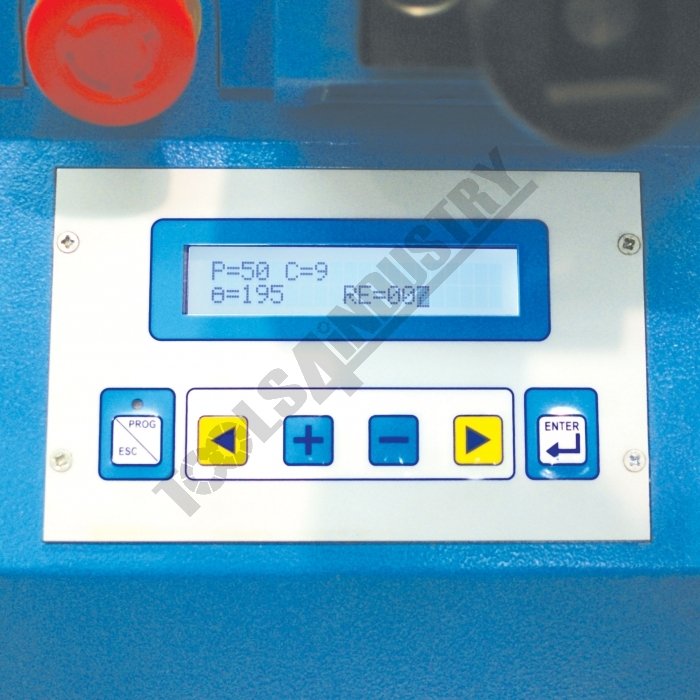

Programmable Control Panel

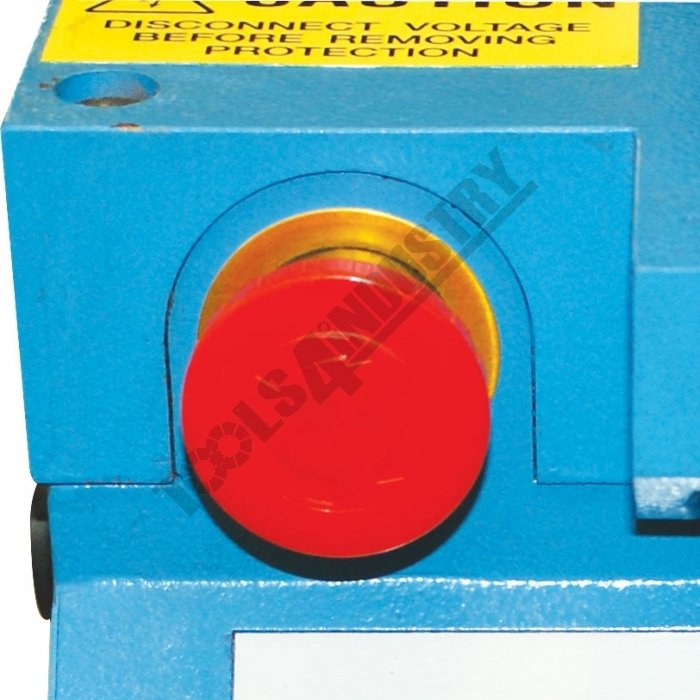

Stop Switch

Deadman's Safety Buttons-Left & Right

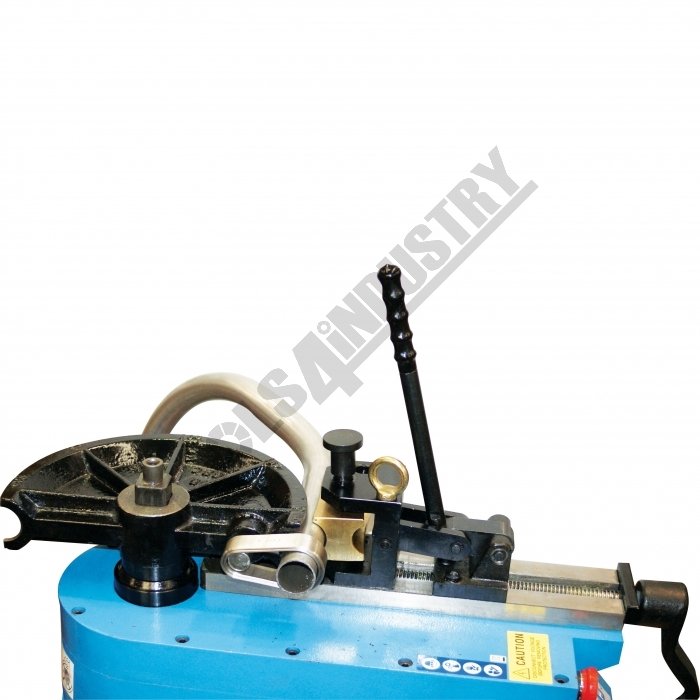

Optional Tube Former with Brass Counter Former

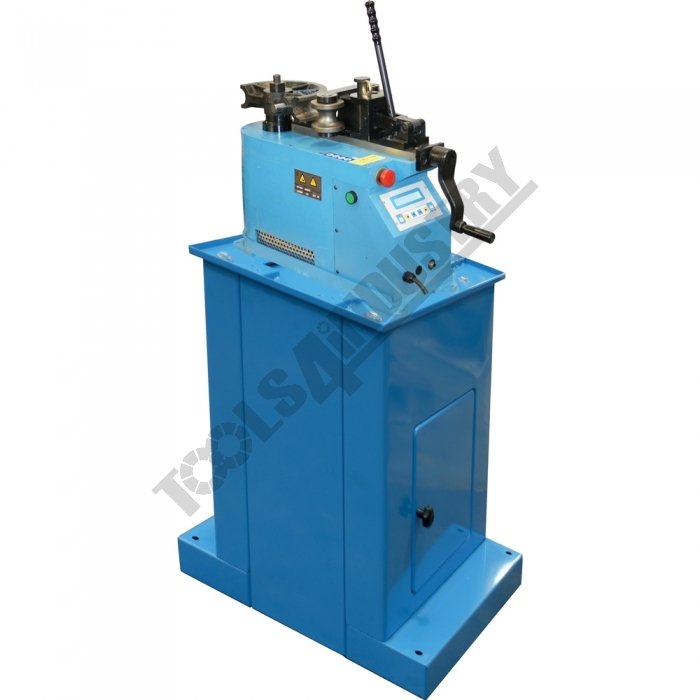

Shown with optional stand

Code	T606
Model	TB-60
Capacity	Ø1/2" - Ø1-1/4" NB Pipe Capacity, 25.4 - 51mm OD Round Tube Capacity
Weight (kg)	157
Weight (m³)	0.221
Weight (Freight)	157
Dimensions (cm)	78 x 48 x 59

Product Brochure Instructions Manual [7 MB] Parts List [1 MB]Pipe Tube Bender - Electric Risk Assessment

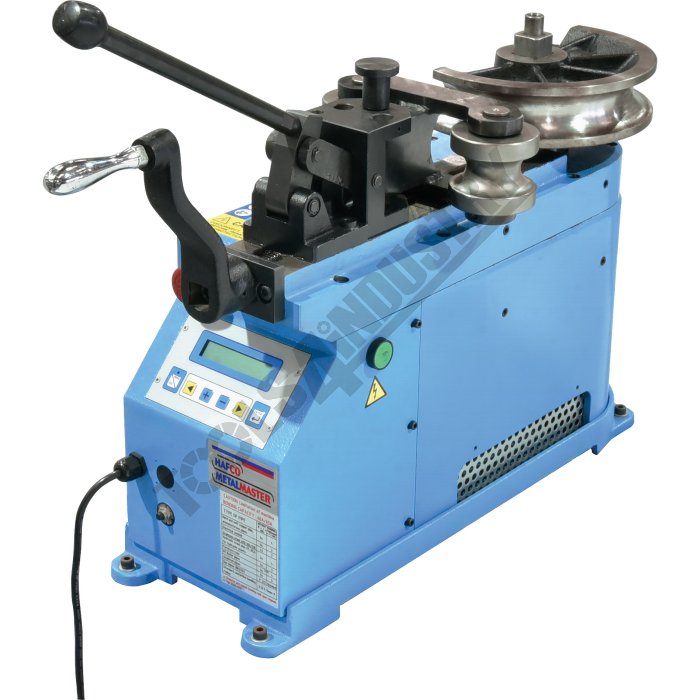

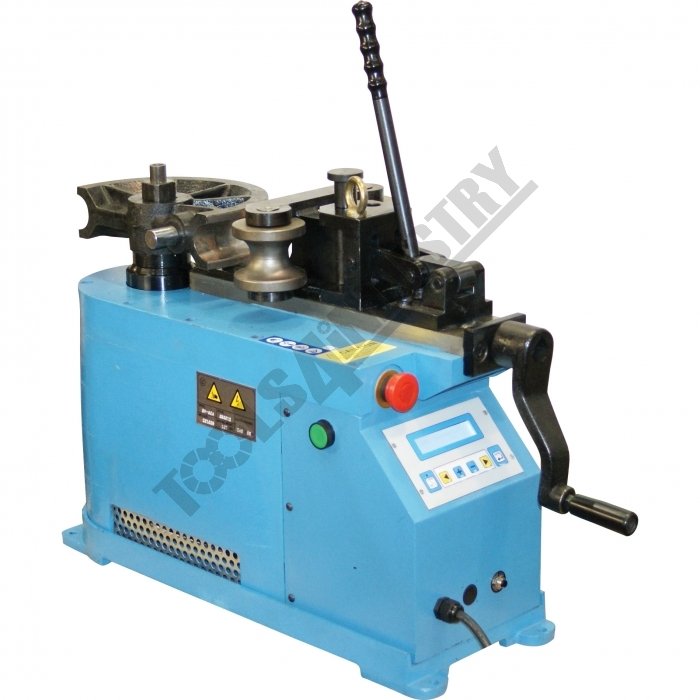

Electric Pipe & Tube Bender - Digital Control TB-60 Ø1/2" - Ø1-1/4" NB Pipe Capacity, 25.4 - 51mm OD Round Tube Capacity

Description

Manufactured in Taiwan

TB-60 is an accurate and powerful electric bending machine able to bend large diameter pipes & tubes in medium to thin wall with optimum and constant bending radii. This compact & versatile pipe & tube bender incorporates a digital control key pad to accurately bend to your requirements.

This compact & versatile pipe and tube bending unit represents great value for a minimal investment

Features

Cast iron body tube bender
1.1kW 240V motor
User friendly digital control panel with microprocessor, allowing users to set the required bending angles.
Capable of storing 50 programs with 9 bends per program
Electric brake and automatic return to stop
Designed to bend tube and pipe with constant bending radius without deformation
Each pipe former consists of a die former and a follow rollers to suit each size
210º maximum bending angle
Includes pipe formers: Ø1/2", Ø3/4", Ø1" & Ø1-1/4" NB

Includes

Pipe Formers:
Ø1/2" NB x 59.2mm Centreline radius
Ø3/4" NB x 80mm Centreline radius
Ø1" NB x 100.1mm Centreline radius
Ø1-1/4" NB x 127.4mm Centreline radius

Optional Accessories

Stand to suit (T603)
Round Tube Former Set Ø25.4, Ø31.8 & Ø38.1mm OD (T610)
Round Tube Former Ø51mm OD (T620)

Videos

Specifications

Compare 5 Products
ORDER CODE
MODEL
MaterialType
Material SectionType
MachineType
Hydraulic Jack SizeTonne
Round Pipe Range (NB) - Mild Steelinch / mm
Round Tube Range (OD) - Mild Steelinch / mm
Square Tube Rangeinch / mm
Tube Wall Thickness - Mild Steelinch / mm
Round Pipe (NB) x Wall Capacity - Mild Steelinch
Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm
Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm
Round Tube (OD) x Wall Capacity - Mild Steelinch / mm
Round Tube (OD) x Wall Capacity - Aluminiuminch / mm
Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm
Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm
Round Tube (OD) x Wall Capacity - Chromolyinch / mm
Solid Rod - Mild Steelinch / mm
Square Tube x Wall Capacity - Mild Steelinch / mm
Rectangle Tube x Wall Capacity - Mild Steelinch / mm
Bend Speed - MaximumDeg / Sec
Bend Direction
Centre Line Radius - Maximum (CLR)inch / mm
Centre Line Radius - Minimum (CLR)inch / mm
Tube Formers Includedinch / mm
Pipe Formers Includedinch / mm
Spigot Size on Raminch / mm
Angle Capacitydeg
Hydraulic Pressure - Maximumpsi
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

T606
TB-60
Pipe & Tube
Round
Electric
~
Ø1/2" - Ø1-1/4"
Ø25.4 - Ø51
~
~
Ø1-1/4" x 1/8"
~
~
Ø51 x 2
Ø51 x 3
Ø51 x 2
Ø38 x 1.6
~
~
~
~
~
~
4 x Former Diameter
3 x Former Diameter
~
1/2", 3/4", 1" &
1-1/4" NB Pipe
~
0 - 210º
~
1.1 / 1.5
240 / 10
140

T607
TB-70
Pipe & Tube
Round
Electric
~
Ø1/2" - Ø2"
Ø25.4 - Ø51
~
~
Ø2" x 1/8"
~
~
Ø51 x 3
Ø51 x 5
Ø51 x 4
Ø51 x 2
~
~
~
~
~
~
4 x Former Diameter
3 x Former Diameter
~
1/2", 3/4", 1" &
1-1/4" NB Pipe
~
0 - 210º
~
2.2 / 3
415
240

T055
TBRS-25
Tube
Round & Square
Manual
~
~
Ø9.52 - Ø22.22
19.05 & 25.4
1.2
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
9.52, 12.7, 14.29 Round
15.87, 19.05, 22.22 Round
19.05 & 25.4 Square
~
~
0 - 180º
~
~
~
28

T070
DB-32
Tube
Round
Electric
~
~
Ø15.87 - Ø31.75
~
2.0*
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
15.87, 19.05, 22.22,
25.4 & 31.75 OD Round
~
~
0 - 180º
~
1.7 / 2.3
240
32.6

P064
MPB-2SH
Pipe
Round
Manual Hydraulic
12 - 2 Stage Pump
Ø1/2" - Ø2"
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
~
1/2", 3/4", 1", 1-1/4",
1-1/2", 2"
31.8
~
~
~
~
50

ORDER CODE	TB-60
MODEL	Pipe & Tube
MaterialType	Round
Material SectionType	Electric
MachineType	~
Hydraulic Jack SizeTonne	Ø1/2" - Ø1-1/4"
Round Pipe Range (NB) - Mild Steelinch / mm	Ø25.4 - Ø51
Round Tube Range (OD) - Mild Steelinch / mm	~
Square Tube Rangeinch / mm	~
Tube Wall Thickness - Mild Steelinch / mm	Ø1-1/4" x 1/8"
Round Pipe (NB) x Wall Capacity - Mild Steelinch	~
Round Pipe (NB) x Wall Capacity - Aluminiuminch / mm	~
Round Pipe (NB) x Wall Capacity - Stainless Steelinch / mm	Ø51 x 2
Round Tube (OD) x Wall Capacity - Mild Steelinch / mm	Ø51 x 3
Round Tube (OD) x Wall Capacity - Aluminiuminch / mm	Ø51 x 2
Round Tube (OD) x Wall Capacity - Copper, Brassinch / mm	Ø38 x 1.6
Round Tube (OD) x Wall Capacity - Stainless Steelinch / mm	~
Round Tube (OD) x Wall Capacity - Chromolyinch / mm	~
Solid Rod - Mild Steelinch / mm	~
Square Tube x Wall Capacity - Mild Steelinch / mm	~
Rectangle Tube x Wall Capacity - Mild Steelinch / mm	~
Bend Speed - MaximumDeg / Sec	~
Bend Direction	4 x Former Diameter
Centre Line Radius - Maximum (CLR)inch / mm	3 x Former Diameter
Centre Line Radius - Minimum (CLR)inch / mm	~
Tube Formers Includedinch / mm	1/2", 3/4", 1" & 1-1/4" NB Pipe
Pipe Formers Includedinch / mm	~
Spigot Size on Raminch / mm	0 - 210º
Angle Capacitydeg	~
Hydraulic Pressure - Maximumpsi	1.1 / 1.5
Motor PowerkW / hp	240 / 10
Voltage / AmperageV / amp	140
Nett Weightkg
