| Code | S6411 |
|---|---|
| Model | BR-10FD |
| Capacity | 9 x Forming Bead Rollers + 1 x Polyurethane Roller |
| Weight (kg) | 3.7 |
| Weight (m3) | 0.004 |
| Weight (Freight) | 3.7 |
| Dimensions (cm) | 21 x 21 x 9 |

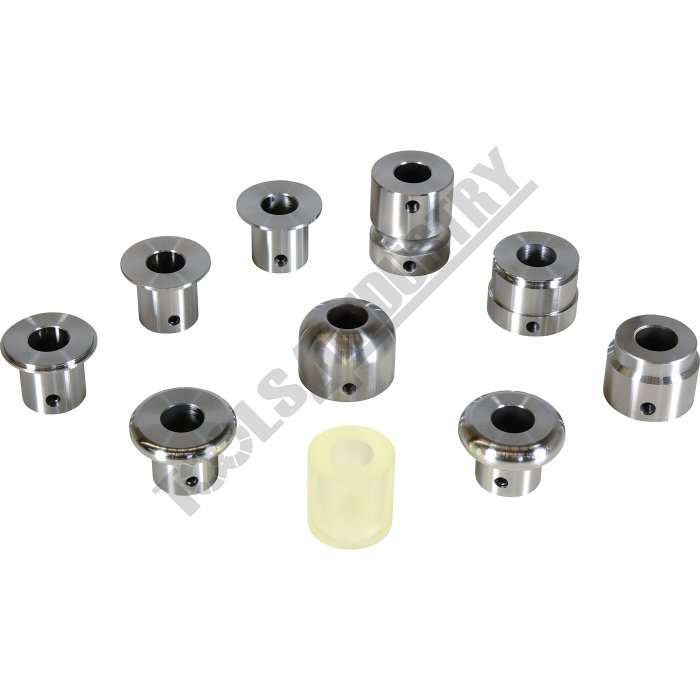

Forming Bead Roller Kit BR-10FD 9 x Forming Bead Rollers + 1 x Polyurethane Roller
Description
Fits most bead rollers with 22mm shaftsBR-10FD - Forming Bead Roller Kit
9 x Forming Bead Rollers + 1 x Polyurethane Roller
Suits SJ-24D & MBR-475XT Bead Rollers
Features

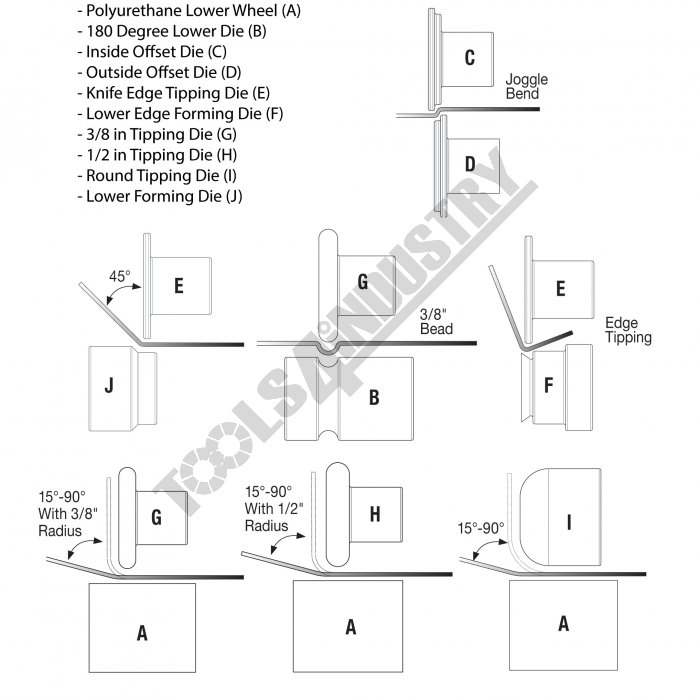

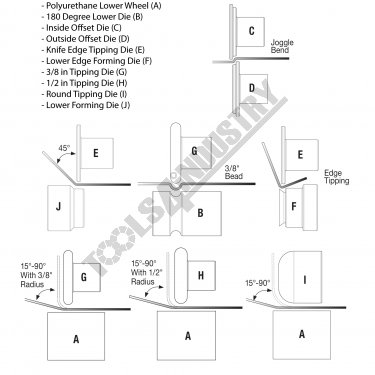

- With these dies you can create offset flanges, contours, deep channels, and style lines. This kit also includes a polyurethane lower wheel, which can be used with a variety of upper dies.
- 9 x rollers made from CR12 steel & Hardened up to 35 HRC
- 1 x roller made from polyurethane

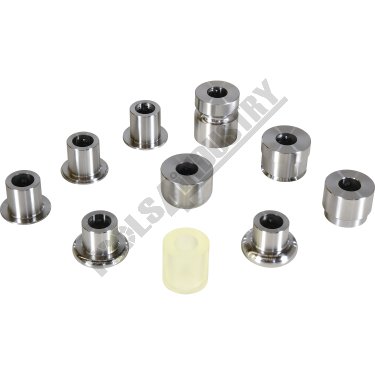

Includes

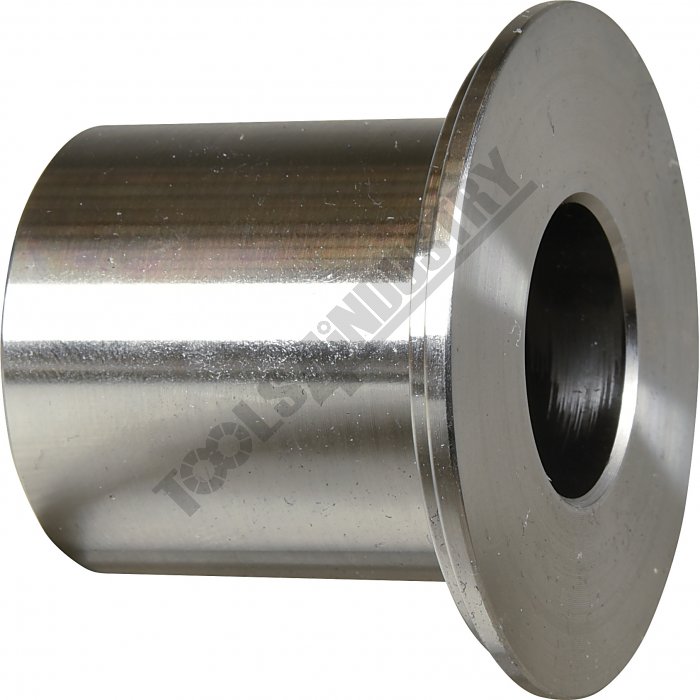

- 1 x Inside offset roller

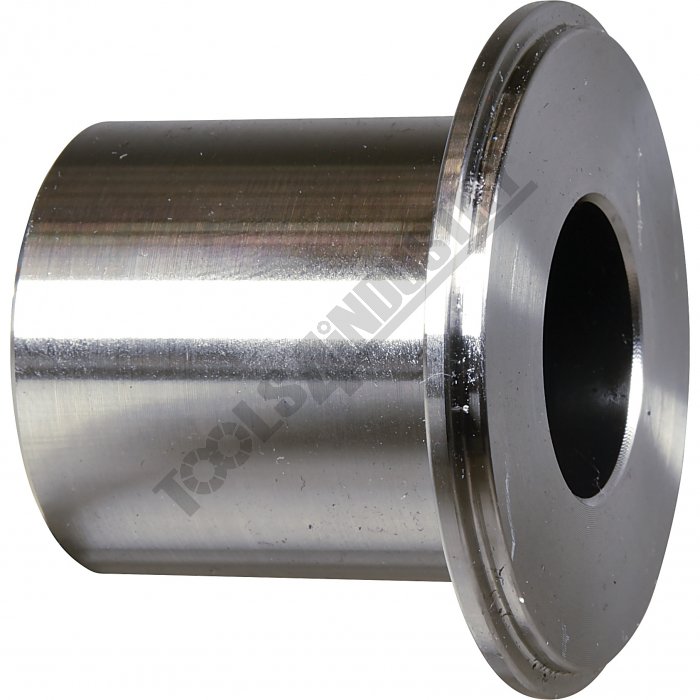

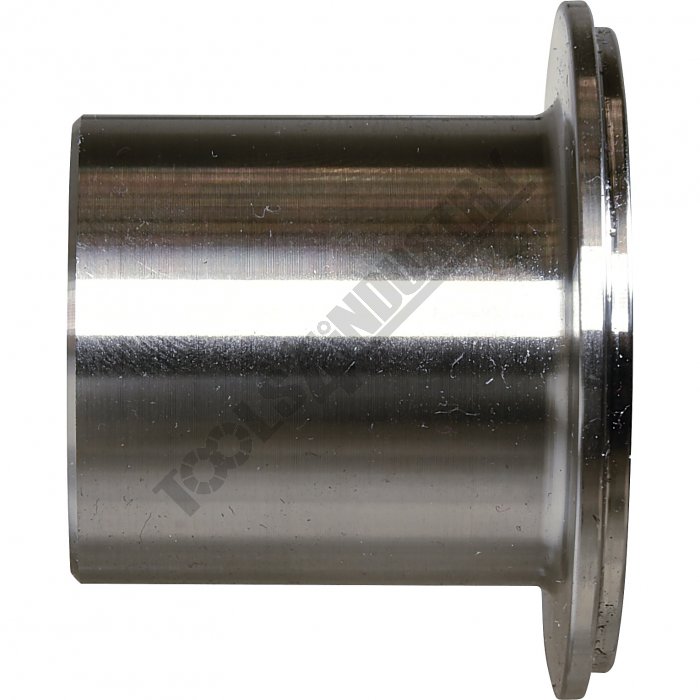

- 1 x Outside offset roller

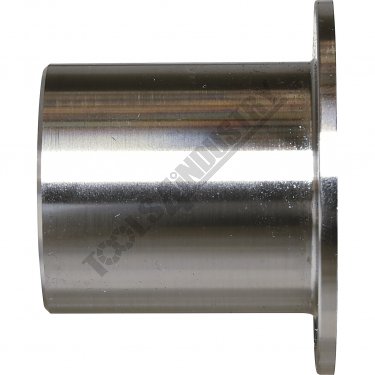

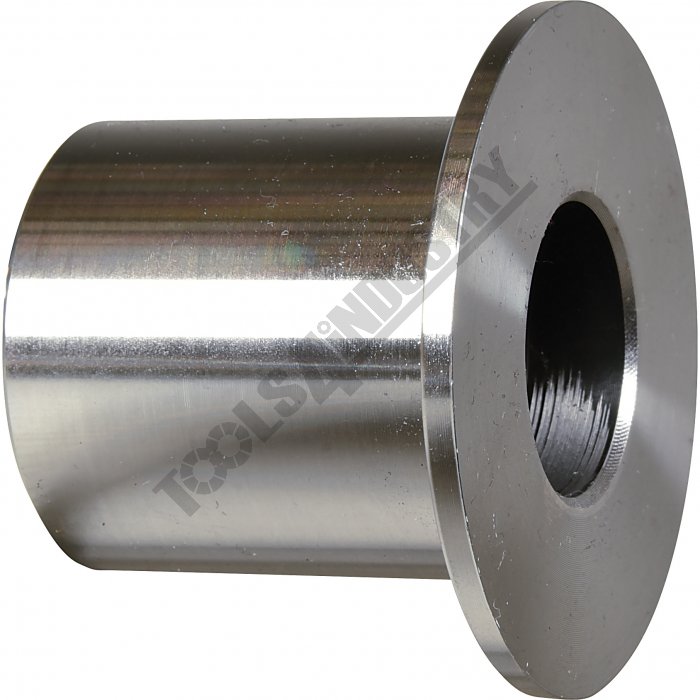

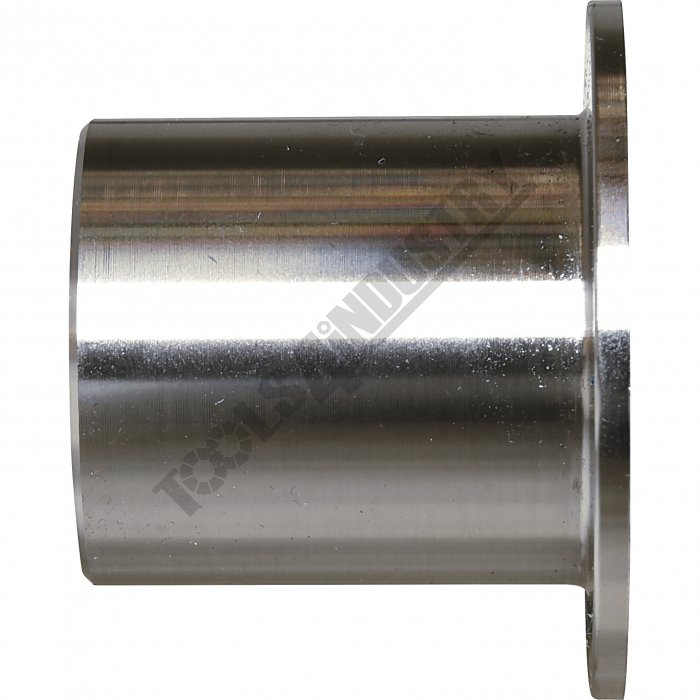

- 1 x knife edge tipping roller

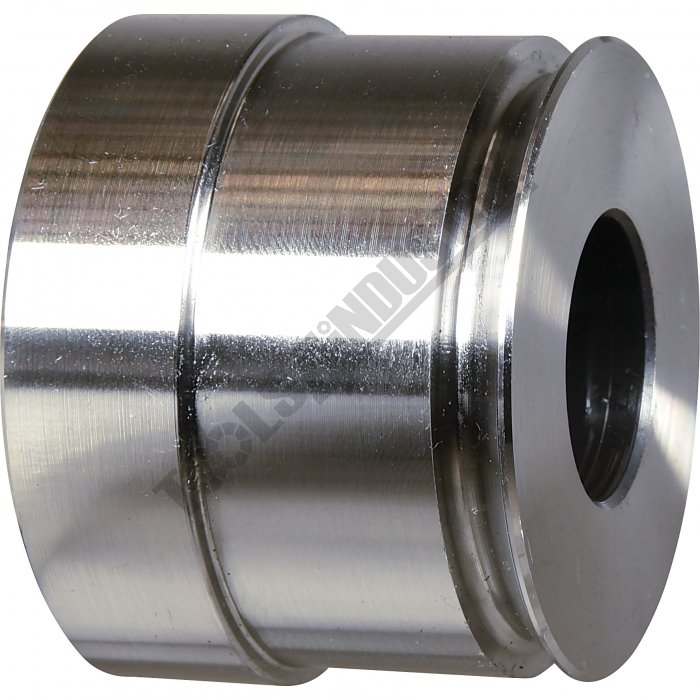

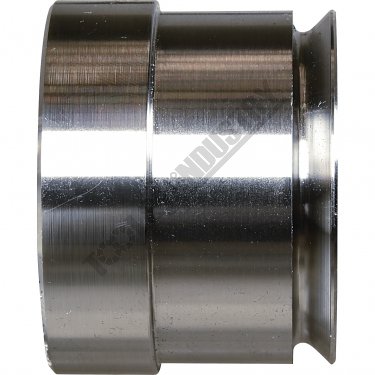

- 1 x Lower edge forming roller

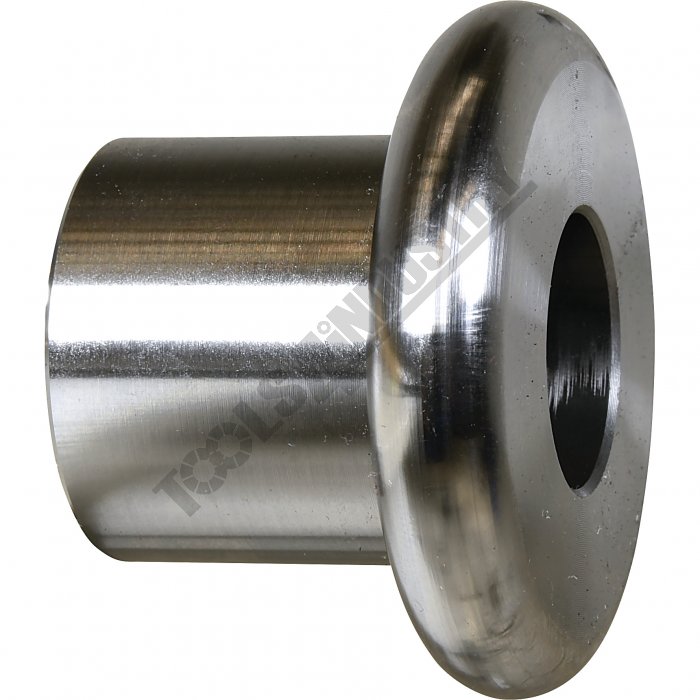

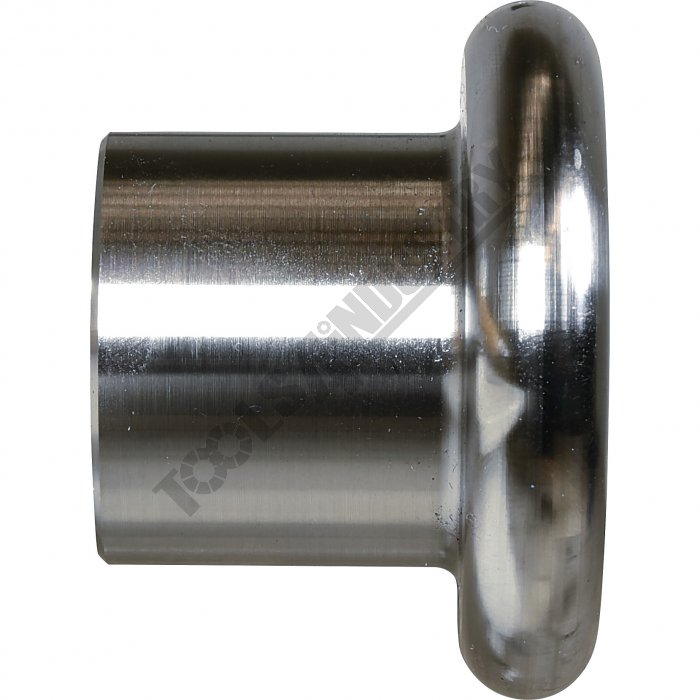

- 1 x 3/8" tipping roller

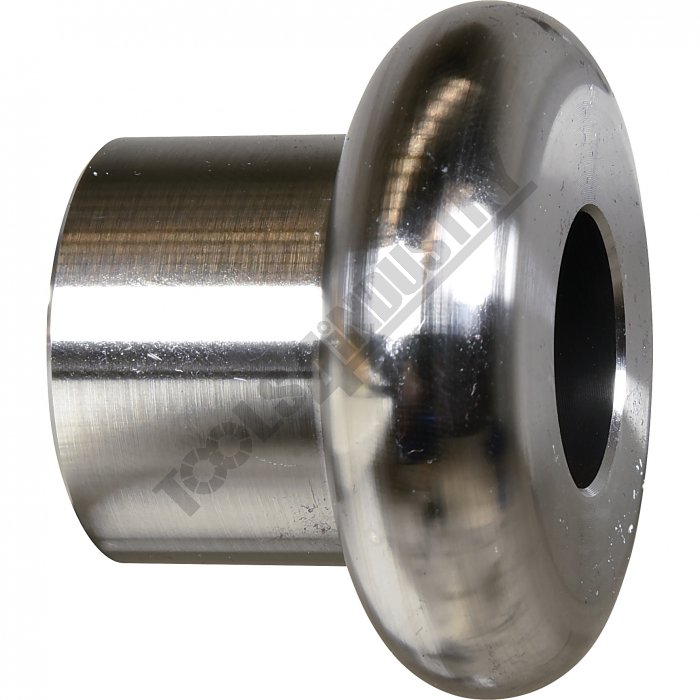

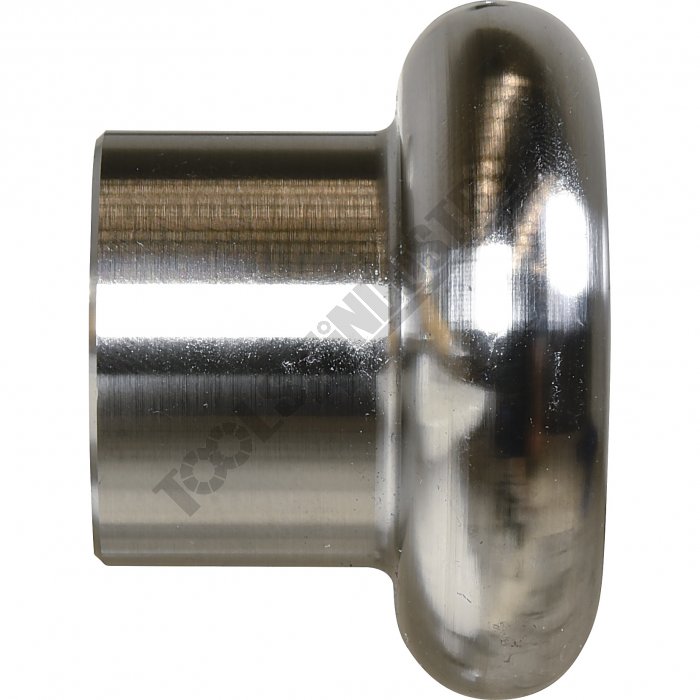

- 1 x 1/2" tipping roller

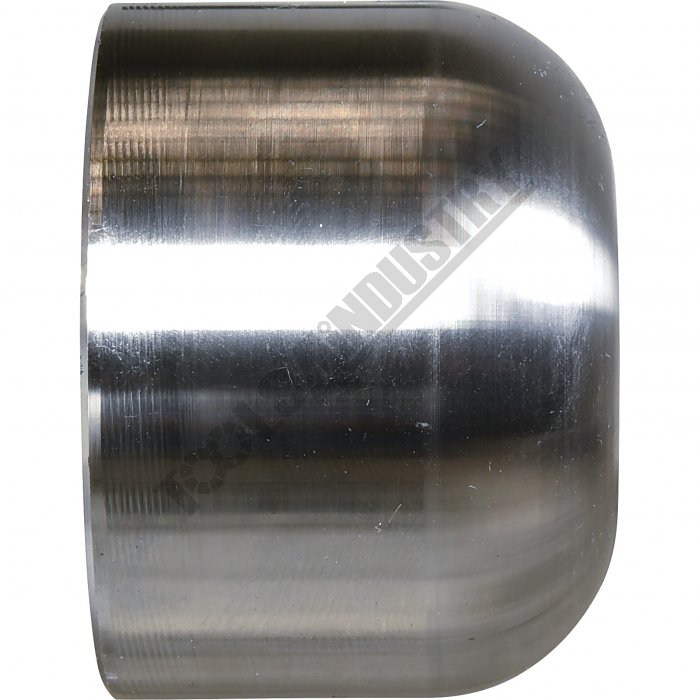

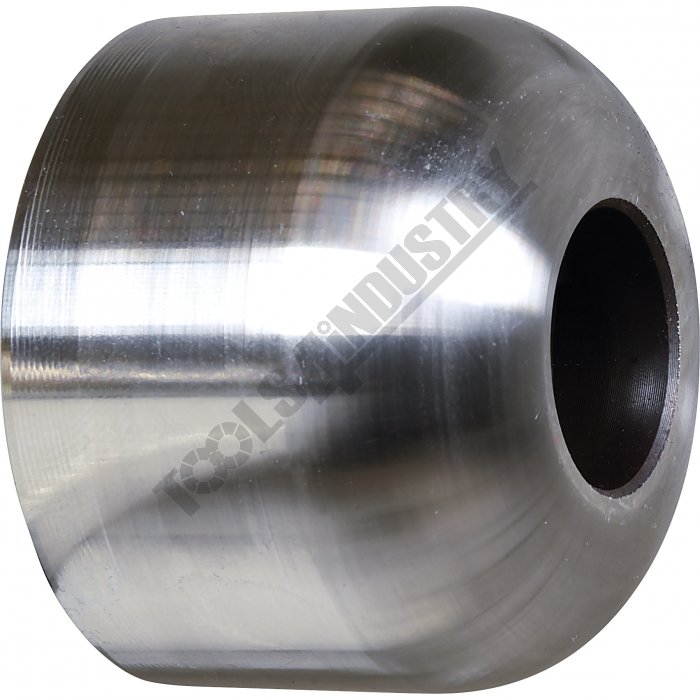

- 1 x Round tipping roller

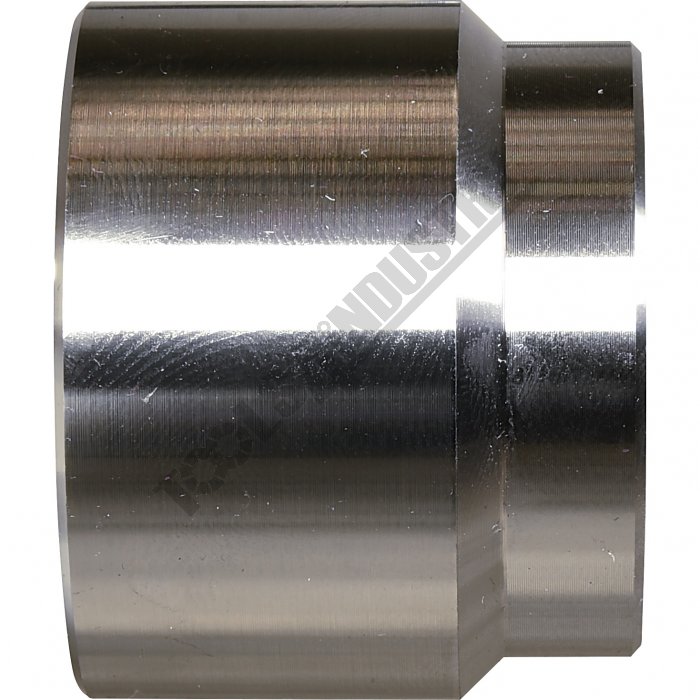

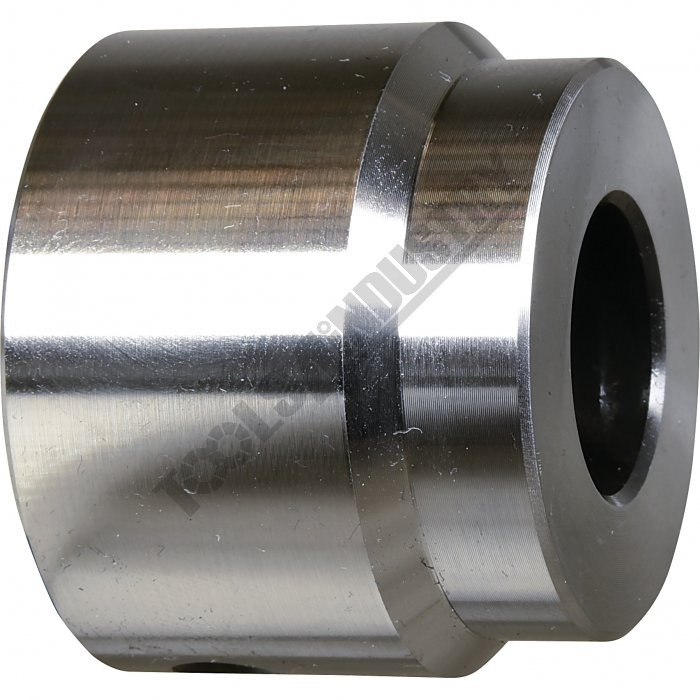

- 1 x lower forming roller

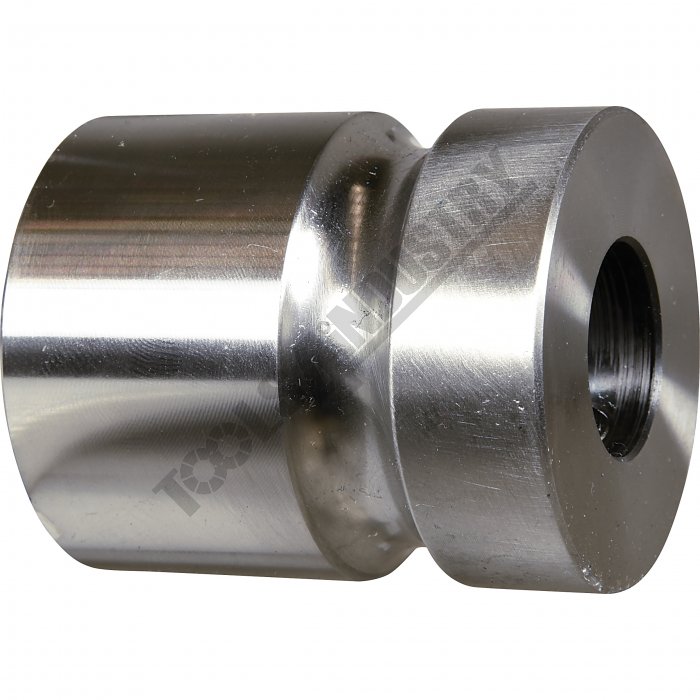

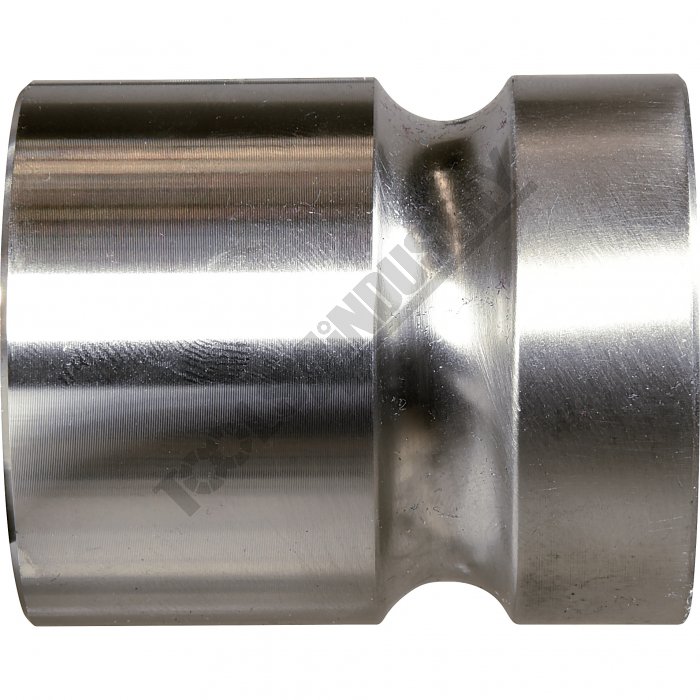

- 1 x 180 degree lower roller

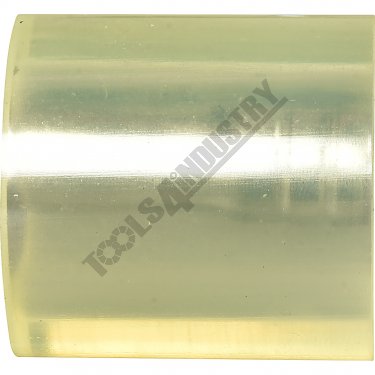

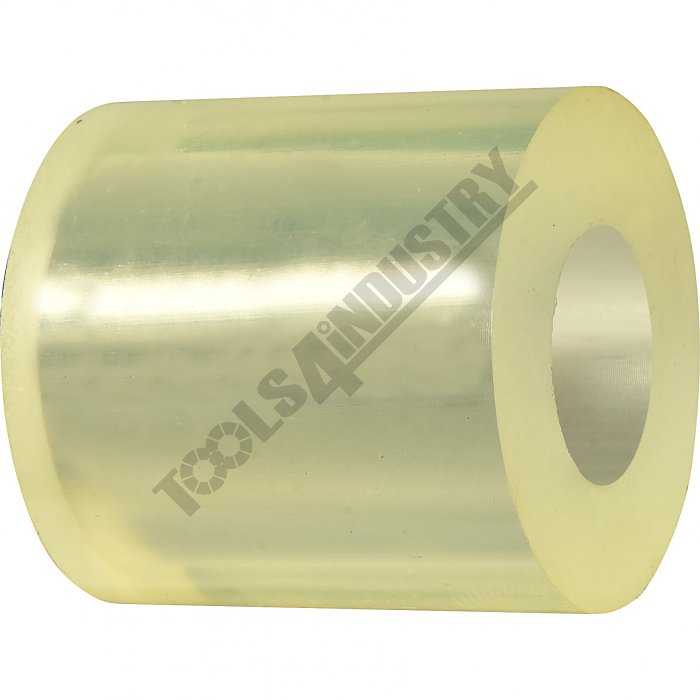

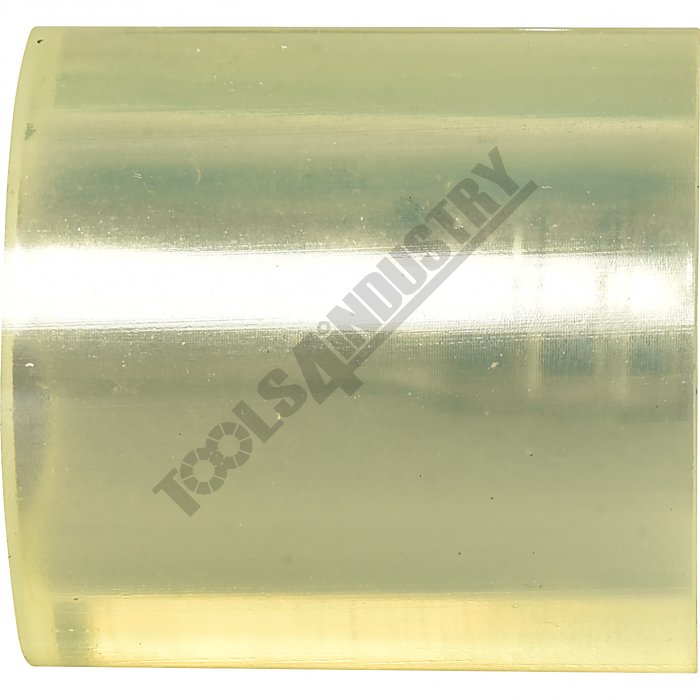

- 1 x Polyurethane lower roller
Specifications
- Compare 18 Products
- ORDER CODE
- MODEL
- Part Number
- Type
- Sizeinch / mm
- Roller Diametermm
- Bore Diametermm
- Spigot Diametermm
- Shaft Diameter
- Capacity (Mild Steel)mm / Gauge
- MaterialType
- Suits

- S6411
- BR-10FD
- ~
- 9 x Forming Bead Rollers Sets
+ 1 x Polyurethane Roller - ~
- Ø75
- Ø22 mm Bore
- ~
- ~
- 1.2 / 18
- Steel + Polyurethane
- SUITS SJ-24D & MBR-475XT
Bead Rollers

- S6331
- MBR-10K
- ~
- 10 x Forming Bead Rollers Sets
+ 1 x Polyurethane Roller - ~
- Ø75
- Ø20 with Keyway
- ~
- ~
- 1.2 / 18
- Steel + Polyurethane
- MBR-610 & MBR-1070
Bead Rollers

- S6332
- MBR-4ST
- ~
- 4 x Radius Bead Roller Sets
- ~
- Ø75
- Ø20 with Keyway
- ~
- ~
- 1.2 / 18
- Steel
- MBR-610 & MBR-1070
Bead Rollers

- S6337
- MBR-3HR
- ~
- 3 x Hem Bead Roller Sets
- ~
- Ø80
- Ø20 with Keyway
- ~
- ~
- 1.2 / 18
- Steel
- MBR-610 & MBR-1070
Bead Rollers

- S6412
- BR-4RO
- ~
- 4 x Round Over Bead Roller Sets
- ~
- Ø75
- Ø22mm Bore
- ~
- ~
- 1.2 / 18
- Steel
- SJ-24D & MBR-450
Bead Rollers

- S6333
- MBR-LST
- ~
- Louvre Bead Roller Set
- 6.5mm High x 14mm Width
- Ø75
- Ø20 with Keyway
- ~
- ~
- 1.2 / 18
- Steel
- MBR-610 & MBR-1070
Bead Rollers

- S6334
- MBR-TST
- ~
- Tipping Bead Roller Set
- ~
- Ø75
- Ø20 with Keyway
- ~
- ~
- 1.2 / 18
- Steel
- MBR-610 & MBR-1070
Bead Rollers

- S6342
- MBR-SAWR
- ~
- Steel Artwork Roller Set
- 33mm Width
- Ø64
- Ø20 with Keyway
- ~
- ~
- 1.2 / 18
- Steel
- MBR-610 & MBR-1070
Bead Rollers

- S6335
- MBR-2BK
- ~
- 2 x Blank Bead Roller Sets
- 85 x 46 & 85 x 25
- Ø85
- Ø20 with Keyway
- ~
- ~
- 1.2 / 18
- Steel
- MBR-610 & MBR-1070
Bead Rollers

- S6336
- MBR-MDL
- ~
- Mandrel Roller Holder
- ~
- ~
- ~
- Ø20 with Key
- Ø25
- ~
- Steel
- MBR-2BK Blank Rollers

- S641F
- SJ-GF
- ~
- Material Guide Fence - Adjustable
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- SJ-24D Bead Roller

- S6338
- MBR-FWT
- ~
- Steel Work Table
- 610 x 410
- ~
- ~
- ~
- ~
- ~
- Steel
- MBR-610 & MBR-1070

- S641M
- SJ-24MK
- ~
- Variable Speed Motor Kit
0 - 20rpm Output Speed - ~
- ~
- ~
- ~
- ~
- ~
- ~
- SUITS SJ-24D
| ORDER CODE | BR-10FD |
|---|---|
| MODEL | ~ |
| Part Number | 9 x Forming Bead Rollers Sets + 1 x Polyurethane Roller |
| Type | ~ |
| Sizeinch / mm | Ø75 |
| Roller Diametermm | Ø22 mm Bore |
| Bore Diametermm | ~ |
| Spigot Diametermm | ~ |
| Shaft Diameter | 1.2 / 18 |
| Capacity (Mild Steel)mm / Gauge | Steel + Polyurethane |
| MaterialType | SUITS SJ-24D & MBR-475XT Bead Rollers |
| Suits |
