| Code | S6336 |
|---|---|
| Model | MBR-MDL |
| Capacity | Suits Blank Bead Roller Sets |
| Weight (kg) | 0.5 |
| Weight (m3) | 0.002 |
| Weight (Freight) | 0.666 |
| Dimensions (cm) | 17 x 15 x 7 |

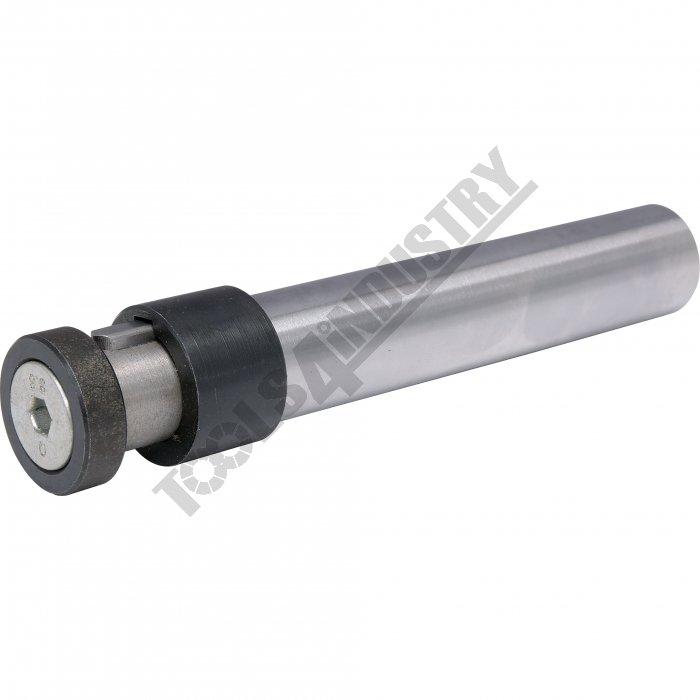

Mandrel Roller Holder MBR-MDL Suits Blank Bead Roller Sets
Description
Mandrel shaft made from #45 steelFeatures
- Used for holding a blank roller to machine to required shape/design in a metal turning lathe

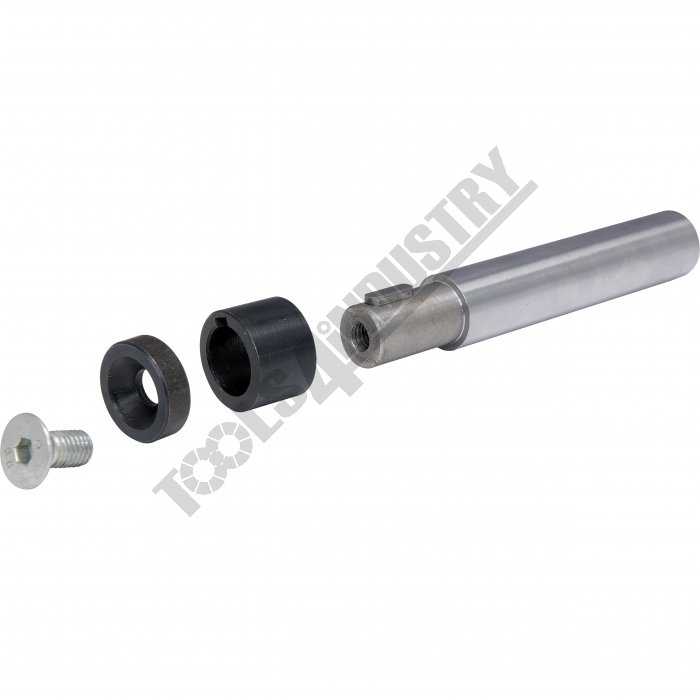

- Ø20mm spigot with drive key, spacers & locking screw
- Ø25mm x 150mm long shaft
Includes
- 1 x Mandrel Roller Holder
Optional Accessories

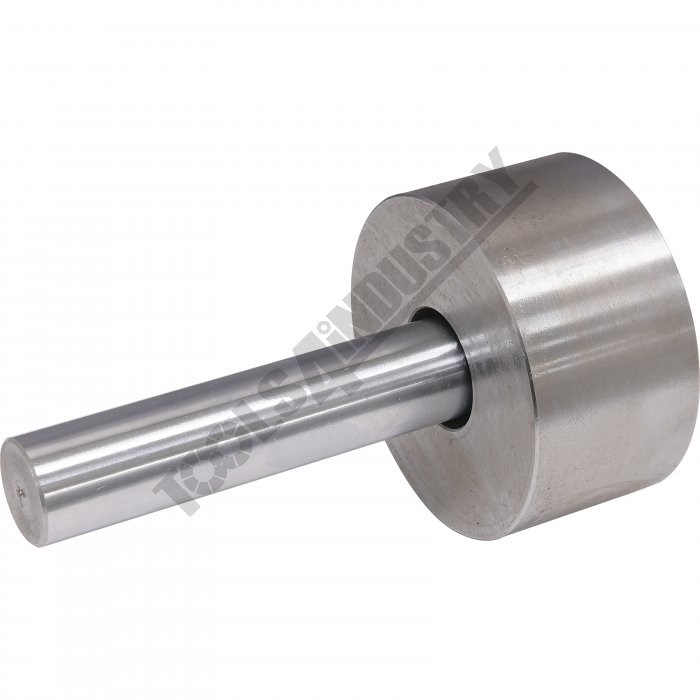

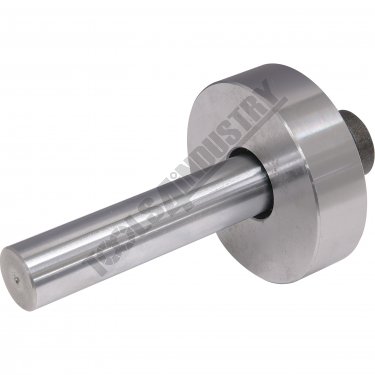

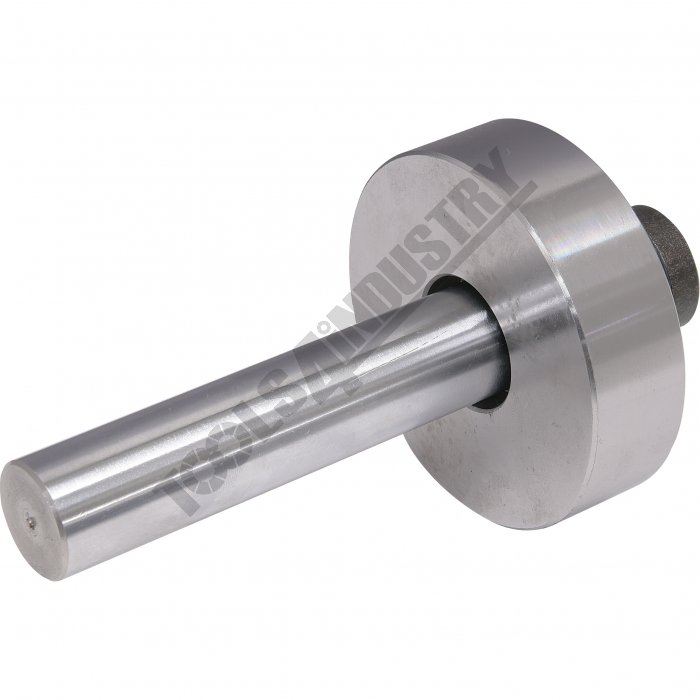

- MBR-2BK Blank Roller Sets - (S6335)
Specifications
