| Code | S2174 |
|---|---|
| Model | AS-70NY |
| Capacity | 70mm width |
| Weight (kg) | 2.7 |
| Weight (m3) | 0.005 |
| Weight (Freight) | 2.7 |
| Dimensions (cm) | 22 x 22 x 10 |

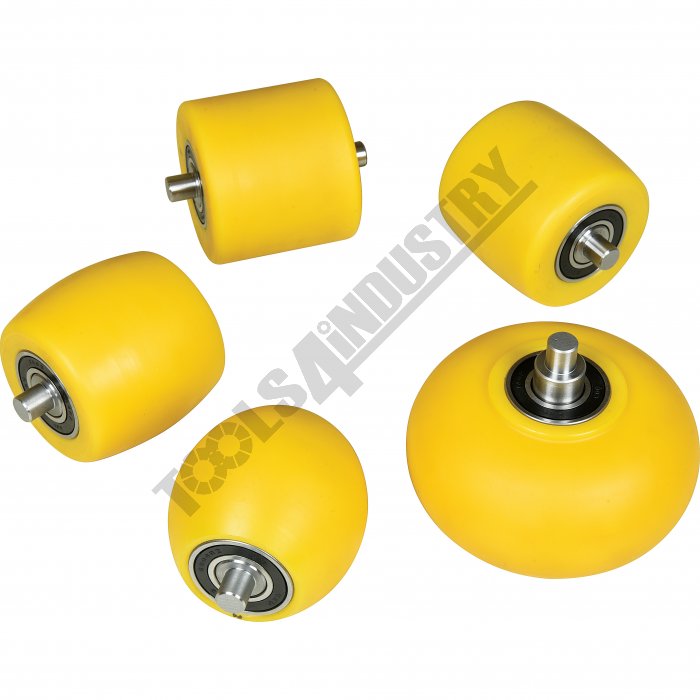

5pc Nylon Lower Anvil Set AS-70NY 70mm width
Description

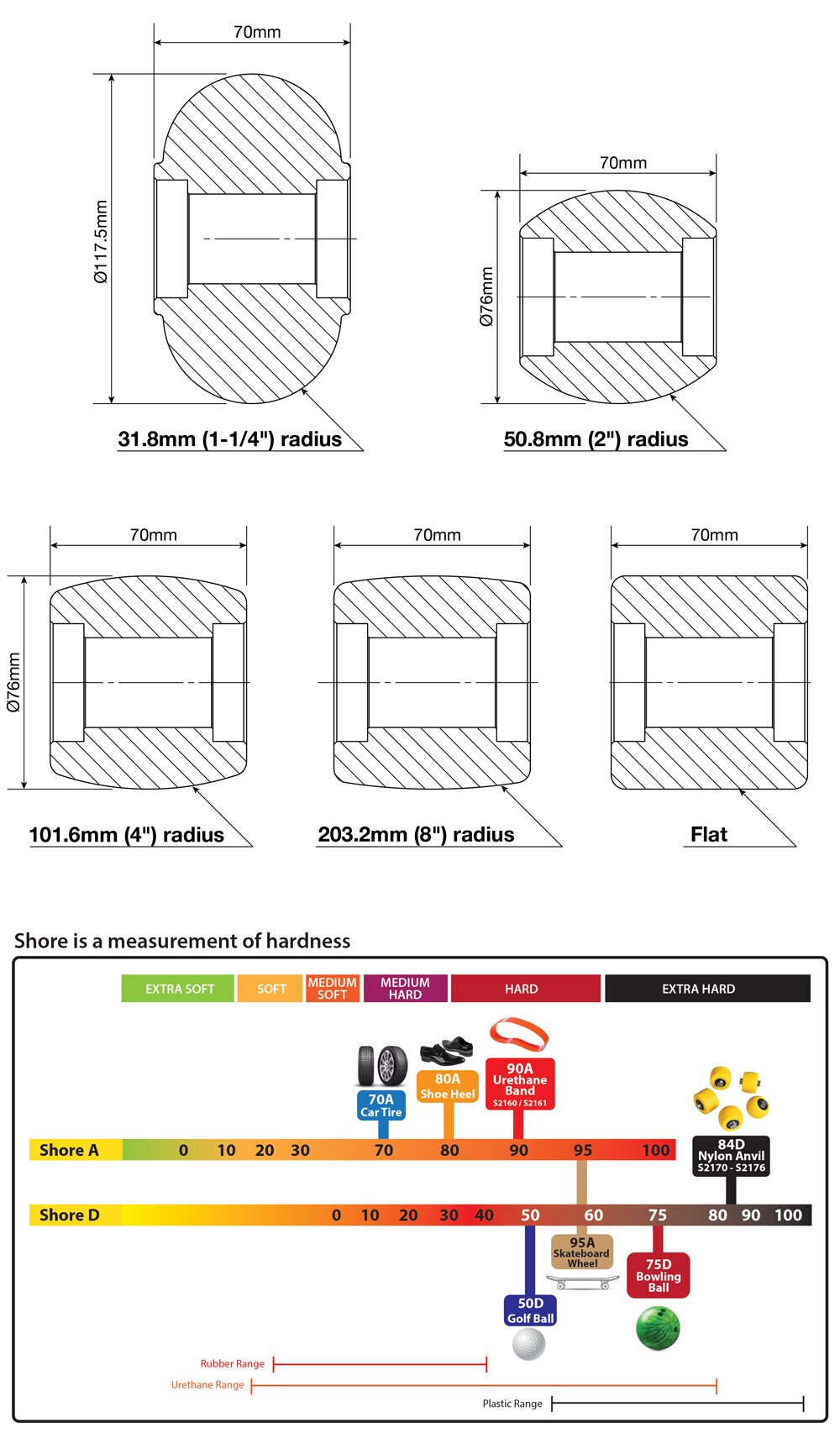

These English Wheel lower anvils are made from MC Nylon with a shore scale hardness of D84, slightly harder than a bowling ball, to allow you to form the material rather than stretching it when using standard steel anvils plus with the added benefit of having a non-marking finish they are perfect when shaping aluminium or material requiring a mirror finish eg. Stainless Steel.Includes

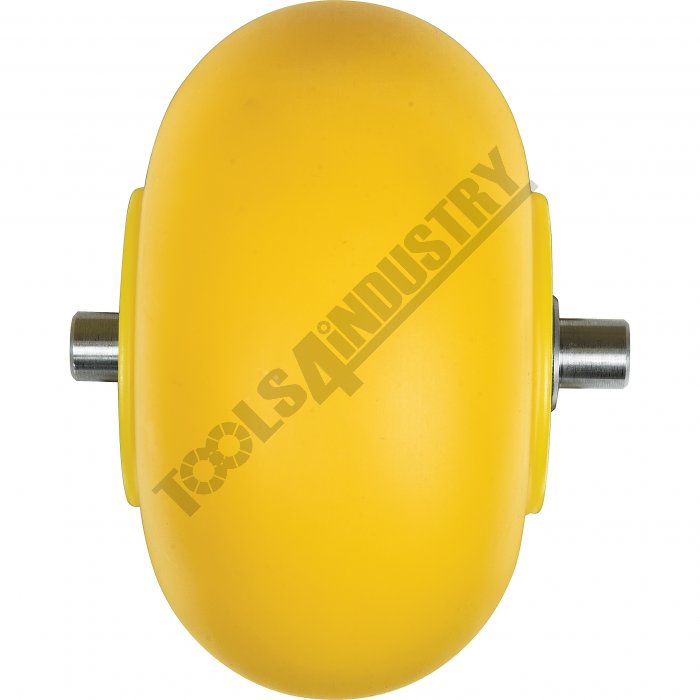

- 31.8mm (1-1/4") radius anvil

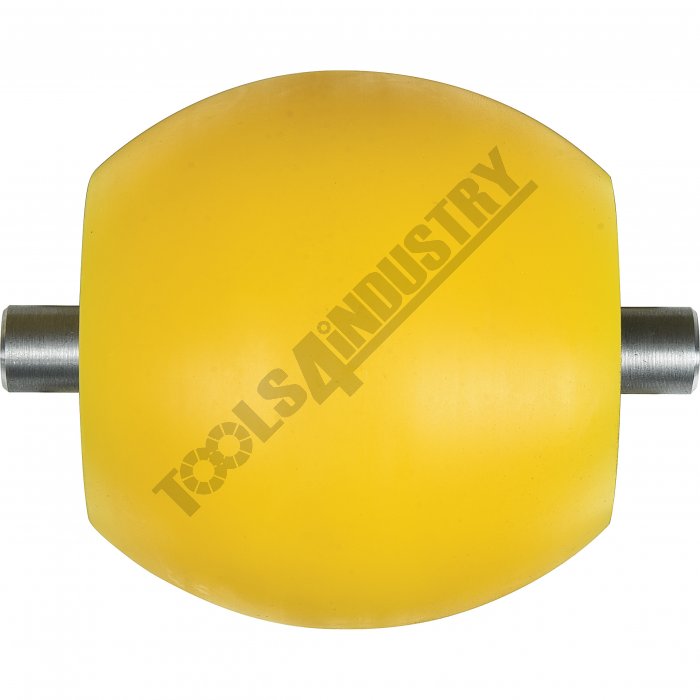

- 50.8mm (2") radius anvil

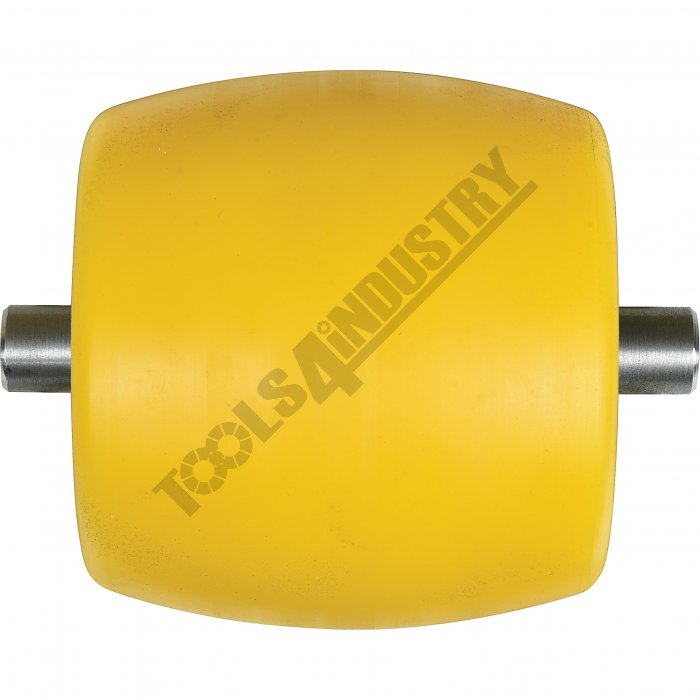

- 101.6mm (4") radius anvil

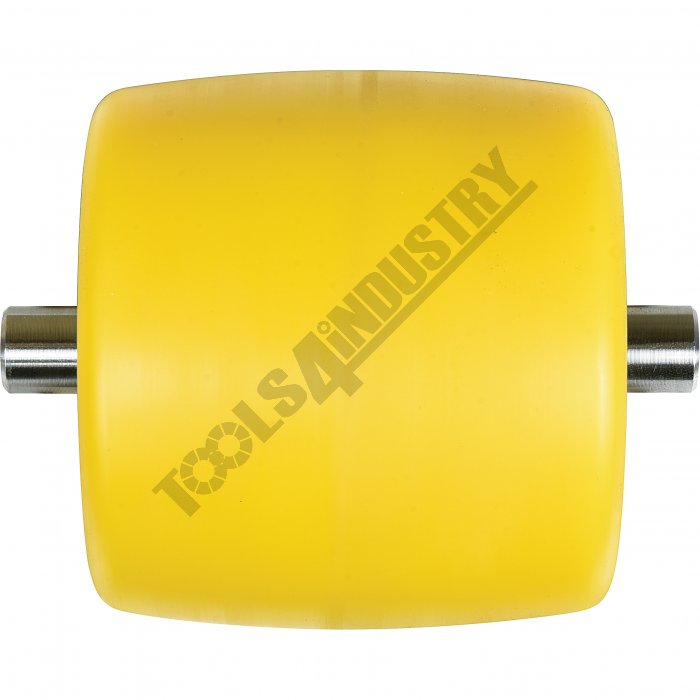

- 203.2mm (8"") radius anvil

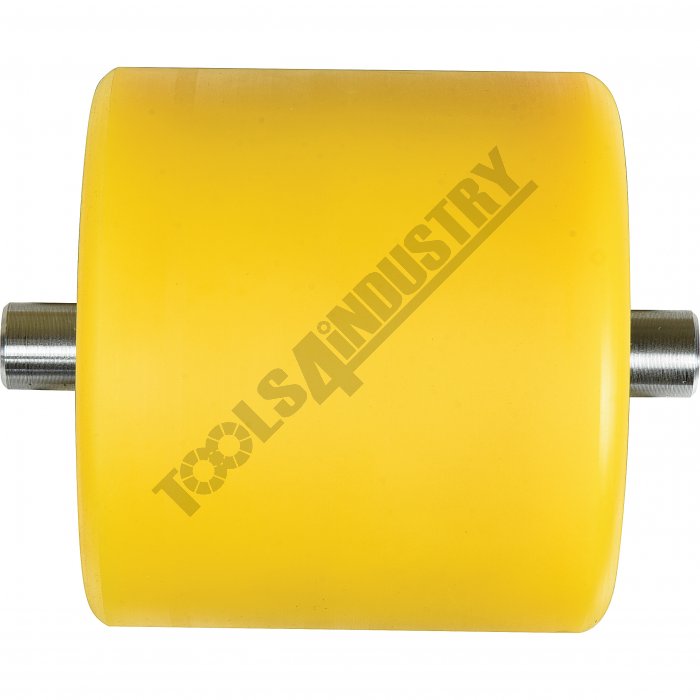

- Flat anvil

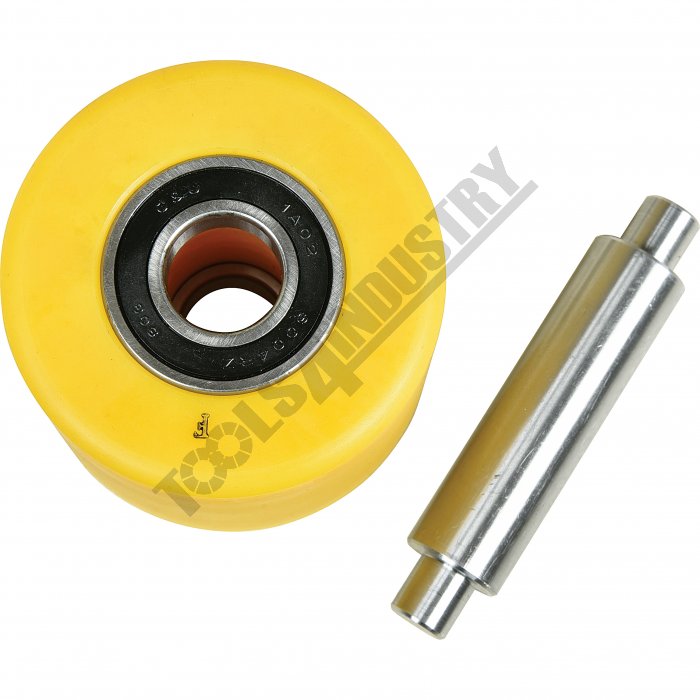

- 5pcs of anvil shafts supplied
Specifications
- Compare 5 Products
- ORDER CODE
- MODEL
- Size
- Anvil Widthmm
- Anvil Radiusmm/inch
- No. of Pieces in Set
- Suits English Wheel
- S2174
- AS-70NY
- ~
- 70
- 31.8mm (1-1/4"), 50.8mm (2"),
101.6mm (4"), 203.2mm (8")
& Flat - 5
- EWHD-80
- S2162
- EWUB-254
- 76.2 x 254mm
- ~
- ~
- 1
- EWHD-100
- S2172
- AS-50ZNY
- ~
- 50.8
- 1/4" Narrow Offset, 5" Narrow,
1" Taper, Edging
- 4
- EWM-75 & EWHD-65
- S2176
- AS-70ZNY
- ~
- 70
- 1/4" Narrow Offset, 5" Narrow,
1" Taper, Edging
- 4
- EWHD-80
- S2170
- AS-50NY
- ~
- 50.8
- 31.8mm (1-1/4"), 50.8mm (2"),
101.6mm (4"), 203.2mm (8")
& Flat - 5
- EWM-75 & EWHD-65
| ORDER CODE | AS-70NY |
|---|---|
| MODEL | ~ |
| Size | 70 |
| Anvil Widthmm | 31.8mm (1-1/4"), 50.8mm (2"), 101.6mm (4"), 203.2mm (8") & Flat |
| Anvil Radiusmm/inch | 5 |
| No. of Pieces in Set | EWHD-80 |
| Suits English Wheel |
