| Code | S631 |
|---|---|
| Model | MBR-475XT |
| Capacity | 1.2mm Mild Steel Thickness Capacity & 475mm Throat Depth |
| Weight (kg) | 85 |
| Weight (m3) | 0.286 |
| Weight (Freight) | 95.238 |
| Dimensions (cm) | 110 x 65 x 40 |

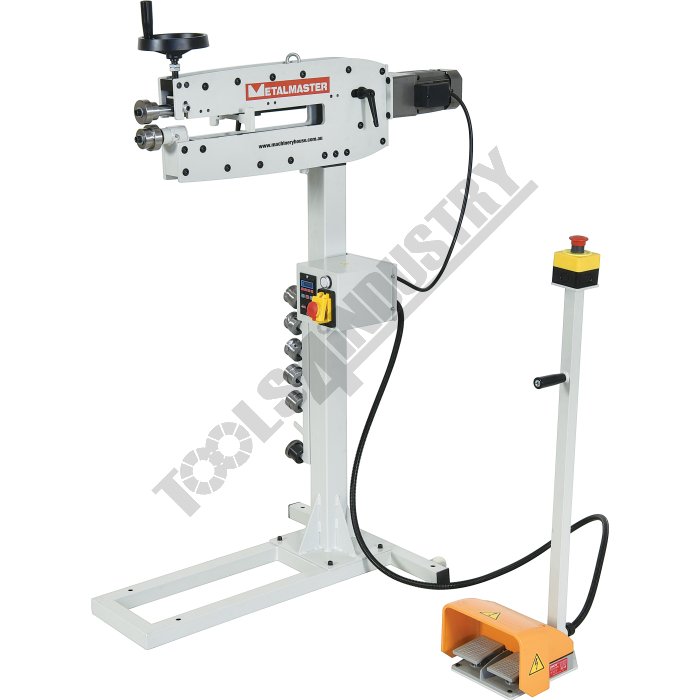

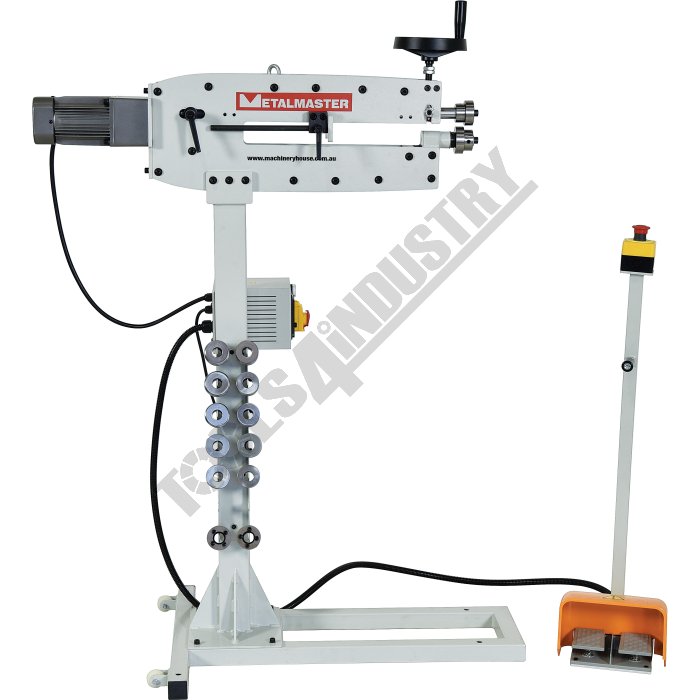

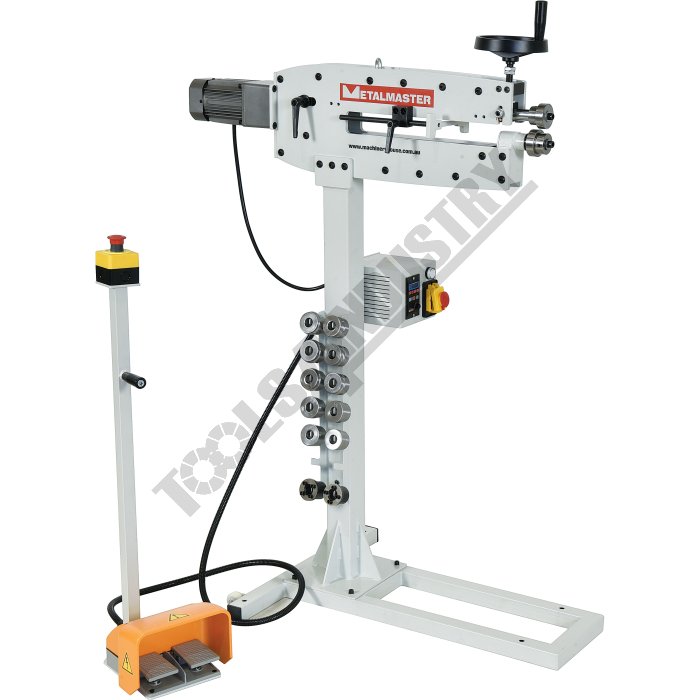

Bead Roller - Motorised Variable Speed MBR-475XT 1.2mm Mild Steel Thickness Capacity & 475mm Throat Depth
Description

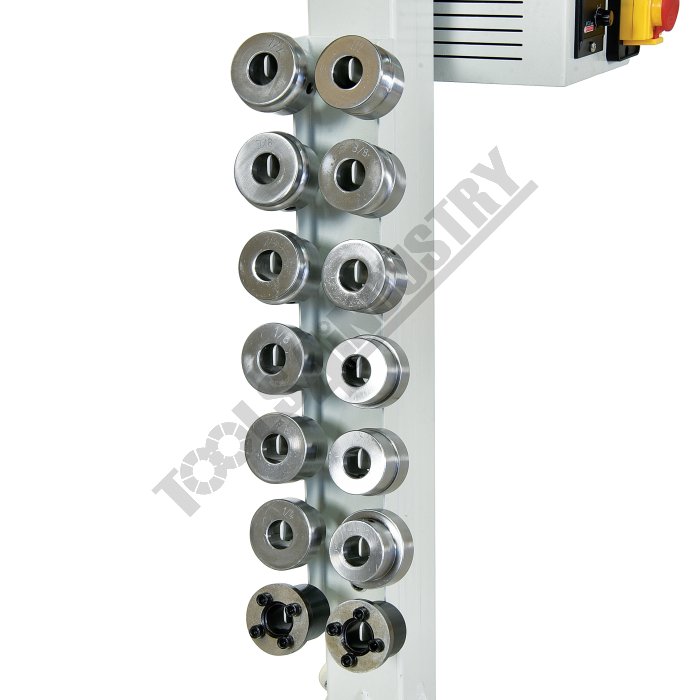

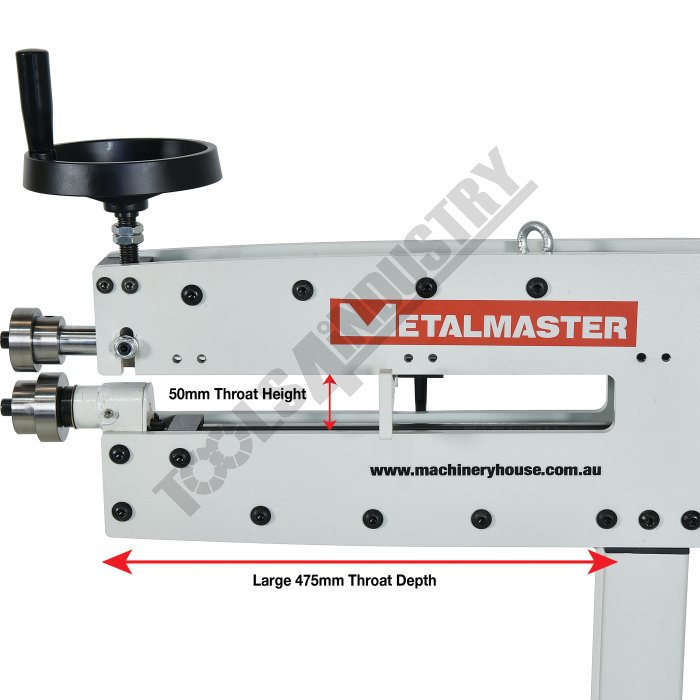

The MBR-475XT motorised bead roller is much easier to use compared to manual machines to having your panels beaded in your home workshop or garage. Made from heavy plate steel and a 475mm throat depth making it perfect for strengthening any type of car roof, body panels, seals & guards etc.The MBR-475XT also includes a stand that also stores the seven sets of the most common rolls required by any metal forming automotive enthusiasts or professional.
Features
- 1.2mm mild steel capacity

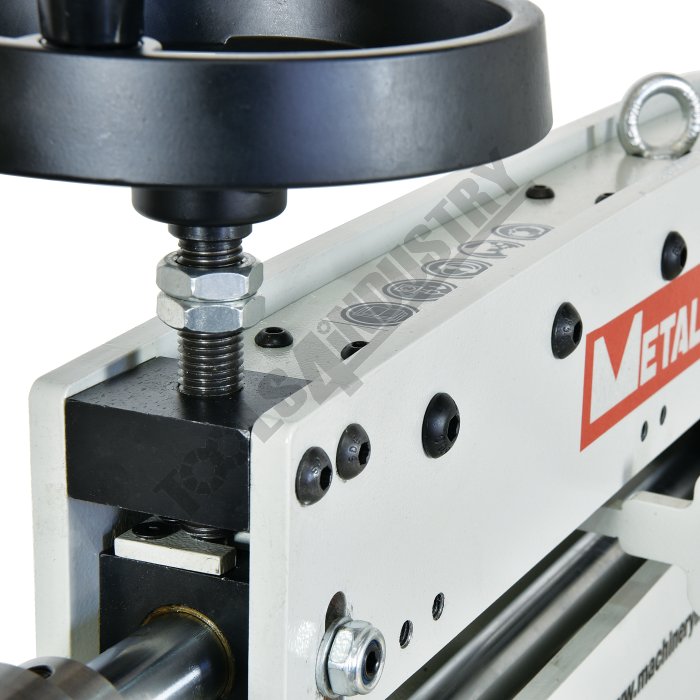

- Heavy steel plate dual wall construction for increased rigidity

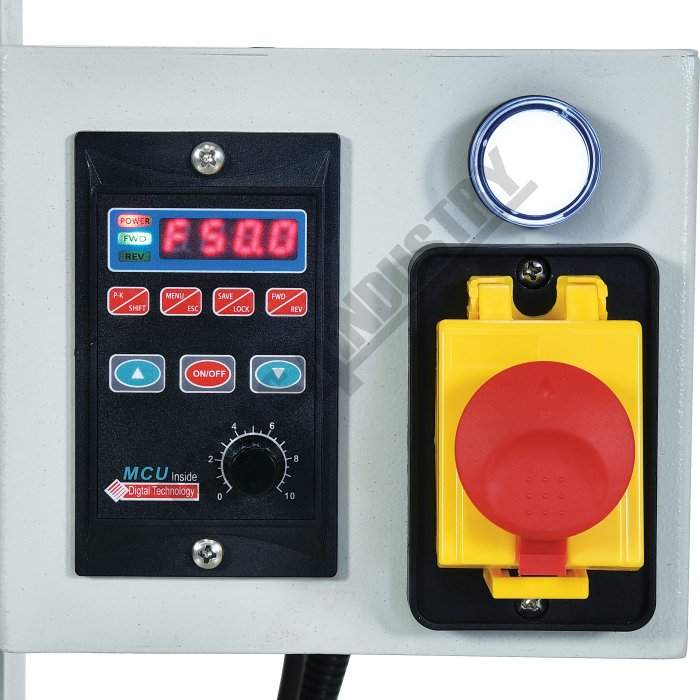

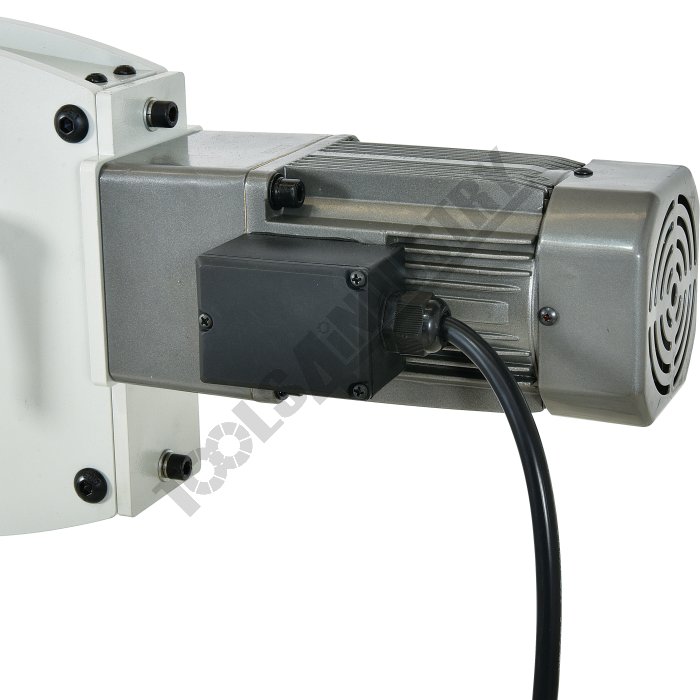

- Inverter controlled variable speed

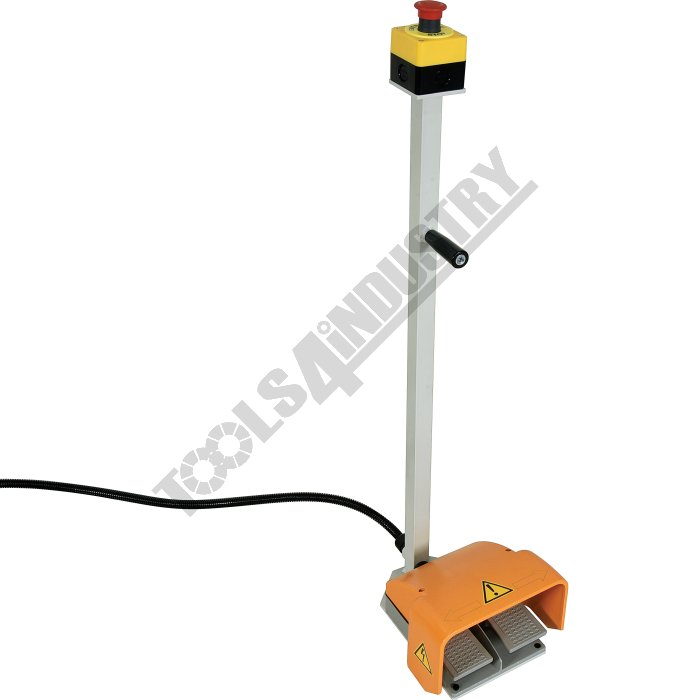

- Forward / reverse via foot pedals

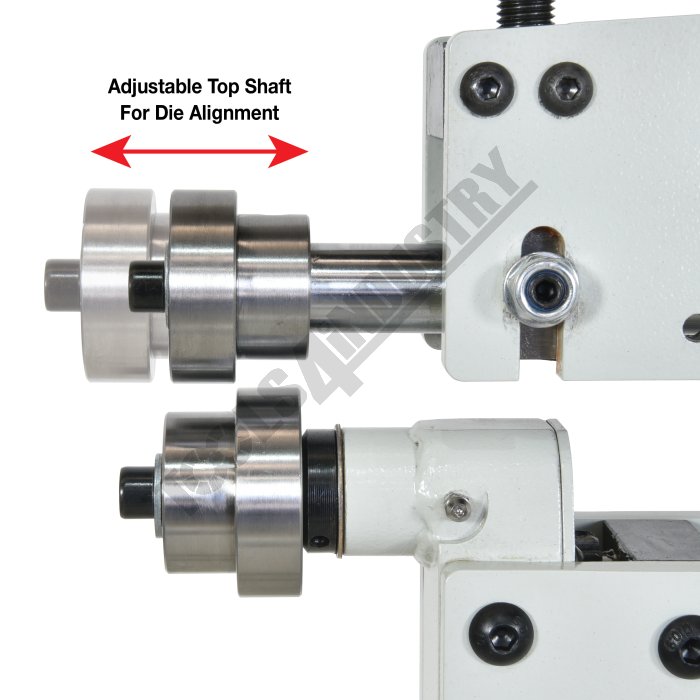

- Ø25mm drive shafts
- 22mm spigot for mounting rollers

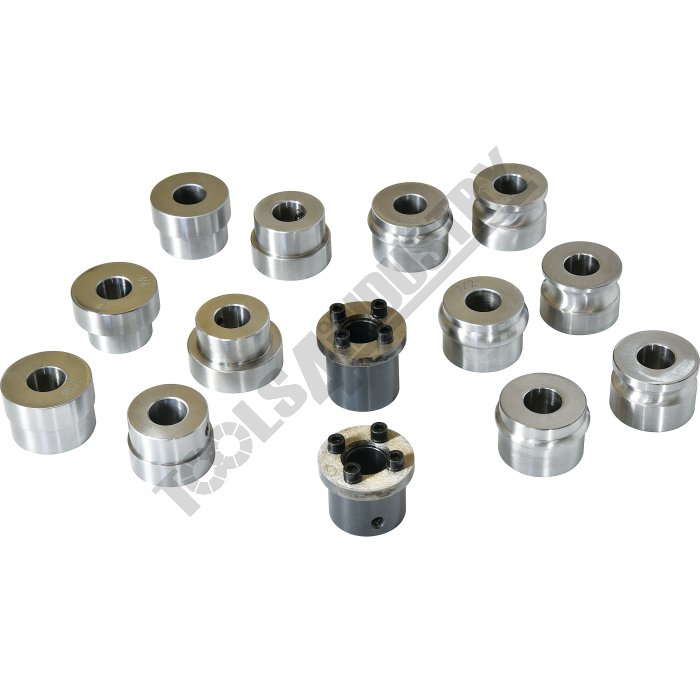

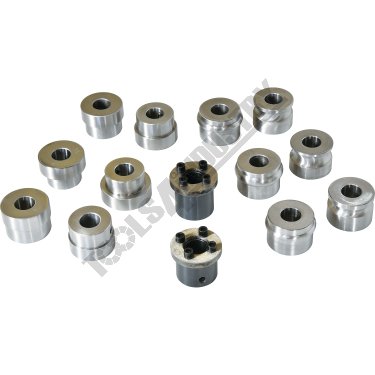

Includes
- 1/4" (6.35mm) bead roll set
- 3/8" (9mm) bead roll set
- 1/2" (12.7mm) bead roll set
- 1/16" (1.6mm) flange roll set
- 1/8" (3mm) flange roll set
- 1/4" (6.35mm) flange roll set
- Shearing roll set
Videos
Specifications
- Compare 7 Products
- ORDER CODE
- MODEL
- MachineType
- Mild Steel - Thickness Capacitymm / Gauge
- Aluminium - Thickness Capacitymm / Gauge
- Throat Depth Maximummm
- Throat Heightmm
- Roll Diametermm
- Output Drive Speedrpm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Nett Weightkg

- S631
- MBR-475XT
- Bead Roller - Motrised
- 1.2 / 18
- 1.6 / 16
- 475
- 50
- 52
- ~
- 0.25 KW / 0.335
- 240 / 10
- 70

- S633
- MBR-610XT
- Bead Roller - Motrised
- 1.2 / 18
- 1.6 / 16
- 610
- 105
- 70
- 0 - 18
- 0.25 / 0.33
- 240 / 10
- 115

- K135
- MBR-610XT
- Bead Roller - Motrised
- 1.2 / 18
- 1.6 / 16
- 610
- 105
- 70
- 0 - 18
- 0.25 / 0.33
- 240 / 10
- 115

- S642
- IK-1.2
- Swage & Jenny
- 1.2 / 18
- 1.2 / 18
- 180
- ~
- 62
- ~
- ~
- ~
- 50

- S643
- IKMP-1.2
- Swage & Jenny - Motrised
- 1.2 / 18
- 1.2 / 18
- 240
- ~
- 62
- 32
- 0.75 / 1
- 415
- 135

- S641
- SJ-24D
- Bead Roller
- 1.2 / 18
- 1.6 / 16
- 460
- 20
- 52
- ~
- ~
- ~
- 46

- K140
- SJ-24DK
- Bead Roller - Motrised
- 1.2 / 18
- 1.6 / 16
- 460
- 20
- 52
- 0 - 20
- 0.2 / 0.27
- 240 / 10
- 61
| ORDER CODE | MBR-475XT |
|---|---|
| MODEL | Bead Roller - Motrised |
| MachineType | 1.2 / 18 |
| Mild Steel - Thickness Capacitymm / Gauge | 1.6 / 16 |
| Aluminium - Thickness Capacitymm / Gauge | 475 |
| Throat Depth Maximummm | 50 |
| Throat Heightmm | 52 |
| Roll Diametermm | ~ |
| Output Drive Speedrpm | 0.25 KW / 0.335 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 70 |
| Nett Weightkg |
