Code	S642
Model	IK-1.2
Capacity	1.2mm Mild Steel Thickness Capacity
Weight (kg)	50
Weight (m³)	0.062
Weight (Freight)	50
Dimensions (cm)	56 x 22 x 50

ISITAN

1 Year Warranty

TURKIYE

Product Brochure Instruction Manual [3 MB]Swage and Jenny - Electric Risk Assessment

Swage and Jenny - Manual IK-1.2 1.2mm Mild Steel Thickness Capacity

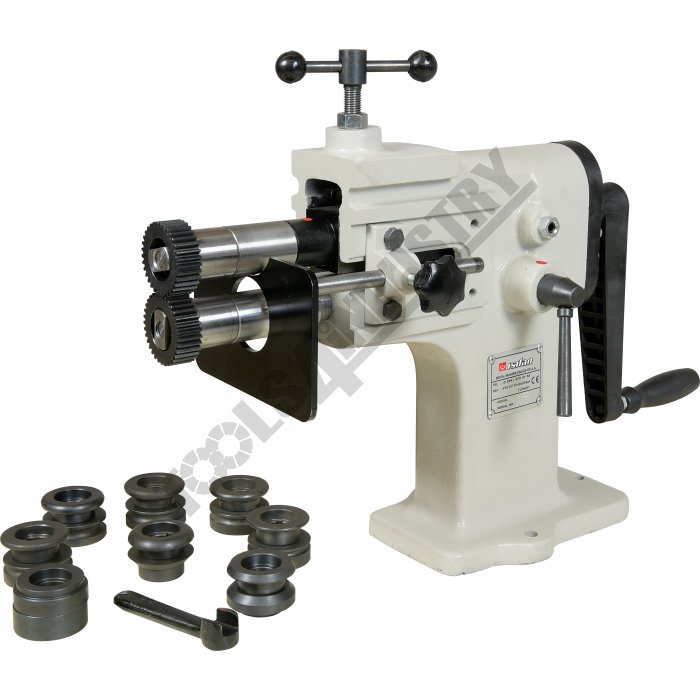

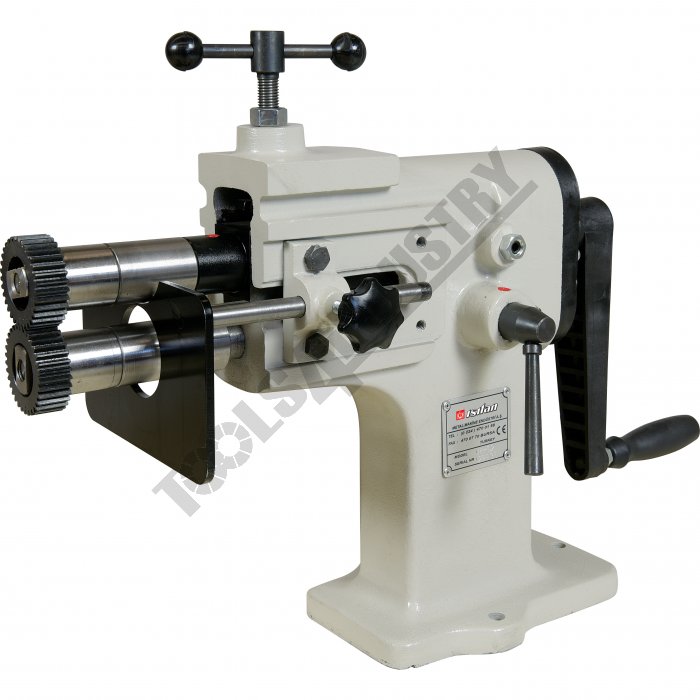

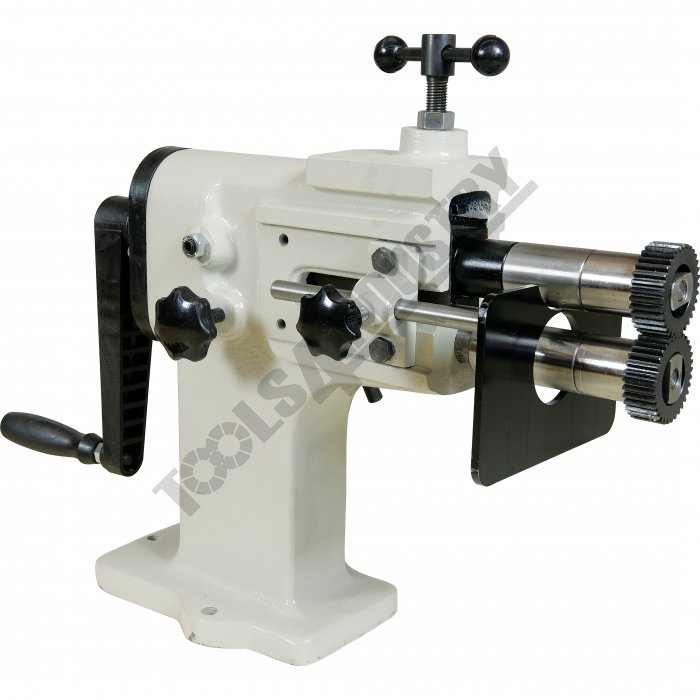

Features

Heavy duty cast iron construction
Adjustable material side support

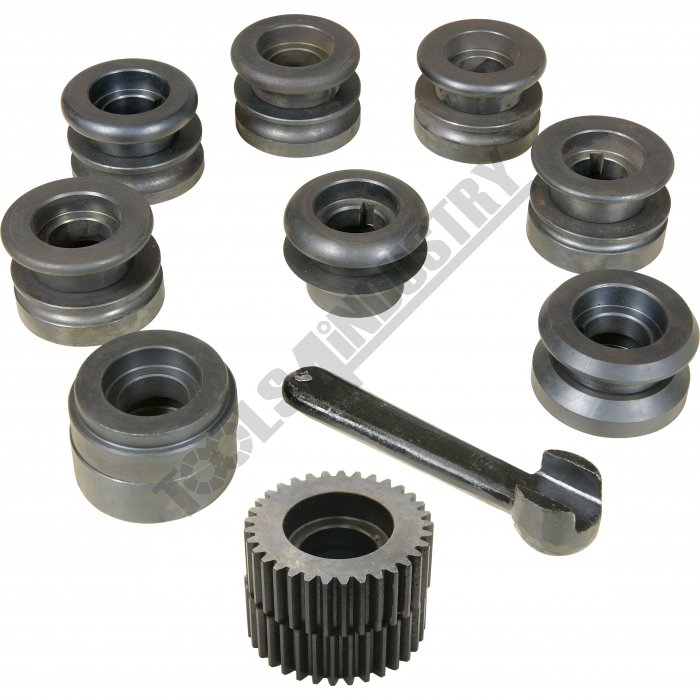

9 sets of rolls
Made in Turkey
Mild steel capacity is rated on hot rolled material with 250MPA

Includes

1 x 4mm wiring rolls
1 x 6.2mm wiring rolls
1 x 7.2mm wiring rolls
1 x 9.2mm wiring rolls
1 x 10.2mm wiring rolls
1 x crimping rolls
3 x sets of flanging rolls

Videos

Specifications

Compare 7 Products
ORDER CODE
MODEL
MachineType
Mild Steel - Thickness Capacitymm / Gauge
Aluminium - Thickness Capacitymm / Gauge
Throat Depth Maximummm
Throat Heightmm
Roll Diametermm
Output Drive Speedrpm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

S642
IK-1.2
Swage & Jenny
1.2 / 18
1.2 / 18
180
~
62
~
~
~
50

S643
IKMP-1.2
Swage & Jenny - Motrised
1.2 / 18
1.2 / 18
240
~
62
32
0.75 / 1
415
135

S641
SJ-24D
Bead Roller
1.2 / 18
1.6 / 16
460
20
52
~
~
~
46

K140
SJ-24DK
Bead Roller - Motrised
1.2 / 18
1.6 / 16
460
20
52
0 - 20
0.2 / 0.27
240 / 10
61

S631
MBR-475XT
Bead Roller - Motrised
1.2 / 18
1.6 / 16
475
50
52
~
0.25 KW / 0.335
240 / 10
70

S633
MBR-610XT
Bead Roller - Motrised
1.2 / 18
1.6 / 16
610
105
70
0 - 18
0.25 / 0.33
240 / 10
115

K135
MBR-610XT
Bead Roller - Motrised
1.2 / 18
1.6 / 16
610
105
70
0 - 18
0.25 / 0.33
240 / 10
115

ORDER CODE	IK-1.2
MODEL	Swage & Jenny
MachineType	1.2 / 18
Mild Steel - Thickness Capacitymm / Gauge	1.2 / 18
Aluminium - Thickness Capacitymm / Gauge	180
Throat Depth Maximummm	~
Throat Heightmm	62
Roll Diametermm	~
Output Drive Speedrpm	~
Motor PowerkW / hp	~
Voltage / AmperageV / amp	50
Nett Weightkg
