Code	S643
Model	IKMP-1.2
Capacity	1.2mm Mild Steel Thickness Capacity
Weight (kg)	140
Weight (m³)	0.547
Weight (Freight)	182.151
Dimensions (cm)	90 x 45 x 135

ISITAN

415V / (NO PLUG)

1 Year Warranty

TURKIYE

Product Brochure Instructions Manual [2 MB] Parts List [235 KB]Swage and Jenny - Electric Risk Assessment

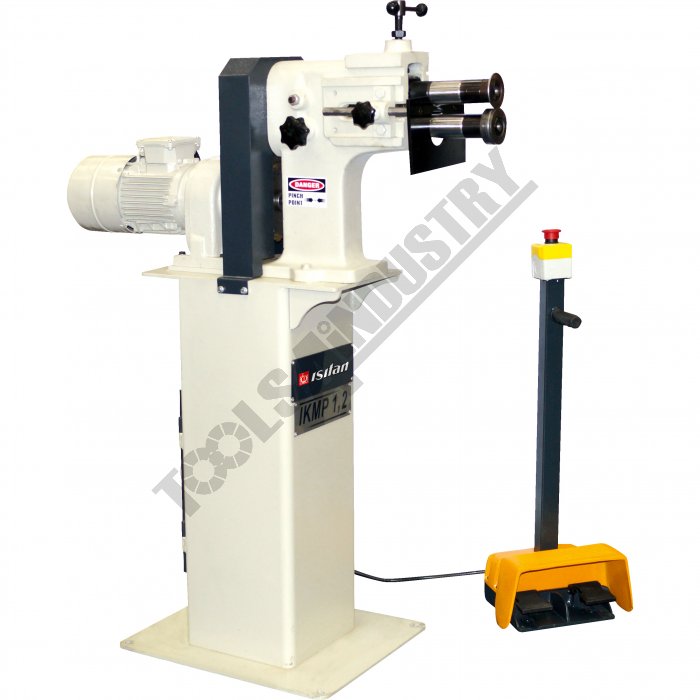

Swage and Jenny - Motorised IKMP-1.2 1.2mm Mild Steel Thickness Capacity

Features

Heavy duty cast iron construction
9 sets of rolls
Adjustable side support
Reduction motor with brake
Roving foot pedal control
Adjustable idle
Made in Turkey
Mild steel capacity is rated on hot rolled material with 250MPA

Includes

1 x 4mm wiring rolls
1 x 6.2mm wiring rolls
1 x 7.2mm wiring rolls
1 x 9.2mm wiring rolls
1 x 10.2mm wiring rolls
1 x crimping rolls
3 x sets of flanging rolls

Videos

Specifications

Compare 7 Products
ORDER CODE
MODEL
MachineType
Mild Steel - Thickness Capacitymm / Gauge
Aluminium - Thickness Capacitymm / Gauge
Throat Depth Maximummm
Throat Heightmm
Roll Diametermm
Output Drive Speedrpm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

S643
IKMP-1.2
Swage & Jenny - Motrised
1.2 / 18
1.2 / 18
240
~
62
32
0.75 / 1
415
135

S641
SJ-24D
Bead Roller
1.2 / 18
1.6 / 16
460
20
52
~
~
~
46

K140
SJ-24DK
Bead Roller - Motrised
1.2 / 18
1.6 / 16
460
20
52
0 - 20
0.2 / 0.27
240 / 10
61

S631
MBR-475XT
Bead Roller - Motrised
1.2 / 18
1.6 / 16
475
50
52
~
0.25 KW / 0.335
240 / 10
70

S633
MBR-610XT
Bead Roller - Motrised
1.2 / 18
1.6 / 16
610
105
70
0 - 18
0.25 / 0.33
240 / 10
115

K135
MBR-610XT
Bead Roller - Motrised
1.2 / 18
1.6 / 16
610
105
70
0 - 18
0.25 / 0.33
240 / 10
115

S642
IK-1.2
Swage & Jenny
1.2 / 18
1.2 / 18
180
~
62
~
~
~
50

ORDER CODE	IKMP-1.2
MODEL	Swage & Jenny - Motrised
MachineType	1.2 / 18
Mild Steel - Thickness Capacitymm / Gauge	1.2 / 18
Aluminium - Thickness Capacitymm / Gauge	240
Throat Depth Maximummm	~
Throat Heightmm	62
Roll Diametermm	32
Output Drive Speedrpm	0.75 / 1
Motor PowerkW / hp	415
Voltage / AmperageV / amp	135
Nett Weightkg
