| Code | Q2171 |
|---|---|
| Model | 34-2171 |
| Capacity | Jewel Movement - Measuring In Both Directions |
| Weight (kg) | 0.14 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.14 |
| Dimensions (cm) | 10.5 x 6 x 4 |

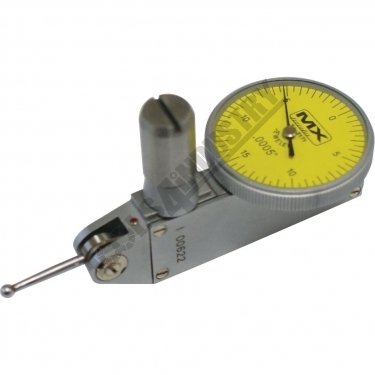

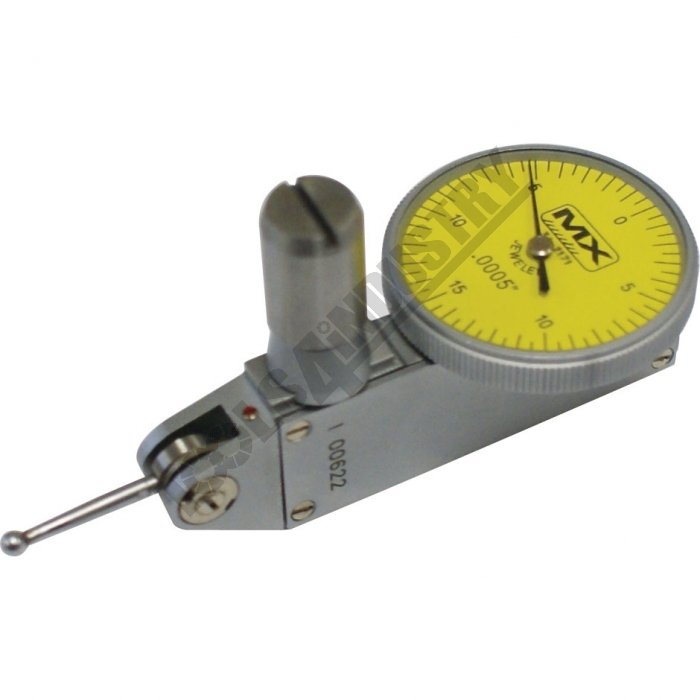

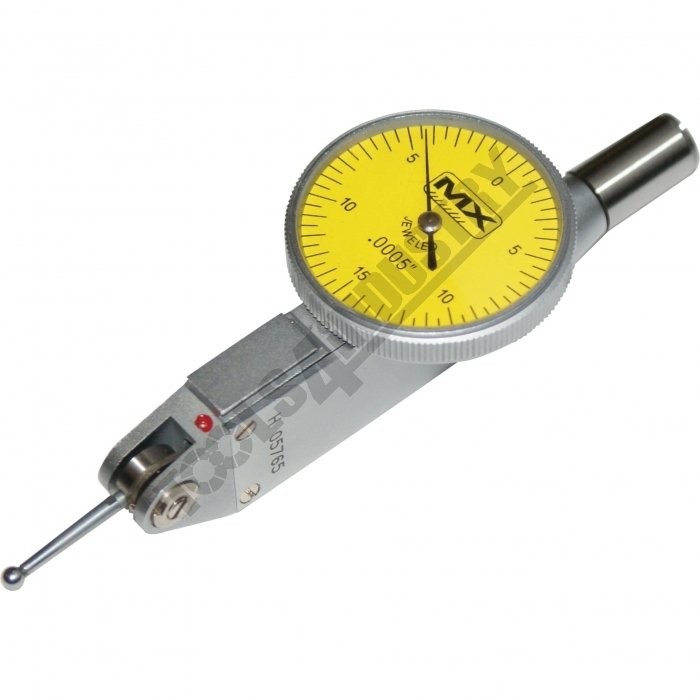

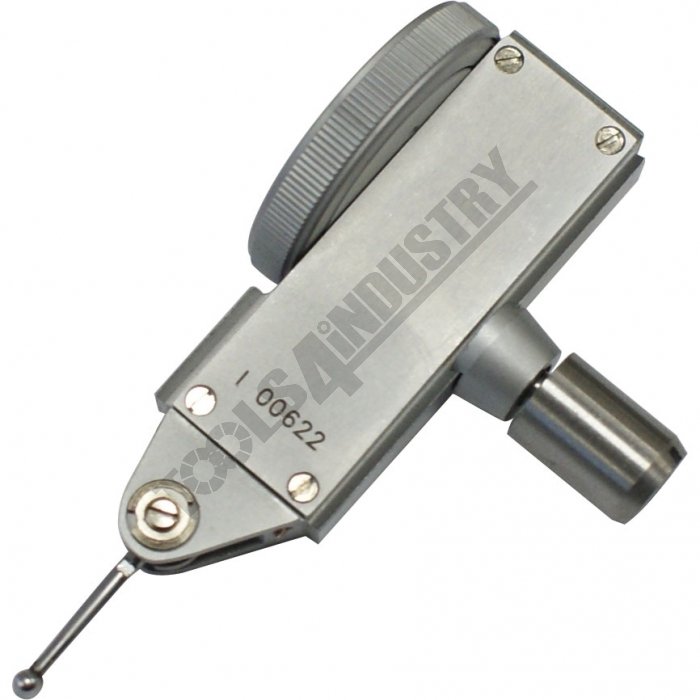

Dial Test Indicator - Imperial 34-2171 Jewel Movement - Measuring In Both Directions
Features
- The dial test indicator is ideally suited for all kinds of comparative measurements in the workshop and inspection room
- It also can be used together with machine tools, apparatus and other measuring devices - Steel ball end
- Jewel movement - measuring in both directions

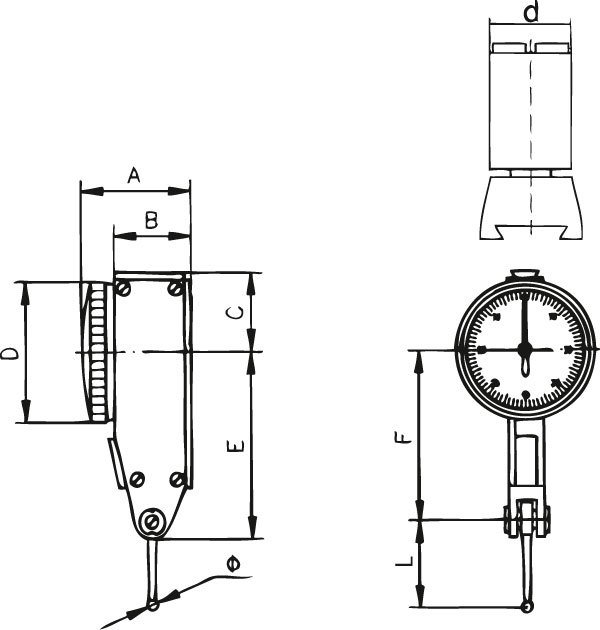

Specifications
- Compare 3 Products
- ORDER CODE
- Range
- Graduations
- Amm
- Bmm
- B1mm
- Cmm
- Dmm
- dmm
- Emm
- Fmm
- Gmm
- Hmm
- Imm
- J
- Kmm
- Lmm
- L1mm
- Ømm
| ORDER CODE | 0 - 0.03" |
|---|---|
| Range | 0.0005" |
| Graduations | 24.5 |
| Amm | 17.3 |
| Bmm | ~ |
| B1mm | 16.6 |
| Cmm | Ø31.2 |
| Dmm | 3.95 / 9.5 |
| dmm | 42.6 |
| Emm | 38.7 |
| Fmm | ~ |
| Gmm | ~ |
| Hmm | ~ |
| Imm | ~ |
| J | ~ |
| Kmm | 19 |
| Lmm | ~ |
| L1mm | 2 |
| Ømm |
