| Code | Q217 |
|---|---|
| Model | 34-217 |
| Capacity | Jewel Movement - Measuring In Both Directions |
| Weight (kg) | 0.16 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.16 |
| Dimensions (cm) | 10.5 x 6.5 x 4 |

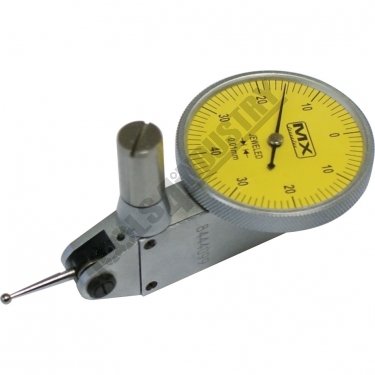

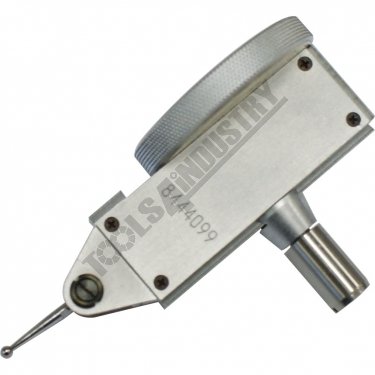

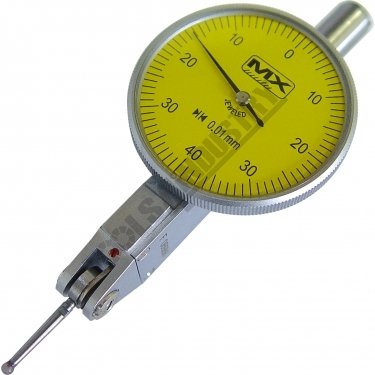

Dial Test Indicator - Metric 34-217 Jewel Movement - Measuring In Both Directions
Features
- The dial test indicator is ideally suited for all kinds of comparative measurements in the workshop and inspection room
- It also can be used together with machine tools, apparatus and other measuring devices - Steel ball end
- Jewel movement - measuring in both directions

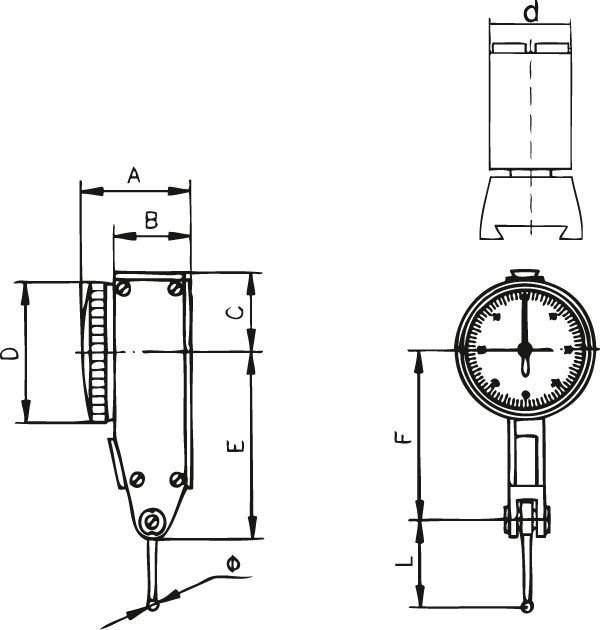

Specifications
- Compare 3 Products
- ORDER CODE
- Range
- Graduations
- Amm
- Bmm
- B1mm
- Cmm
- Dmm
- dmm
- Emm
- Fmm
- Gmm
- Hmm
- Imm
- J
- Kmm
- Lmm
- L1mm
- Ømm
| ORDER CODE | 0 - 0.8mm |
|---|---|
| Range | 0.01mm |
| Graduations | 26.35 |
| Amm | 18.35 |
| Bmm | ~ |
| B1mm | 16.5 |
| Cmm | Ø37 |
| Dmm | 6 / 8 |
| dmm | 44 |
| Emm | 39.75 |
| Fmm | ~ |
| Gmm | ~ |
| Hmm | ~ |
| Imm | ~ |
| J | ~ |
| Kmm | 16.5 |
| Lmm | ~ |
| L1mm | 2 |
| Ømm |
