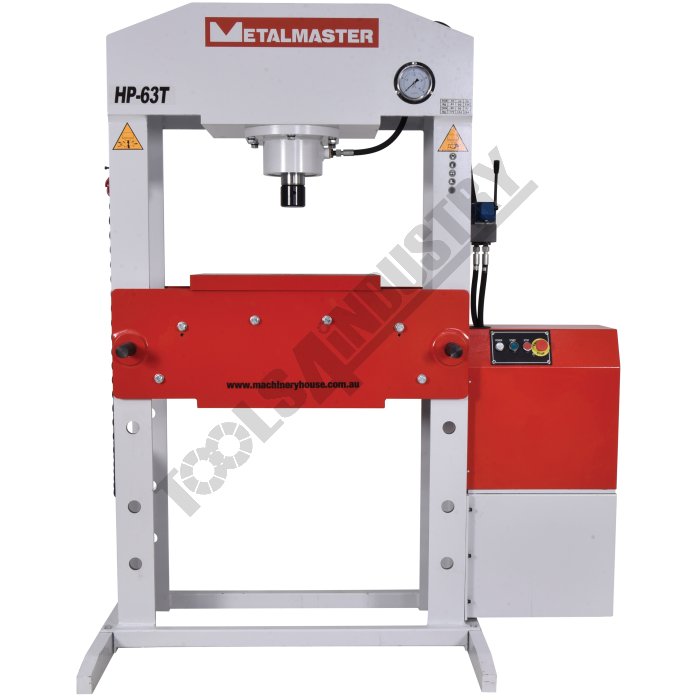

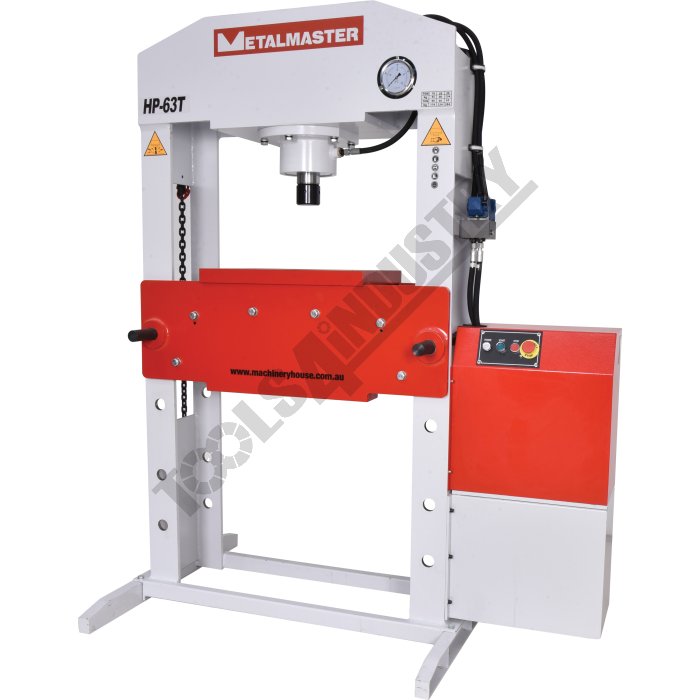

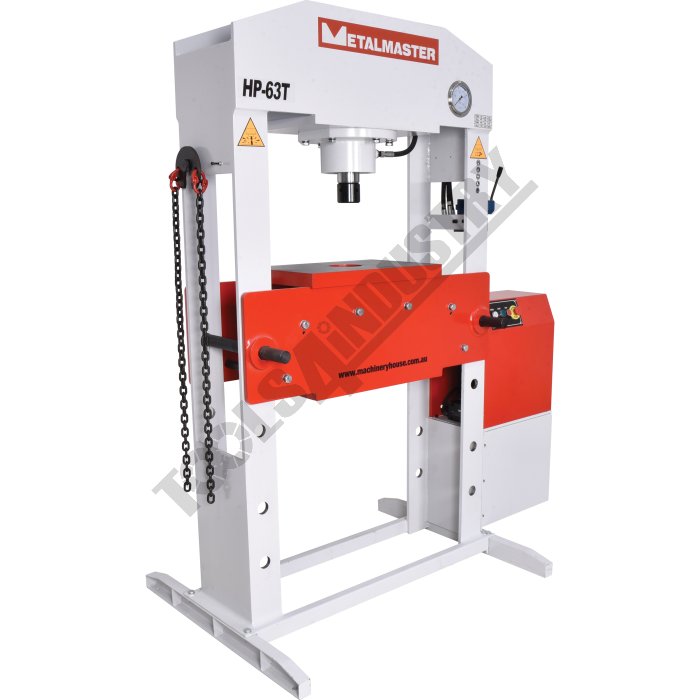

Industrial Motorised Hydraulic Press - 63 Tonne HP-63T Welded Steel Frame Construction

Description

The Metalmaster HP-63T, 63 Tonne electric/hydraulic press is ideal for pressing, bending, forming, straightening and a whole variety of operations. The hydraulic system is equipped with a pressure guage and a joystick lever to control the operation. A heavy one piece steel workplate and a pair of pressing blocks are supplied as standard equipment.

Features

• H frame design with welded steel frame construction
• Electric/Hydraulic operation provides smooth, consistent pressing action

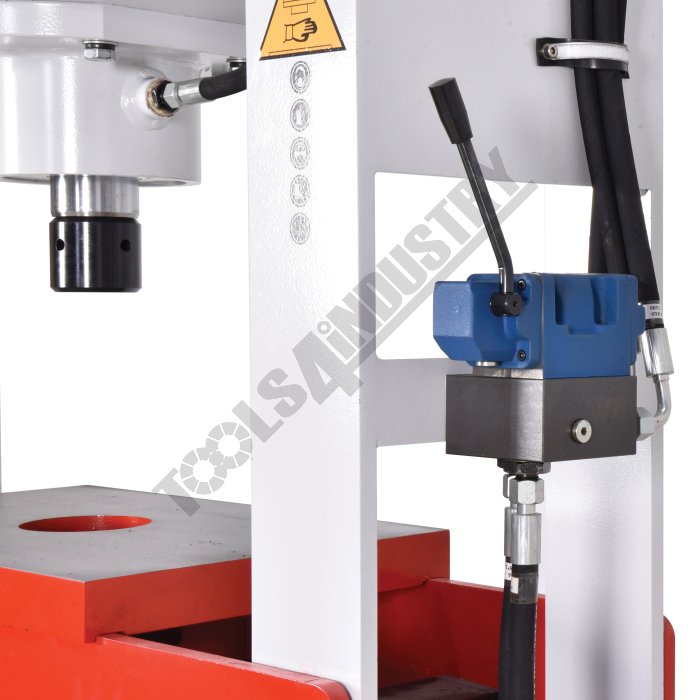

• Joystick control for ram stroke and return

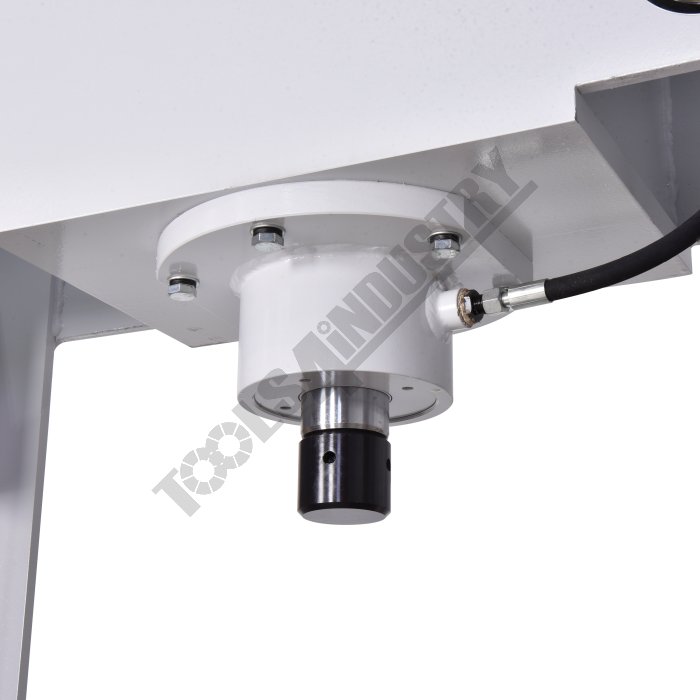

• 300mm Ram stroke
• Ram speed down 7.7mm/sec, returns 6.5mm/sec
• Pressure gauge fitted for easy control of pressing operations
• Height adjustable worktable with 5 adjustment positions
• Heavy one piece steel work plate and pressing blocks

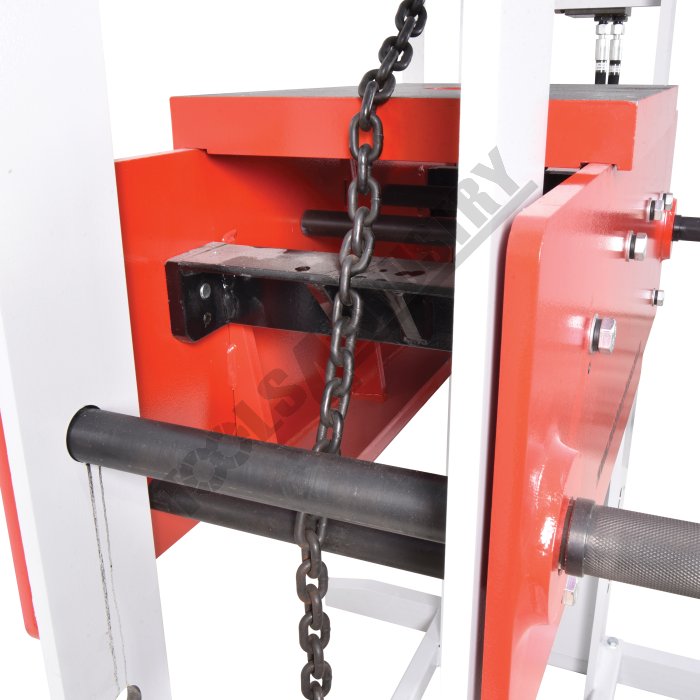

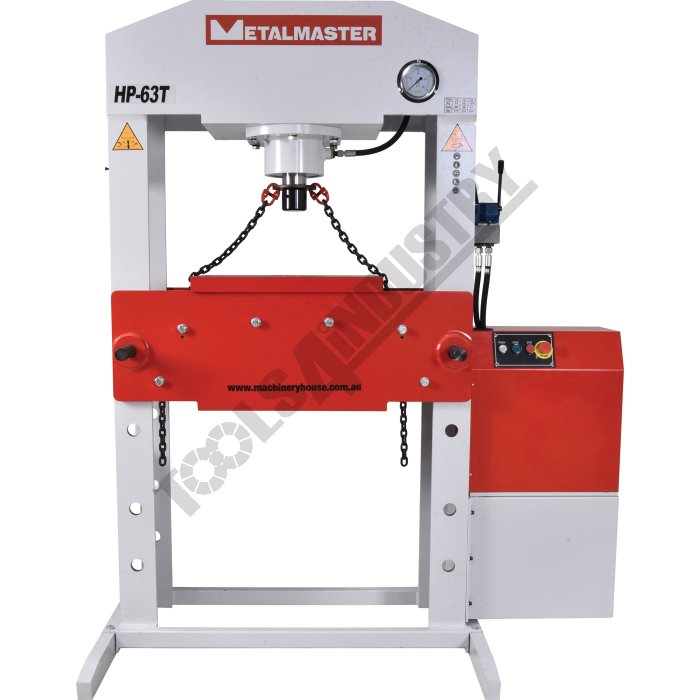

• Work table height easily adjusted with the assiatnce of the ram

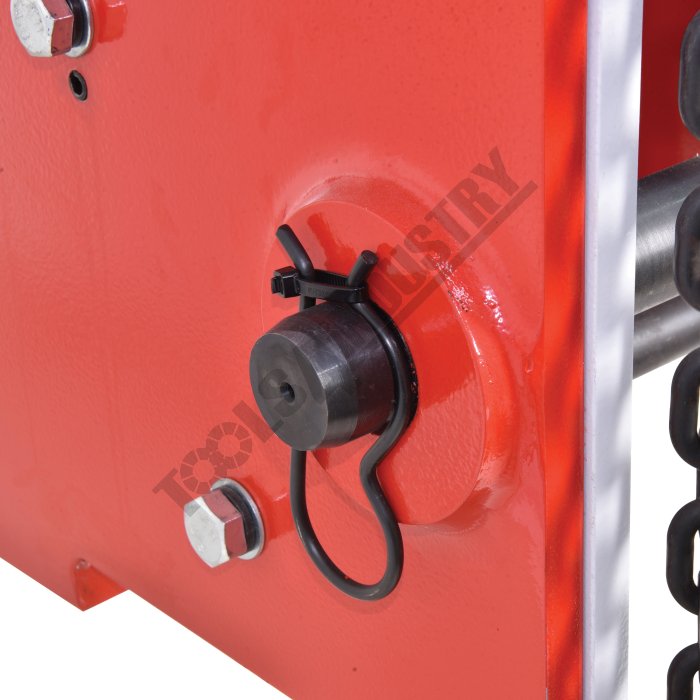

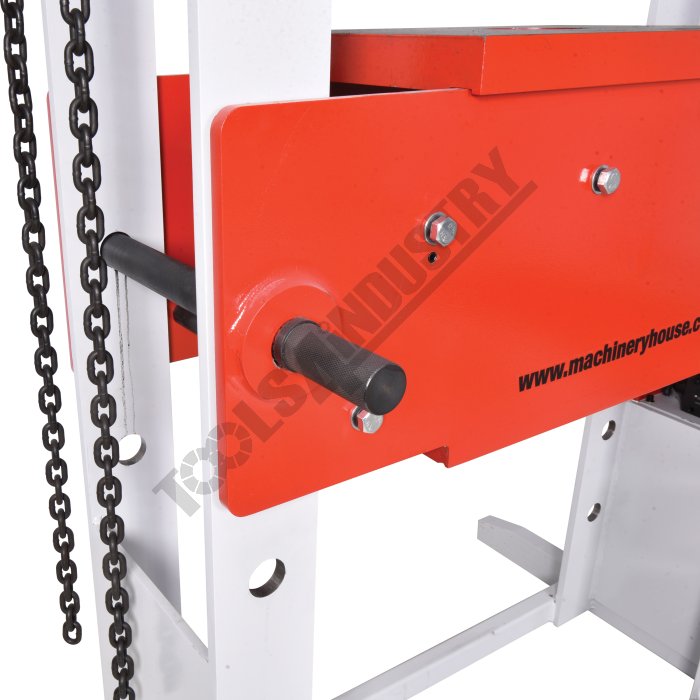

• Reinforced table support holes with high tensile setting pins
• Safety overload valve
• Powerful TEFC motor
• Ideal for any industrial workshop for the repair of axles, shafts, & press fit of bearings & bushings

Includes

• Heavy one piece steel work plate
• Pair of double sided pressing blocks (Vee & Flat)

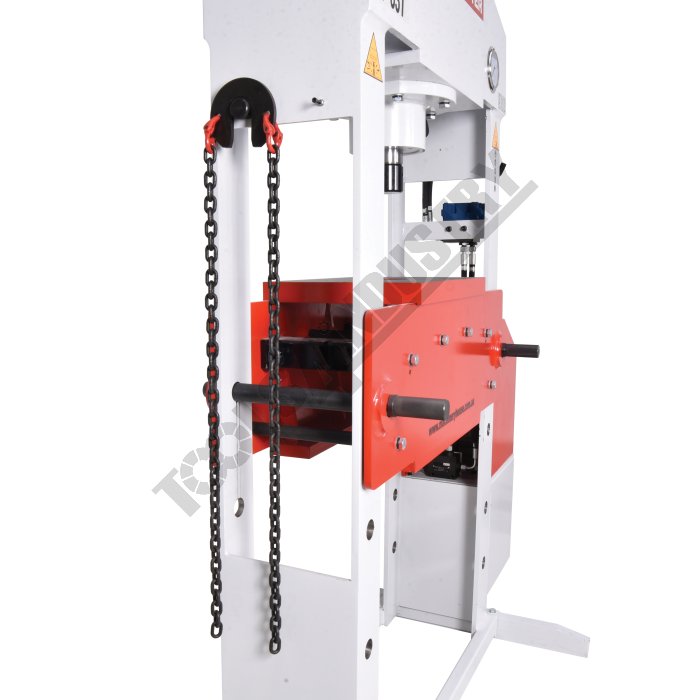

• Table raising and lowering chains
