P138

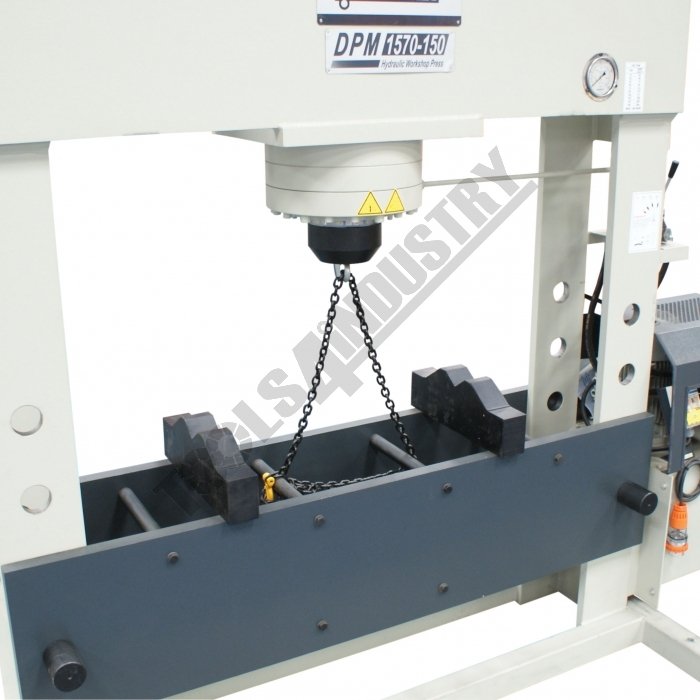

Table Height Adjustment

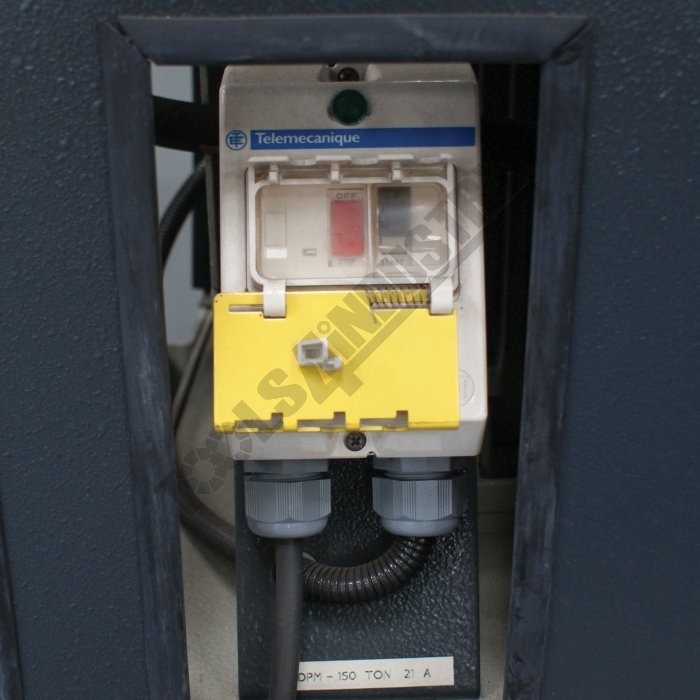

Switch

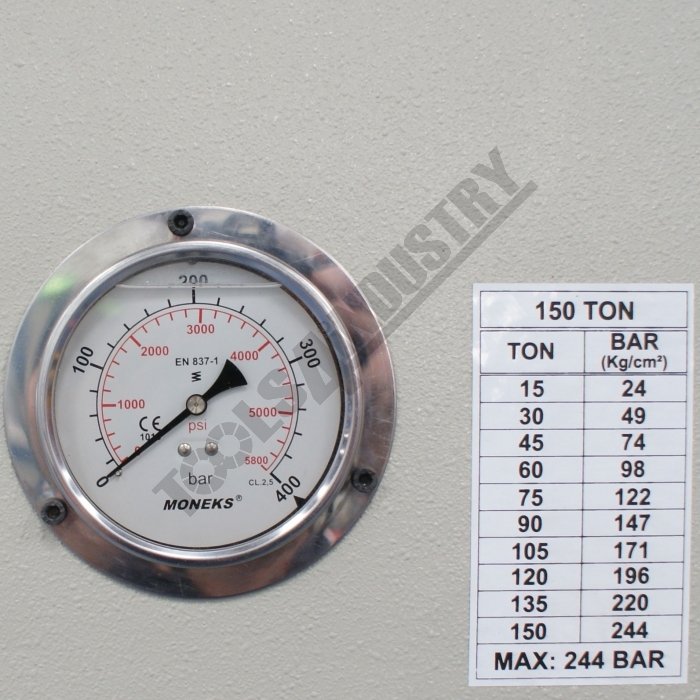

Pressure Gauge

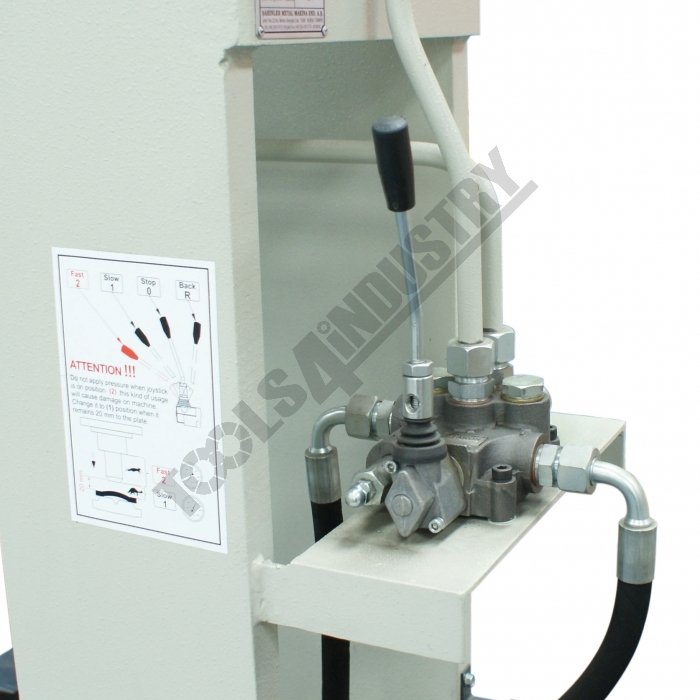

Hydraulic Controls

Code	P138
Model	DPM-1570
Capacity	15hp 415V Motor, 300mm Ram Stroke & 800mm Height From Ram To Table
Weight (kg)	2100
Weight (m³)	6.078
Weight (Freight)	2100
Dimensions (cm)	255 x 105 x 227

Product Brochure Press - Hydraulic Risk Assessment

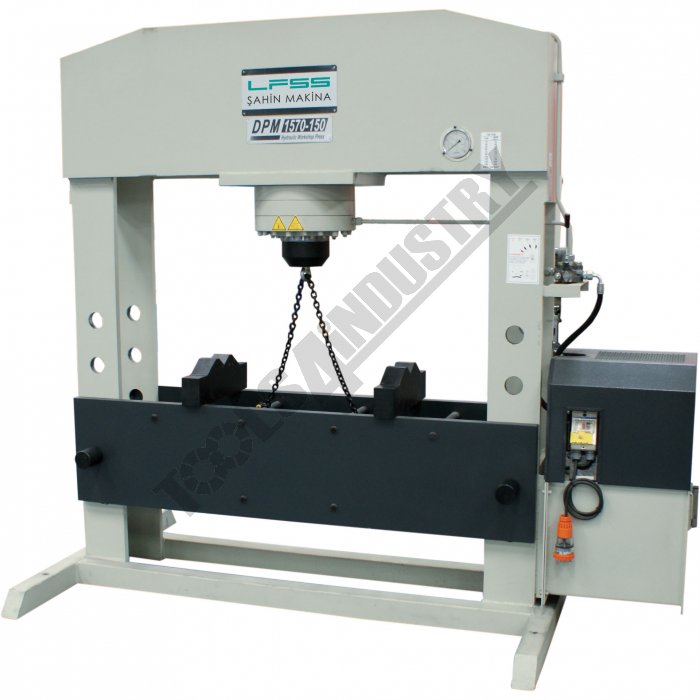

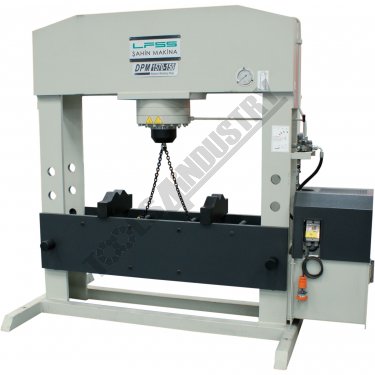

Industrial Motorised Hydraulic Press - 150 Tonne DPM-1570 15hp 415V Motor, 300mm Ram Stroke & 800mm Height From Ram To Table

Description

150 Tonne Industrial Hydraulic Press
Suited for the Industrial workshop, for pressing of bearings, bushings & straightening shafts, bending steel as well as all general pressing applications

Features

Heavy duty steel welded frame
Hydraulic operated pressing ram
1570mm width between front posts
Dual-speed joystick control (fast approach, slow bend)
Pressure gauge fitted for easy control of pressing operations
Heavy duty worktable with 5 adjustable positions
Worktable can be adjusted using the provided chain system which works in conjunction with the hydraulic ram
Safety overload valve
Safety contactor switch with overload protection
Built to CE regulations

Includes

Pair of bending plates
Table lifting and lowering chains
Hydraulic oil

Videos

Specifications

Compare 21 Products
ORDER CODE
MODEL
Pressing CapacityTonne
Hydraulic Ram OperationType
Sliding Ram (left-right)Yes / No
Width Between Front Postsmm
Width Between Side Postsmm
Table Top Opening - (Front to Back)mm
Ram To Table (Max.)mm
Cylinder Strokemm
Ram Diametermm
Piston Diametermm
Minimum Air Flow Rate requiredL/Min
Motor PowerkW / hp
VoltageV
Floor Space (W x D x H)mm
Nett Weightkg

P138
DPM-1570
150
Motorised System
No
1570
285
355
800
300
Ø280
~
~
11 / 15
415
2660 x 1050 x 2480
2100

P406M
HPM-200T
200
Motorised System
Yes
1250
420
500
700
350
Ø160
~
~
7.5 / 10
415
2150 x 1110 x 2210
2400

P408M
HPM-300T
300
Motorised System
Yes
1300
510
600
860
370
Ø200
~
~
22 / 30
415
2380 x 1210 x 2525
3900

P141
PP-10HD
10
Manual Hand Lever
Yes
340
95
120
335
180
Ø40
Ø45
~
~
~
755 x 540 x 800
57.2

K4028
HP-20PP & PDS-2B
20
Manual Hand Lever
Yes
542
85
105
980
185
Ø48
Ø60
~
~
~
1100 x 800 x 1780
117.5

P142
HP-20PP
20
Manual Hand Lever
Yes
541
85
105
980
185
Ø48
Ø60
~
~
~
1100 x 800 x 1780
114.5

P150
HPF-20
20
Manual Hand Lever /
Foot Pedal System
Yes
510
132
152
1118
150
Ø48
Ø60
~
~
~
1000 x 800 x 1830
147

P145
HP-30P
30
Manual Hand Lever /
Pneumatic System
Yes
460
135
155
1095
165
Ø70
Ø80
~
~
~
1000 x 800 x 1950
180

P130M
HPM-30
30
Manual Hand Lever /
Pneumatic System
Yes
535
138
160
1035
155
Ø70
Ø80
200
~
~
950 x 700 x 1800
200

P129
HDP-35
35
Manual Hand Lever
Yes
790
208
240
730
130
Ø80
Ø125
~
~
~
1170 x 850 x 1870
358

P147
HP-45P
45
Manual Hand Lever /
Pneumatic System
No
825
185
195
855
190
Ø58
Ø95
200
~
~
1550 x 1050 x 1720
340

P152
HPF-50
50
Manual Hand Lever /
Foot Pedal System
Yes
730
205
185
1050
200
Ø75
Ø100
~
~
~
1360 x 800 x 1900
340

P131M
HPM-50
50
Motorised System
Yes
730
205
185
1050
200
Ø75
~
~
1.5 / 2
240
1530 x 800 x 1840
409

P400
HP-63T
63
Motorised System
No
895
275
325
900
300
Ø80
~
~
4 / 5.3
415
1700 x 1000 x 2080
869

P400M
HPM-63T
63
Motorised System
Yes
895
275
325
900
300
Ø80
~
~
4 / 5.3
415
1700 x 1000 x 2080
912

P402
HP-100T
100
Motorised System
No
1050
310
363
900
350
Ø100
~
~
7.5 / 10
415
1920 x 1000 x 2220
1342

P402T
HPR-100T
100
Motorised System
Yes
1060
310
~
890
350
Ø100
~
~
7.5 / 10
415
1780 x 1865 x 2655
1960

P402M
HPM-100T
100
Motorised System
Yes
1050
310
363
900
350
Ø100
~
~
7.5 / 10
415
1920 x 1000 x 2450
1384

P136
DPM-1070
100
Motorised System
No
1070
250
305
800
300
Ø220
~
~
5.5 / 7.5
415
2100 x 1050 x 2200
1500

P136P
AP-1020/100 - Pressbrake
100
Motorised System
No
1020
~
~
~
300
Ø220
~
~
7.5 / 10
415
2100 x 1050 x 2220
1900

P404M
HPM-150T
150
Motorised System
Yes
1100
400
465
900
350
Ø130
~
~
7.5 / 10
415
1970 x 1100 x 2150
1792

ORDER CODE	DPM-1570
MODEL	150
Pressing CapacityTonne	Motorised System
Hydraulic Ram OperationType	No
Sliding Ram (left-right)Yes / No	1570
Width Between Front Postsmm	285
Width Between Side Postsmm	355
Table Top Opening - (Front to Back)mm	800
Ram To Table (Max.)mm	300
Cylinder Strokemm	Ø280
Ram Diametermm	~
Piston Diametermm	~
Minimum Air Flow Rate requiredL/Min	11 / 15
Motor PowerkW / hp	415
VoltageV	2660 x 1050 x 2480
Floor Space (W x D x H)mm	2100
Nett Weightkg
