| Code | P455 |
|---|---|
| Model | PBA-60 |
| Capacity | 600 x 10mm Capacity |
| Weight (kg) | 54 |
| Weight (m3) | 0.033 |
| Weight (Freight) | 54 |
| Dimensions (cm) | 72 x 22 x 21 |

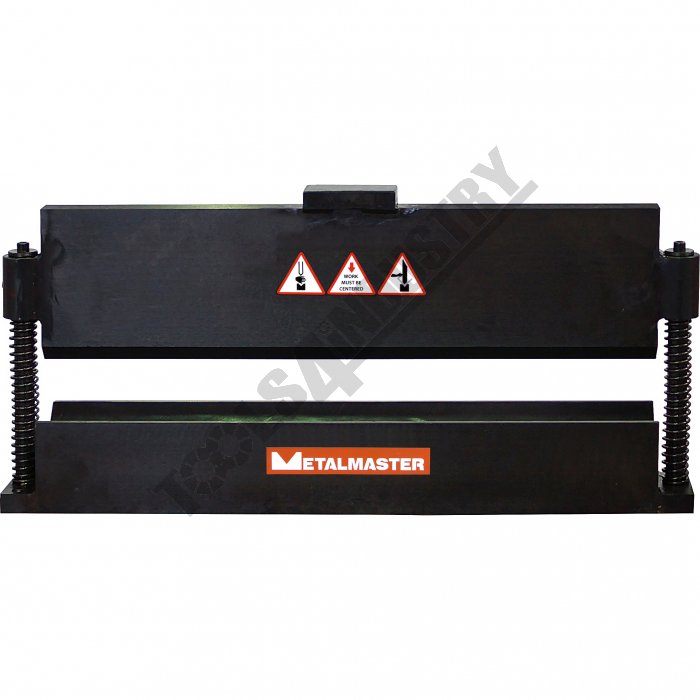

Pressbrake Attachment - Suits Hydraulic Presses PBA-60 600 x 10mm Capacity
Description

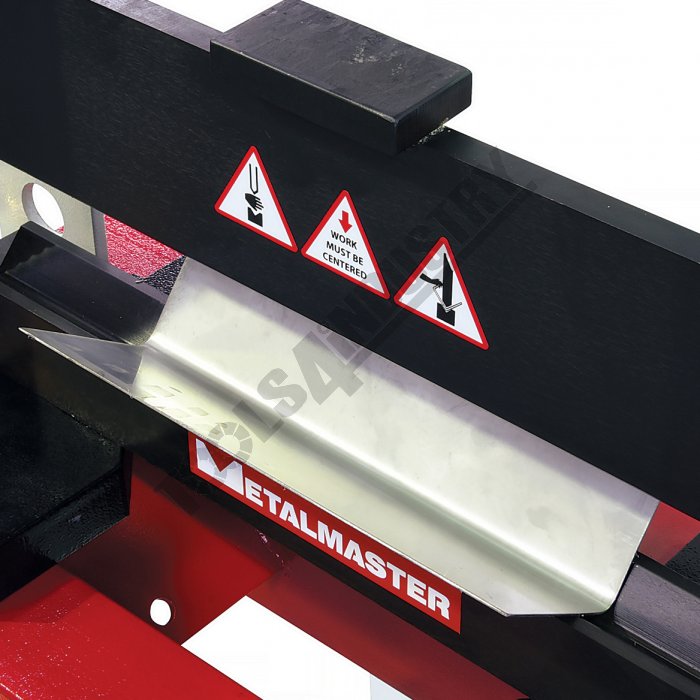

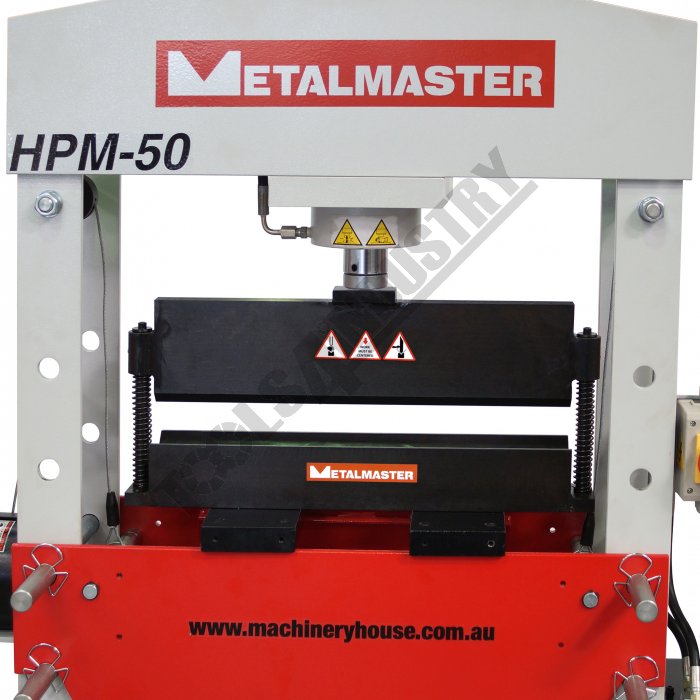

This PBA-60 attachment is designed to bend sheet metal or plate steel using a standard hydraulic press. The top die is spring loaded and supported by two guide rods, and will automatically open the tool back to home position once you have released the hydraulic pressure.Features
- Fabricated steel construction
- 600mm bending length
- 80mm wide vee block die
- 50mm open height
- Top die with return springs & guide rods
- Overall Dimensions:
- 680 x 85 x 305mm (LxWxH)
Specifications
- Compare 6 Products
- ORDER CODE
- MODEL
- Bending Capacitymm
- Bending Lengthmm
- Vee Openingmm
| ORDER CODE | PBA-60 |
|---|---|
| MODEL | 600 x 10 |
| Bending Capacitymm | 600 |
| Bending Lengthmm | 80 |
| Vee Openingmm |
