| Code | P136P |
|---|---|
| Model | AP-1020/100 |
| Capacity | 10hp 415V Motor & 300mm Ram Stroke |
| Weight (kg) | 1900 |
| Weight (m3) | 4.851 |
| Weight (Freight) | 1900 |
| Dimensions (cm) | 210 x 105 x 220 |

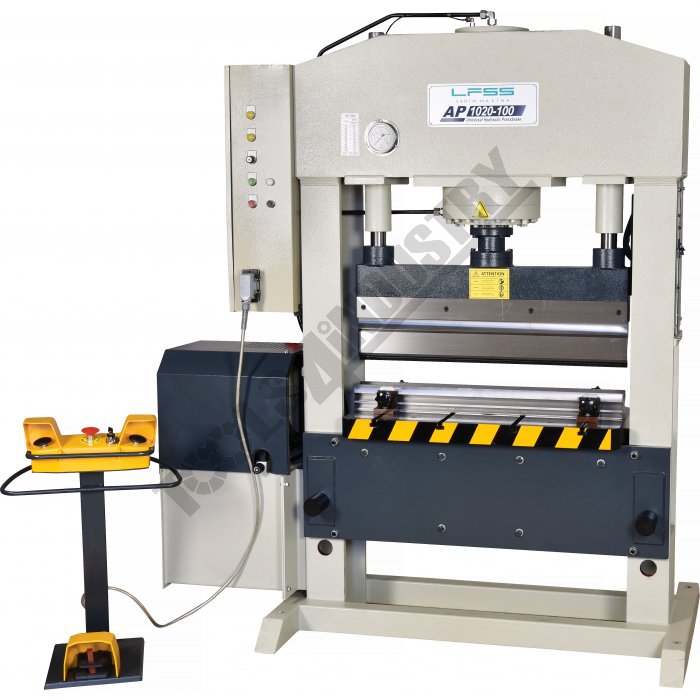

Industrial Motorised Hydraulic Press Bender - 100 Tonne AP-1020/100 10hp 415V Motor & 300mm Ram Stroke
Description
100 tonne Hydraulic Press Bender Includes a Pressbrake AttachmentNote: Pressbrake attachment can be removed to use as a standard shop press
Features
- 1020mm x 86° offset top punch tool

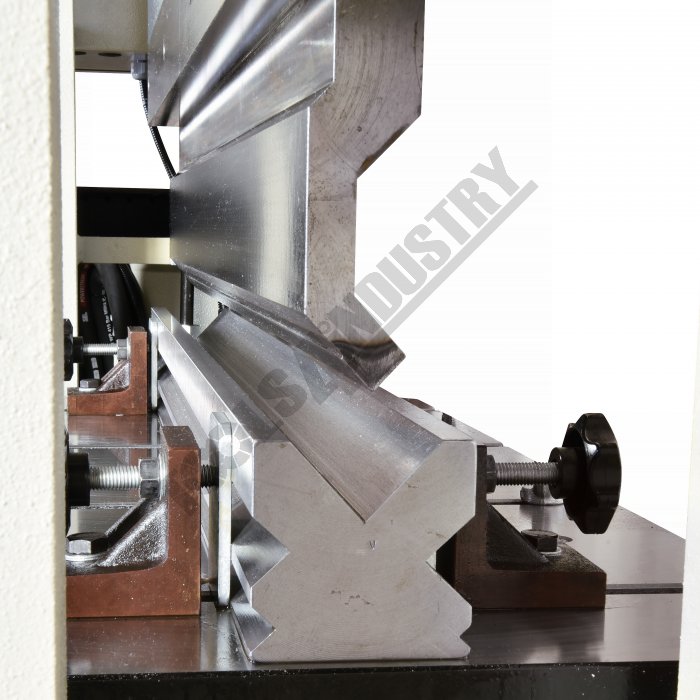

- 1020mm x 95mm square bottom multi-vee die block, 10, 20, 30, 40 & 65mm vee
- 8mm maximum plate bending thickness with pressbrake attachment
- 1020 x 500mm die table with a Ø100mm centre hole
- 680mm distance between tables
- Fast approach slow bend

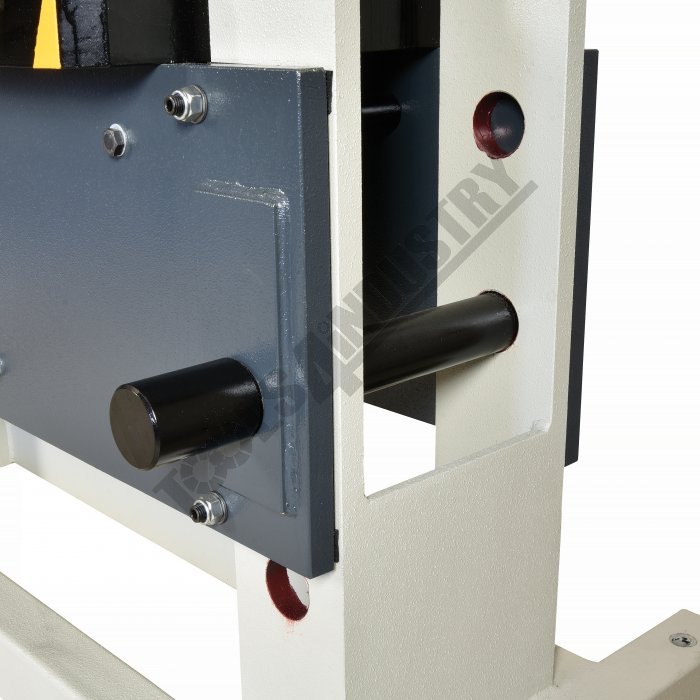

- Adjustment system for taking down or up the table
- Pressure adjustment

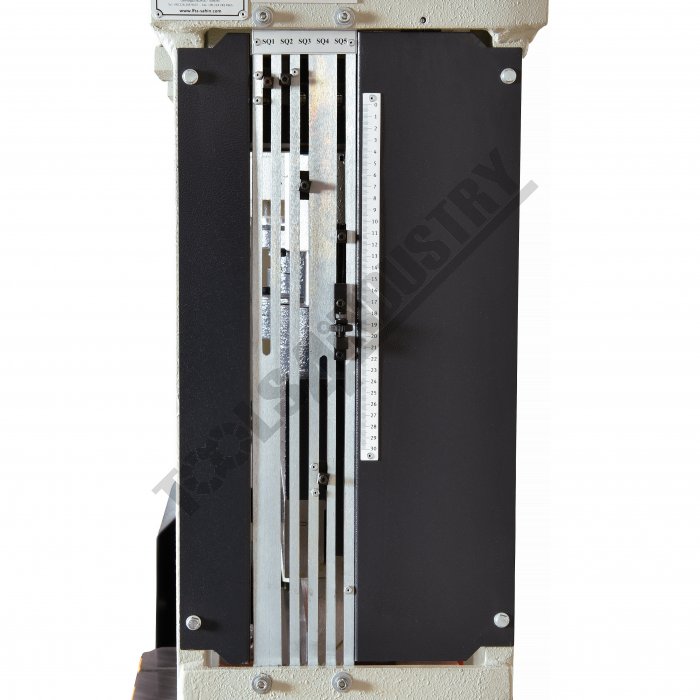

- Adjustable stroke

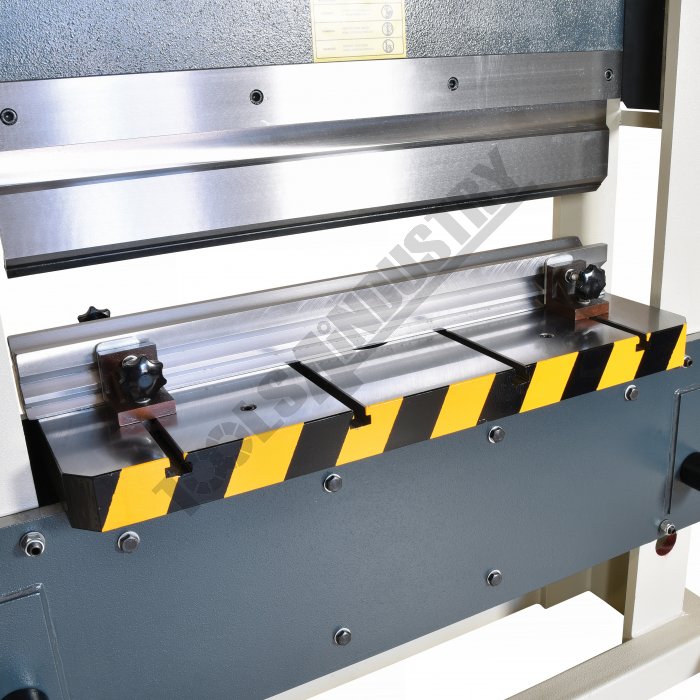

- T-slotted bottom table

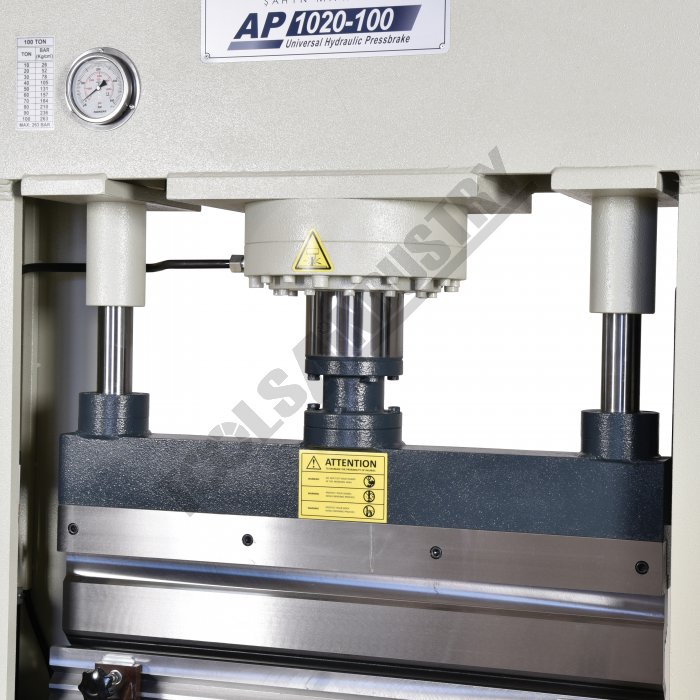

- High capacity workshop forming press with extra 2 guide pistons in both sides

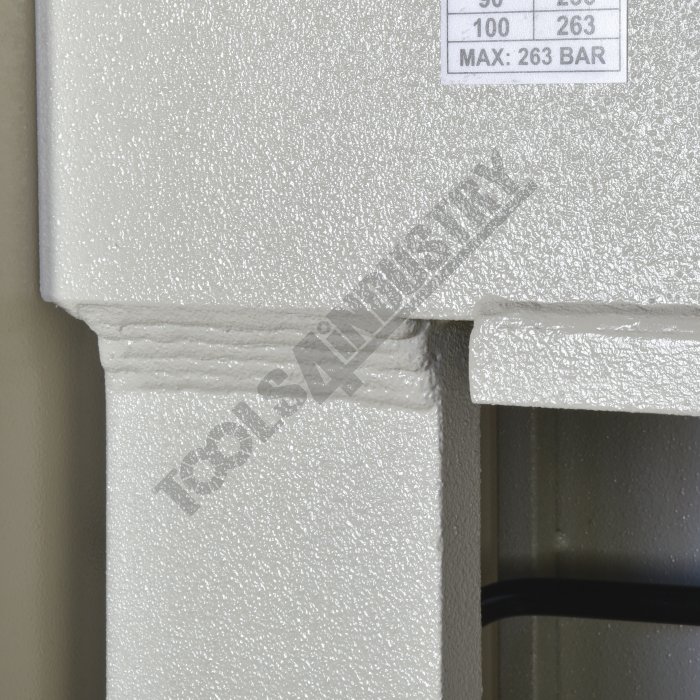

- Heavy duty steel welded frame
- Hydraulic operated pressing ram

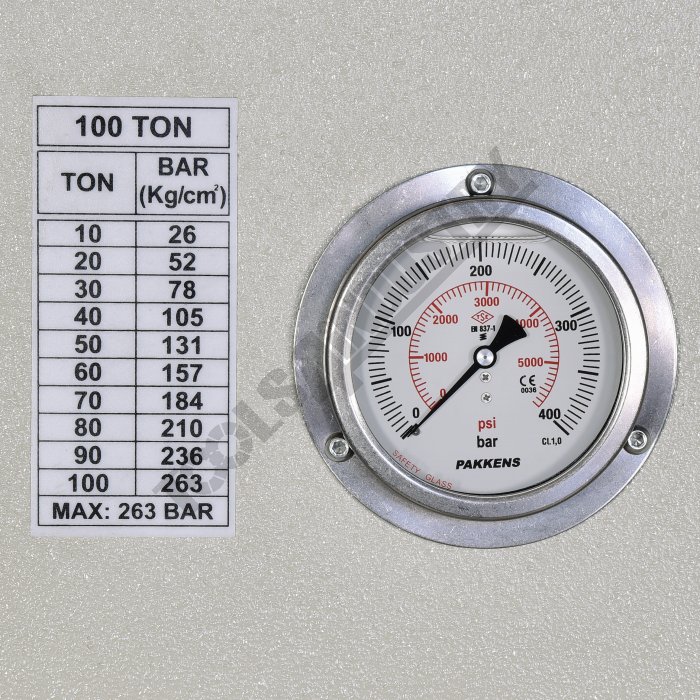

- Pressure gauge fitted
- Safety overload valve
- Built to CE regulations

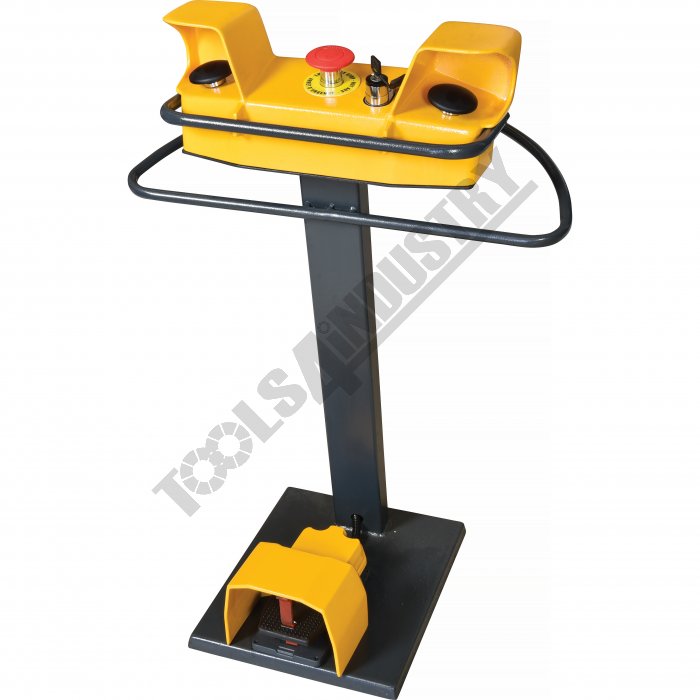

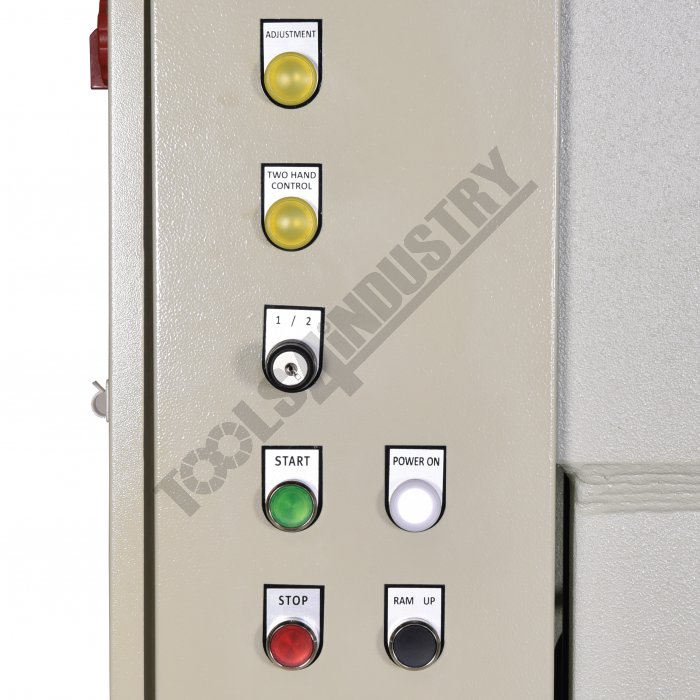

- Foot Pedal control
- Safety contactor switch with overload protection
- 8mm/sec Fast Approach
- 5mm/sec Working Speed
- 10mm/sec Return Speed
- Pre-Commissioning:
- 1. Press is run & tested prior delivery
- 2. Hydraulic oil is included with machine
Includes

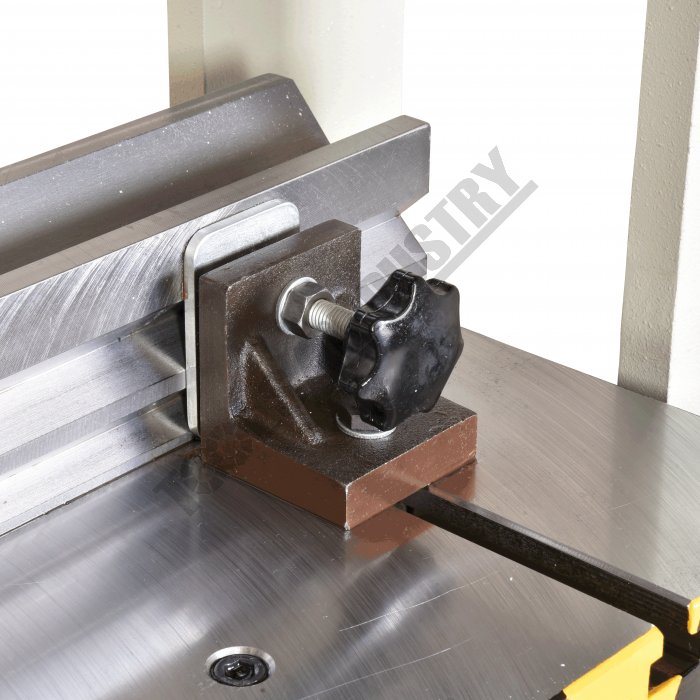

- Complete with Pressbrake Attachment
Videos
Specifications
- Compare 21 Products
- ORDER CODE
- MODEL
- Pressing CapacityTonne
- Hydraulic Ram OperationType
- Sliding Ram (left-right)Yes / No
- Width Between Front Postsmm
- Width Between Side Postsmm
- Table Top Opening - (Front to Back)mm
- Ram To Table (Max.)mm
- Cylinder Strokemm
- Ram Diametermm
- Piston Diametermm
- Minimum Air Flow Rate requiredL/Min
- Motor PowerkW / hp
- VoltageV
- Floor Space (W x D x H)mm
- Nett Weightkg
- P136P
- AP-1020/100 - Pressbrake
- 100
- Motorised System
- No
- 1020
- ~
- ~
- ~
- 300
- Ø220
- ~
- ~
- 7.5 / 10
- 415
- 2100 x 1050 x 2220
- 1900
- P404M
- HPM-150T
- 150
- Motorised System
- Yes
- 1100
- 400
- 465
- 900
- 350
- Ø130
- ~
- ~
- 7.5 / 10
- 415
- 1970 x 1100 x 2150
- 1792
- P138
- DPM-1570
- 150
- Motorised System
- No
- 1570
- 285
- 355
- 800
- 300
- Ø280
- ~
- ~
- 11 / 15
- 415
- 2660 x 1050 x 2480
- 2100
- P406M
- HPM-200T
- 200
- Motorised System
- Yes
- 1250
- 420
- 500
- 700
- 350
- Ø160
- ~
- ~
- 7.5 / 10
- 415
- 2150 x 1110 x 2210
- 2400
- P408M
- HPM-300T
- 300
- Motorised System
- Yes
- 1300
- 510
- 600
- 860
- 370
- Ø200
- ~
- ~
- 22 / 30
- 415
- 2380 x 1210 x 2525
- 3900
- P141
- PP-10HD
- 10
- Manual Hand Lever
- Yes
- 340
- 95
- 120
- 335
- 180
- Ø40
- Ø45
- ~
- ~
- ~
- 755 x 540 x 800
- 57.2
- K4028
- HP-20PP & PDS-2B
- 20
- Manual Hand Lever
- Yes
- 542
- 85
- 105
- 980
- 185
- Ø48
- Ø60
- ~
- ~
- ~
- 1100 x 800 x 1780
- 117.5
- P142
- HP-20PP
- 20
- Manual Hand Lever
- Yes
- 541
- 85
- 105
- 980
- 185
- Ø48
- Ø60
- ~
- ~
- ~
- 1100 x 800 x 1780
- 114.5
- P150
- HPF-20
- 20
- Manual Hand Lever /
Foot Pedal System - Yes
- 510
- 132
- 152
- 1118
- 150
- Ø48
- Ø60
- ~
- ~
- ~
- 1000 x 800 x 1830
- 147
- P145
- HP-30P
- 30
- Manual Hand Lever /
Pneumatic System - Yes
- 460
- 135
- 155
- 1095
- 165
- Ø70
- Ø80
- ~
- ~
- ~
- 1000 x 800 x 1950
- 180
- P130M
- HPM-30
- 30
- Manual Hand Lever /
Pneumatic System - Yes
- 535
- 138
- 160
- 1035
- 155
- Ø70
- Ø80
- 200
- ~
- ~
- 950 x 700 x 1800
- 200
- P129
- HDP-35
- 35
- Manual Hand Lever
- Yes
- 790
- 208
- 240
- 730
- 130
- Ø80
- Ø125
- ~
- ~
- ~
- 1170 x 850 x 1870
- 358
- P147
- HP-45P
- 45
- Manual Hand Lever /
Pneumatic System - No
- 825
- 185
- 195
- 855
- 190
- Ø58
- Ø95
- 200
- ~
- ~
- 1550 x 1050 x 1720
- 340
- P152
- HPF-50
- 50
- Manual Hand Lever /
Foot Pedal System - Yes
- 730
- 205
- 185
- 1050
- 200
- Ø75
- Ø100
- ~
- ~
- ~
- 1360 x 800 x 1900
- 340
- P131M
- HPM-50
- 50
- Motorised System
- Yes
- 730
- 205
- 185
- 1050
- 200
- Ø75
- ~
- ~
- 1.5 / 2
- 240
- 1530 x 800 x 1840
- 409
- P400
- HP-63T
- 63
- Motorised System
- No
- 895
- 275
- 325
- 900
- 300
- Ø80
- ~
- ~
- 4 / 5.3
- 415
- 1700 x 1000 x 2080
- 869
- P400M
- HPM-63T
- 63
- Motorised System
- Yes
- 895
- 275
- 325
- 900
- 300
- Ø80
- ~
- ~
- 4 / 5.3
- 415
- 1700 x 1000 x 2080
- 912
- P402
- HP-100T
- 100
- Motorised System
- No
- 1050
- 310
- 363
- 900
- 350
- Ø100
- ~
- ~
- 7.5 / 10
- 415
- 1920 x 1000 x 2220
- 1342
- P402T
- HPR-100T
- 100
- Motorised System
- Yes
- 1060
- 310
- ~
- 890
- 350
- Ø100
- ~
- ~
- 7.5 / 10
- 415
- 1780 x 1865 x 2655
- 1960
- P402M
- HPM-100T
- 100
- Motorised System
- Yes
- 1050
- 310
- 363
- 900
- 350
- Ø100
- ~
- ~
- 7.5 / 10
- 415
- 1920 x 1000 x 2450
- 1384
- P136
- DPM-1070
- 100
- Motorised System
- No
- 1070
- 250
- 305
- 800
- 300
- Ø220
- ~
- ~
- 5.5 / 7.5
- 415
- 2100 x 1050 x 2200
- 1500
| ORDER CODE | AP-1020/100 - Pressbrake |
|---|---|
| MODEL | 100 |
| Pressing CapacityTonne | Motorised System |
| Hydraulic Ram OperationType | No |
| Sliding Ram (left-right)Yes / No | 1020 |
| Width Between Front Postsmm | ~ |
| Width Between Side Postsmm | ~ |
| Table Top Opening - (Front to Back)mm | ~ |
| Ram To Table (Max.)mm | 300 |
| Cylinder Strokemm | Ø220 |
| Ram Diametermm | ~ |
| Piston Diametermm | ~ |
| Minimum Air Flow Rate requiredL/Min | 7.5 / 10 |
| Motor PowerkW / hp | 415 |
| VoltageV | 2100 x 1050 x 2220 |
| Floor Space (W x D x H)mm | 1900 |
| Nett Weightkg |
