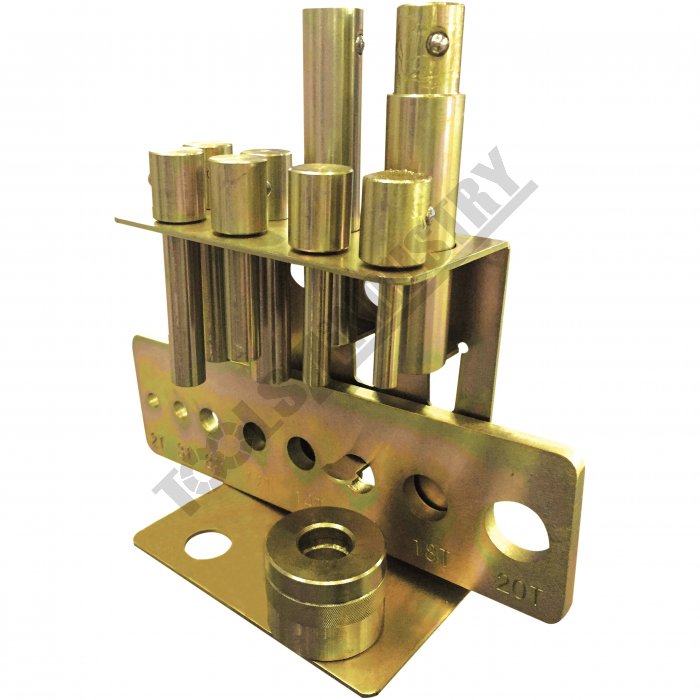

Steel Press Pin Driver Set - 11 piece PPK-20 Ø10 - Ø30mm

Description

The PPK-20 is a set of eight press pins, rated from 2 - 20 tonne capacity, all finished in a yellow phosphate coating for added corrosion resistance.
Suitable for use with presses which have a female ram assembly diameter of 25mm and are secured with a bolt.

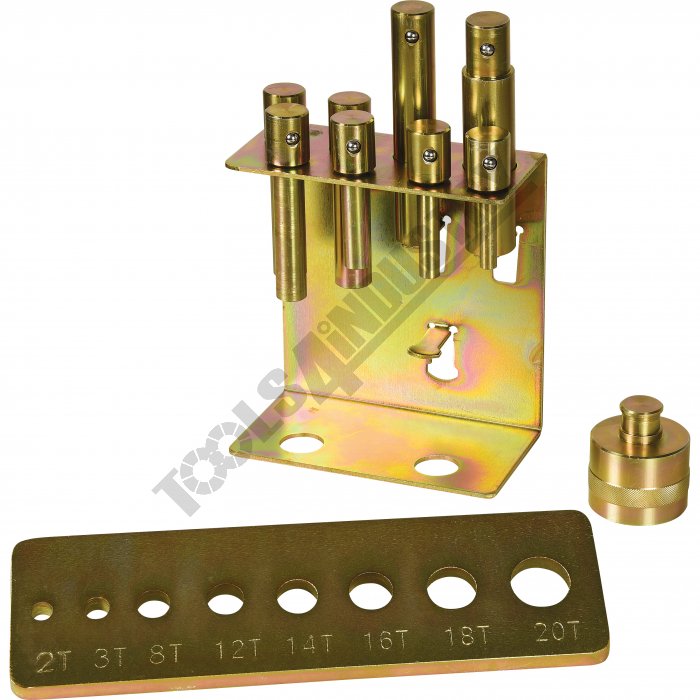

Includes adaptor, punch plate capacity gauge & mountable bracket with fixing points.

Features

• Includes 8 steel press pins 10 - 30mm rated from 2 tonne to 20 tonne

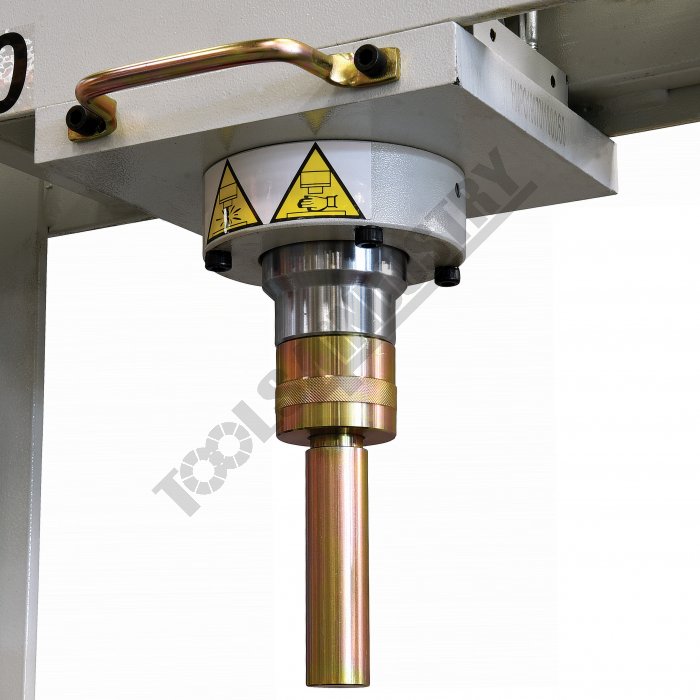

• Pins have Ø25mm locating head with positioning detent

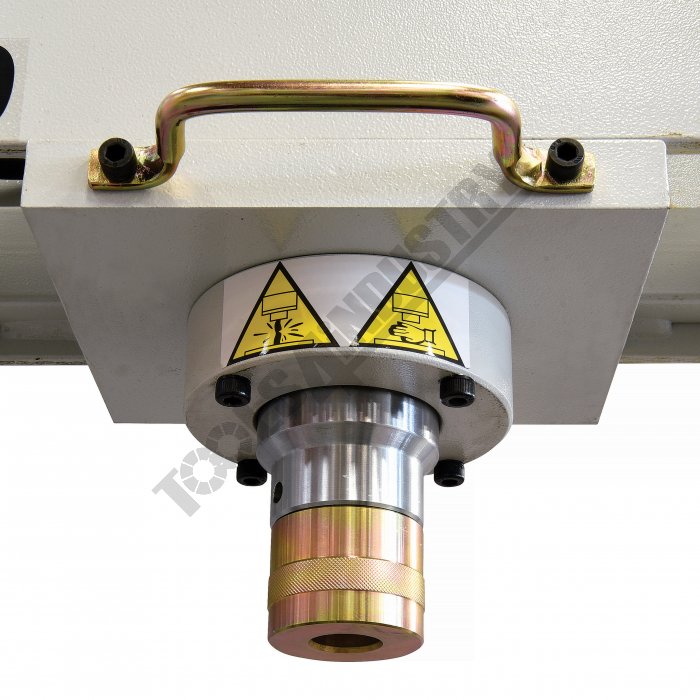

• Adapter fits onto press ram to hold pins in place
• Punch plate capacity gauge
• Mounting storage bracket
• Manufactured all from steel

Includes

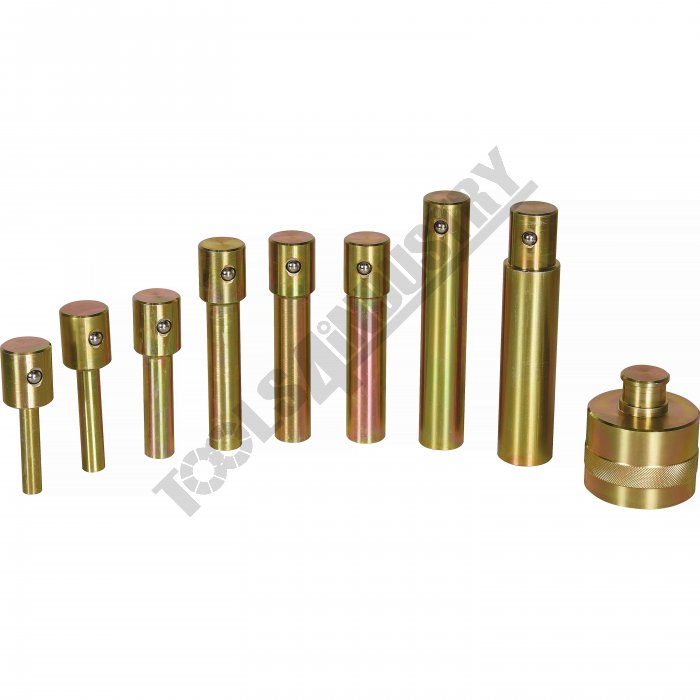

• Pins:
• 2T capacity pin, Ø10 x 50mm long
• 3T capacity pin, Ø12 x 60mm long
• 8T capacity pin, Ø16 x 60mm long
• 12T capacity pin, Ø18 x 85mm long
• 14T capacity pin, Ø20 x 85mm long
• 16T capacity pin, Ø22 x 85mm long
• 18T capacity pin, Ø25 x 110mm long
• 20T capacity pin, Ø30 x 110mm long
