4 Way Roller Support

4 Way Roller Support

Code	H040
Model	AR-HD1
Weight (kg)	24
Weight (m³)	0.115
Weight (Freight)	38.295
Dimensions (cm)	58 x 33 x 60

HAFCO

1 Year Warranty

Product Brochure

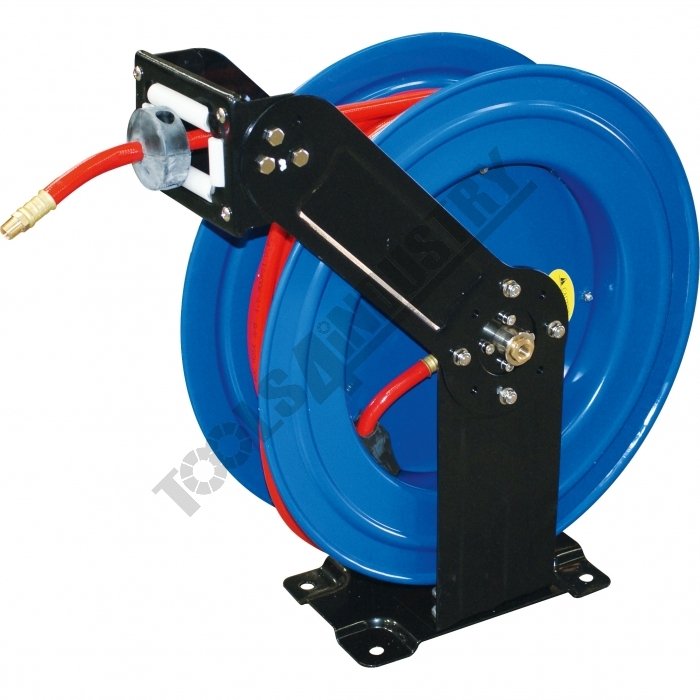

Industrial Retractable Air Hose Reel AR-HD1

Features

10mm x 20 Metres of Air hose

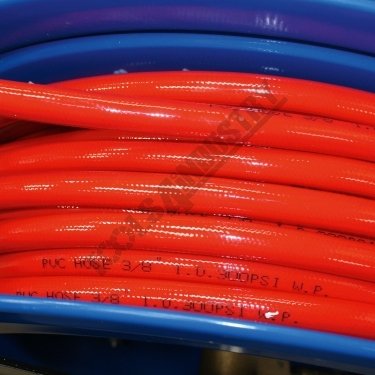

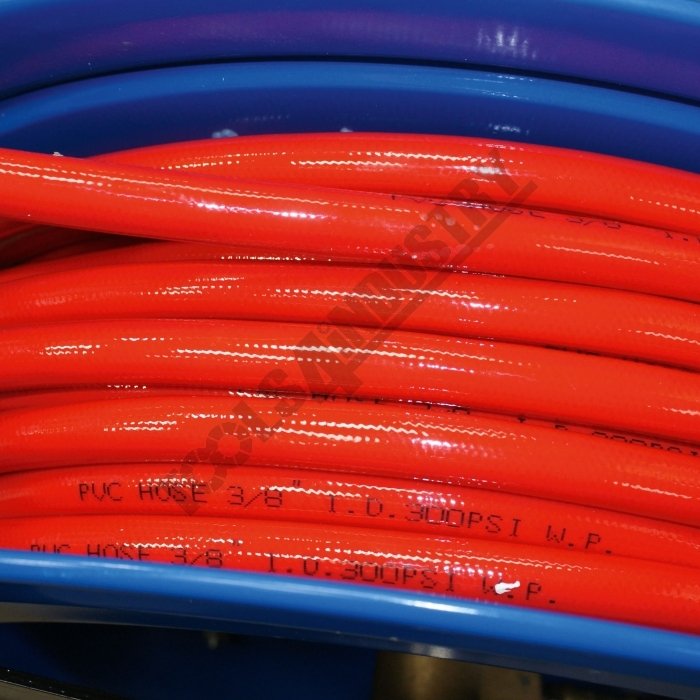

PVC hose rated to 300psi
Complete with mounting brackets
Slow return, stop anywhere
No more tangle hose, recoil unit

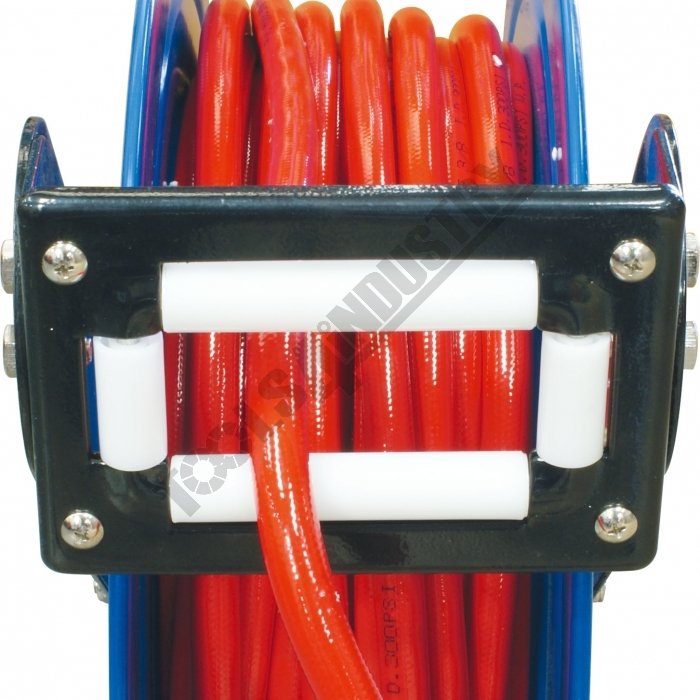

With 4-Way roller guide for hose
Designed for easy use & storage

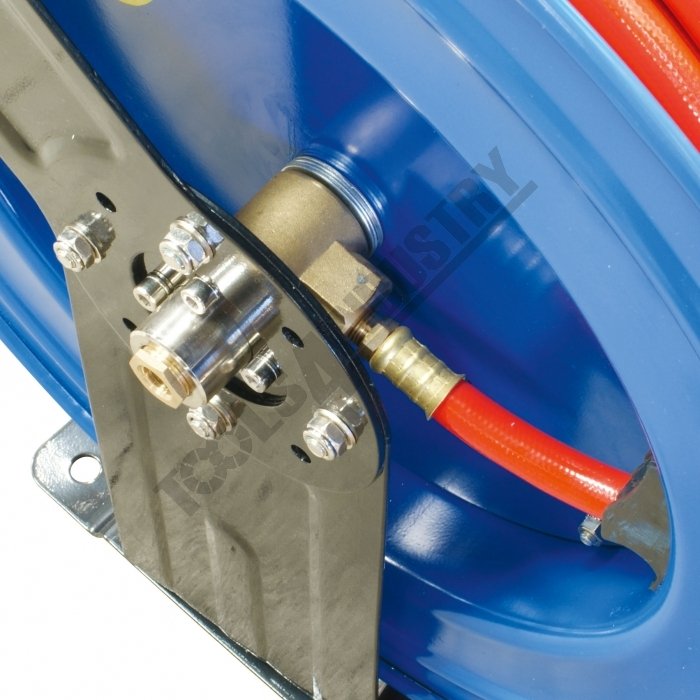

1/4" BSPT Fitting
Industrial return spring
Powder coated
Weight 29kg

Specifications

Compare 7 Products
ORDER CODE
MODEL
Hose TypeAir-Water
Hose LengthMetre
Hose External Diametermm
Hose Internal Diametermm / Inch
Maximum PressurePSI
Nett Weightkg

H040
AR-HD1
Air
20
Ø15.5
Ø10.0
300
29

H0106
AW320B-01
Air & Water
20
~
Ø9.5
250
15

H0107
AW415B-01
Air & Water
15
~
Ø12.7
250
15

H018
RCH-13
Air
7.5
Ø12.7
Ø8.0
150
0.7

H008
RWK-15
Air
15
Ø15.5
Ø9.5
300
2.5

H045
AR-P10
Air
15
Ø13.5
Ø9.5mm
232
6

H038
AR-HD2
Air
15
Ø14.5
Ø10.0
400
17.5

ORDER CODE	AR-HD1
MODEL	Air
Hose TypeAir-Water	20
Hose LengthMetre	Ø15.5
Hose External Diametermm	Ø10.0
Hose Internal Diametermm / Inch	300
Maximum PressurePSI	29
Nett Weightkg
