Code	H0106
Model	AW320B-01
Capacity	R3 Series
Weight (kg)	13
Weight (m³)	0.073
Weight (Freight)	24.309
Dimensions (cm)	56 x 25 x 52

MACNAUGHT

10 Years Warranty

Australia

Product Brochure R3 Series RET IM 2509 SS V3 [2 MB] GD1061 Retracta R3 Air Water Std Hose Product Sheet v5 [684 KB]

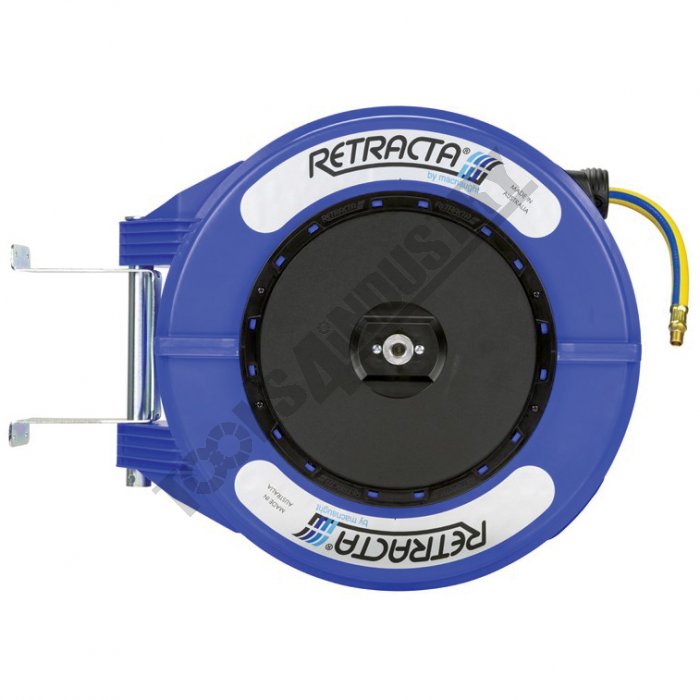

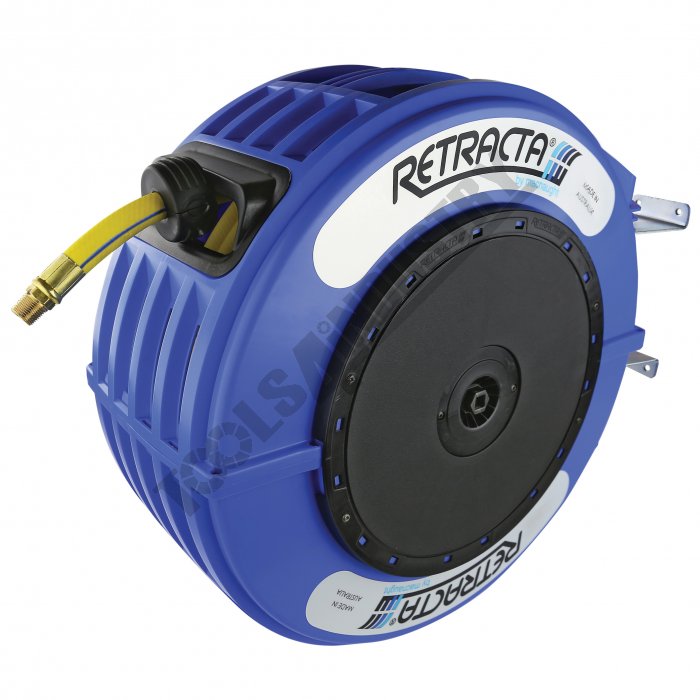

Retractable Air & Water Hose Reel AW320B-01 R3 Series

Description

RETRACTA R3 standard spring rewind reel c/w 20 metre x 9.5mm std air hose, 3/8" BSPF inlet fitting and 1/4" BSPT M hose end

For Warranty Terms and Conditions - click here

Features

High quality std air hose
UV stable, impact resistant case
Wear resistant pro-glide™ mouth
Premium German engineered main spring
Fully serviceable
Hose size - 9.5mm x 20 metre
Hose type - compressed air/water
Inlet/Outlet - 3/8"/1/4" BSP
Pressure rating - 250 psi.
Hose material - reinforced PVC

Includes

Wall mount bracket

Specifications

Compare 7 Products
ORDER CODE
MODEL
Hose TypeAir-Water
Hose LengthMetre
Hose External Diametermm
Hose Internal Diametermm / Inch
Maximum PressurePSI
Nett Weightkg

H0106
AW320B-01
Air & Water
20
~
Ø9.5
250
15

H0107
AW415B-01
Air & Water
15
~
Ø12.7
250
15

H018
RCH-13
Air
7.5
Ø12.7
Ø8.0
150
0.7

H008
RWK-15
Air
15
Ø15.5
Ø9.5
300
2.5

H045
AR-P10
Air
15
Ø13.5
Ø9.5mm
232
6

H038
AR-HD2
Air
15
Ø14.5
Ø10.0
400
17.5

H040
AR-HD1
Air
20
Ø15.5
Ø10.0
300
29

ORDER CODE	AW320B-01
MODEL	Air & Water
Hose TypeAir-Water	20
Hose LengthMetre	~
Hose External Diametermm	Ø9.5
Hose Internal Diametermm / Inch	250
Maximum PressurePSI	15
Nett Weightkg
