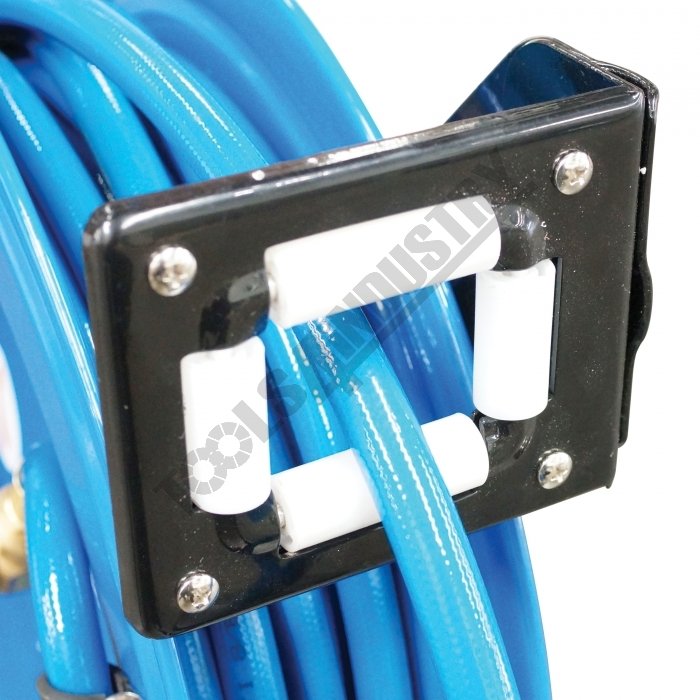

4 Way Roller Guide

4 Way Roller Guide

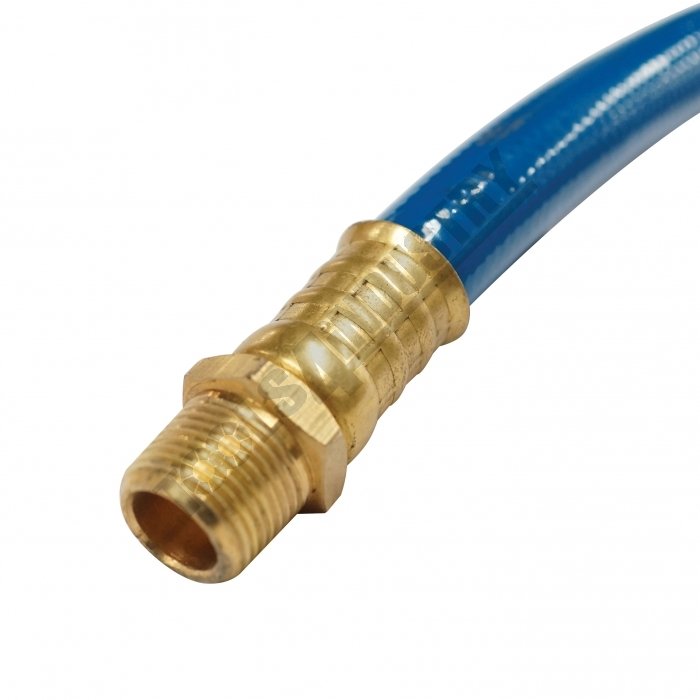

Air Hose Fitting

Air Hose Fitting

Code	H038
Model	AR-HD2
Weight (kg)	14
Weight (m³)	0.049
Weight (Freight)	16.317
Dimensions (cm)	49 x 20 x 50

HAFCO

1 Year Warranty

Product Brochure Instruction Manual [2 MB] Parts List [580 KB]

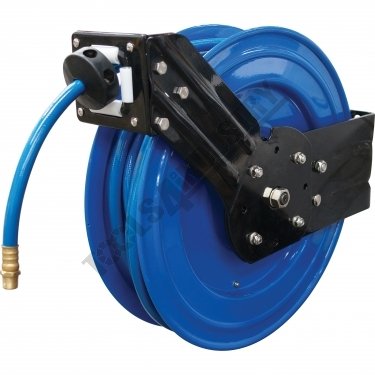

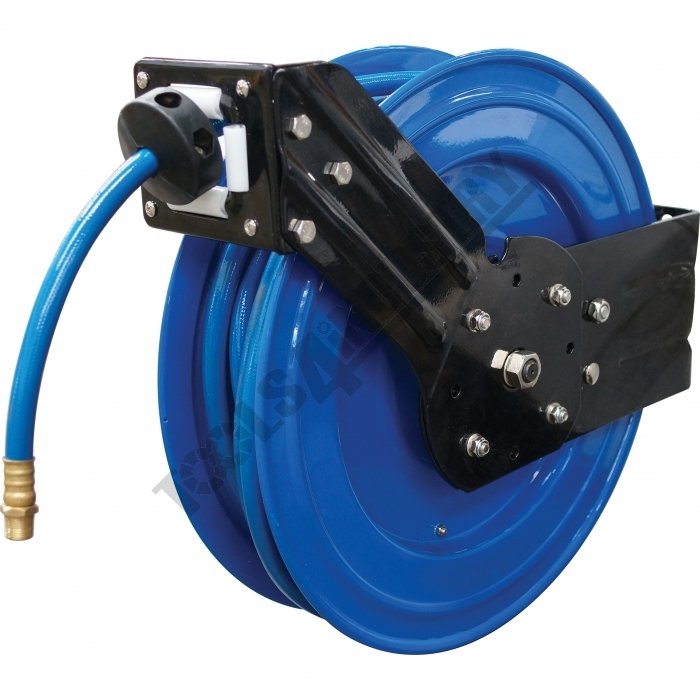

Industrial Retractable Air Hose Reel AR-HD2

Features

10mm x 15 Metres of Air hose
PVC reinforced hose rated to 400psi
Complete with mounting brackets
No more tangle hose, recoil unit
With 4-Way roller guide for hose
Base plate with single arm support
Slow return with stop anywhere hose lock
1/4" BSPT Fitting
Powder coated
Weight 17.5kg

Specifications

Compare 7 Products
ORDER CODE
MODEL
Hose TypeAir-Water
Hose LengthMetre
Hose External Diametermm
Hose Internal Diametermm / Inch
Maximum PressurePSI
Nett Weightkg

H038
AR-HD2
Air
15
Ø14.5
Ø10.0
400
17.5

H040
AR-HD1
Air
20
Ø15.5
Ø10.0
300
29

H0106
AW320B-01
Air & Water
20
~
Ø9.5
250
15

H0107
AW415B-01
Air & Water
15
~
Ø12.7
250
15

H018
RCH-13
Air
7.5
Ø12.7
Ø8.0
150
0.7

H008
RWK-15
Air
15
Ø15.5
Ø9.5
300
2.5

H045
AR-P10
Air
15
Ø13.5
Ø9.5mm
232
6

ORDER CODE	AR-HD2
MODEL	Air
Hose TypeAir-Water	15
Hose LengthMetre	Ø14.5
Hose External Diametermm	Ø10.0
Hose Internal Diametermm / Inch	400
Maximum PressurePSI	17.5
Nett Weightkg
