| Code | F935 |
|---|---|
| Model | Coupling Set - 5 Piece Pack |
| Capacity | 1/4" BSPT |
| Weight (kg) | 0.23 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 0.333 |
| Dimensions (cm) | 21 x 12 x 3 |

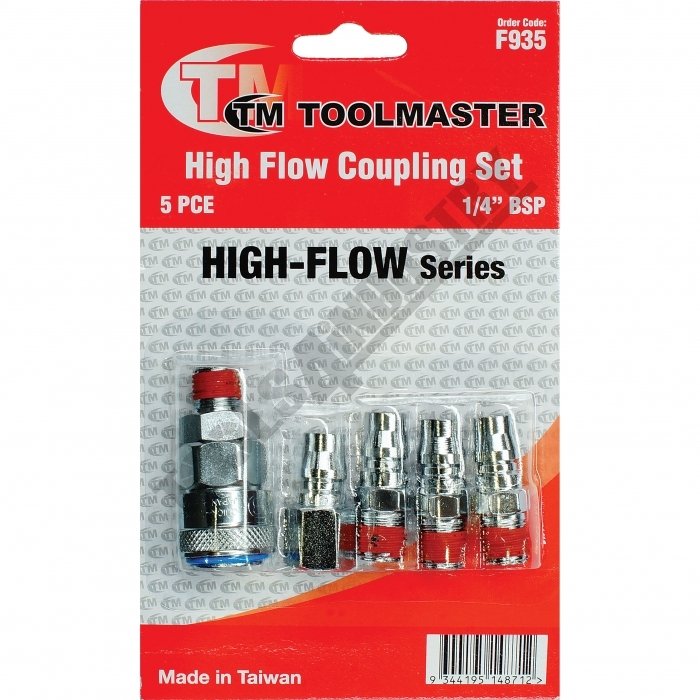

High-Flow Air Fittings Coupling Set - 5 Piece Pack 1/4" BSPT
Description
5 Piece High-Flow coupling sets are designed to increase the air flow by 60% over standard couplings. Increases the performance of air tools.Features
- Manufactured from steel for greater strength
- Couplings have a one way shut off valve fitted
- One touch coupling Just push in to connect

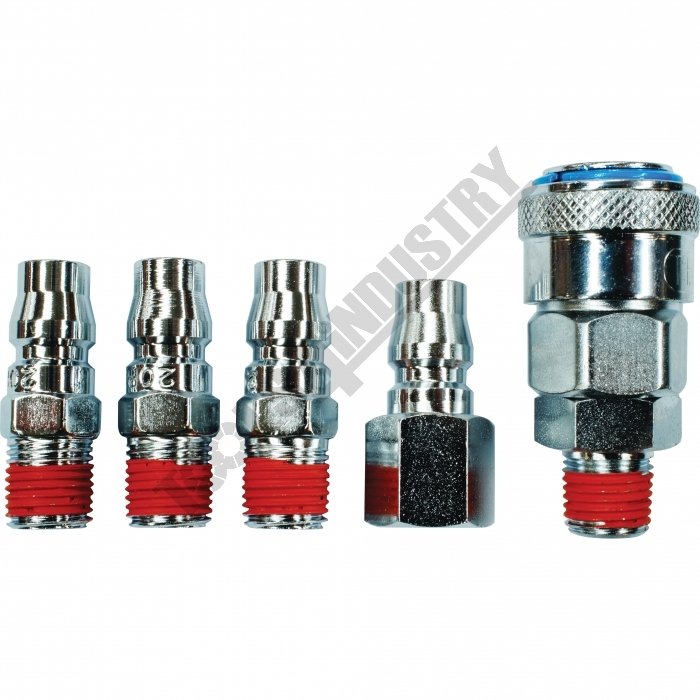

- Set consists of 1 x Coupling, 1 x Female Plug and 3 x Male Plugs
Specifications
- Compare 13 Products
- ORDER CODE
- FittingType
- Size
- Max Pressure
- Air Flow
- Pack QuantityNo.
- F935
- 5 Piece Coupling set
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 5
- F961
- Plug
- 1/4" BSPT
- ~
- ~
- 1
- F962
- Plug
- 1/4" BSPT
- ~
- ~
- 1
- F963
- Plug
- 1/4" BSPT
- ~
- ~
- 1
- F965
- Plug
- 1/4" BSPT
- ~
- ~
- 1
- F924
- Splitter
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 1
- F941
- Male Coupling
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 1
- F940
- Female Coupling
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 1
- F945
- Tail Coupling
- Ø10mm (3/8") Hose
- 150psi
- 35cfm @ 100psi
- 1
- F951
- Male Adaptor
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 2
- F950
- Female Adaptor
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 2
- F955
- Tail Adaptor
- Ø10mm (3/8") Hose
- 150psi
- 35cfm @ 100psi
- 2
- Y201
- ARO Coupler Set
- 18"
- ~
- ~
- 5
| ORDER CODE | 5 Piece Coupling set |
|---|---|
| FittingType | 1/4" BSPT |
| Size | 150psi |
| Max Pressure | 35cfm @ 100psi |
| Air Flow | 5 |
| Pack QuantityNo. |
