| Code | F960 |
|---|---|
| Model | Coupling Splitter - 2 Outlets |
| Capacity | 1/4" BSPT |
| Weight (kg) | 0.5 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 0.5 |
| Dimensions (cm) | 7 x 7 x 8.5 |

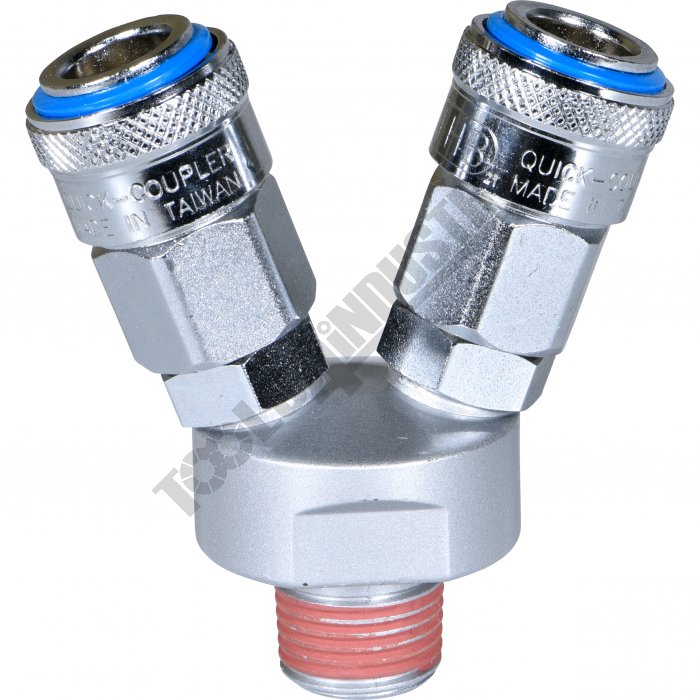

High-Flow Air Fittings Coupling Splitter - 2 Outlets 1/4" BSPT
Description
Splitter with 2 High-Flow couplings designed to increase the air flow by 60% over standard couplings. Increases the performance of air tools.Features
- Manufactured from steel for greater strength
- Couplings have a one way shut off valve fitted
- One touch coupling Just push in to connect
- 2 Couplings fitted

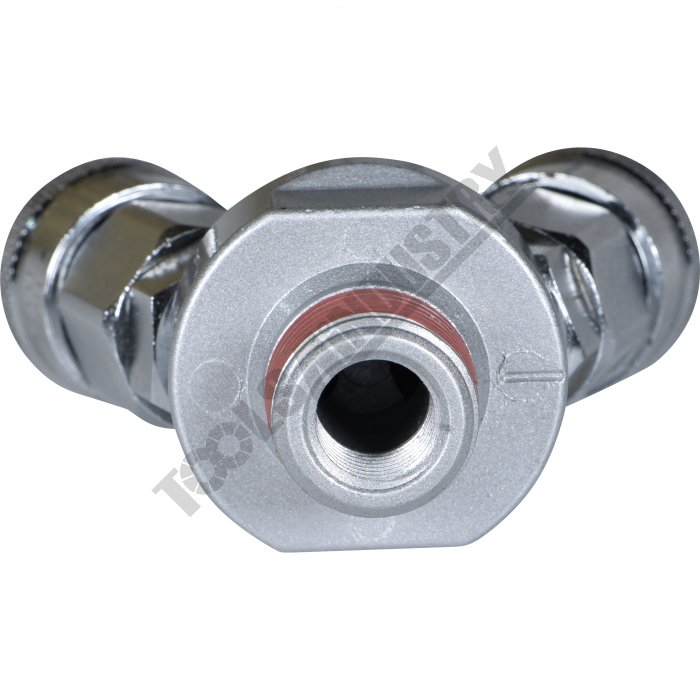

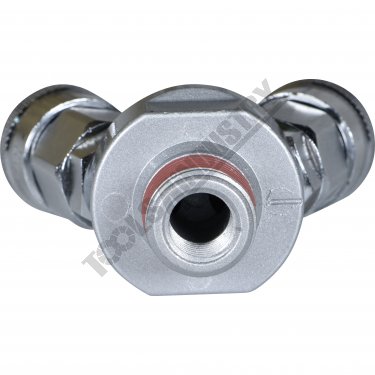

- 1/4" Internal Thread
- 1/2" External Thread
Specifications
- Compare 13 Products
- ORDER CODE
- FittingType
- Size
- Max Pressure
- Air Flow
- Pack QuantityNo.
- F924
- Splitter
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 1
- F941
- Male Coupling
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 1
- F940
- Female Coupling
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 1
- F945
- Tail Coupling
- Ø10mm (3/8") Hose
- 150psi
- 35cfm @ 100psi
- 1
- F951
- Male Adaptor
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 2
- F950
- Female Adaptor
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 2
- F955
- Tail Adaptor
- Ø10mm (3/8") Hose
- 150psi
- 35cfm @ 100psi
- 2
- Y201
- ARO Coupler Set
- 18"
- ~
- ~
- 5
- F935
- 5 Piece Coupling set
- 1/4" BSPT
- 150psi
- 35cfm @ 100psi
- 5
- F961
- Plug
- 1/4" BSPT
- ~
- ~
- 1
- F962
- Plug
- 1/4" BSPT
- ~
- ~
- 1
- F963
- Plug
- 1/4" BSPT
- ~
- ~
- 1
- F965
- Plug
- 1/4" BSPT
- ~
- ~
- 1
