Code	C3120
Model	AC15
Capacity	50 Litre Tank / 3hp
Weight (kg)	60
Weight (m³)	0.234
Weight (Freight)	77.922
Dimensions (cm)	80 x 40 x 73

Product Brochure

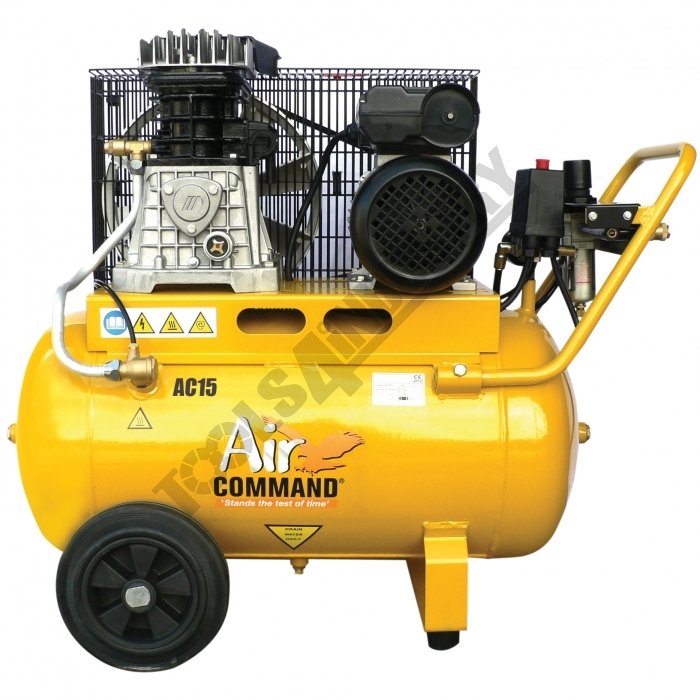

Air Compressor AC15 50 Litre Tank / 3hp

Description

A large 3hp compressor with a 50L receiver that produces plenty of air for spraying, joinery work, decorating and running numerous air tools.
Big on output, yet fully portable and complete with a well balanced easy-to-wheel design.
Air dashboard with filter / regulator and two ARO couplings for ease of operation and protection of regulator / water trap

Features

3.0hp motor with over/load
Twin cylinder alloy/cast pump
350 litres/min
125psi
50L receiver with filter/regulator
12 month trade warranty
CE approved

Specifications

Compare 6 Products
ORDER CODE
MODEL
Drive Type
Piston DisplacementCFM / LPM
Free Air DeliveryCFM / LPM
CylindersType
Max. PressurekPa
Max. PressurePSI
Air Receiver Tank SizeLitre
Motor Speedrpm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

C3120
AC15
V-Belt
12.4 / 350
9.3 / 262
2
862
125
50
1440
2.2 / 3
240 / 15
60

C3126
AC1600i
V-Belt
14.9 / 421
11.9 / 337
2
1000
145
100
1440
2.2 / 3
240 / 15
60

C3124A
WS16
V-Belt
12.7 / 370
7.4 / 210
2
1000
145
90
1440
2.2 / 3
230 / 15
106

C3124
AC16i
V-Belt
14.9/ 421
11.9 / 337
2
1000
145
50
1440
2.2 / 3
240 /15
52

C3118
AC13
V-Belt
13 / 365
7.4 / 212
2
862
125
50
1440
1.5 / 2
240 / 10
53

C3122
AC12i
V-Belt
12 / 339
8.8 / 252
2
1000
145
50
1440
1.5 / 2
240 / 10
42

ORDER CODE	AC15
MODEL	V-Belt
Drive Type	12.4 / 350
Piston DisplacementCFM / LPM	9.3 / 262
Free Air DeliveryCFM / LPM	2
CylindersType	862
Max. PressurekPa	125
Max. PressurePSI	50
Air Receiver Tank SizeLitre	1440
Motor Speedrpm	2.2 / 3
Motor PowerkW / hp	240 / 15
Voltage / AmperageV / amp	60
Nett Weightkg
