Code	C3118
Model	AC13
Capacity	50 Litre Tank / 2.0hp
Weight (kg)	53
Weight (m³)	0.234
Weight (Freight)	77.922
Dimensions (cm)	80 x 40 x 73

Product Brochure

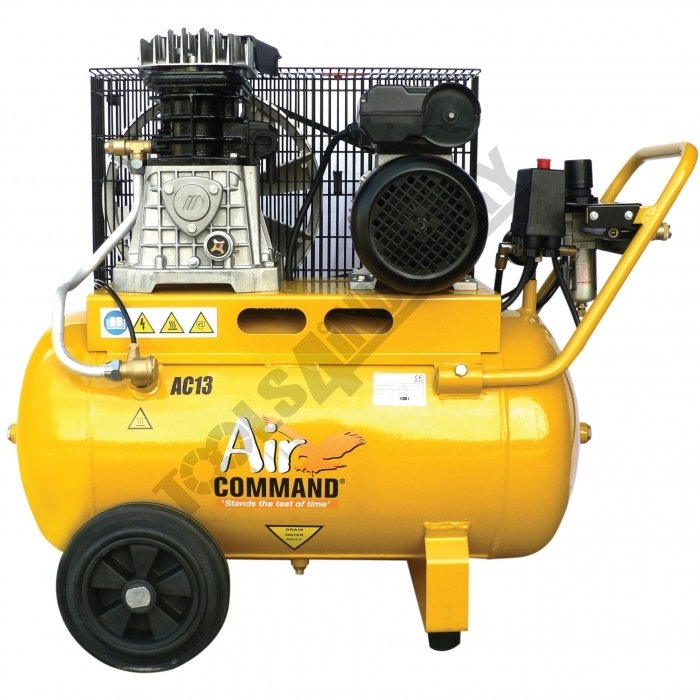

Air Compressor AC13 50 Litre Tank / 2.0hp

Description

This 2.0hp compressor is lightweight (just 44kg), very portable and easily handled by one person.
The AC13 will provide ample air supply to operate most tradesman's air tools.
Sturdy construction with a steel belt guard and a well balanced, easy-to-wheel design.
Air dashboard with filter / regulator and two ARO couplings for ease of operation and protection of regulator / water trap

Features

2.0hp motor with over/load
Twin cylinder alloy/cast pump
365 L/min piston displacement
125psi
50L receiver with filter/regulator
12 month warranty
CE approved

Specifications

Compare 6 Products
ORDER CODE
MODEL
Drive Type
Piston DisplacementCFM / LPM
Free Air DeliveryCFM / LPM
CylindersType
Max. PressurekPa
Max. PressurePSI
Air Receiver Tank SizeLitre
Motor Speedrpm
Motor PowerkW / hp
Voltage / AmperageV / amp
Nett Weightkg

C3118
AC13
V-Belt
13 / 365
7.4 / 212
2
862
125
50
1440
1.5 / 2
240 / 10
53

C3122
AC12i
V-Belt
12 / 339
8.8 / 252
2
1000
145
50
1440
1.5 / 2
240 / 10
42

C3120
AC15
V-Belt
12.4 / 350
9.3 / 262
2
862
125
50
1440
2.2 / 3
240 / 15
60

C3126
AC1600i
V-Belt
14.9 / 421
11.9 / 337
2
1000
145
100
1440
2.2 / 3
240 / 15
60

C3124A
WS16
V-Belt
12.7 / 370
7.4 / 210
2
1000
145
90
1440
2.2 / 3
230 / 15
106

C3124
AC16i
V-Belt
14.9/ 421
11.9 / 337
2
1000
145
50
1440
2.2 / 3
240 /15
52

ORDER CODE	AC13
MODEL	V-Belt
Drive Type	13 / 365
Piston DisplacementCFM / LPM	7.4 / 212
Free Air DeliveryCFM / LPM	2
CylindersType	862
Max. PressurekPa	125
Max. PressurePSI	50
Air Receiver Tank SizeLitre	1440
Motor Speedrpm	1.5 / 2
Motor PowerkW / hp	240 / 10
Voltage / AmperageV / amp	53
Nett Weightkg

Recommended Accessories

Retractable Air Hose Reel - Includes Air Dusting gun
AR-P10

15 Metre x Ø9.5mm ID Hose

Code: H045
