| Code | W08180 |
|---|---|
| Model | ATN100M |
| Capacity | Adjustable Cutting Angle Up To 90º |
| Weight (kg) | 9.1 |
| Weight (m3) | 0.013 |
| Weight (Freight) | 9.1 |
| Dimensions (cm) | 28 x 28 x16 |

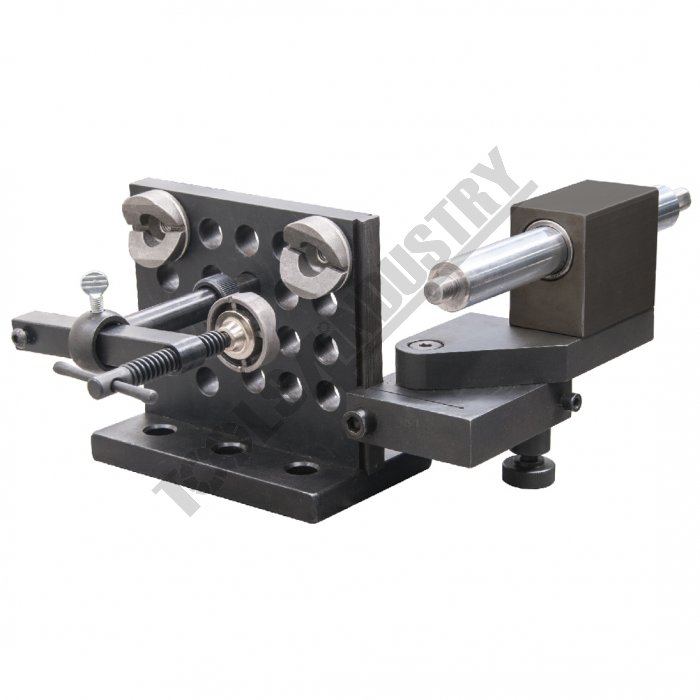

Modular Pipe & Tube Notcher ATN100M Adjustable Cutting Angle Up To 90º
Description

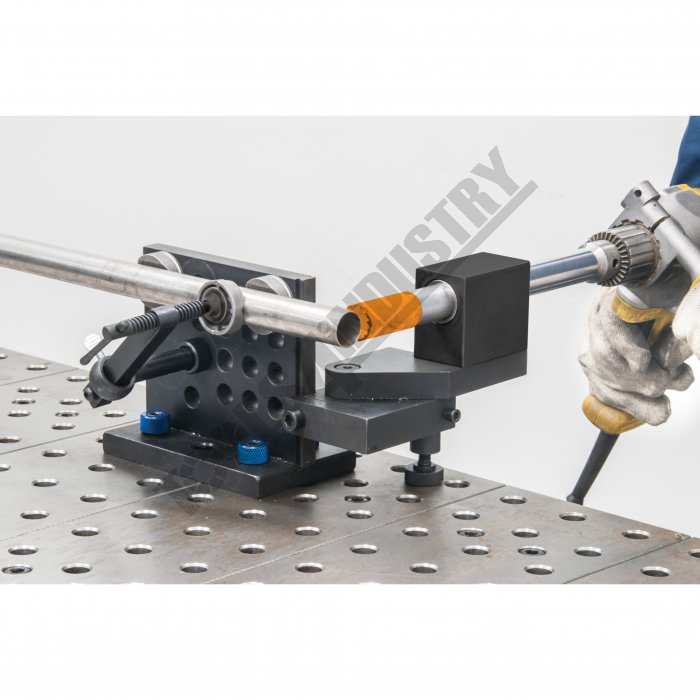

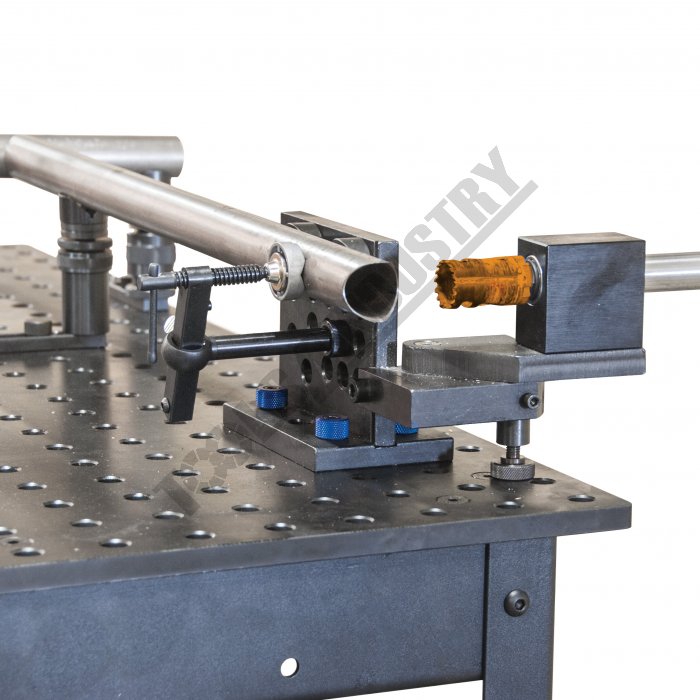

Notch tubes and pipes at the accurate angle and length.The 1st notch in a tube or pipe is easily completed with a drill press. The BuildPro® Tube & Pipe Notcher makes alignment and length control of the 2nd notch easy to complete accurately.

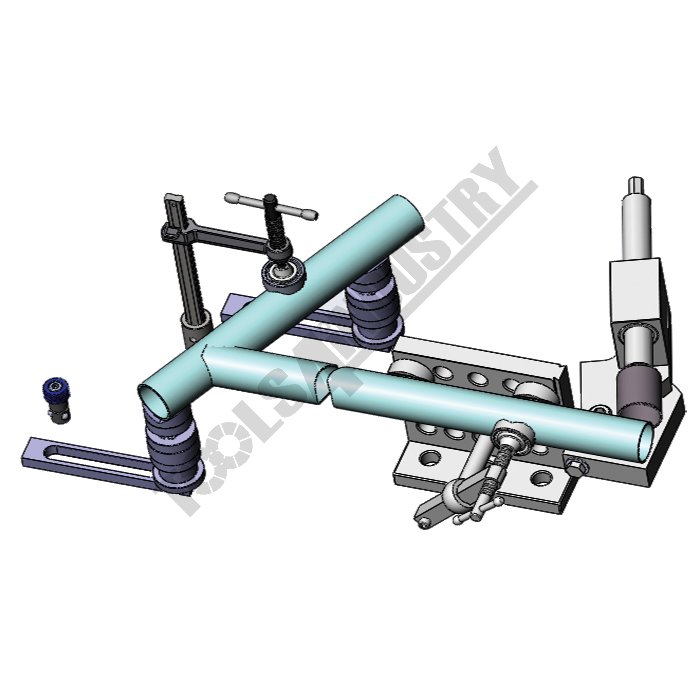

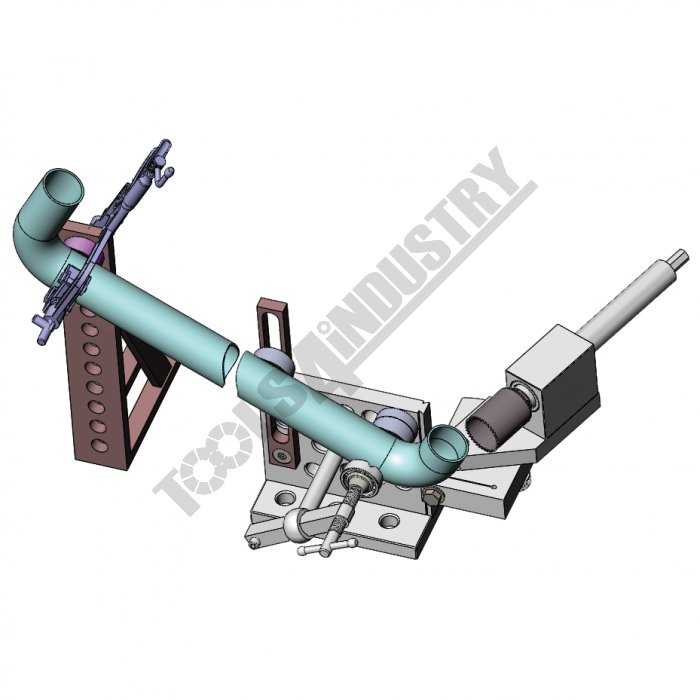

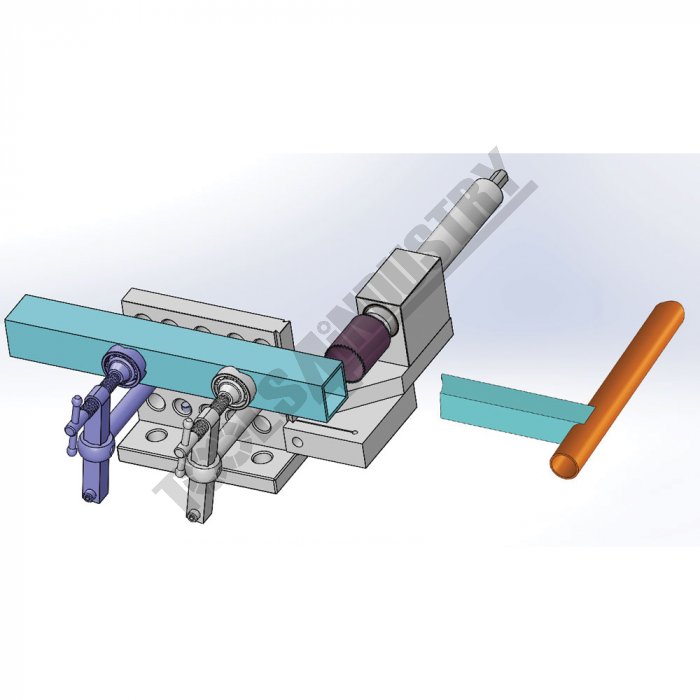

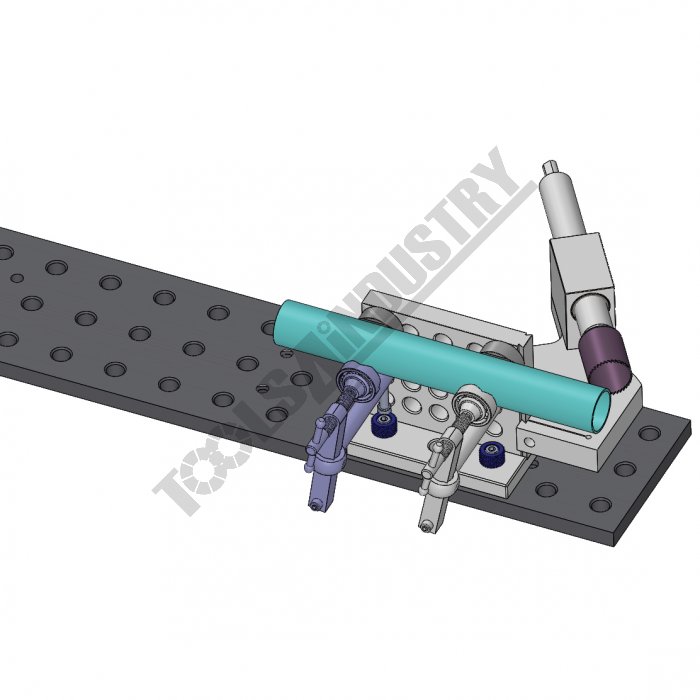

Notch Ø25 - Ø63.5mm OD pipes or square tubes at any angle, or off-center. Position the two V-Blocks and clamp as needed.
Features
- The V-Pads have a soft face to protect the pipe or tube surface

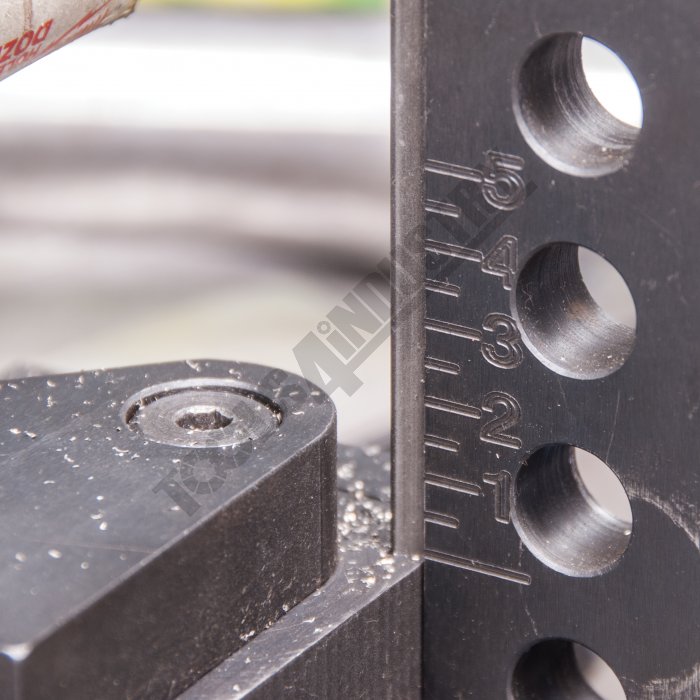

- The cutter centrerline is height adjustable to accommodate a wide variety of workpieces

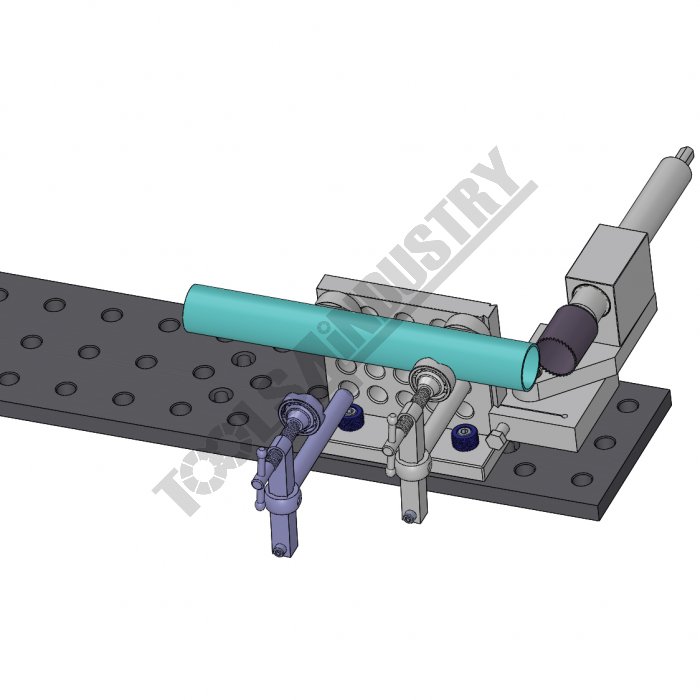

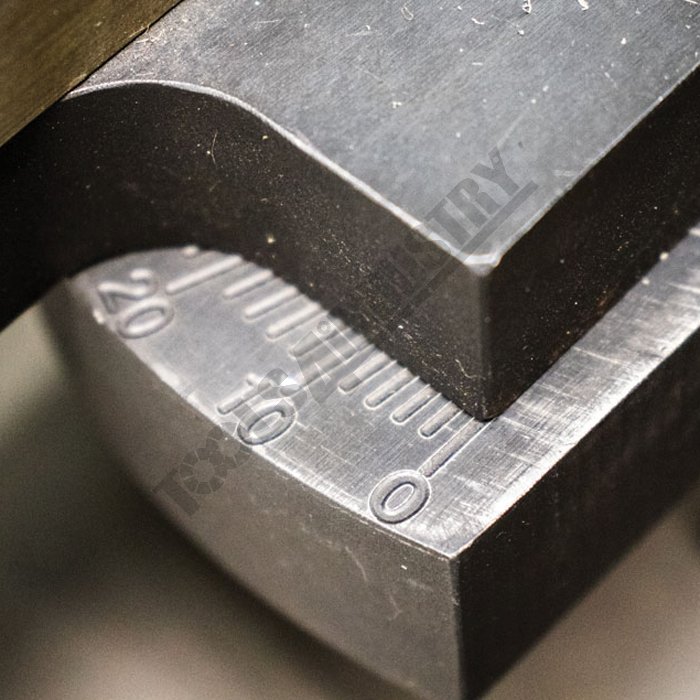

- Adjust cutting angle up to 90º
- Works with 12mm drill
- Accepts hole saw thread sizes: 1/2"-20, 5/8"-18
- 25mm steel shaft
- Double bearing block
- * Mounting hardware not included

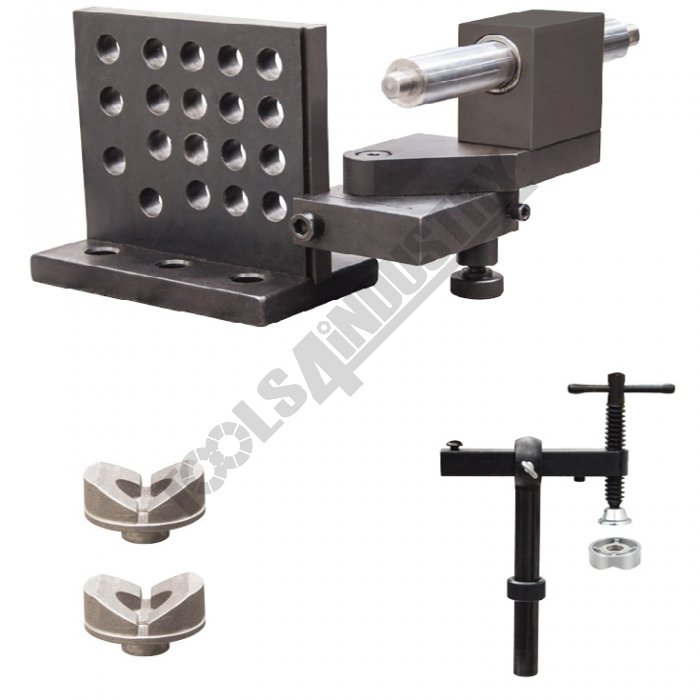

Includes
- 1 pc. BuildPro® Tube & Pipe Notcher
- 2 pcs. Aluminium V-Blocks for tube locating

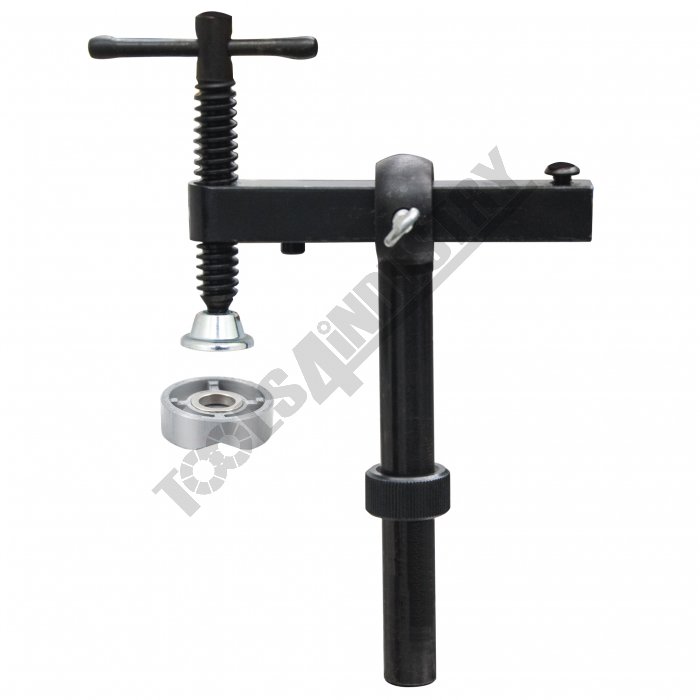

- 1 pc. Clamp with Magnetic V-Pad
Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- MachineType
- Notching CutterType
- Tube Capacity (OD) - Mild Steelmm
- Pipe Capacity (NB) - Mild Steelinch / mm
- Angle AdjustmentDegree
- End Mill Sizeinch / mm
- Belt Sizemm
- Belt Speed
- Cutting Speedrpm
- Motor PowerkW / hp
- VoltageV
- Dimensions(mm)
- Nett Weightkg
- W08180
- ATN100M
- Modular Pipe & Tube
Notcher Attachment - Hole Saw (Optional)
- Ø25 - Ø63.5
- Ø2"
- 0 - 90°
- ~
- ~
- ~
- ~
- ~
- ~
- 280 x 280 x 160
- 9.1
- L850
- PN-76E
- Pipe & Tube Notcher
- Linisher - Linisher
- Ø20 - Ø76
- 1/2" - 2-1/2"
- 30-90º
- ~
- 100 x 2000
- 1400rpm / 2800rpm
- ~
- 3 / 4
- 415
- ~
- 160
- K133
- PN-76E
- Pipe & Tube Notcher - Linisher
+ Rollers - PACKAGE DEAL - Linisher
- Ø20 - Ø76
- 1/2" - 2-1/2"
- 30-90º
- ~
- 100 x 2000
- 1400rpm / 2800rpm
- ~
- 3 / 4
- 415
- ~
- 160
- P090
- PN-50D
- Pipe & Tube Notcher
Attachment - Hole Saw (Optional)
- Ø19.05 - Ø50.8
- Ø1-1/2"
- 0 - 60º
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
| ORDER CODE | ATN100M |
|---|---|
| MODEL | Modular Pipe & Tube Notcher Attachment |
| MachineType | Hole Saw (Optional) |
| Notching CutterType | Ø25 - Ø63.5 |
| Tube Capacity (OD) - Mild Steelmm | Ø2" |
| Pipe Capacity (NB) - Mild Steelinch / mm | 0 - 90° |
| Angle AdjustmentDegree | ~ |
| End Mill Sizeinch / mm | ~ |
| Belt Sizemm | ~ |
| Belt Speed | ~ |
| Cutting Speedrpm | ~ |
| Motor PowerkW / hp | ~ |
| VoltageV | 280 x 280 x 160 |
| Dimensions(mm) | 9.1 |
| Nett Weightkg |
