| Code | K133 |
|---|---|
| Model | PN-76E |
| Capacity | Single Direction C/W 2 Working Stations |
| Weight (kg) | 8 |
| Weight (m3) | 0.000 |
| Weight (Freight) | 8 |
| Dimensions (cm) |

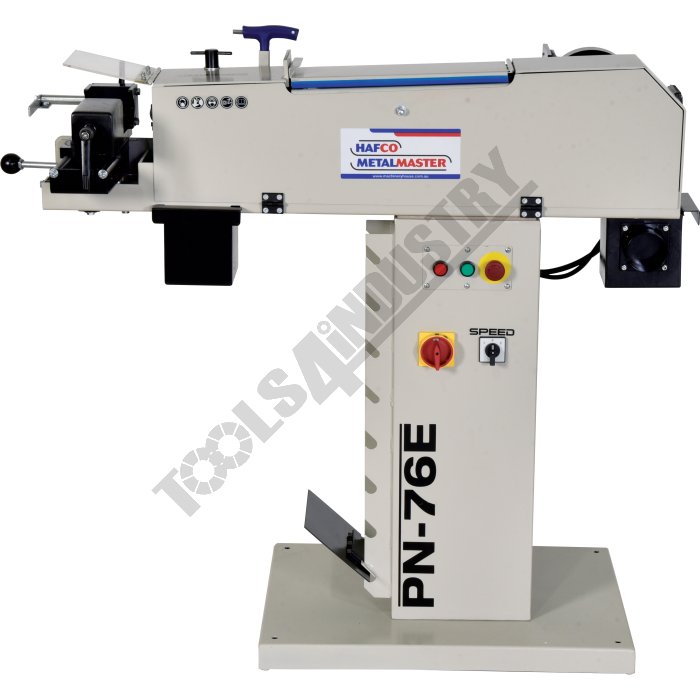

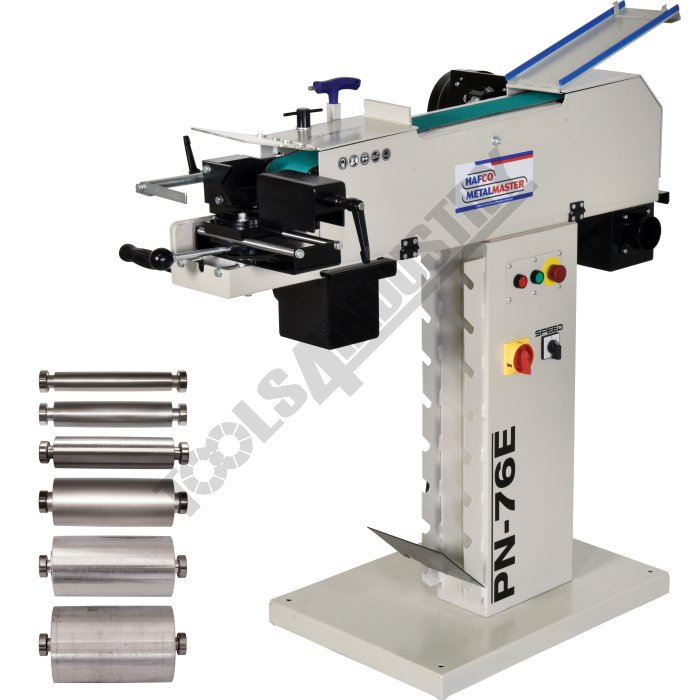

Pipe & Tube Notcher - Linisher + Rollers - PACKAGE DEAL PN-76E Single Direction C/W 2 Working Stations
Description

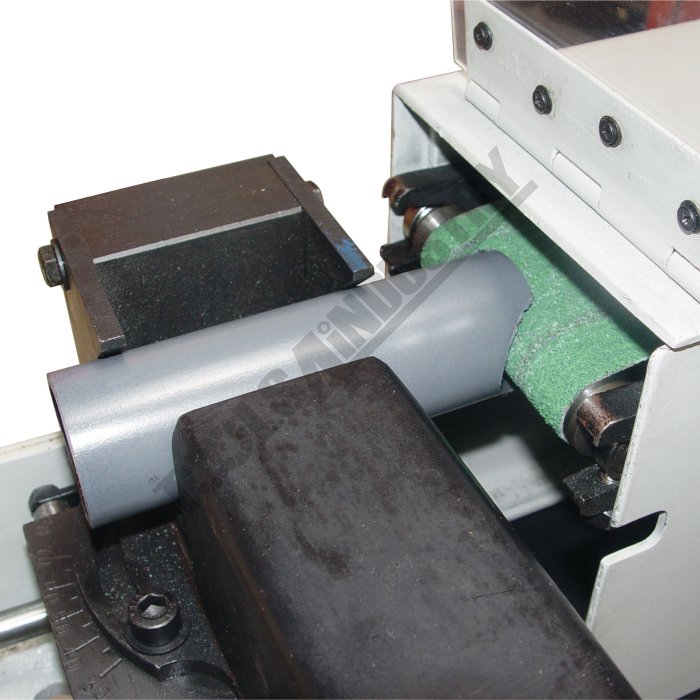

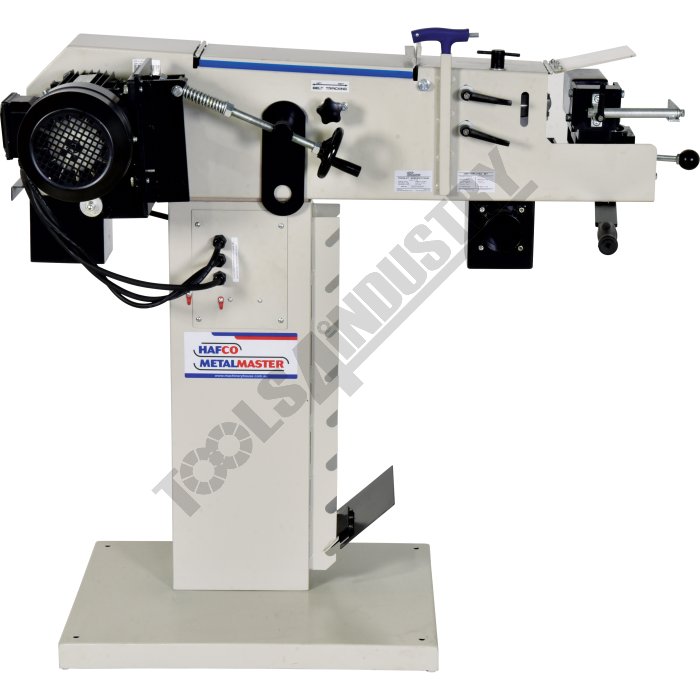

The PN-76E Pipe & Tube Notcher / Linisher + Roller Set PACKGE DEAL is our economy version for notching of tube & pipe with the added versatility of deburring & linishing all types of steels. This notcher comes standard with a single direction motor for maximising the use of the notching & top linishing stations & with a powerful 3kW 415V motor it will remove material quickly & easily. The machine features a notching vice that allows you to adjust your notch to any angle between 90 to 30 degrees & a spring tension device to maintain continuous belt tension. With the Fast-Change tension system you can quickly change the diameter of the front roller to suit the diameter of the notch you require. The base includes a storage rack for up to 7 sets of notching rollers to keep them within easy reach saving you time when changing between sizes.Features
- Ø20-76mm OD tube notching capacity
- 1/2" - 2-1/2" NB pipe notching capacity
- Powerful 3kW / 4hp, 415V motor with overload protection

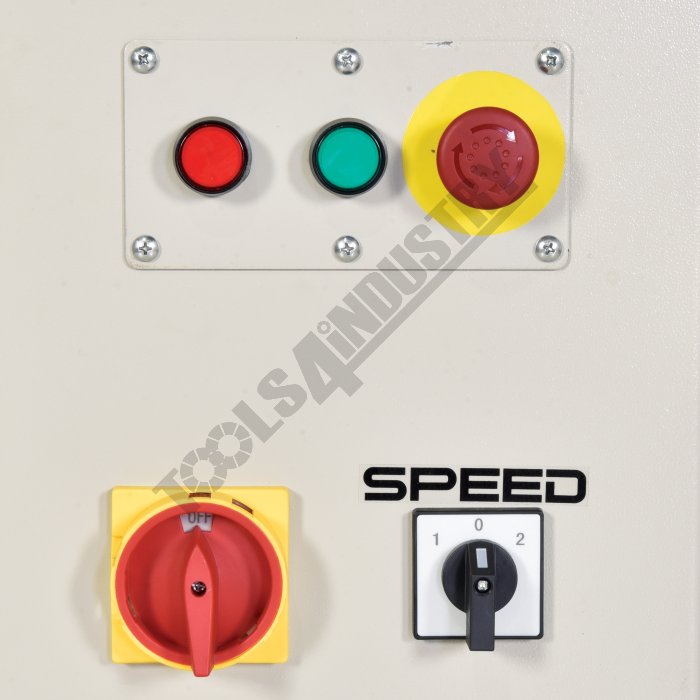

- 2 x speed motor 1400rpm for stainless steel, 2800rpm for steel

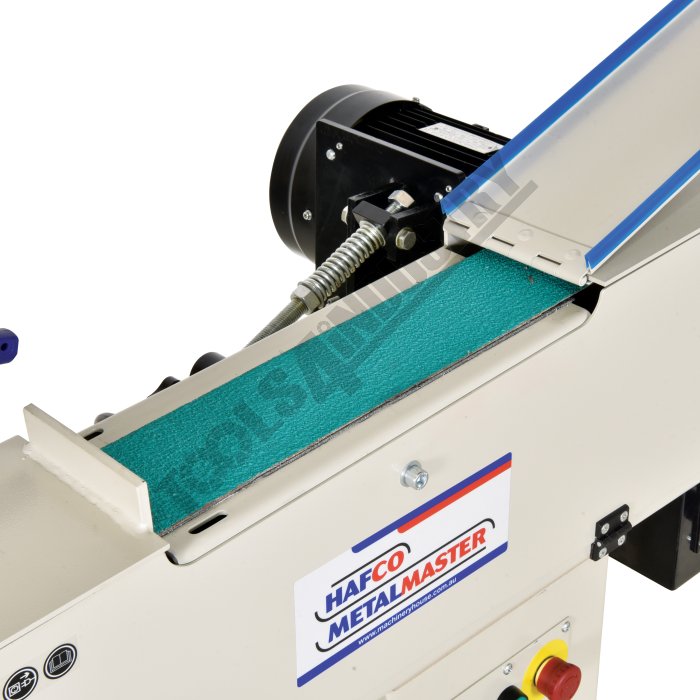

- Double working stations for Notching & de-burring

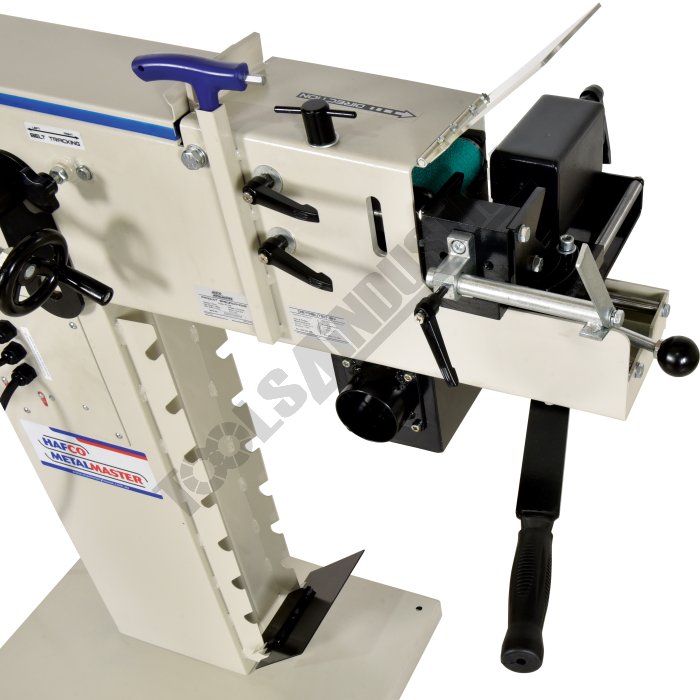

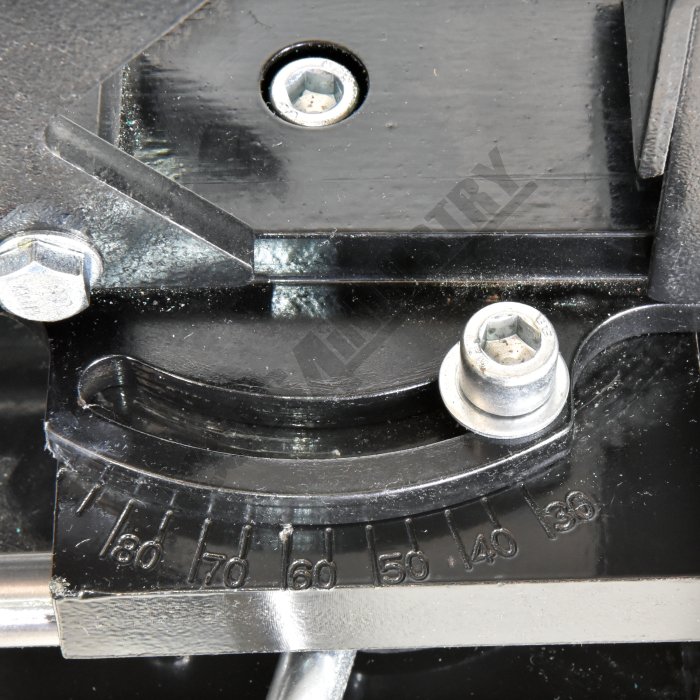

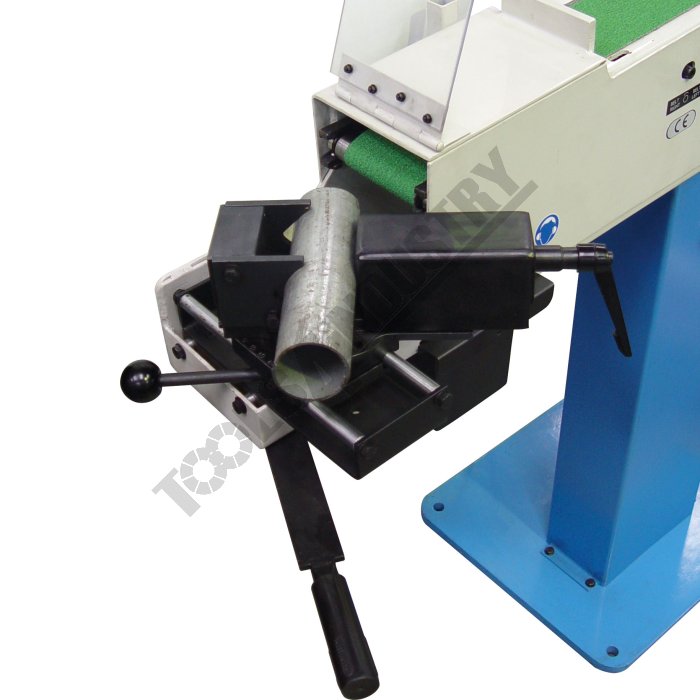

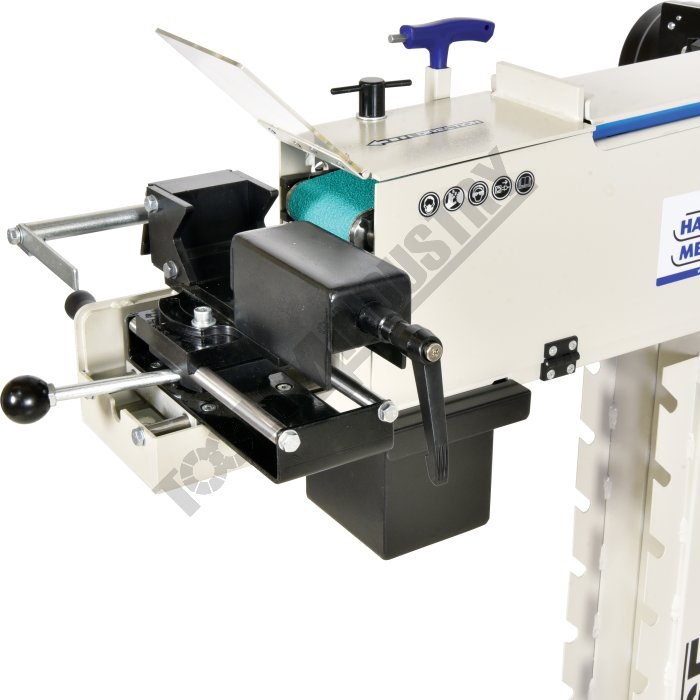

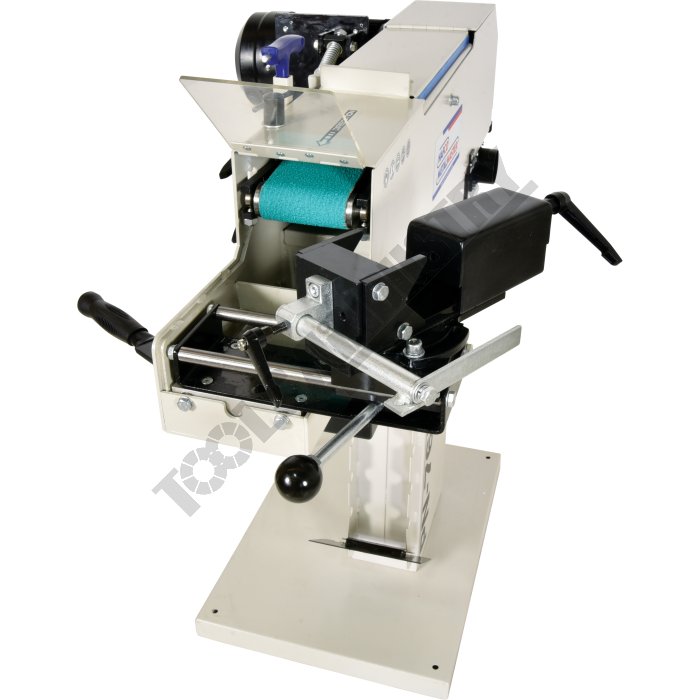

- Quick action compound swivel vice from 30-90º
- Heavy duty leadscrew vice for increasing clamp pressure

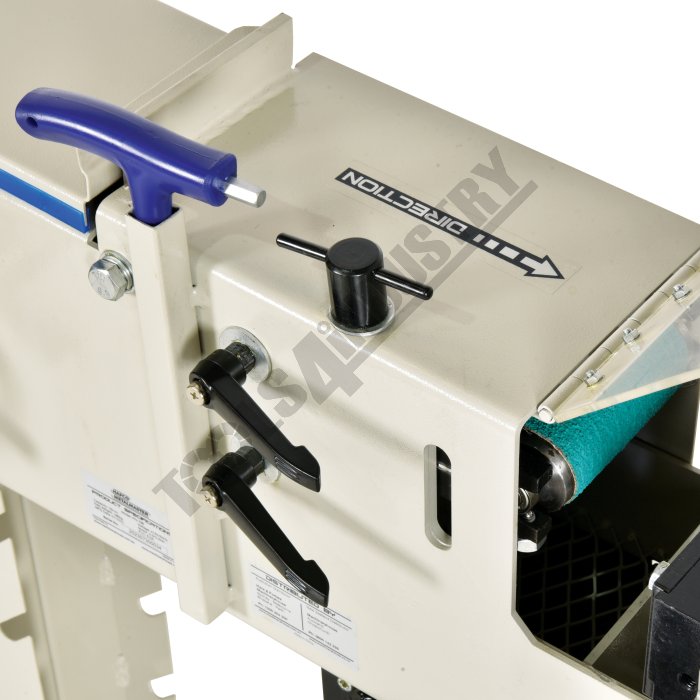

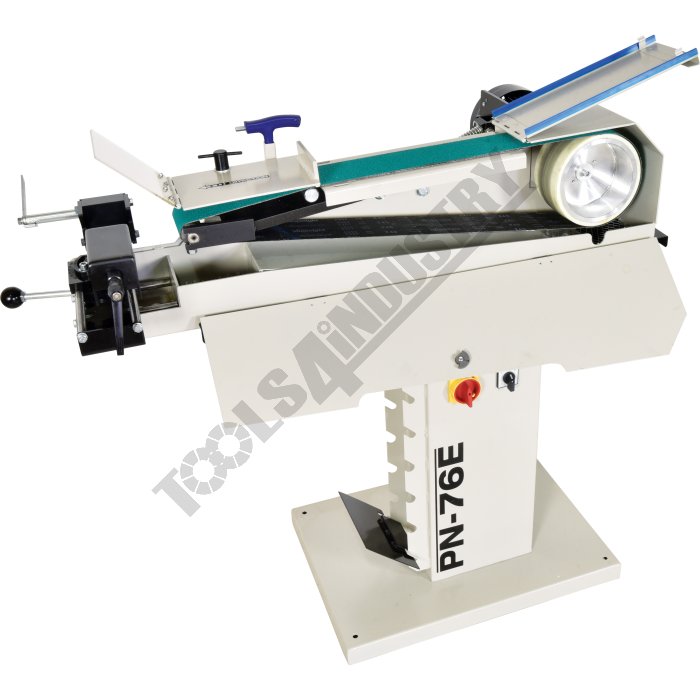

- Fast change belt system for fast and easy change of grinding rolls – no tools required

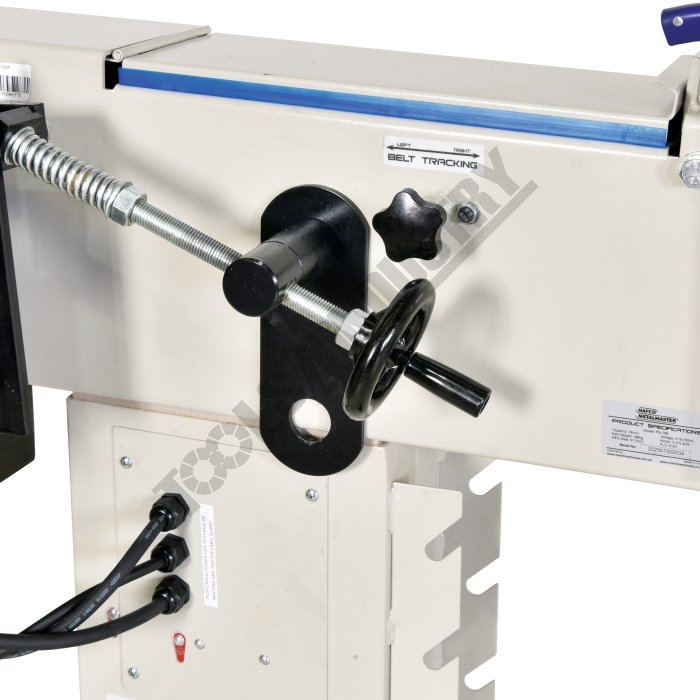

- Spring device allows for continuous belt tension

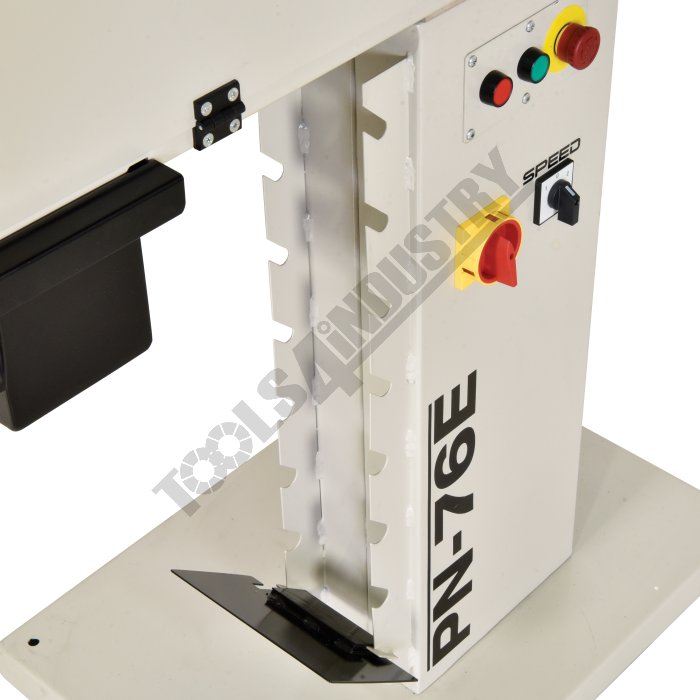

- Solid pedestal stand with built in storage rack for notching rollers
Includes
- 1 notching rollers suitable for the following material sizes
- Ø1-1/4" NB pipe or Ø42mm tube
- 1 x linishing belt

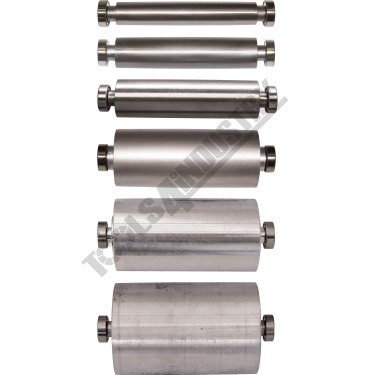

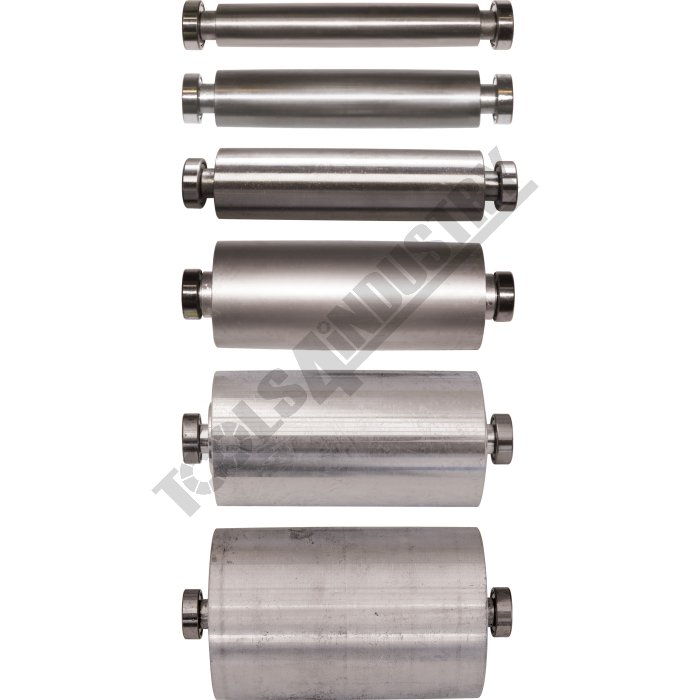

- Notching rollers suitable for the following material sizes
- - Ø1/2" NB pipe or Ø20mm tube (L853)
- - Ø3/4" NB pipe or Ø26mm tube (L854)
- - Ø1" NB pipe or Ø32mm tube (L855)
- - Ø1-1/4" NB pipe or Ø42mm tube (L856)
- - Ø1-1/2" NB pipe or Ø48mm tube (L857)
- - Ø2" NB pipe or Ø60mm tube (L858)
- - Ø2-1/2" NB pipe or Ø76mm tube (L859)
Optional Accessories
- Replacement Belt (A8085)
Specifications
- Compare 4 Products
- ORDER CODE
- MODEL
- MachineType
- Notching CutterType
- Tube Capacity (OD) - Mild Steelmm
- Pipe Capacity (NB) - Mild Steelinch / mm
- Angle AdjustmentDegree
- End Mill Sizeinch / mm
- Belt Sizemm
- Belt Speed
- Cutting Speedrpm
- Motor PowerkW / hp
- VoltageV
- Dimensions(mm)
- Nett Weightkg
- K133
- PN-76E
- Pipe & Tube Notcher - Linisher
+ Rollers - PACKAGE DEAL - Linisher
- Ø20 - Ø76
- 1/2" - 2-1/2"
- 30-90º
- ~
- 100 x 2000
- 1400rpm / 2800rpm
- ~
- 3 / 4
- 415
- ~
- 160
- P090
- PN-50D
- Pipe & Tube Notcher
Attachment - Hole Saw (Optional)
- Ø19.05 - Ø50.8
- Ø1-1/2"
- 0 - 60º
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- W08180
- ATN100M
- Modular Pipe & Tube
Notcher Attachment - Hole Saw (Optional)
- Ø25 - Ø63.5
- Ø2"
- 0 - 90°
- ~
- ~
- ~
- ~
- ~
- ~
- 280 x 280 x 160
- 9.1
- L850
- PN-76E
- Pipe & Tube Notcher
- Linisher - Linisher
- Ø20 - Ø76
- 1/2" - 2-1/2"
- 30-90º
- ~
- 100 x 2000
- 1400rpm / 2800rpm
- ~
- 3 / 4
- 415
- ~
- 160
| ORDER CODE | PN-76E |
|---|---|
| MODEL | Pipe & Tube Notcher - Linisher + Rollers - PACKAGE DEAL |
| MachineType | Linisher |
| Notching CutterType | Ø20 - Ø76 |
| Tube Capacity (OD) - Mild Steelmm | 1/2" - 2-1/2" |
| Pipe Capacity (NB) - Mild Steelinch / mm | 30-90º |
| Angle AdjustmentDegree | ~ |
| End Mill Sizeinch / mm | 100 x 2000 |
| Belt Sizemm | 1400rpm / 2800rpm |
| Belt Speed | ~ |
| Cutting Speedrpm | 3 / 4 |
| Motor PowerkW / hp | 415 |
| VoltageV | ~ |
| Dimensions(mm) | 160 |
| Nett Weightkg |
