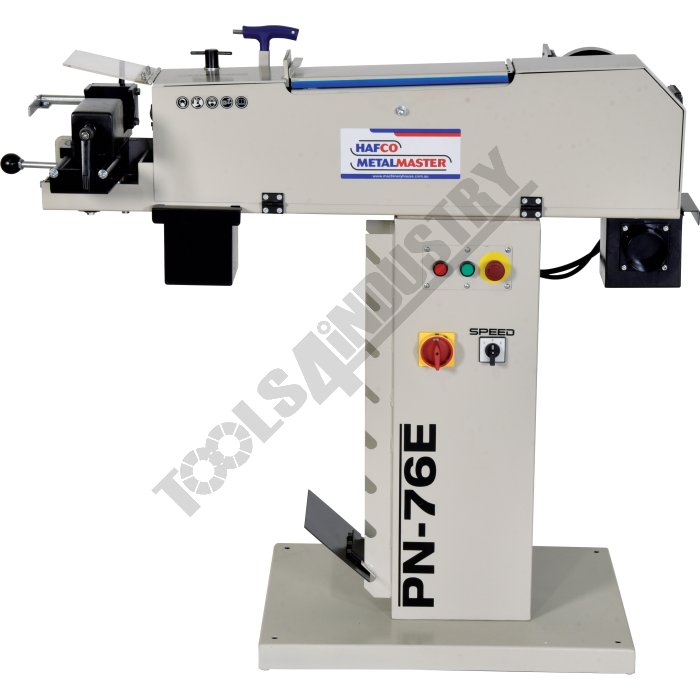

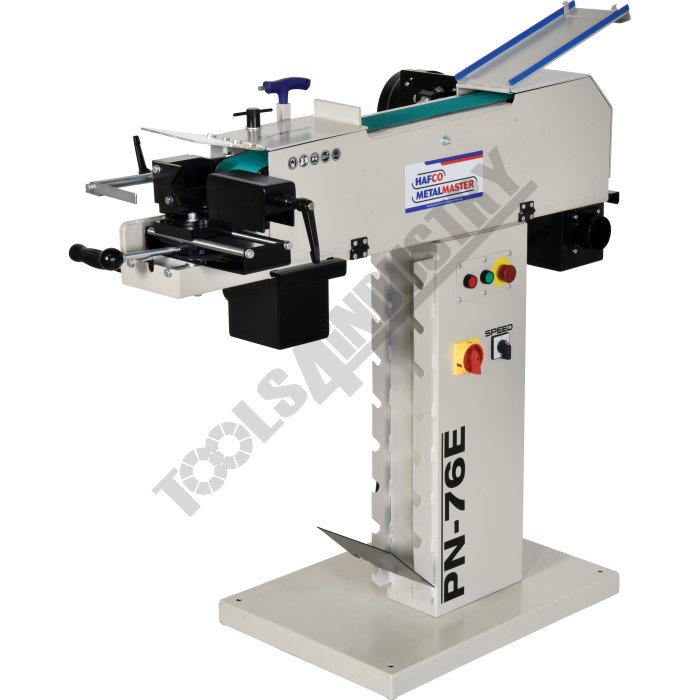

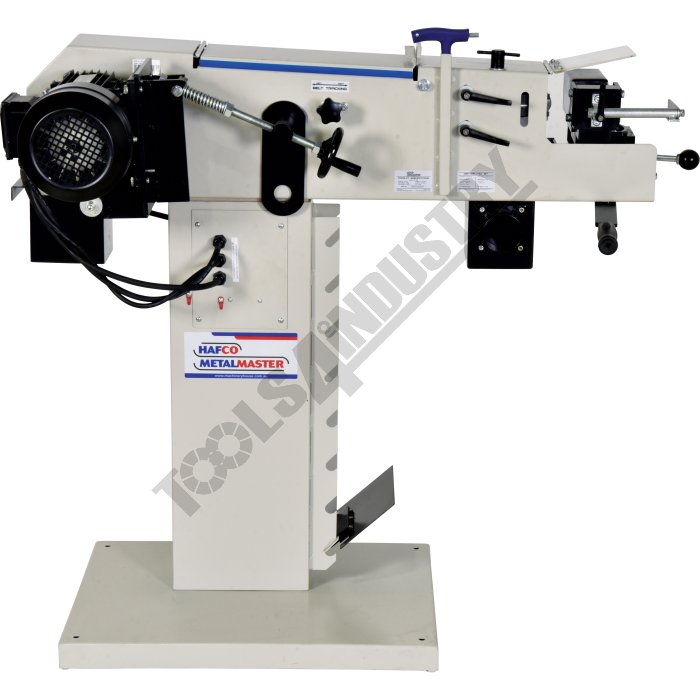

Pipe & Tube Notcher - Linisher PN-76E Single Direction C/W 2 Working Stations

Description

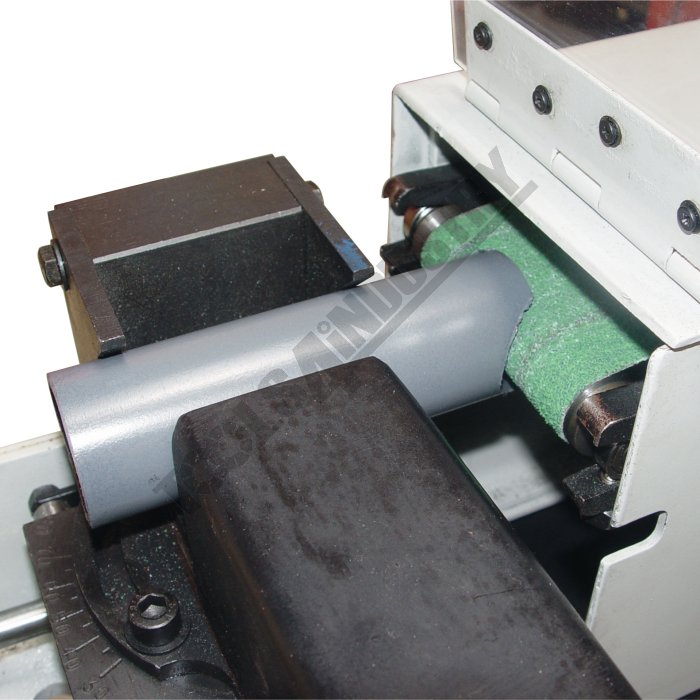

The PN-76E Pipe & Tube Notcher / Linisher is our economy version for notching of tube & pipe with the added versatility of deburring & linishing all types of steels. This notcher comes standard with a single direction motor for maximising the use of the notching & top linishing stations & with a powerful 3Kw 415v motor it will remove material quickly & easily. The machine features a notching vice that allows you to adjust your notch to any angle between 90 to 30 degrees & a spring tension device to maintain continuous belt tension. With the Fast-Change tension system you can quickly change the diameter of the front roller to suit the diameter of the notch you require. The base includes a storage rack for up to 7 sets of notching rollers to keep them within easy reach saving you time when changing between sizes.

Features

• Ø20-76mm OD tube notching capacity
• 1/2" - 2-1/2" NB pipe notching capacity
• Powerful 3kW / 4hp, 415V motor with overload protection
• 2 x speed motor 1400rpm for stainless steel, 2800rpm for steel

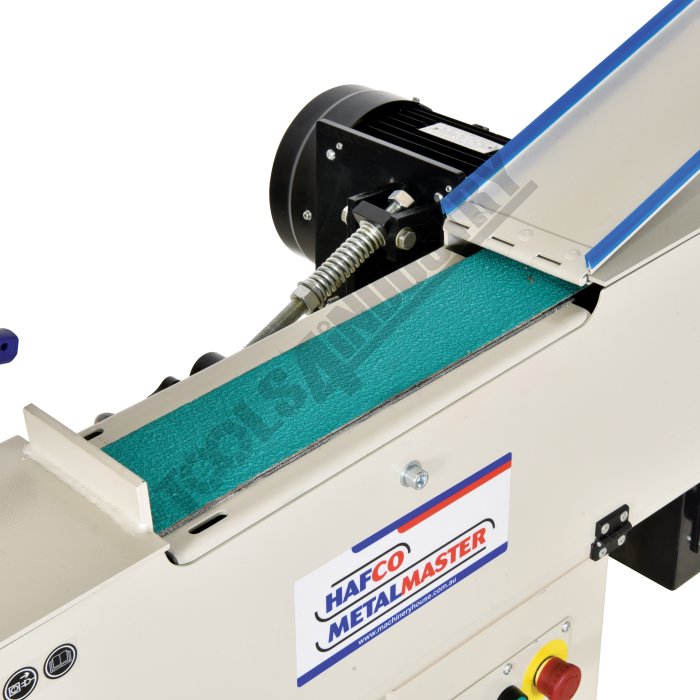

• Double working stations for Notching & de-burring

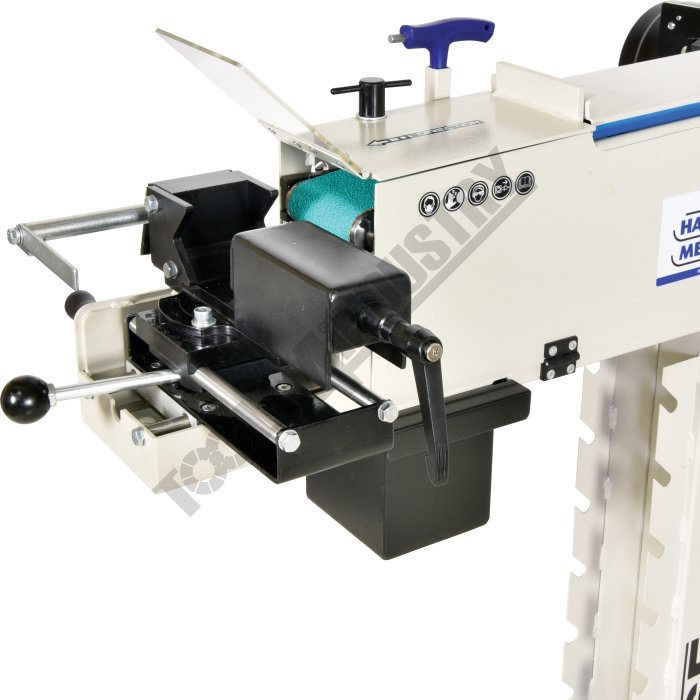

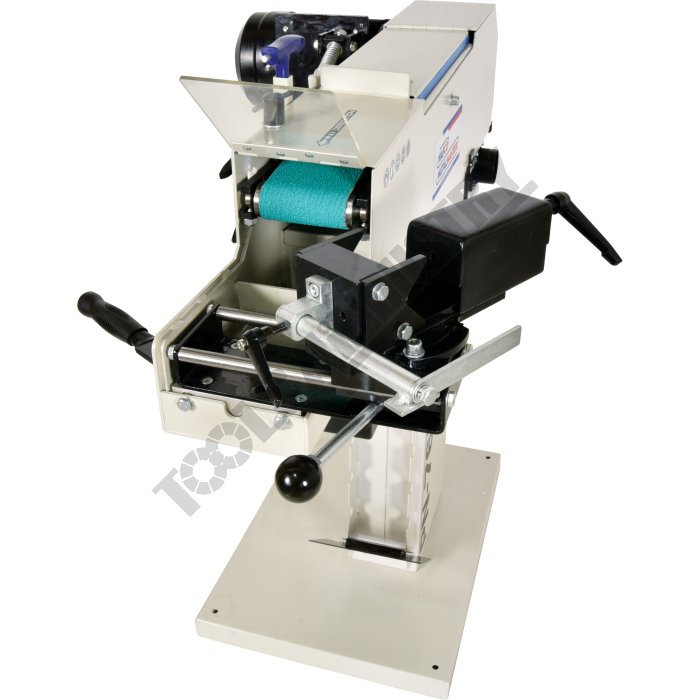

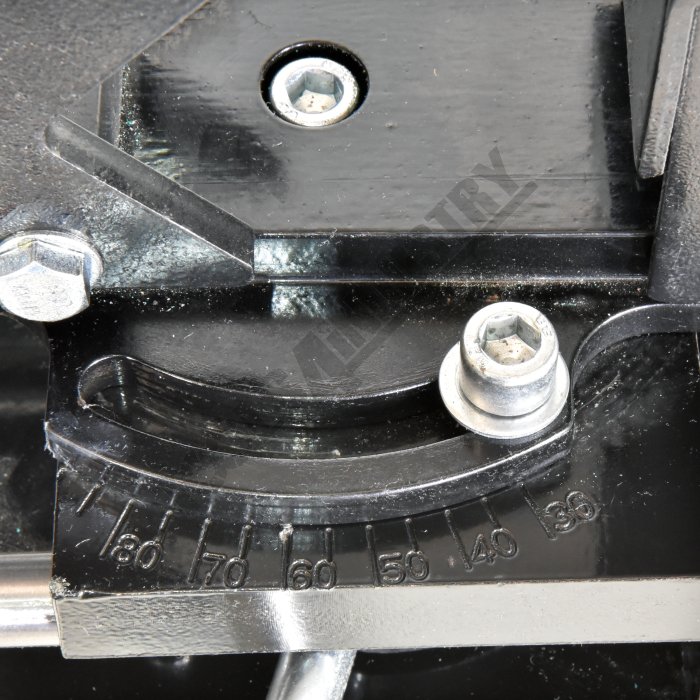

• Quick action compound swivel vice from 30-90º
• Heavy duty leadscrew vice for increasing clamp pressure

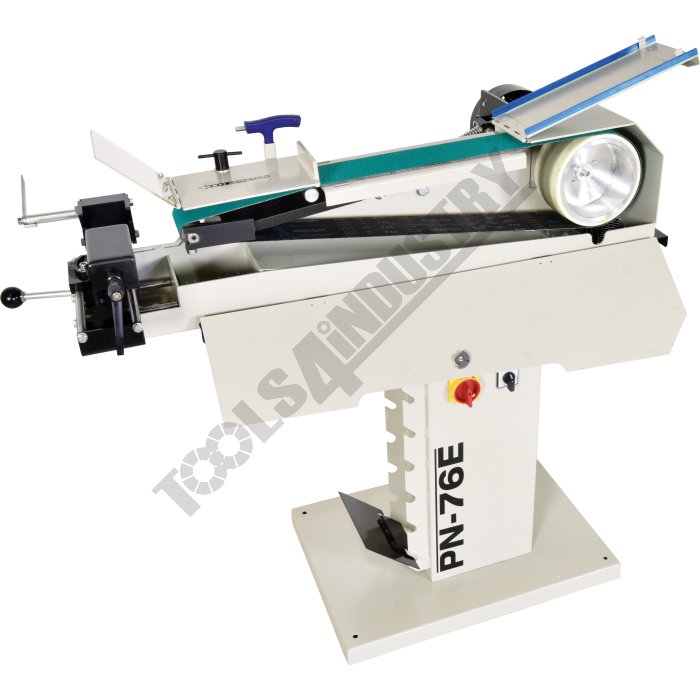

• Fast change belt system for fast and easy change of grinding rolls – no tools required
• Spring device allows for continuous belt tension

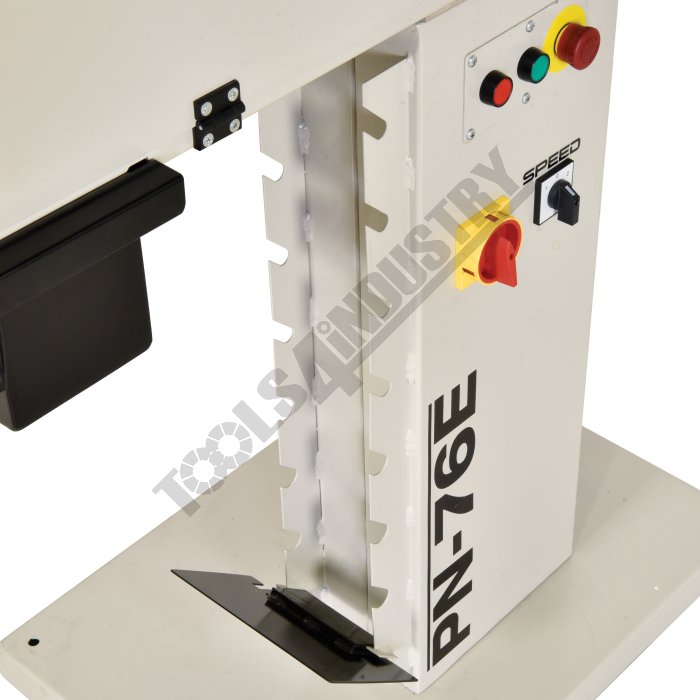

• Solid pedestal stand with built in storage rack for notching rollers

Includes

• 1 notching rollers suitable for the following material sizes
• Ø1-1/4" NB pipe or Ø42mm tube
• 1 x linishing belt

Optional Accessories

• Replacement Belt (A8085)
• Notching rollers suitable for the following material sizes
• - Ø1/2" NB pipe or Ø20mm tube (L853)
• - Ø3/4" NB pipe or Ø26mm tube (L854)
• - Ø1" NB pipe or Ø32mm tube (L855)
• - Ø1-1/4" NB pipe or Ø42mm tube (L856)
• - Ø1-1/2" NB pipe or Ø48mm tube (L857)
• - Ø2" NB pipe or Ø60mm tube (L858)
• - Ø2-1/2" NB pipe or Ø76mm tube (L859)
