| Code | T226 |
|---|---|
| Capacity | Ø3-Ø26mm Range |
| Weight (kg) | 1.76 |
| Weight (m3) | 0.001 |
| Weight (Freight) | 1.76 |
| Dimensions (cm) | 20 x 7 x 7 |

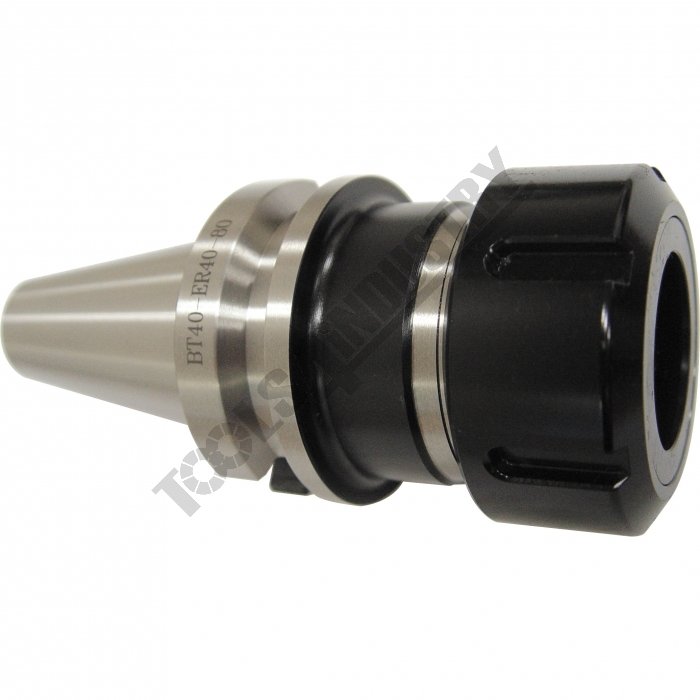

BT40 x ER40-80 Collet Chuck Ø3-Ø26mm Range
Description
All BT collet chucks meet the specifications of machine tool builders (DIN 2080 taper Shank Grade AT-3 - 85% taper contact)Features
- Precision ground
- All ER40 collet chucks are fitted with ball bearing nuts
- Manufactured to MAS403BT40 standard
- M16 Pull Stud thread
- 80mm extension from the gauge line
- Locking spanner not included

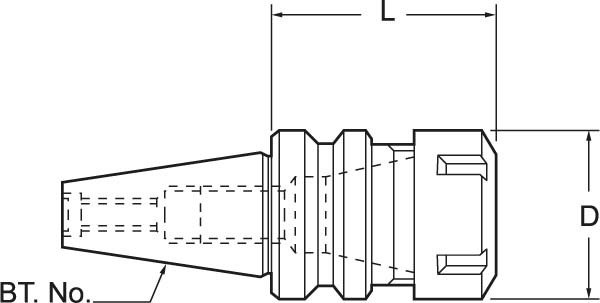

Specifications
- Compare 18 Products
- ORDER CODE
- MODEL
- Speed Ratingrpm
- TaperBT
- Capacitymm
- Lmm
- Dmm
- Collet TypeER
- Nett Weightkg
- T226
- BT40 x ER40-80
- 15,000
- BT40
- 3 - 26
- 80
- 63
- ER40
- 1.8
- T228
- BT40 x ER40-100
- 15,000
- BT40
- 3 - 26
- 100
- 63
- ER40
- 1.8
- T448
- BT50 x ER32-100
- 10,000
- BT50
- 3 - 20
- 100
- 50
- ER32
- 5.0
- T450
- BT50 x ER40-100
- 10,000
- BT50
- 3 - 26
- 100
- 63
- ER40
- 5.0
- T332
- BT30 x ER32-60
- 25,000
- BT30
- 2 - 20
- 60
- 50
- ER32
- 0.8
- T203
- BT40 x ER16-70
- 15,000
- BT40
- 0.5 - 10
- 70
- 28
- ER16
- 1.3
- T204
- BT40 x ER16-100
- 15,000
- BT40
- 0.5 - 10
- 100
- 28
- ER16
- 1.4
- T208
- BT40 x ER20-70
- 15,000
- BT40
- 2 - 13
- 70
- 34
- ER20
- 1.7
- M9445
- BT40
- 70
- ER16
- -
- M9446
- BT40
- 100
- ER16
- -
- M9448
- BT40
- 100
- ER25
- -
- M9449
- BT40
- 70
- ER32
- -
- M9450
- BT40
- 100
- ER32
- -
- T209
- BT40 x ER20-100
- 15,000
- BT40
- 2 - 13
- 100
- 34
- ER20
- 1.7
- T214
- BT40 x ER25-70
- 15,000
- BT40
- 2 - 16
- 100
- 42
- ER25
- 1.7
- T215
- BT40 x ER25-100
- 15,000
- BT40
- 2 - 16
- 100
- 42
- ER25
- 1.7
- T220
- BT40 x ER32-70
- 15,000
- BT40
- 2 - 20
- 70
- 50
- ER32
- 1.7
- T224
- BT40 x ER32-100
- 15,000
- BT40
- 2 - 20
- 100
- 50
- ER32
- 1.8
| ORDER CODE | BT40 x ER40-80 |
|---|---|
| MODEL | 15,000 |
| Speed Ratingrpm | BT40 |
| TaperBT | 3 - 26 |
| Capacitymm | 80 |
| Lmm | 63 |
| Dmm | ER40 |
| Collet TypeER | 1.8 |
| Nett Weightkg |
