| Code | T162 |
|---|---|
| Capacity | Ø40mm Spigot |
| Weight (kg) | 2.4 |
| Weight (m3) | 0.003 |
| Weight (Freight) | 2.4 |
| Dimensions (cm) | 24 x 11.5 x 10.5 |

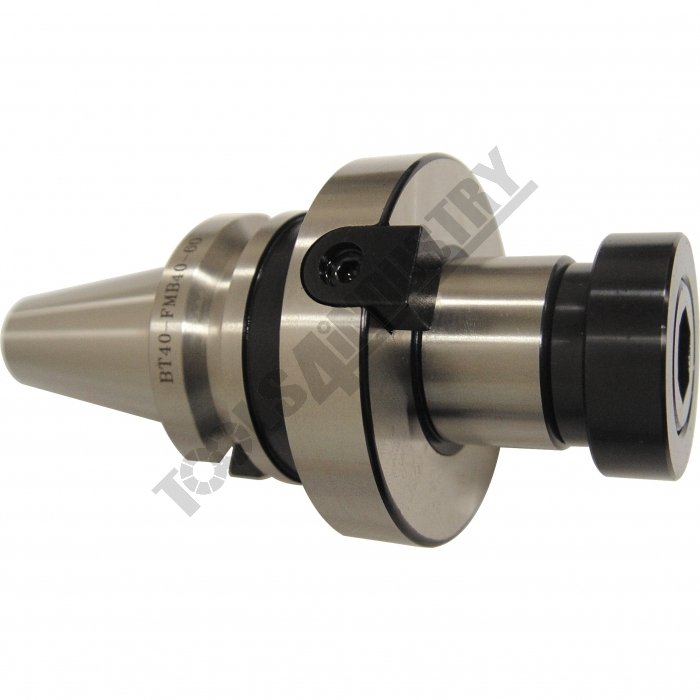

BT40-FMB40-60 Face Mill Arbor Ø40mm Spigot
Description
Face mill arbors for metric face cutters manufactured to MAS403BT40 standards.With some cutters only the clamping screw is used.
Features
- Precision ground
- M16 Pull Stud thread

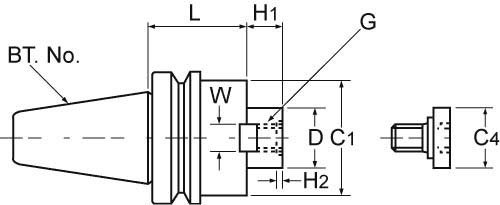

Specifications
- Compare 9 Products
- ORDER CODE
- MODEL
- Dmm
- Lmm
- C1mm
- H1mm
- H2mm
- Wmm
- Gmm
- C4mm
- Nett Weightkg
- T162
- BT40-FMB40-60
- 40
- 60
- 68
- 23
- 4
- 16
- M16
- 50
- 2.4
- T456
- BT50-FMB27-45
- 27
- 45
- 60
- 20
- 4
- 14
- M16
- 33
- 4.1
- T457
- BT50-FMB32-45
- 32
- 45
- 75
- 22
- 4
- 14
- M16
- 33
- 4.2
- T459
- BT50-FMB40-75
- 40
- 75
- 85
- 26
- 4
- 16
- M16
- 50
- 5.9
- T340
- BT30-FMB22-45
- 22
- 45
- 48
- 18
- 4
- 10
- M10
- ~
- 1.5
- T150
- BT40-FMB22-45
- 22
- 45
- 50
- 18
- 4
- 10
- M10
- ~
- 2.1
- T151
- BT40-FMB22-90
- 22
- 90
- 50
- 18
- 4
- 10
- M10
- ~
- 2.1
- T155
- BT40-FMB27-45
- 27
- 45
- 60
- 20
- 4
- 12
- M12
- 33
- 2.2
- T158
- BT40-FMB32-45
- 32
- 45
- 63
- 21
- 4
- 14
- M16
- 50
- 2.2
| ORDER CODE | BT40-FMB40-60 |
|---|---|
| MODEL | 40 |
| Dmm | 60 |
| Lmm | 68 |
| C1mm | 23 |
| H1mm | 4 |
| H2mm | 16 |
| Wmm | M16 |
| Gmm | 50 |
| C4mm | 2.4 |
| Nett Weightkg |
