| Code | S682 |
|---|---|
| Model | RR-24 |
| Weight (kg) | 285 |
| Weight (m3) | 0.719 |
| Weight (Freight) | 285 |
| Dimensions (cm) | 82 x 86 x 102 |

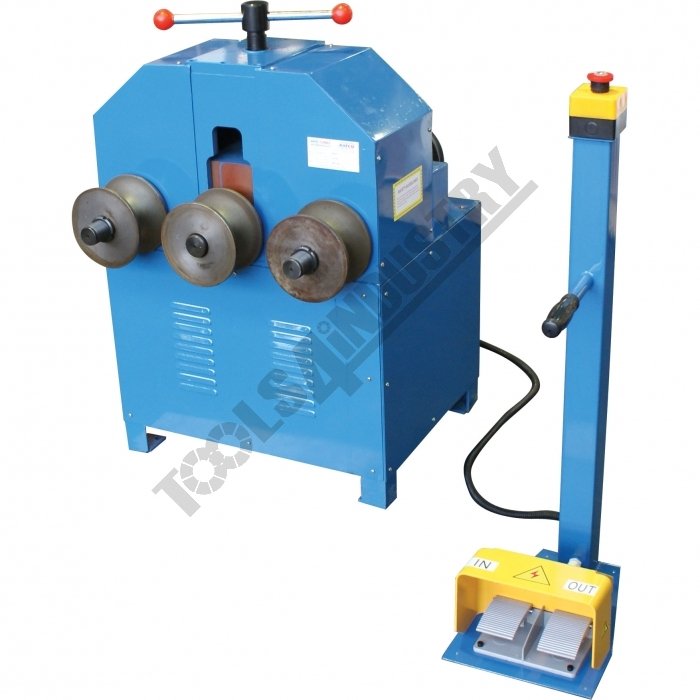

Section & Tube Rolling Machine RR-24
Description

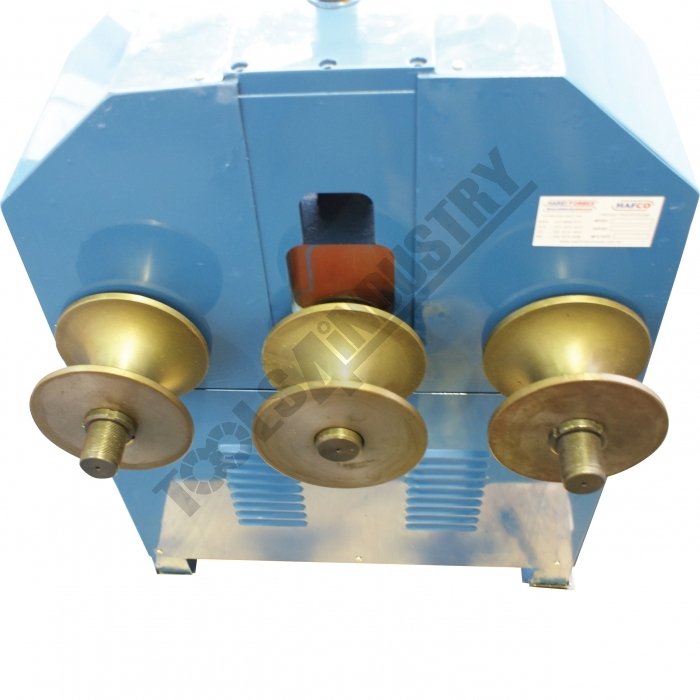

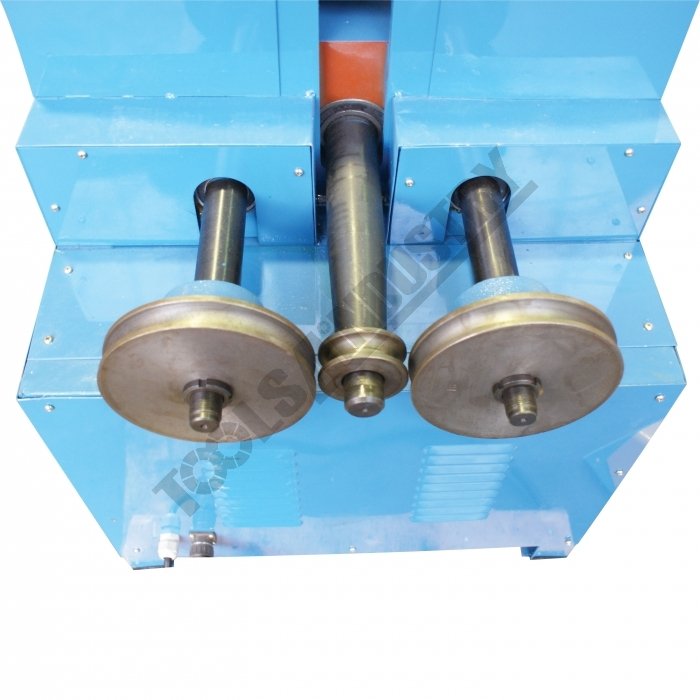

This specially designed section and tube rolling machine can be used on either side front or rear of machine, the front is designed to handle the larger tube as the rear is capable of rolling smaller tubes.Features
- 16 - 76mm round tube capacity
- 16 - 50mm square tube capacity
- 0.5 - 2mm round tube wall thickness
- 0.5 -1.6mm square tube wall thickness
- Bends mild steel & thin wall stainless steel, round, square & rectangular tube into circular or radius curves

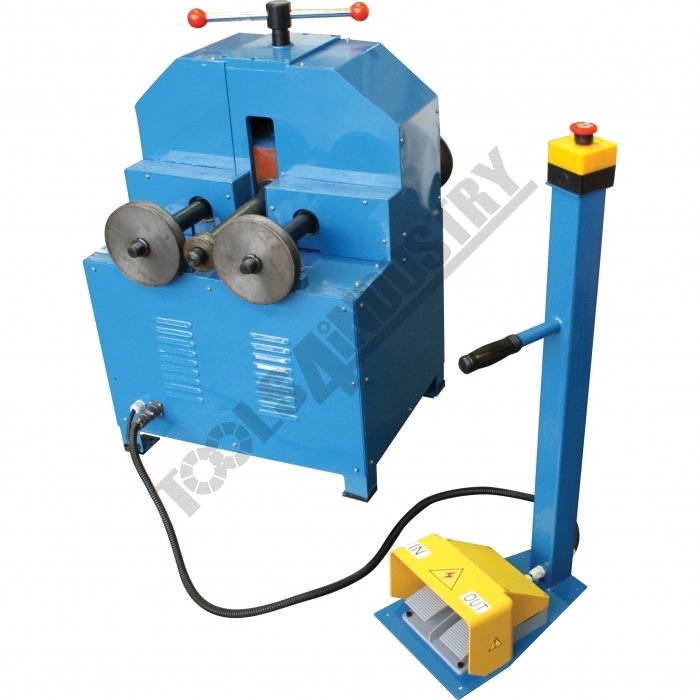

- Roving foot pedal control with emergency stop
- 1.1kW / 1.5hp 240V motor

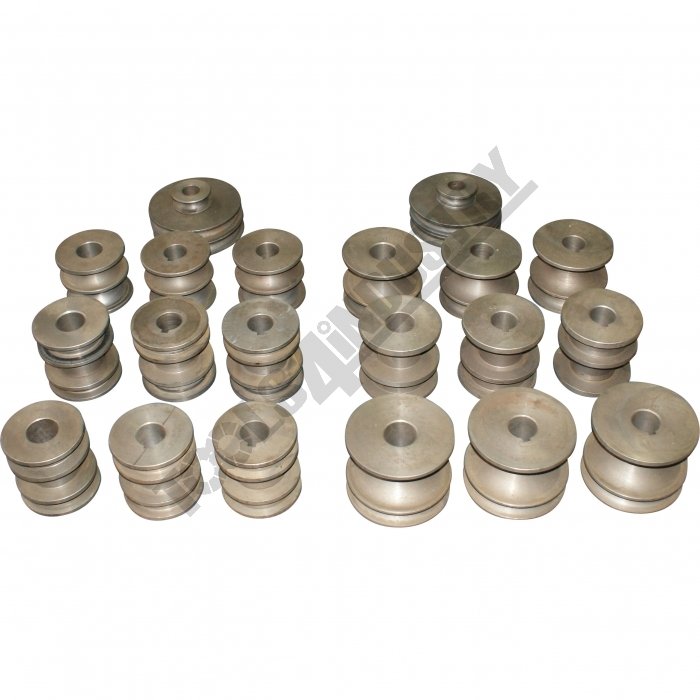

Includes

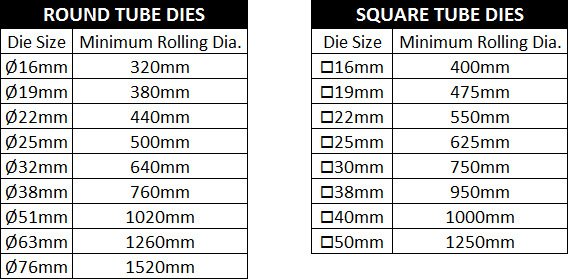

- 9 Round tube dies - Ø16, Ø19, Ø22, Ø25, Ø32, Ø38, Ø51, Ø63, Ø76mm
- 8 Square tube dies - 16, 19, 22, 25, 30, 38, 40, 50mm
Specifications
- Compare 6 Products
- ORDER CODE
- MODEL
- Powered Driven RollsQty
- Bending RollsType
- Top Roll Shaft Diameter (Ø)mm
- Lower Roll Shaft Diameter (Ø)mm
- Top Roll Diameter (Ø)mm
- Lower Roll Diameter (Ø)mm
- Flat Bar Edge Capacity - MS (size / Ø)mm
- Flat Bar Capacity - MS (size / Ø)mm
- Square Bar Solid Capacity - MS (size / Ø)mm
- Rectangle Tube Capacity - MS (size / Ø)mm
- Square Tube Capacity - MS (size / Ø)mm
- Round Bar Solid Capacity - MS (size / Ø)mm
- Round Tube Capacity - MS (size / Ø)mm
- Round Pipe Capacity - MS (size / Ø)inch / mm
- Angle Capacity - MS (size / Ø)mm
- Motor PowerkW / hp
- Voltage / AmperageV / amp
- Dimensions (L x W x H)mm
- Note: Requires Additional ToolingNo / Yes*
- Nett Weightkg
- S682
- RR-24
- 2
- Manual Top
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 50 x 50 x 1.6 / 1000
- ~
- Ø76 x 2 / 1520
- ~
- ~
- 1.1 / 1.5
- 240 / 10
- 740 x 630 x 1030
- No
- 287
- S745
- PK-35F
- 2
- Manual Top
- 50
- 50
- 155
- 155
- 60 x 10 / 500
- 100 x 15 / 450
- 35 x 35 / 900
- 50 x 40 x 3 / 1200*
- 50 x 50 x 3 / 1700*
- Ø35 / 600*
- Ø70 x 2 / 1000*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 5 / 1000 mm*
- 1.5 / 2
- 240 / 10
- 750 x 1000 x 1400
- Yes* (S7455 for angle capacity)
- 400
- S750
- HPK-50
- 3
- Hydraulic Top
- 50
- 50
- 152
- 162
- 60 x 10 / 600
- 100 x 15 / 600
- 35 x 35 / 600
- 70 x 30 x 3 / 1500*
- 50 x 50 x 3 / 1600*
- Ø35 / 600*
- Ø70 x 2 / 1200*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 6 / 600
- 1.1 / 1.5
- 415
- 810 x 950 x 1500
- Yes*
- 500
- S754
- HPK-65
- 3
- Hydraulic - Left & Right
- ~
- ~
- 180
- ~
- 60 x 10 / 500
- 80 x 20 / 500
- 32 x 32 / 400
- 50 x 25 x 3 / 450*
- 45 x 45 x 3 / 600*
- Ø35 / 350*
- Ø60 x 2 / 600*
- Ø2" x 3.91mm / 400mm*
- 60 x 60 x 6 / 650
- 3 / 4
- 415
- 1200 x 850 x 1200
- Yes*
- 1000
- S680
- RR-5G
- 2 x Manual
- Manual Bottom Right
- ~
- ~
- ~
- ~
- ~
- 25 x 3 / 125
- ~
- ~
- ~
- Ø5 / 125
- ~
- ~
- ~
- ~
- ~
- 360 x 190 x 180
- No
- 6
- S681
- RR-10
- 2 x Manual
- Manual Top
- ~
- ~
- 98
- ~
- 30 x 10 / 500 - (20 x 5 / 190)
- 50 x 10 / 400 - (20 x 5 / 160)
- 20 x 20 / 500 - (10 x 10 / 160)
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 500 x 480 x 680
- No
- 185
| ORDER CODE | RR-24 |
|---|---|
| MODEL | 2 |
| Powered Driven RollsQty | Manual Top |
| Bending RollsType | ~ |
| Top Roll Shaft Diameter (Ø)mm | ~ |
| Lower Roll Shaft Diameter (Ø)mm | ~ |
| Top Roll Diameter (Ø)mm | ~ |
| Lower Roll Diameter (Ø)mm | ~ |
| Flat Bar Edge Capacity - MS (size / Ø)mm | ~ |
| Flat Bar Capacity - MS (size / Ø)mm | ~ |
| Square Bar Solid Capacity - MS (size / Ø)mm | ~ |
| Rectangle Tube Capacity - MS (size / Ø)mm | 50 x 50 x 1.6 / 1000 |
| Square Tube Capacity - MS (size / Ø)mm | ~ |
| Round Bar Solid Capacity - MS (size / Ø)mm | Ø76 x 2 / 1520 |
| Round Tube Capacity - MS (size / Ø)mm | ~ |
| Round Pipe Capacity - MS (size / Ø)inch / mm | ~ |
| Angle Capacity - MS (size / Ø)mm | 1.1 / 1.5 |
| Motor PowerkW / hp | 240 / 10 |
| Voltage / AmperageV / amp | 740 x 630 x 1030 |
| Dimensions (L x W x H)mm | No |
| Note: Requires Additional ToolingNo / Yes* | 287 |
| Nett Weightkg |
