Code	S754
Model	HPK-65
Capacity	60 x 60 x 6mm Angle Capacity
Weight (kg)	1000
Weight (m³)	1.224
Weight (Freight)	1000
Dimensions (cm)	120 x 85 x 120

SAHINLER

415V / (NO PLUG)

1 Year Warranty

TURKIYE

Product Brochure Instruction Manual [4 MB]Section Rolling Machine Risk Assessment

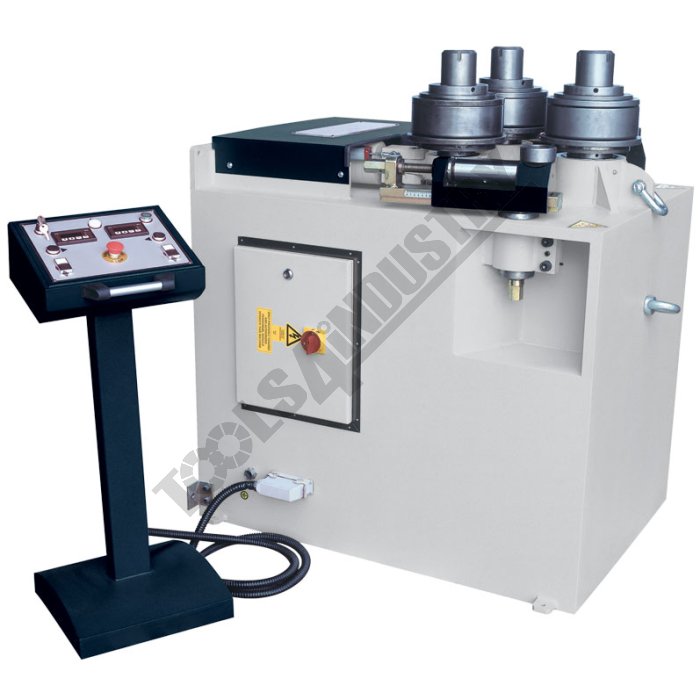

Section & Pipe Rolling Machine HPK-65 60 x 60 x 6mm Angle Capacity

Features

Rolls are hardened & made from high quality steel
Drive shafts are hardened and ground with double taper roller bearing support

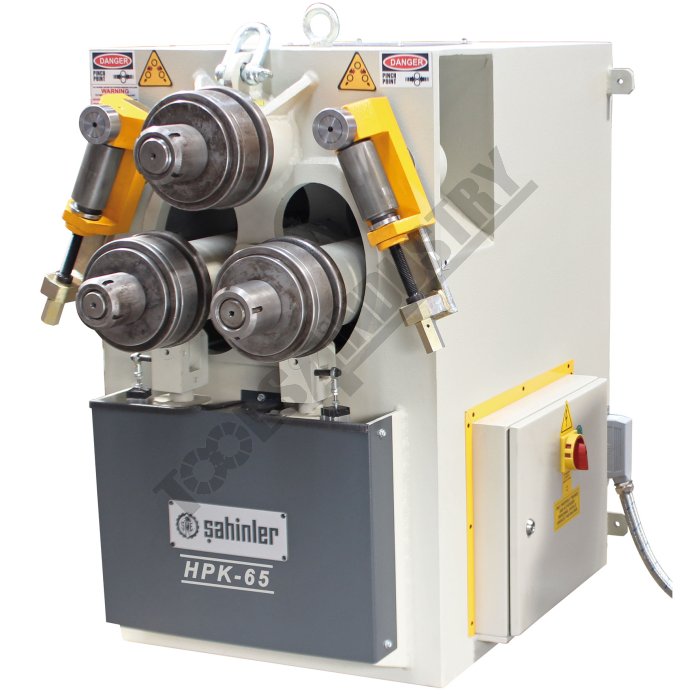

Machine can be set up in horizontal or vertical working position

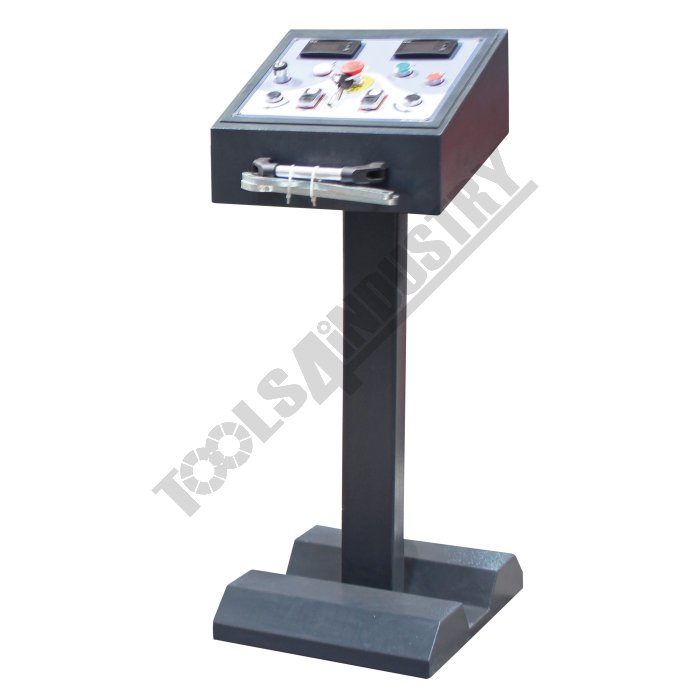

Roving foot pedal control with emergency stop
Three rollers are powered
European quality

Includes

Includes standard rolls and guide rolls
Independently adjustable hydraulic bottom rollers for pre-bend
Two digital readout display
3-Axis mechanical lateral angle guide rollers

Optional Accessories

Optioanl hydraulic lateral angle guide rolls

Videos

Specifications

Compare 6 Products
ORDER CODE
MODEL
Powered Driven RollsQty
Bending RollsType
Top Roll Shaft Diameter (Ø)mm
Lower Roll Shaft Diameter (Ø)mm
Top Roll Diameter (Ø)mm
Lower Roll Diameter (Ø)mm
Flat Bar Edge Capacity - MS (size / Ø)mm
Flat Bar Capacity - MS (size / Ø)mm
Square Bar Solid Capacity - MS (size / Ø)mm
Rectangle Tube Capacity - MS (size / Ø)mm
Square Tube Capacity - MS (size / Ø)mm
Round Bar Solid Capacity - MS (size / Ø)mm
Round Tube Capacity - MS (size / Ø)mm
Round Pipe Capacity - MS (size / Ø)inch / mm
Angle Capacity - MS (size / Ø)mm
Motor PowerkW / hp
Voltage / AmperageV / amp
Dimensions (L x W x H)mm
Note: Requires Additional ToolingNo / Yes*
Nett Weightkg

S754
HPK-65
3
Hydraulic - Left & Right
~
~
180
~
60 x 10 / 500
80 x 20 / 500
32 x 32 / 400
50 x 25 x 3 / 450*
45 x 45 x 3 / 600*
Ø35 / 350*
Ø60 x 2 / 600*
Ø2" x 3.91mm / 400mm*
60 x 60 x 6 / 650
3 / 4
415
1200 x 850 x 1200
Yes*
1000

S680
RR-5G
2 x Manual
Manual Bottom Right
~
~
~
~
~
25 x 3 / 125
~
~
~
Ø5 / 125
~
~
~
~
~
360 x 190 x 180
No
6

S681
RR-10
2 x Manual
Manual Top
~
~
98
~
30 x 10 / 500 - (20 x 5 / 190)
50 x 10 / 400 - (20 x 5 / 160)
20 x 20 / 500 - (10 x 10 / 160)
~
~
~
~
~
~
~
~
500 x 480 x 680
No
185

S682
RR-24
2
Manual Top
~
~
~
~
~
~
~
~
50 x 50 x 1.6 / 1000
~
Ø76 x 2 / 1520
~
~
1.1 / 1.5
240 / 10
740 x 630 x 1030
No
287

S745
PK-35F
2
Manual Top
50
50
155
155
60 x 10 / 500
100 x 15 / 450
35 x 35 / 900
50 x 40 x 3 / 1200*
50 x 50 x 3 / 1700*
Ø35 / 600*
Ø70 x 2 / 1000*
Ø2" x 2.9mm / 1000mm*
50 x 50 x 5 / 1000 mm*
1.5 / 2
240 / 10
750 x 1000 x 1400
Yes* (S7455 for angle capacity)
400

S750
HPK-50
3
Hydraulic Top
50
50
152
162
60 x 10 / 600
100 x 15 / 600
35 x 35 / 600
70 x 30 x 3 / 1500*
50 x 50 x 3 / 1600*
Ø35 / 600*
Ø70 x 2 / 1200*
Ø2" x 2.9mm / 1000mm*
50 x 50 x 6 / 600
1.1 / 1.5
415
810 x 950 x 1500
Yes*
500

ORDER CODE	HPK-65
MODEL	3
Powered Driven RollsQty	Hydraulic - Left & Right
Bending RollsType	~
Top Roll Shaft Diameter (Ø)mm	~
Lower Roll Shaft Diameter (Ø)mm	180
Top Roll Diameter (Ø)mm	~
Lower Roll Diameter (Ø)mm	60 x 10 / 500
Flat Bar Edge Capacity - MS (size / Ø)mm	80 x 20 / 500
Flat Bar Capacity - MS (size / Ø)mm	32 x 32 / 400
Square Bar Solid Capacity - MS (size / Ø)mm	50 x 25 x 3 / 450*
Rectangle Tube Capacity - MS (size / Ø)mm	45 x 45 x 3 / 600*
Square Tube Capacity - MS (size / Ø)mm	Ø35 / 350*
Round Bar Solid Capacity - MS (size / Ø)mm	Ø60 x 2 / 600*
Round Tube Capacity - MS (size / Ø)mm	Ø2" x 3.91mm / 400mm*
Round Pipe Capacity - MS (size / Ø)inch / mm	60 x 60 x 6 / 650
Angle Capacity - MS (size / Ø)mm	3 / 4
Motor PowerkW / hp	415
Voltage / AmperageV / amp	1200 x 850 x 1200
Dimensions (L x W x H)mm	Yes*
Note: Requires Additional ToolingNo / Yes*	1000
Nett Weightkg
