Code	S750
Model	HPK-50
Capacity	50 x 50 x 6mm Angle Capacity
Weight (kg)	500
Weight (m³)	1.154
Weight (Freight)	500
Dimensions (cm)	81 x 95 x 150

Product Brochure Instruction Manual [2 MB]Section Rolling Machine Risk Assessment

Section & Pipe Rolling Machine HPK-50 50 x 50 x 6mm Angle Capacity

Description

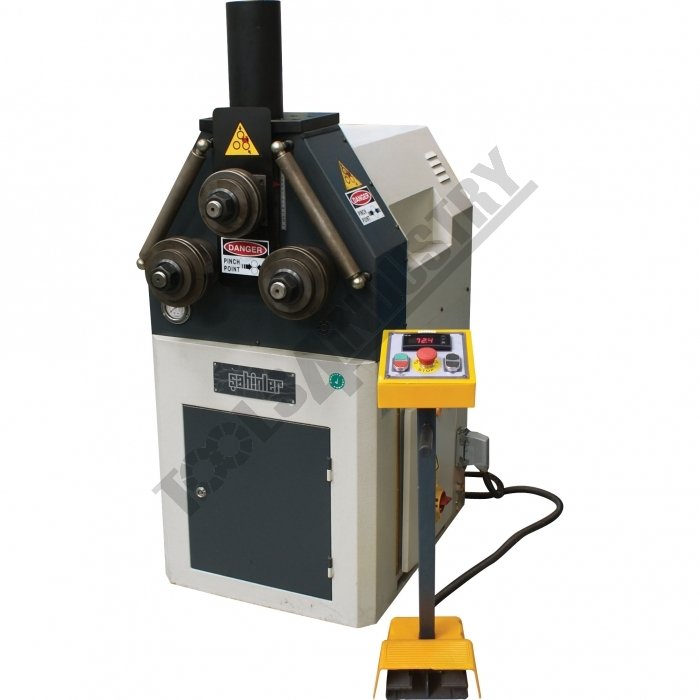

The Sahinler HPK-50 hydraulic section & pipe rolling machine is designed to roll various material sections. This model has a single hydraulic ram to adjust the top roll, and can be operated in either vertical or horizontal position. The standard rolls supplied with the machine are hardened and have been designed to bend most sections, avoiding the cost of additional tooling.

Features

All three rolls are driven for excellent traction
Rolls are hardened & made from high quality steel

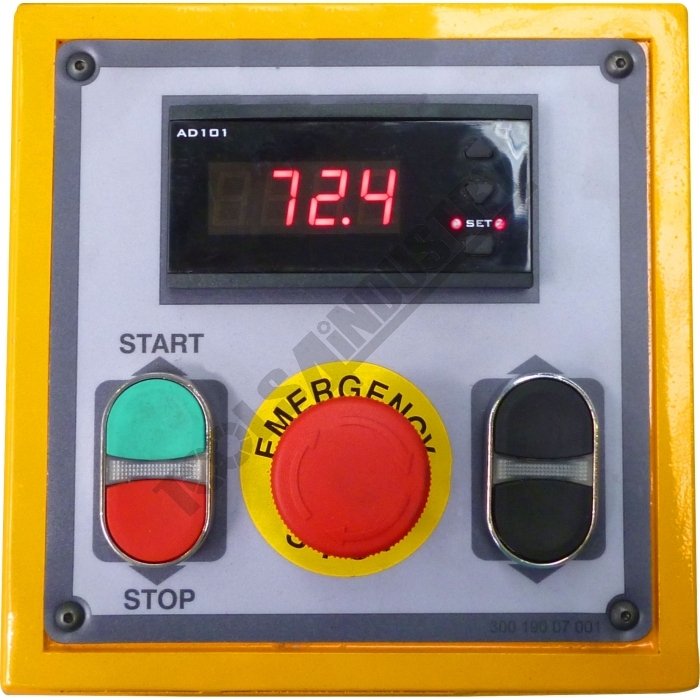

Digital readout display for top roll position
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position
Roving foot pedal control with emergency stop
Standard rolls and guide rolls are included
European quality

Includes

DRO counter for top roll position
Hydraulic top roller adjustment
Three rollers are powered

Videos

Specifications

Compare 6 Products
ORDER CODE
MODEL
Powered Driven RollsQty
Bending RollsType
Top Roll Shaft Diameter (Ø)mm
Lower Roll Shaft Diameter (Ø)mm
Top Roll Diameter (Ø)mm
Lower Roll Diameter (Ø)mm
Flat Bar Edge Capacity - MS (size / Ø)mm
Flat Bar Capacity - MS (size / Ø)mm
Square Bar Solid Capacity - MS (size / Ø)mm
Rectangle Tube Capacity - MS (size / Ø)mm
Square Tube Capacity - MS (size / Ø)mm
Round Bar Solid Capacity - MS (size / Ø)mm
Round Tube Capacity - MS (size / Ø)mm
Round Pipe Capacity - MS (size / Ø)inch / mm
Angle Capacity - MS (size / Ø)mm
Motor PowerkW / hp
Voltage / AmperageV / amp
Dimensions (L x W x H)mm
Note: Requires Additional ToolingNo / Yes*
Nett Weightkg

S750
HPK-50
3
Hydraulic Top
50
50
152
162
60 x 10 / 600
100 x 15 / 600
35 x 35 / 600
70 x 30 x 3 / 1500*
50 x 50 x 3 / 1600*
Ø35 / 600*
Ø70 x 2 / 1200*
Ø2" x 2.9mm / 1000mm*
50 x 50 x 6 / 600
1.1 / 1.5
415
810 x 950 x 1500
Yes*
500

S754
HPK-65
3
Hydraulic - Left & Right
~
~
180
~
60 x 10 / 500
80 x 20 / 500
32 x 32 / 400
50 x 25 x 3 / 450*
45 x 45 x 3 / 600*
Ø35 / 350*
Ø60 x 2 / 600*
Ø2" x 3.91mm / 400mm*
60 x 60 x 6 / 650
3 / 4
415
1200 x 850 x 1200
Yes*
1000

S680
RR-5G
2 x Manual
Manual Bottom Right
~
~
~
~
~
25 x 3 / 125
~
~
~
Ø5 / 125
~
~
~
~
~
360 x 190 x 180
No
6

S681
RR-10
2 x Manual
Manual Top
~
~
98
~
30 x 10 / 500 - (20 x 5 / 190)
50 x 10 / 400 - (20 x 5 / 160)
20 x 20 / 500 - (10 x 10 / 160)
~
~
~
~
~
~
~
~
500 x 480 x 680
No
185

S682
RR-24
2
Manual Top
~
~
~
~
~
~
~
~
50 x 50 x 1.6 / 1000
~
Ø76 x 2 / 1520
~
~
1.1 / 1.5
240 / 10
740 x 630 x 1030
No
287

S745
PK-35F
2
Manual Top
50
50
155
155
60 x 10 / 500
100 x 15 / 450
35 x 35 / 900
50 x 40 x 3 / 1200*
50 x 50 x 3 / 1700*
Ø35 / 600*
Ø70 x 2 / 1000*
Ø2" x 2.9mm / 1000mm*
50 x 50 x 5 / 1000 mm*
1.5 / 2
240 / 10
750 x 1000 x 1400
Yes* (S7455 for angle capacity)
400

ORDER CODE	HPK-50
MODEL	3
Powered Driven RollsQty	Hydraulic Top
Bending RollsType	50
Top Roll Shaft Diameter (Ø)mm	50
Lower Roll Shaft Diameter (Ø)mm	152
Top Roll Diameter (Ø)mm	162
Lower Roll Diameter (Ø)mm	60 x 10 / 600
Flat Bar Edge Capacity - MS (size / Ø)mm	100 x 15 / 600
Flat Bar Capacity - MS (size / Ø)mm	35 x 35 / 600
Square Bar Solid Capacity - MS (size / Ø)mm	70 x 30 x 3 / 1500*
Rectangle Tube Capacity - MS (size / Ø)mm	50 x 50 x 3 / 1600*
Square Tube Capacity - MS (size / Ø)mm	Ø35 / 600*
Round Bar Solid Capacity - MS (size / Ø)mm	Ø70 x 2 / 1200*
Round Tube Capacity - MS (size / Ø)mm	Ø2" x 2.9mm / 1000mm*
Round Pipe Capacity - MS (size / Ø)inch / mm	50 x 50 x 6 / 600
Angle Capacity - MS (size / Ø)mm	1.1 / 1.5
Motor PowerkW / hp	415
Voltage / AmperageV / amp	810 x 950 x 1500
Dimensions (L x W x H)mm	Yes*
Note: Requires Additional ToolingNo / Yes*	500
Nett Weightkg
