Code	Q5105
Model	34-5105
Capacity	0-80mm
Weight (kg)	0.36
Weight (m³)	0.001
Weight (Freight)	0.36
Dimensions (cm)	13 x 8 x 5.5

MEASUMAX

1 Year Warranty

Product Brochure

Indicator - Long Range Dial 34-5105 0-80mm

Features

Steel Body with black & white steel bezel
Shock proof movement
Jeweled movement
Steel back with lug
Lifting screw and revolution counter
Supplied in wooden case

Specifications

Compare 2 Products

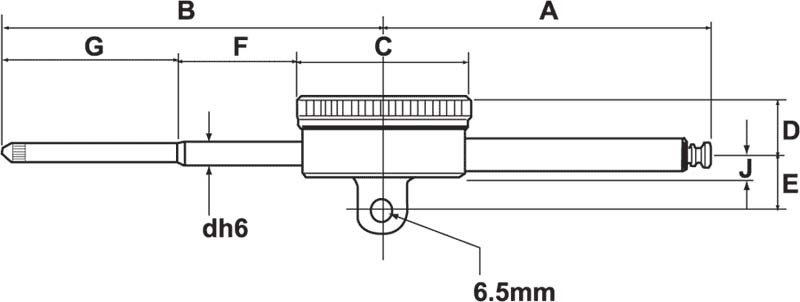

ORDER CODE
Rangemm
Graduationsmm
Amm
Bmm
Cmm
Dmm
Emm
Fmm
Gmm

Q5105
0 - 80mm
0.01mm
138.4
168.4
58
19.2
19.3
51.3
88

Q510
0 - 50mm
0.01mm
108.3
126.2
58
19.2
19.3
39.5
57.7

ORDER CODE	0 - 80mm
Rangemm	0.01mm
Graduationsmm	138.4
Amm	168.4
Bmm	58
Cmm	19.2
Dmm	19.3
Emm	51.3
Fmm	88
Gmm
