Code	Q510
Model	34-510
Capacity	0-50mm
Weight (kg)	0.36
Weight (m³)	0.001
Weight (Freight)	0.36
Dimensions (cm)	13 x 8 x 5.5

MEASUMAX

1 Year Warranty

Product Brochure

Indicator - Long Range Dial 34-510 0-50mm

Features

Steel Body with black & white steel bezel
Shock proof movement
Jeweled movement
Steel back with lug
Lifting screw and revolution counter
Supplied in wooden case

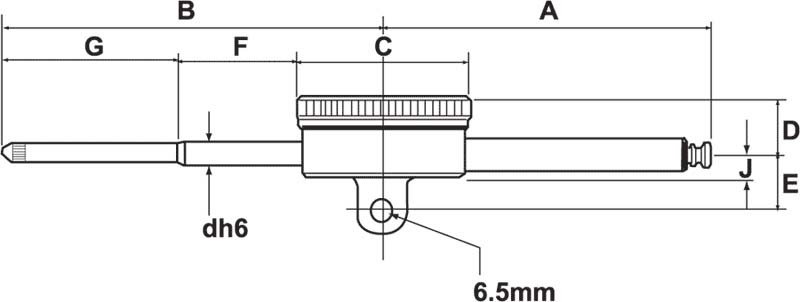

Specifications

Compare 2 Products
ORDER CODE
Rangemm
Graduationsmm
Amm
Bmm
Cmm
Dmm
Emm
Fmm
Gmm

Q510
0 - 50mm
0.01mm
108.3
126.2
58
19.2
19.3
39.5
57.7

Q5105
0 - 80mm
0.01mm
138.4
168.4
58
19.2
19.3
51.3
88

ORDER CODE	0 - 50mm
Rangemm	0.01mm
Graduationsmm	108.3
Amm	126.2
Bmm	58
Cmm	19.2
Dmm	19.3
Emm	39.5
Fmm	57.7
Gmm

Recommended Accessories

Q2165

Ø10mm Flat Contact for Dial Indicators

Thread M2.5 x 0.45mm

Code: Q2165

Q2167

Contact Point for Dial Indicators

Thread M2.5 x 0.45mm

Code: Q2167

Q2125

Back Plate with Lug for Dial Indicators

Ø51.44mm

Code: Q2125

M050

Magnetic Base - Standard

60kg Holding Power

Code: M050

M051

Magnetic Base - Deluxe - One Lock

60kg Holding Power

Code: M051

Q430

Magnetic Base - Small
38-430
30kg Holding Power

Code: Q430

Q435

Magnetic Base - Large
38-435
80kg Holding Power

Code: Q435

Q4351

Magnetic Base - Large
38-4351
60kg Holding Power

Code: Q4351

Q436

Magnetic Base - One Lock (Large)
38-436
80kg Holding Power

Code: Q436
